About this product
- Size: 45*55*75CM
- Color: china
- Accuracy: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Chongqing, China
About this product
- Size: 45*55*75CM
- Color: china
- Accuracy: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Chongqing, China
Product details
| Size | 45*55*75CM |
|---|---|
| Color | china |
| Accuracy | Other |
From the supplier
Product Description:
Are you looking for a tool to change the traditional downhole inspection to completely change your drilling inspection process? The most advanced rotary borehole inspection camera is your best choice. Provides unparalleled clarity and accuracy in detecting potential problems, making it a must for any professional. With its advanced technology and user-friendly design, rotary borehole inspection camera is guaranteed to take your inspection to a new level. Don't miss this opportunity to change, make a wise choice immediately, try our rotary drill check camera rotary borehole inspection camera!
Main Feature:
• High-resolution camera, and clear image of the well wall.
• The rotating head can achieve a 360-degree viewing ability.
• Adjustable LED lamp to achieve optimal lighting in the dark environment.
• Remote control operation, convenient control.
• Waterproof and durable structure, suitable for use in harsh conditions.
• Cable length is long and suitable for deep hole inspection.
• Real-time monitoring of real-time video streams.
• Off-board recording function for lens capture.
• Image stabilization technology, the image is clear and stable.
• Compatibility with various bore sizes and shapes.
Technical Specification:
Camera
Camera head diameter
75mm
Viewing angle
horizontal 360°, vertical 180°
Function
Focus/ Light
sensor
Sony 1/3 Inch CCD, 0.1Lux
Pixel
1024*768 Pixel

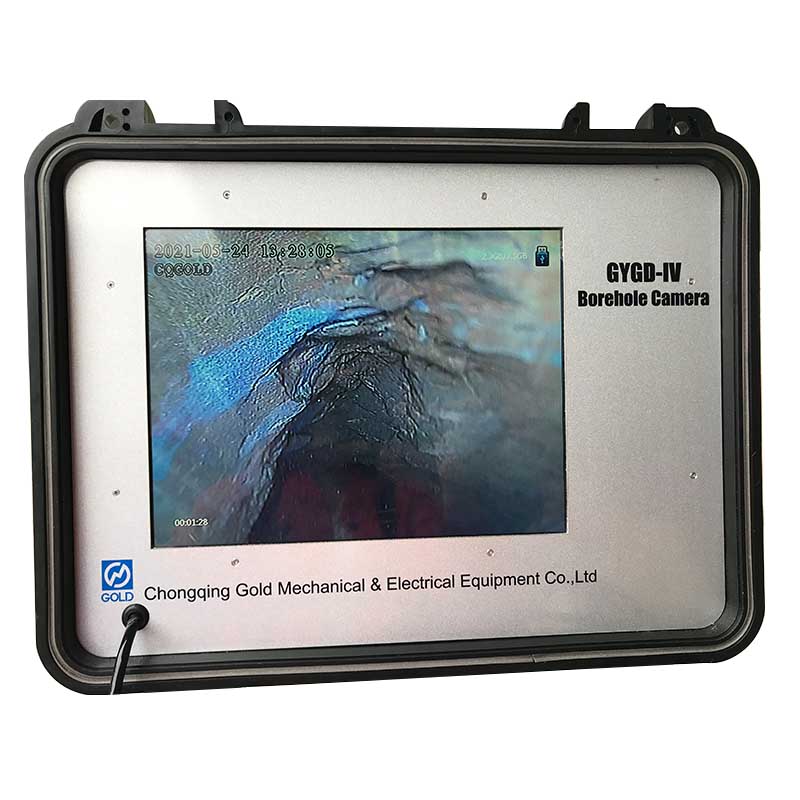

Monitor
Resolution
850TVL
Storage
SD Card/ U-Disk, Standard 16G, 32G Optional
Screen
12- Inch 4:3
Control
Keyboard to input information
Electrical Wheel
Power supply
AC 220V 50HZ (DC12/24 Optional)
Inspect depth
500m
Electric wire winder
Manual/Automatic

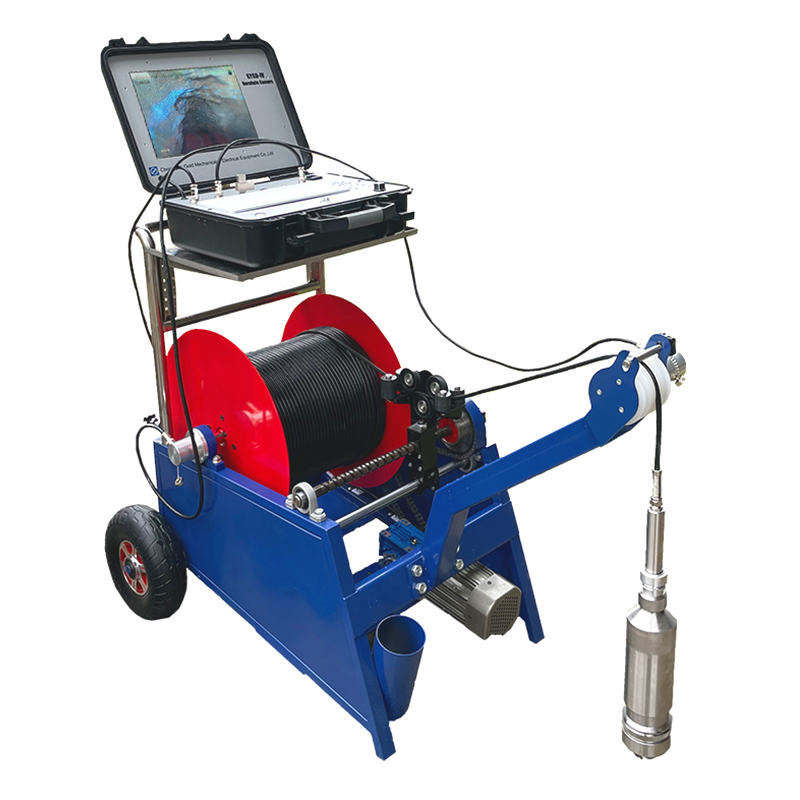

Field operation diagram:

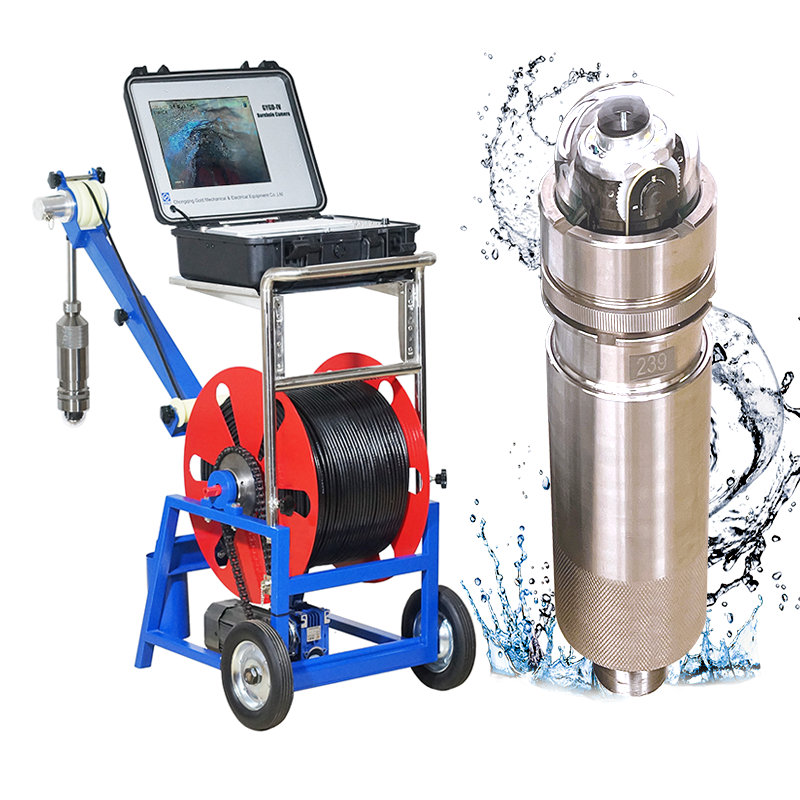

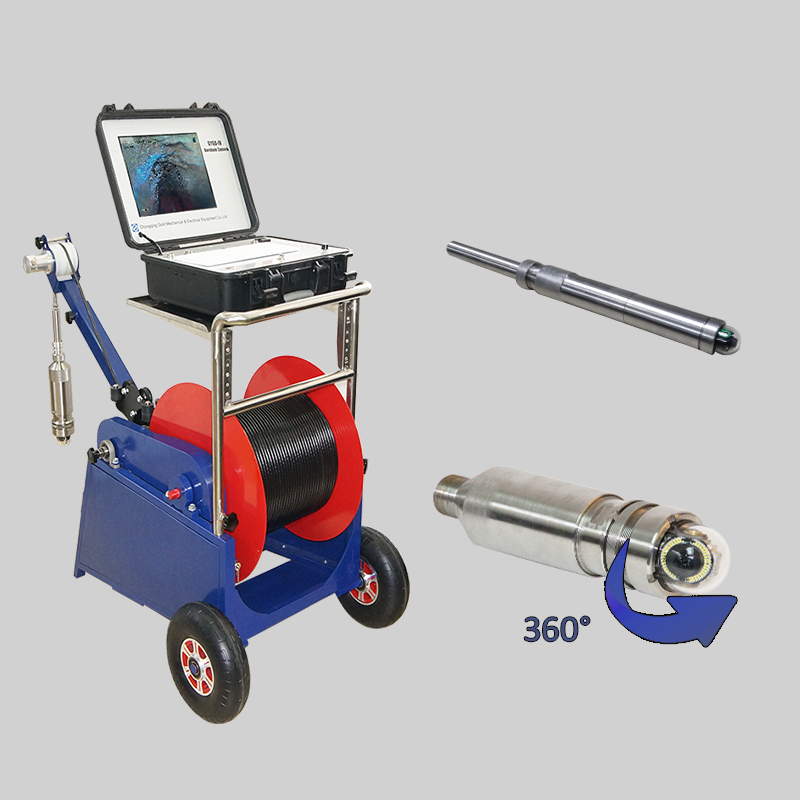

Two models of probes:

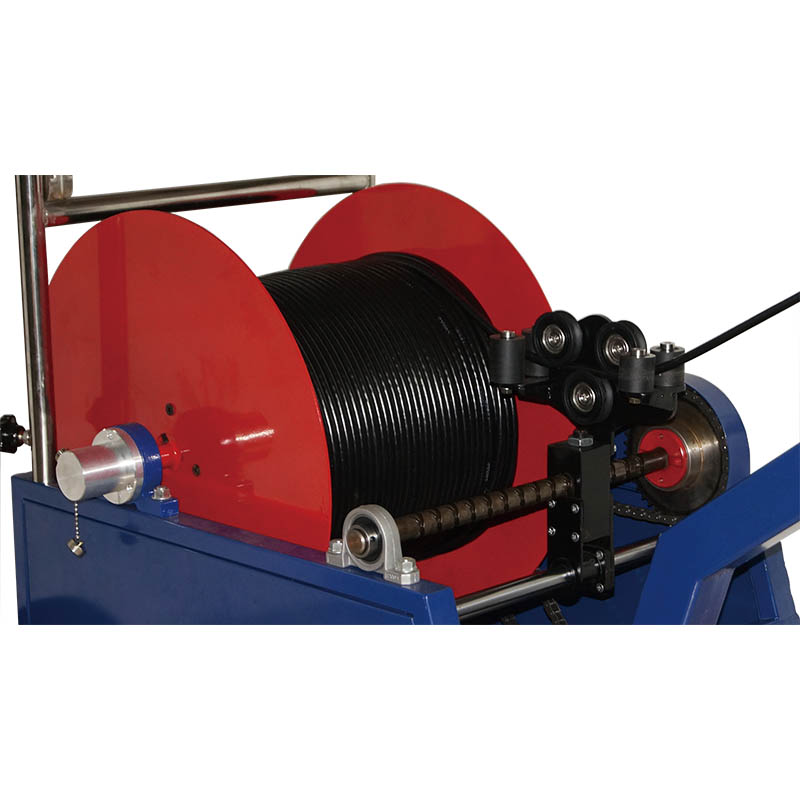

Two models of winches:
