About this product
- Materials: Steel
- Size: 2710*820*1560
- Color: Blue + White
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia, EU, Other European Countries, Others
- Made in: Ningxia, China
About this product
- Materials: Steel
- Size: 2710*820*1560
- Color: Blue + White
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia, EU, Other European Countries, Others
- Made in: Ningxia, China
Product details
| Materials | Steel |
|---|---|
| Size | 2710*820*1560 |
| Color | Blue + White |
Product details
| Materials | Steel |
|---|---|
| Size | 2710*820*1560 |
| Color | Blue + White |
From the supplier

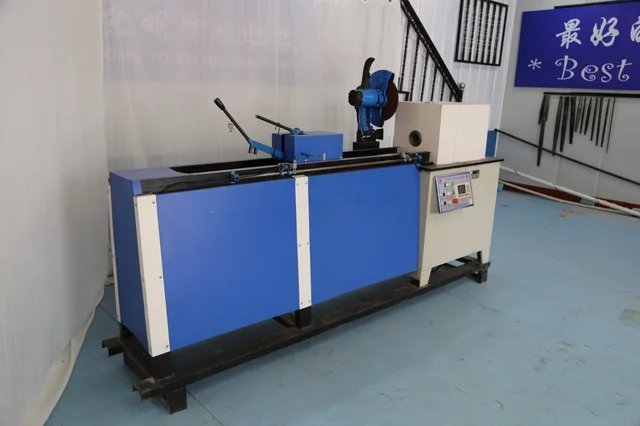

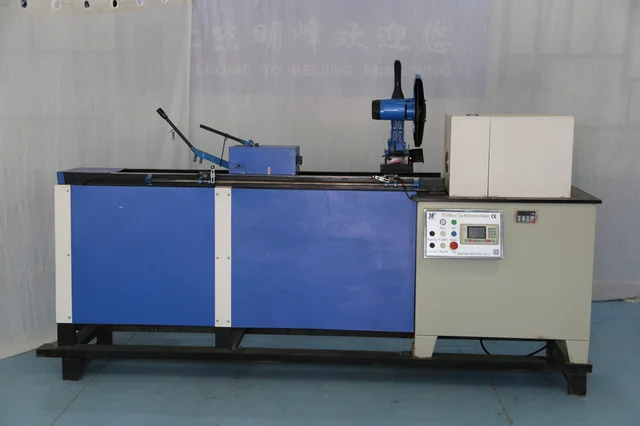

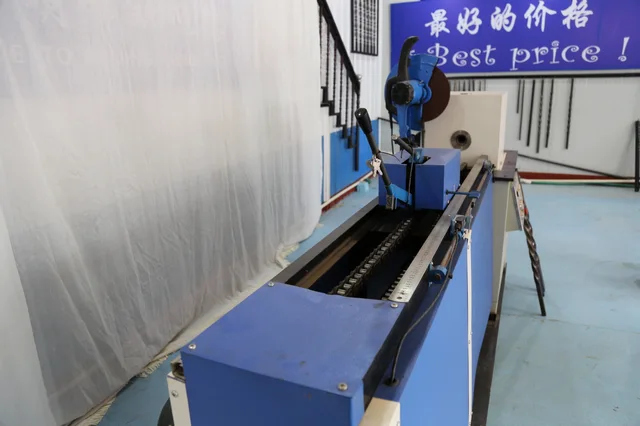

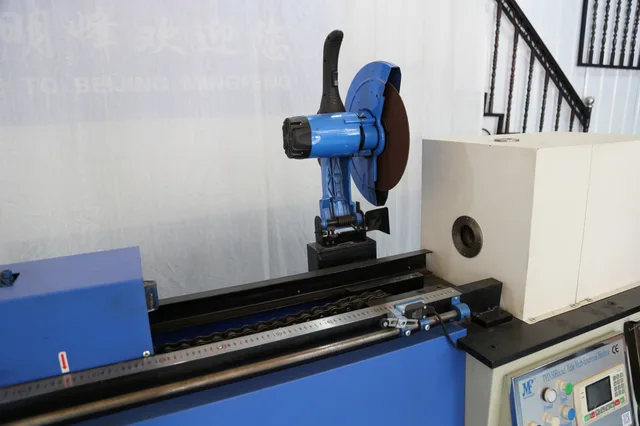

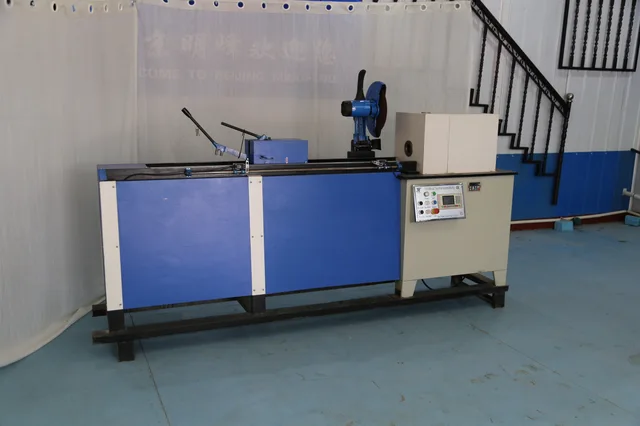

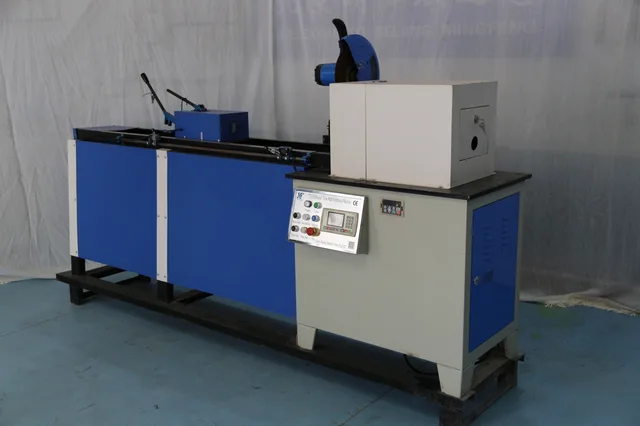

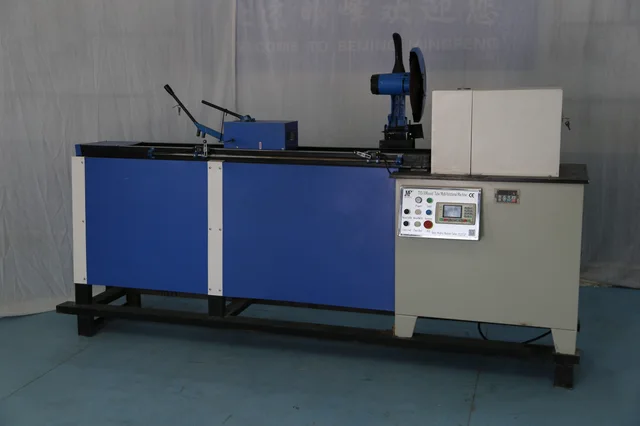

TYD-50 multifunctional round tube making machine is a new type of tube processing equipment developed according to market needs. This machine can draw round tubes into square tubes, and can also change different molds into other shapes (such as oval Machine, semi-circle), and in the process of pulling the round tube into a square tube, the square tube is twisted into a screw shape (can be continuously twisted, segmented twist, positive and negative twist). The round tube can also be twisted into a spiral shape. This machine has better aesthetics in tube processing, reduced cost, and saved labor. It is an indispensable equipment in the tube processing industry.
Technical parameters and machining capacity:
- Maximum thickness of the processable tube: 0.6-2.0mm;
- Processable tube scope:∮16//50mm;
- Processable square tube scope:12*12//40*40mm;
- Twisting scope: round tube :16//50mm; Square tube: 12*12//40*40mm; Square steel: 12*12//20*20mm; Flat Steel: Below 30*5;
- Power of the motor: Headstock: 3.7kw; Guide:2.2kw; Three phase, 380V/50HZ;
- External dimension: 2710*820*1560mm;
- Package dimension: 2740*920*1610mm;
- Net weight: 550kg;
- Gross weight: 660kg.
From the supplier
TYD-50 multifunctional round tube making machine is a new type of tube processing equipment developed according to market needs. This machine can draw round tubes into square tubes, and can also change different molds into other shapes (such as oval Machine, semi-circle), and in the process of pulling the round tube into a square tube, the square tube is twisted into a screw shape (can be continuously twisted, segmented twist, positive and negative twist). The round tube can also be twisted into a spiral shape. This machine has better aesthetics in tube processing, reduced cost, and saved labor. It is an indispensable equipment in the tube processing industry.
Technical parameters and machining capacity:
- Maximum thickness of the processable tube: 0.6-2.0mm;
- Processable tube scope:∮16//50mm;
- Processable square tube scope:12*12//40*40mm;
- Twisting scope: round tube :16//50mm; Square tube: 12*12//40*40mm; Square steel: 12*12//20*20mm; Flat Steel: Below 30*5;
- Power of the motor: Headstock: 3.7kw; Guide:2.2kw; Three phase, 380V/50HZ;
- External dimension: 2710*820*1560mm;
- Package dimension: 2740*920*1610mm;
- Net weight: 550kg;
- Gross weight: 660kg.
