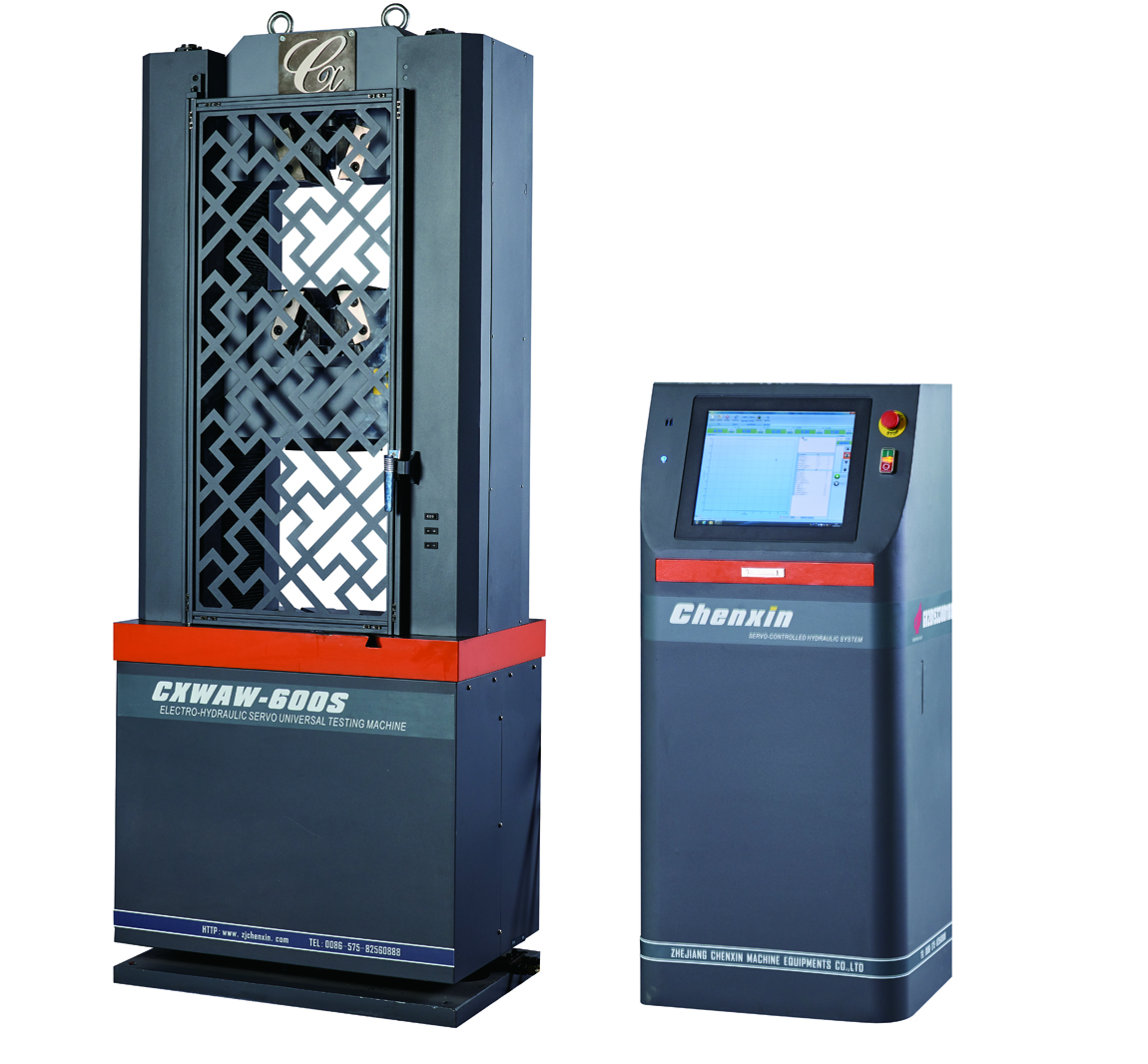

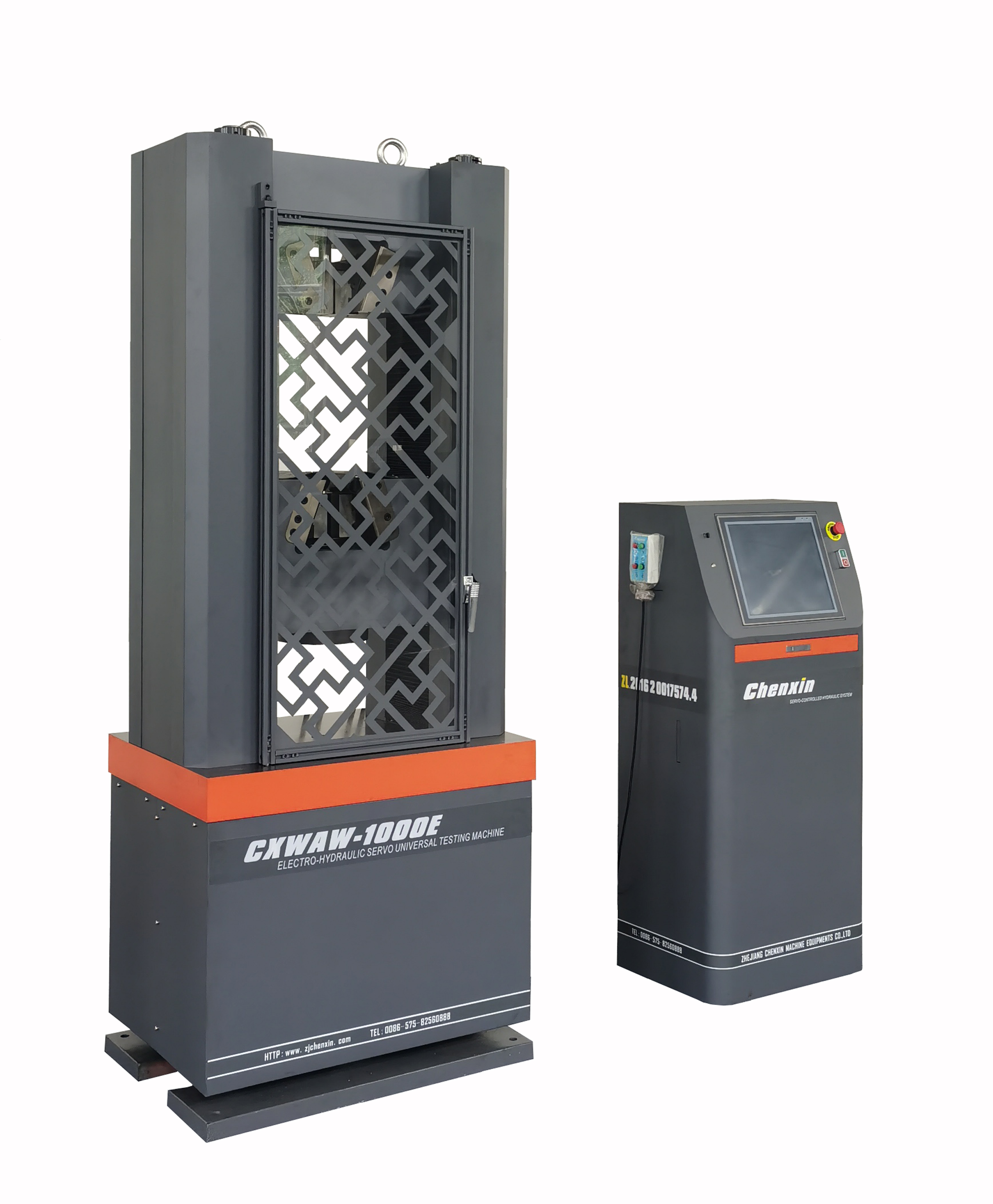

Use：
It is suitable for doing testing experiments such as the tensile, compression, bending and shear testing for all kinds of metal materials and nonmetal materials such as plastic, concrete, cement and so on.
    The oil cylinder is set on the bottom in the machine, and with double space frames, the test space can be adjusted automatically. The control unit is composed of computer and control system, it process stress, strain and displacement control modes, the test data can be stored at will, and the data and curves can be reanalyzed, part amplified and data re-edition, test conditions (specimen, measurement) are programmable, all the mechanical properties can be obtained automatically, and print whole test report and curve.

Standard:
    It accords with the relative requirements of ISO, ASTM, JIN, GB and many other testing methods. EN10002-1, ISO 6892, ASTM E8, ASTM C39, ASTM F606, SAE J429, CE Compliant

Feature:
    Using servo motor driven mute pump. These frames feature are dual spaces, so users can quickly change between tension and compression testing without having to remove heavy fixtures. Control console withintegrated hydraulic power pack, precise loading regulator and unloading valves, Extra-length screws andcolumns, with an adjustable upper crosshead, to increase the available test space for longer test samples. Semi-open front hydraulic wedge clamps for easier loading and rapid loading and unloading of specimens.

Accessories:
    Main frame; Control console; Controller and sensor; Computer and software; Hydraulic oil pipe and control button box; Sample jaw three sets; Bend support saddle; Bend pressure energy; Spheric compression plate; Lower compression plate; Top board; Ground screw and nut; Inner hexagon spanner; Double offset ring spanner; Other accessories full sets.
