The machine adopts AC220V, mainly used for concrete compression strength test in lab. It is also applicable for compression strength test to firebrick and other material. It meets the standard request of GB/T50081-2002 \"Common Concrete Mechanical property Test Method\", JJG139-1999 \"Tension, Compression and Universal Testing Machine (Verification Regulation)\", GB/T2611-92 \"Testing Machine Common Technology\". It also meets the request of ISO, JIS, ASTM, DIN and so on.

Model CXYE LCD display compression testing machine has the following innovative advantages:

1.   Industry initiative adopts 220V DC power, effectively solve the distress of without industry power or industry power with unstable voltage；

2.   The machine frame is innovative designed according to human body mechanics principle and Chinese physical. It makes easy operation, accuracy test, and highly improves the operating comfort level and fun of operating. The appearance of the machine has already gotten the national patent;

3.   National initiative organic combine the frequency servo technology with high efficiency hydraulic control technology, and apply it to the machine, with the following advantages:

1. With this technique, it highly reduces the working heating and power consumption, Power consumption is more than 30% lower than others;
2. Effectively control the noise. Noise without load is lower than 55dB, noise with load is lower than 50dB.；

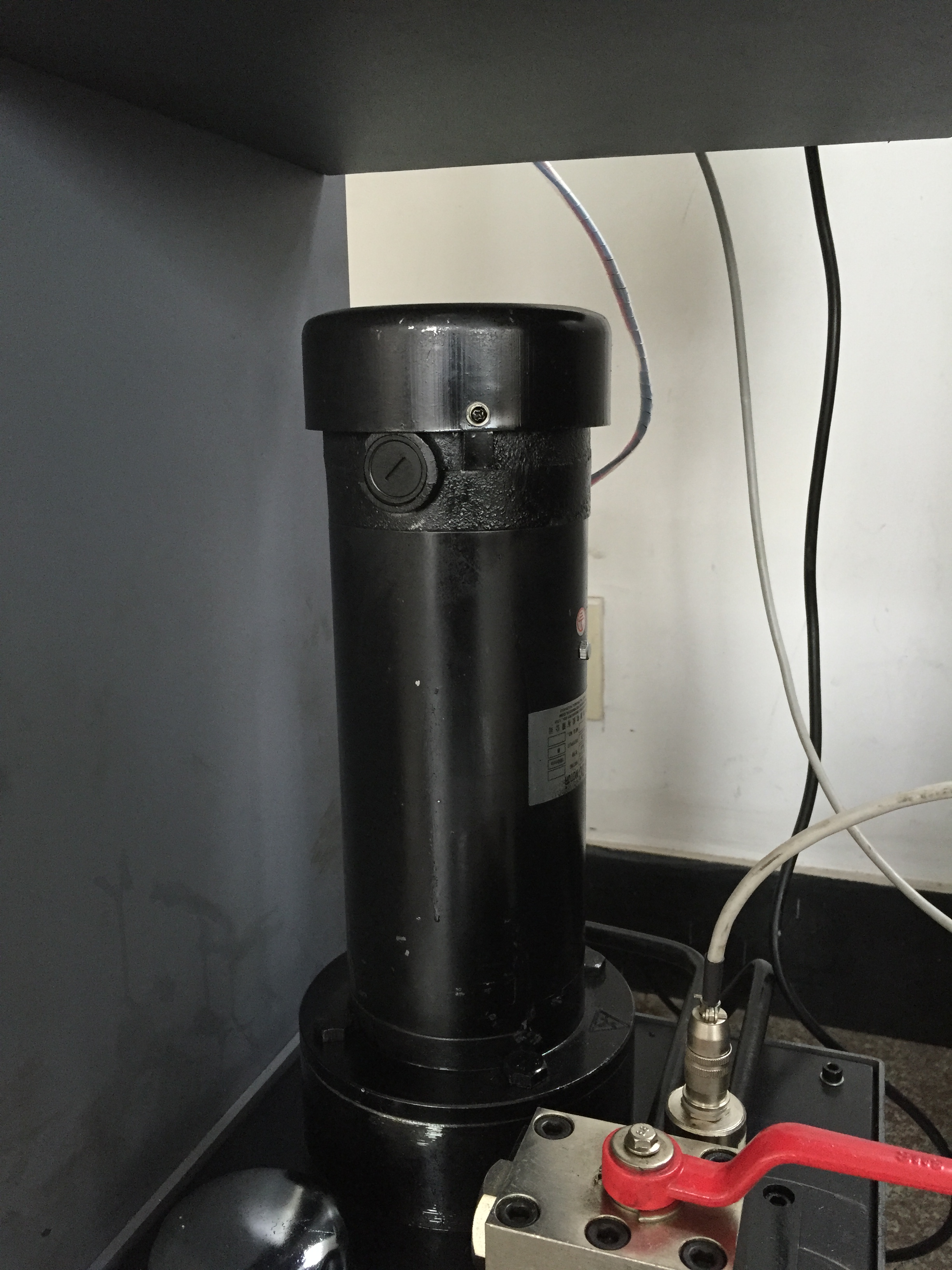

4.  The machine adopts DC motor and imported radial plunger pump as the compression hydraulic control power and control unit;

1. Advanced DC servo motor group instead of regular oil supply valve, highly improved the work efficient and intensity;
2. Re-designed oil cylinder structure reduces the system work pressure, improves the oil cylinder return speed, makes the work faster and easier;

5.   It utilizes the high accuracy thin film pressure transducer as acquisition unit, with very good stability, high force resolution (up to 1/300000), highly improved the test result accuracy.

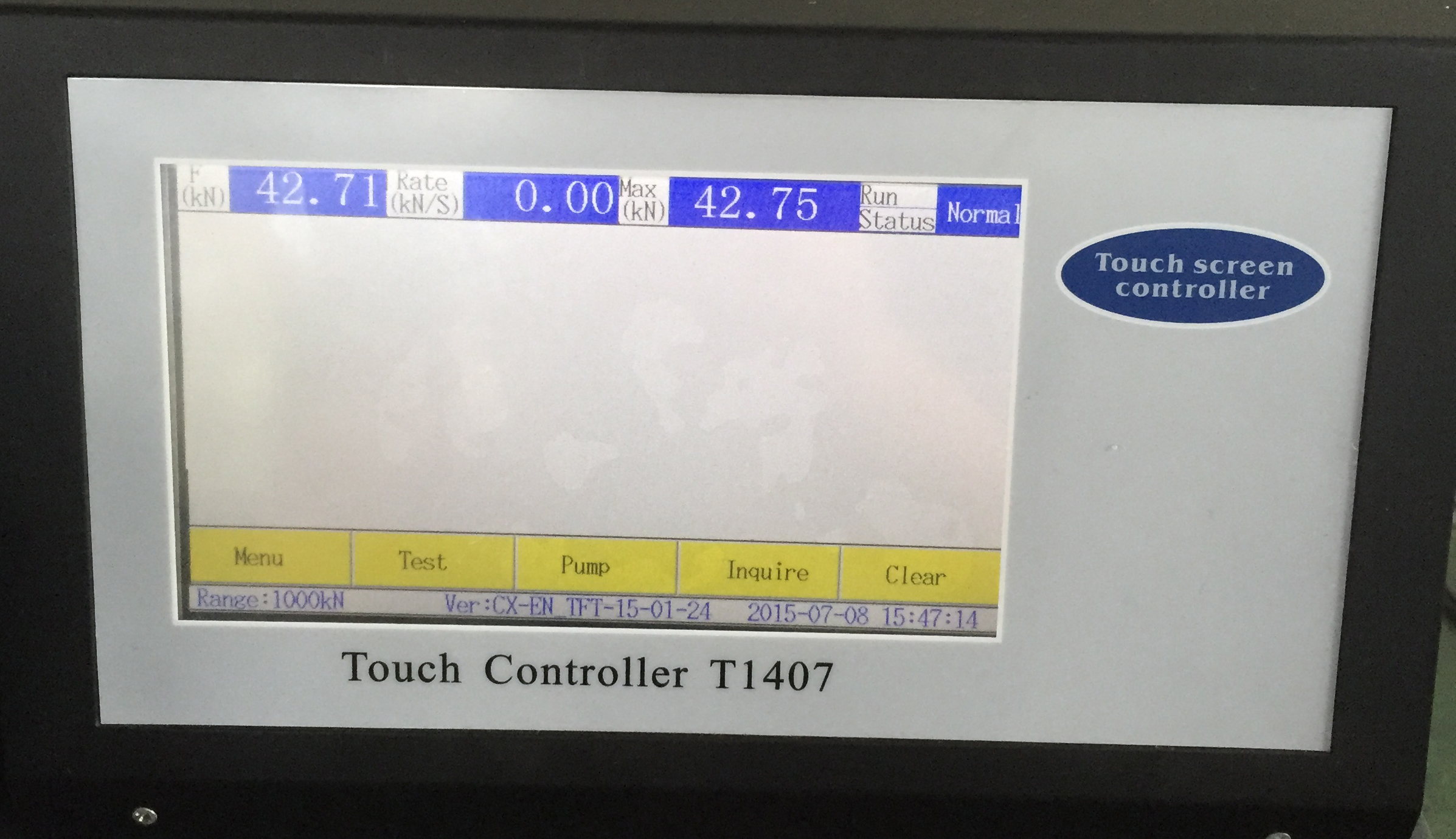

6.  The machine is a single chip machine, operating easy, has the function of data upload with domestic mainstream networking company.

\n \n Normal\n 0\n \n \n \n 7.8 lbs\n 0\n 2\n \n false\n false\n false\n \n EN-US\n ZH-CN\n X-NONE\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n\n\n\n\n

Max. test force

2000KN

3000KN

Force range

2~100%F.S

Testing space

240x240x80~340mm

290x290x80~450mm

Piston stroke

80mm

Readout accuracy

≤±1%

Motor power

0.75kW

Machine size

700x340x1000mm

960x500x1200mm

Net weight

500Kg

900Kg

"}
