Electronic Tensile Testing Machine
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
Electronic Tensile Testing Machine
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Materials: steel
- Size: 670*380*1650mm
- Color: dark gray
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
About this product
- Materials: steel
- Size: 670*380*1650mm
- Color: dark gray
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
Product details
| Materials | steel |
|---|---|
| Size | 670*380*1650mm |
| Color | dark gray |
From the supplier

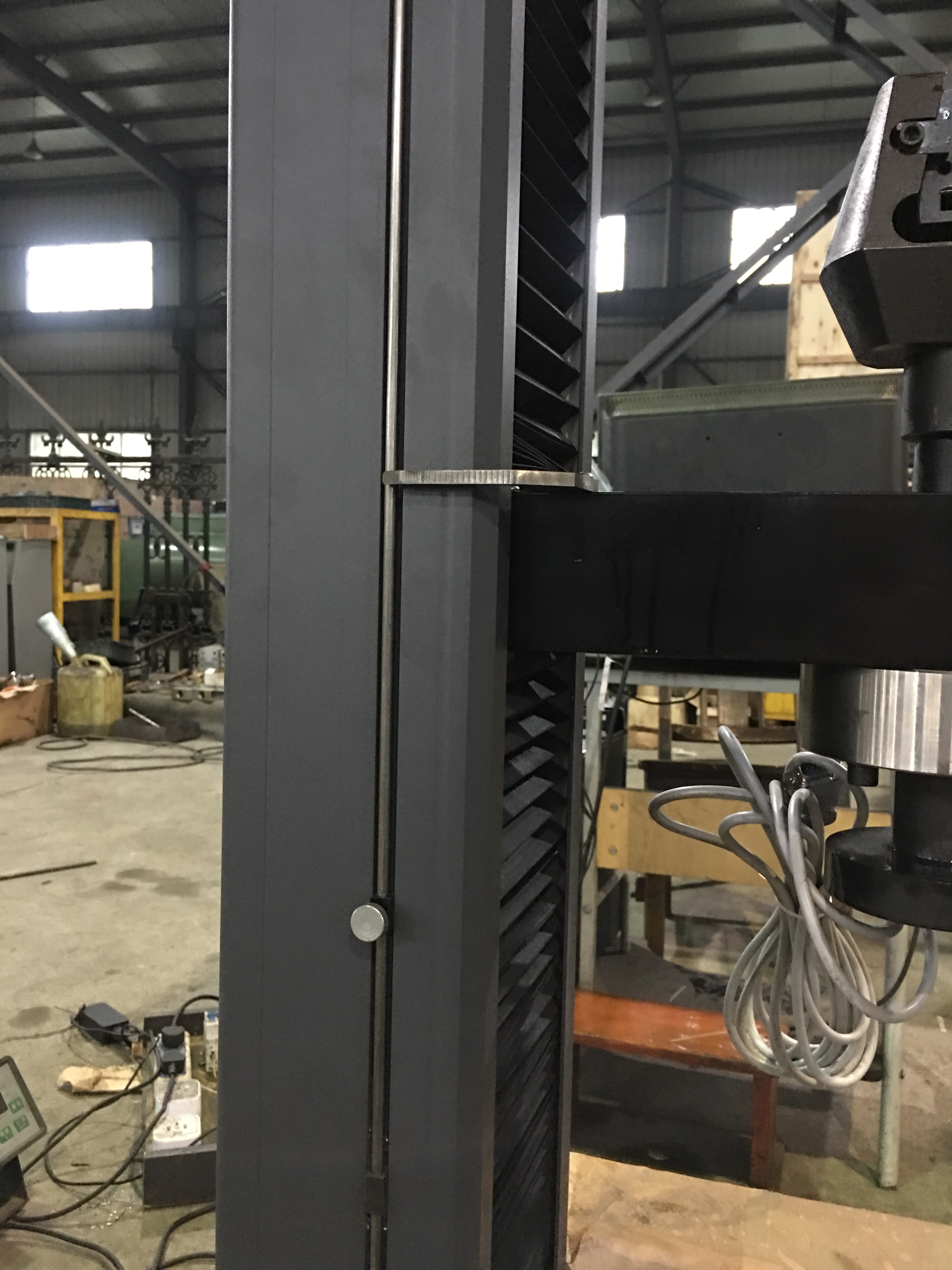

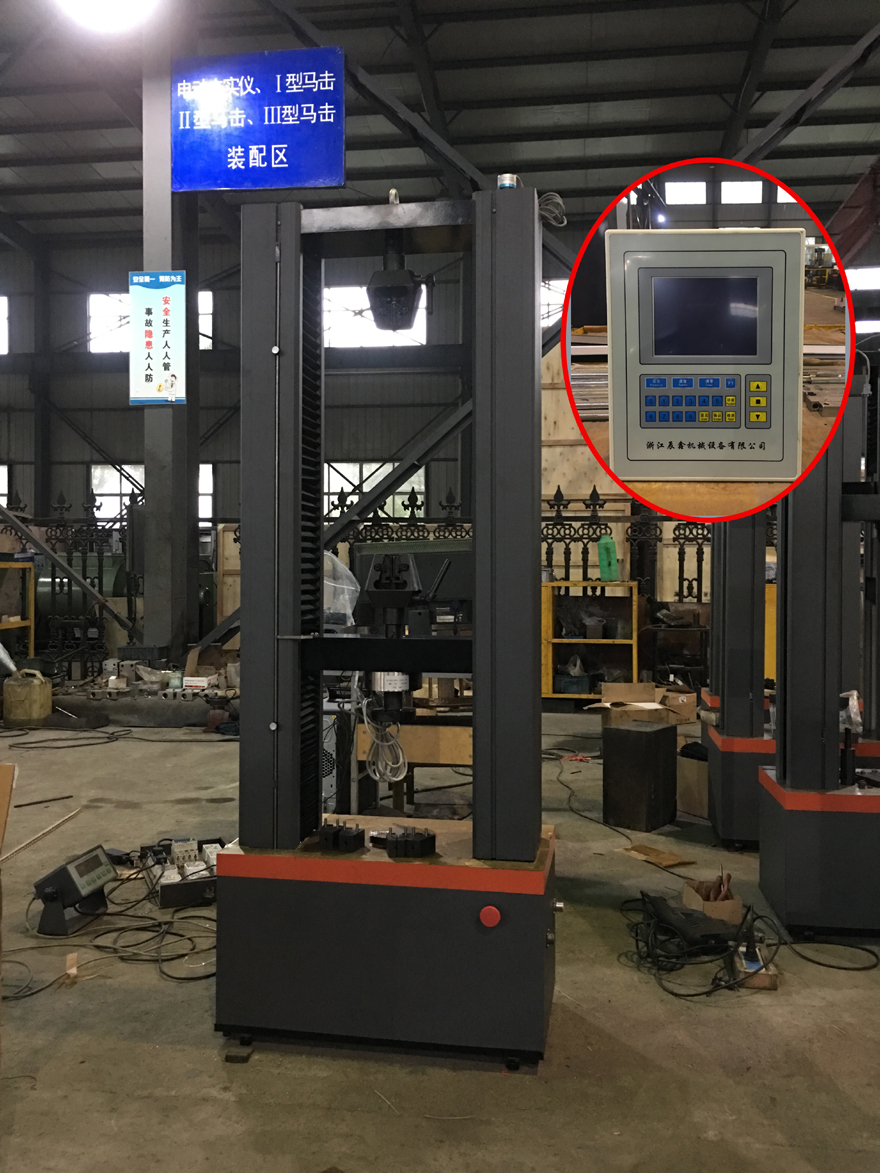

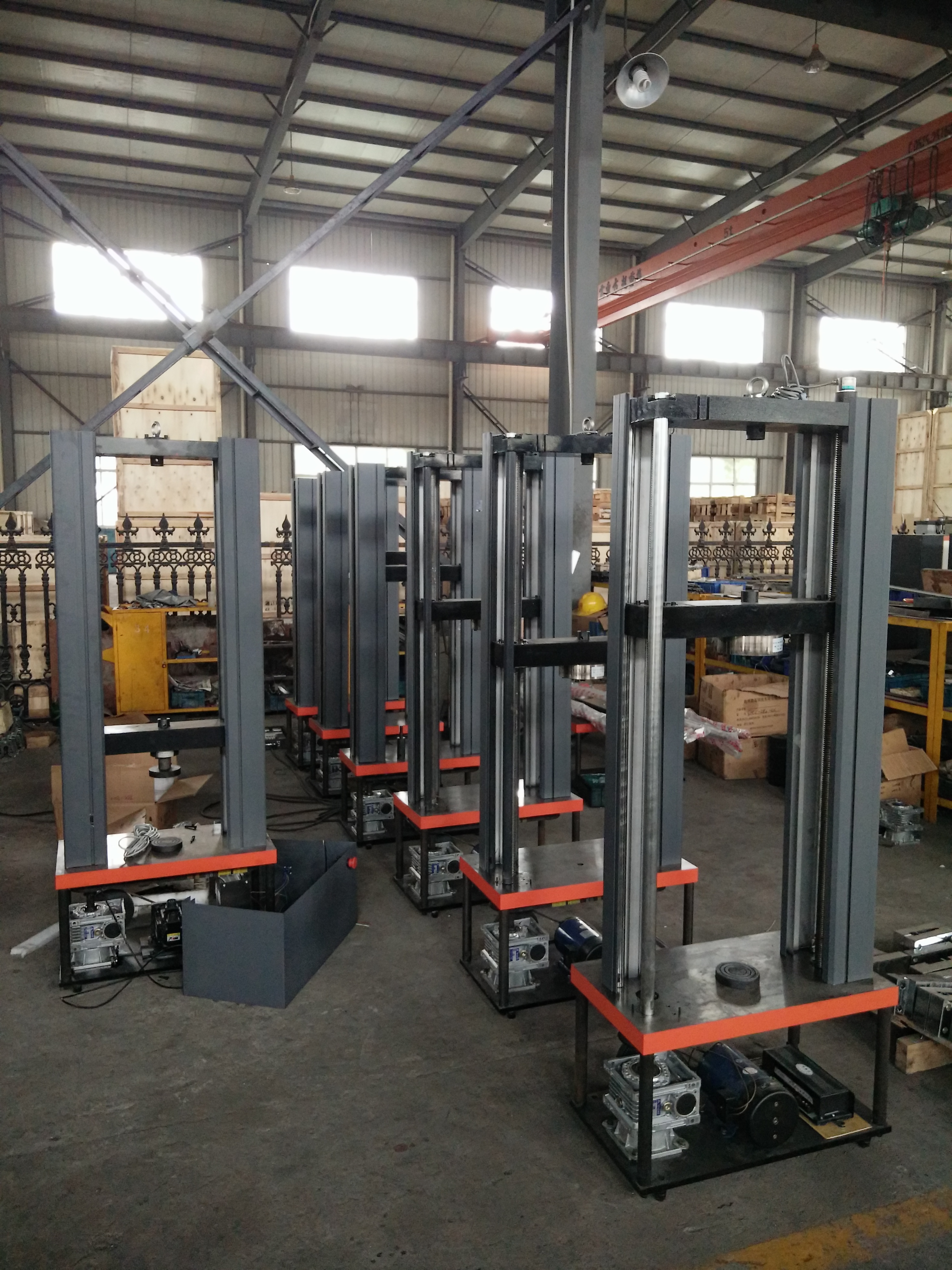

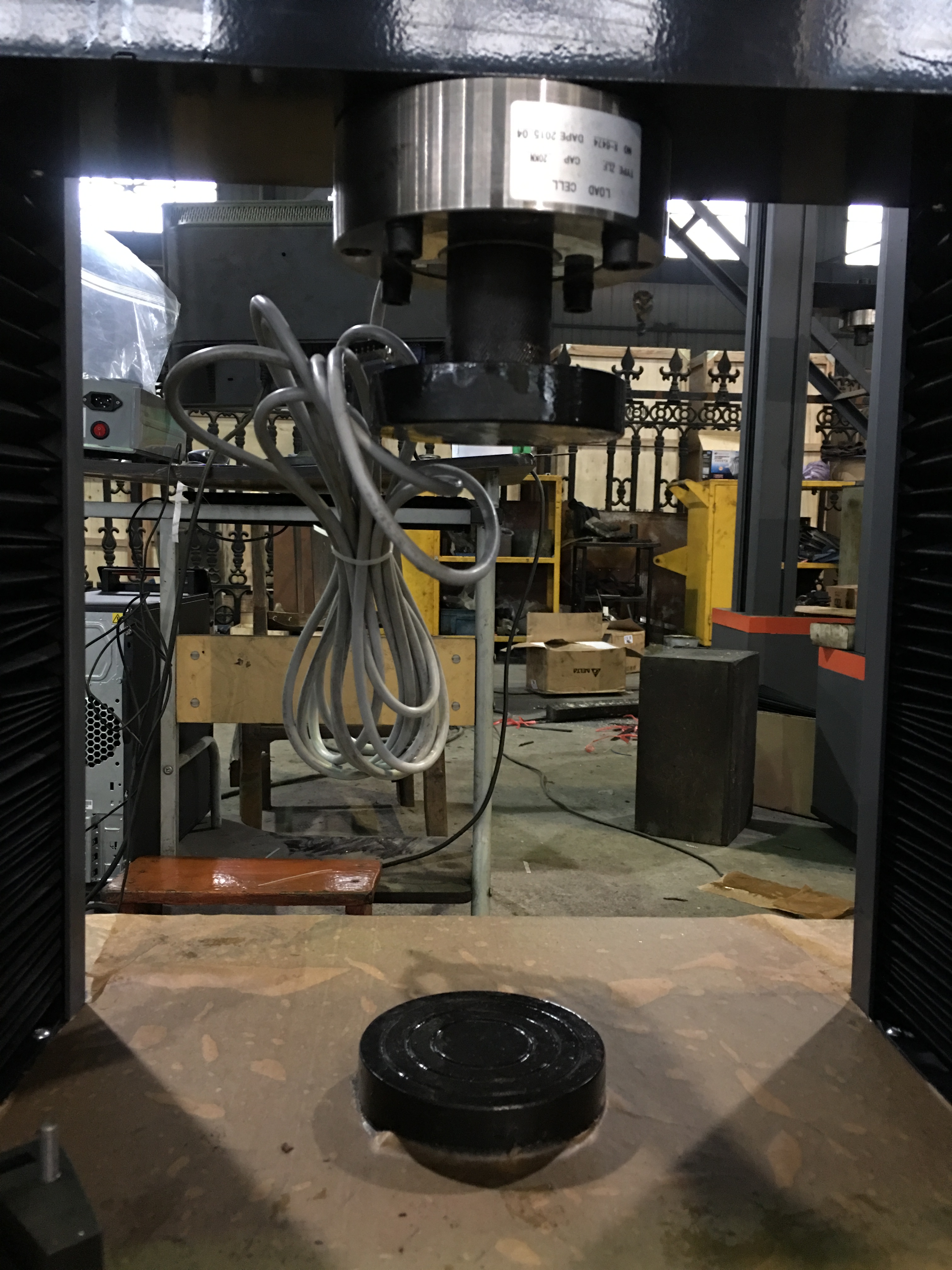

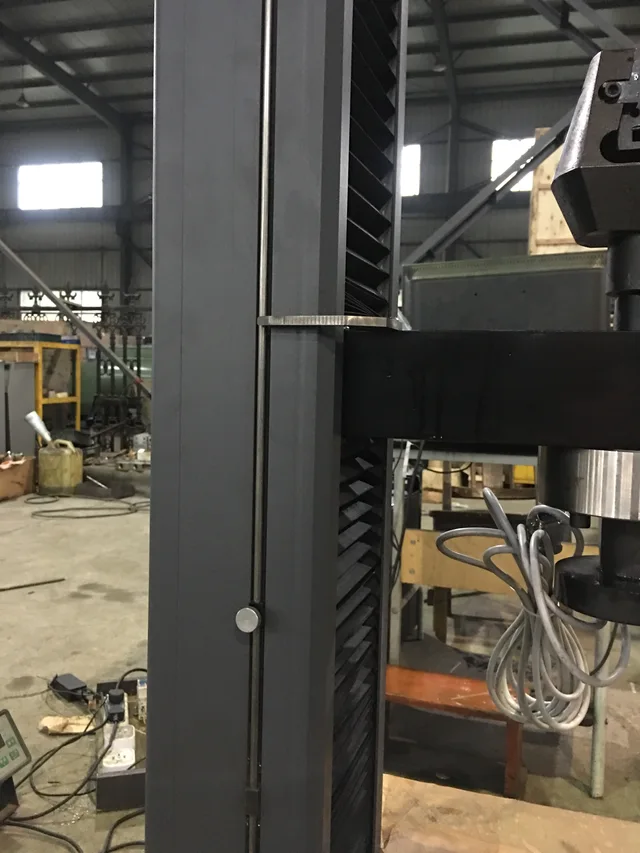

Model CXDL selectrlicable for tensile test, bending test, shear test, tear test, puncture test, burst test and pear test to various metal materials, non-metallic materials and geotextile fabrics, steel plastic geogrid, plastic geogrid and other materials. With characteristics of multi-function, fully automatic, light weight easy operation, high precision and so on.
Model
CXDL-10
CXDL-20
CXDL-30
CXDL-50
CXDL-100
Maximum test force
10KN
20KN
30KN
50KN
100KN
Relative error of indication
±1%
Relative error of displacement
±1%
Measuring range
2%-100%（0-10%、0-20%、0-50%、0-100%）
Displacement velocity
2、5、10、20、50、100mm
Effective test stroke
0-730mm
Effective test width
360mm
Supply voltage
220V 50Hz
Dimension
670*380*1650mm
Weight
200kg
