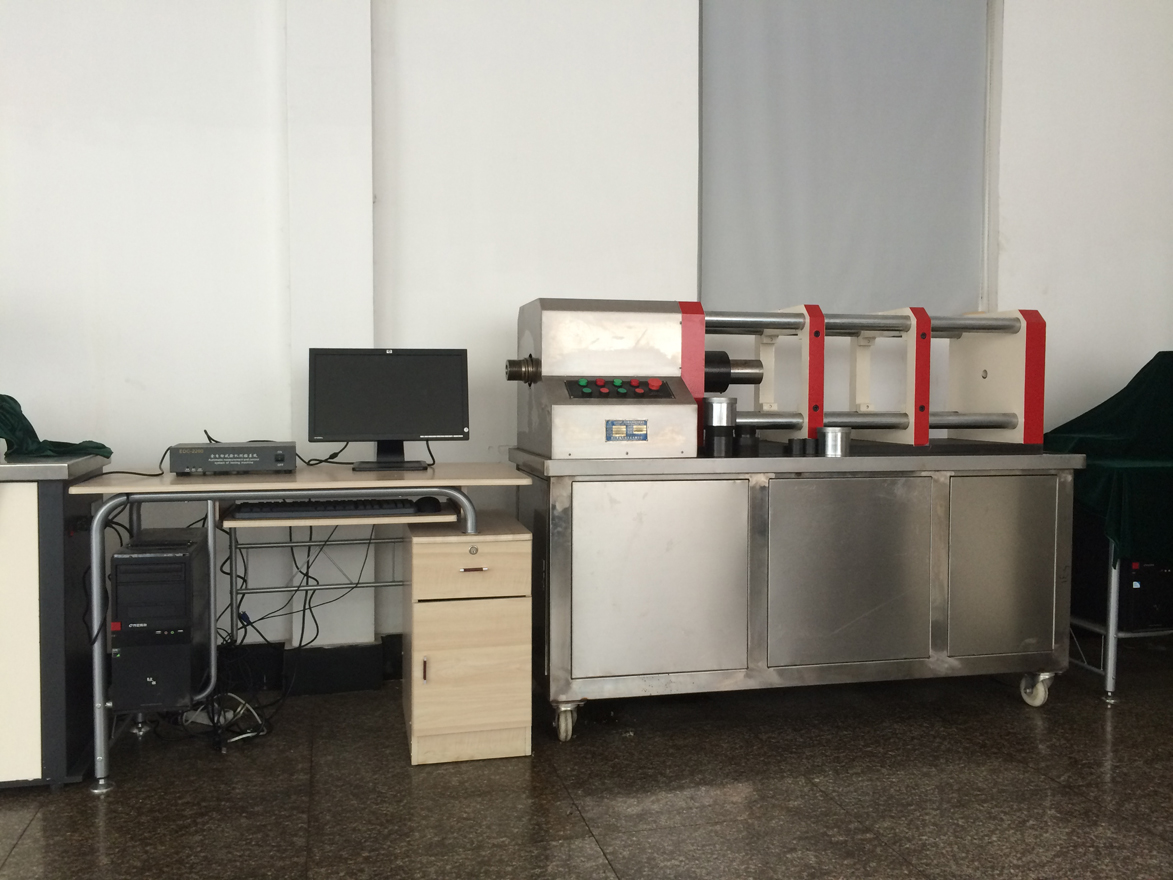

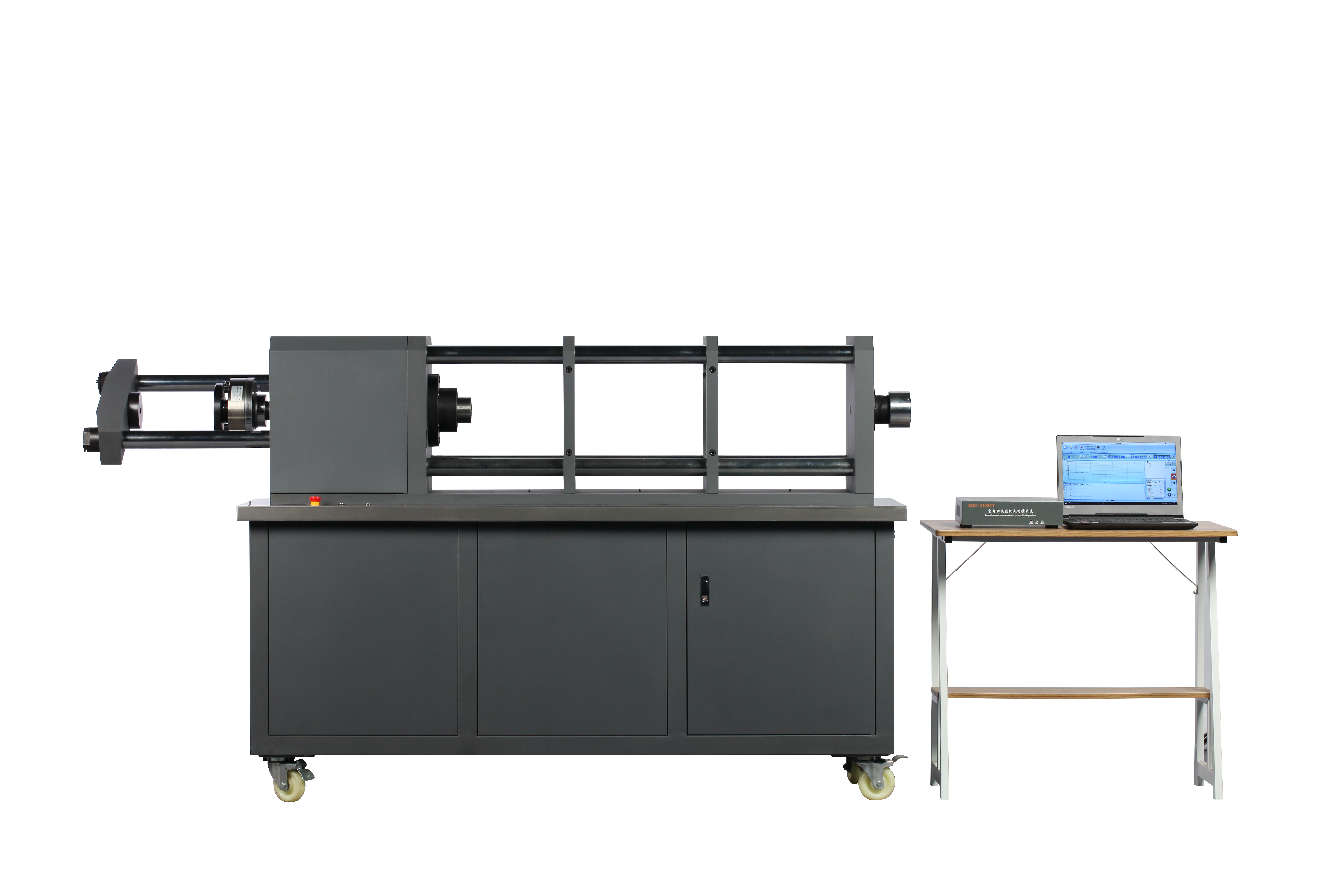

Computer Controlled Tensile and Relaxation Testing Machine
Zhejiang Chenxin Machine Equipments Co., Ltd
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
Computer Controlled Tensile and Relaxation Testing Machine
Zhejiang Chenxin Machine Equipments Co., LtdThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: steel
- Color: dark gray
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
About this product
- Materials: steel
- Color: dark gray
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
Product details
| Materials | steel |
|---|---|
| Color | dark gray |
Product details
| Materials | steel |
|---|---|
| Color | dark gray |
From the supplier

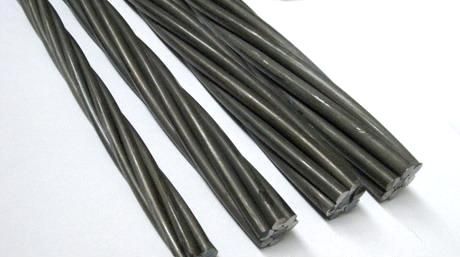

It is specially designed for tension stress relaxation test of strand wire or stress steel. It meets the technical requirements of stress relaxation performance test of steel strand wire in GB/T10120-2013 Metal Stress Relaxation Test Method.
Model
WSC-300
WSC-600
Test force
Max. test force
300KN
600KN
Effective measuring range
1%-100%F.S.
Resolution
1/300000
Force indicating relative error
±1%
Test speed
Speed range
0.05-25mm/min
Relative error of indication
±0.5%
Long time constant deformation control error
4ⅹ10-4 yard/24 h
Deformation
Range
0-20mm
Resolution
0.001mm
Relative error of indication
±0.5%
Mainframe
Max. tensile space
1850mm
Concentricity
Less than 15% (full range same resolution)
Motor power
1.5kW
1.5kW
Main frame dimension
2100*700*1470mm
2100*700*1470mm
Weight (about)
600Kg
750Kg
From the supplier
It is specially designed for tension stress relaxation test of strand wire or stress steel. It meets the technical requirements of stress relaxation performance test of steel strand wire in GB/T10120-2013 Metal Stress Relaxation Test Method.
Model
WSC-300
WSC-600
Test force
Max. test force
300KN
600KN
Effective measuring range
1%-100%F.S.
Resolution
1/300000
Force indicating relative error
±1%
Test speed
Speed range
0.05-25mm/min
Relative error of indication
±0.5%
Long time constant deformation control error
4ⅹ10-4 yard/24 h
Deformation
Range
0-20mm
Resolution
0.001mm
Relative error of indication
±0.5%
Mainframe
Max. tensile space
1850mm
Concentricity
Less than 15% (full range same resolution)
Motor power
1.5kW
1.5kW
Main frame dimension
2100*700*1470mm
2100*700*1470mm
Weight (about)
600Kg
750Kg
