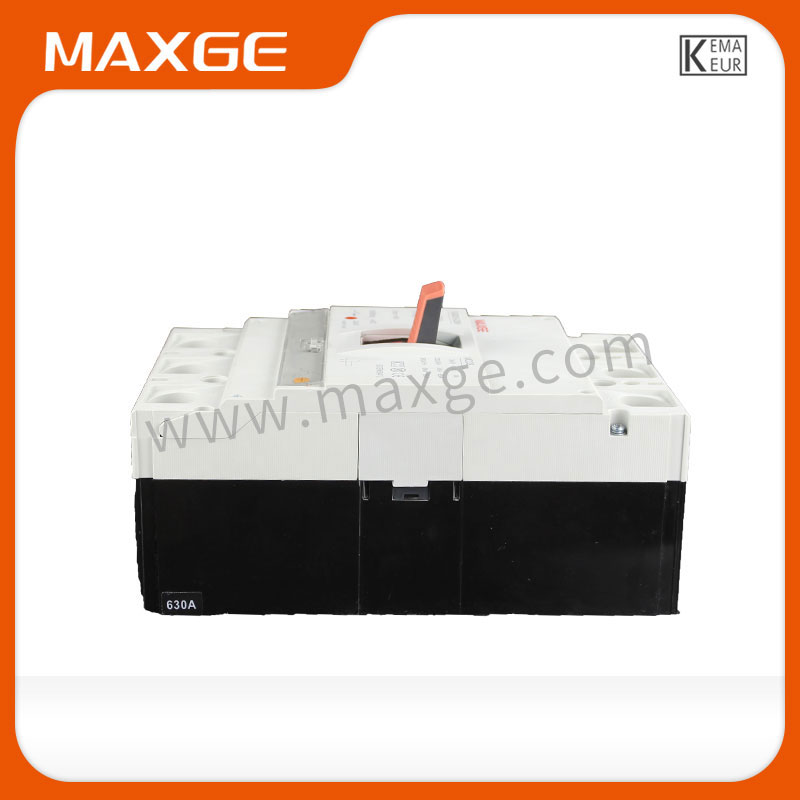

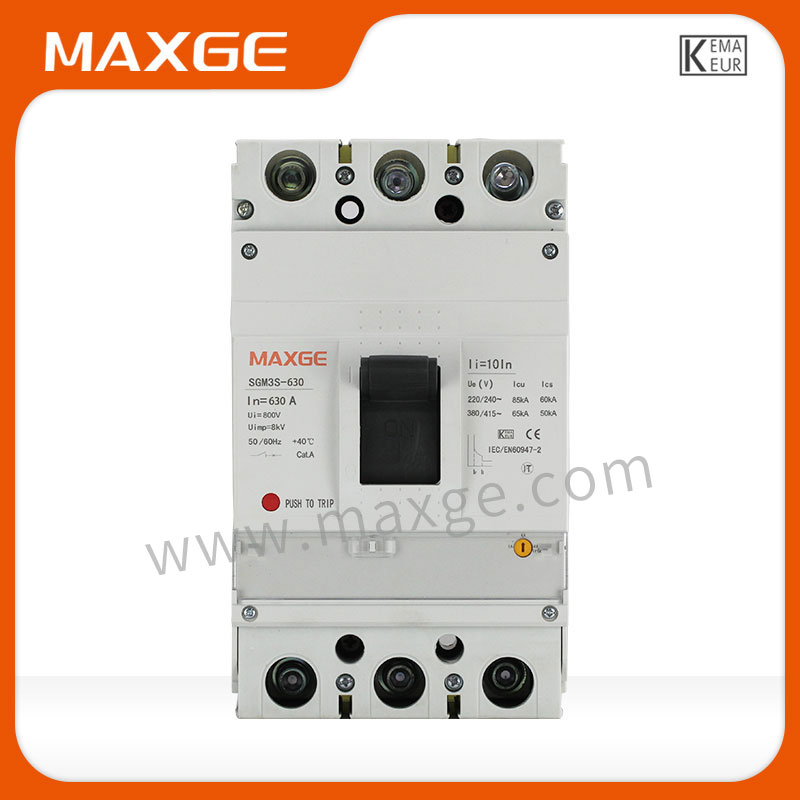

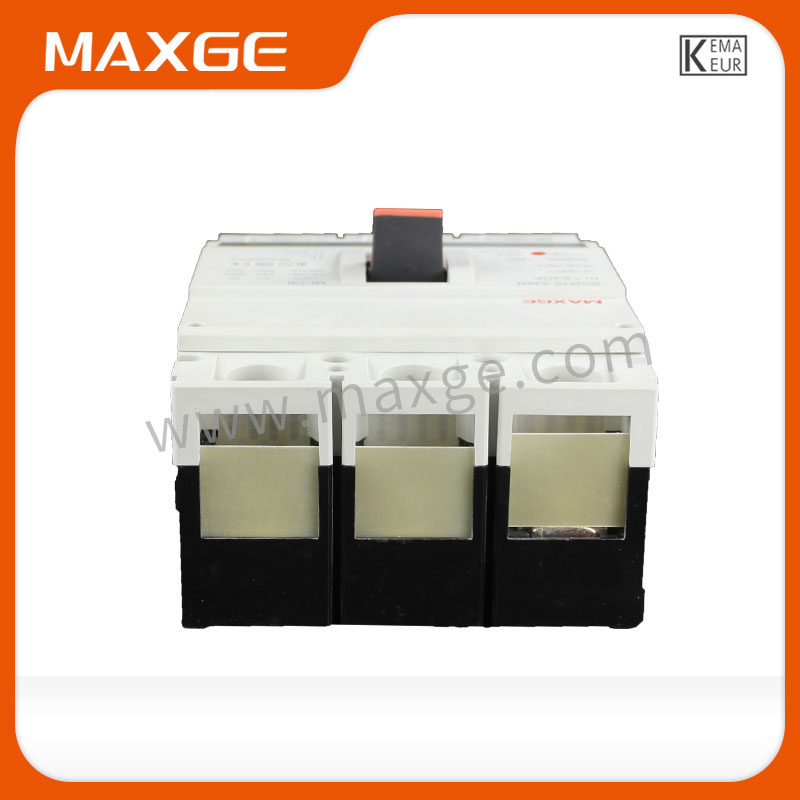

MAXGE SGM6S-630 series molded case circuit breaker
MAXGE ELECTRIC TECHNOLOGY CO.,LTD
See what’s includedHide breakdown
- FOB goods (100)
- $8,300
- Ocean freight + handling (0.30 CBM)
- $820
- US duty (2.7%)
- $224
- Section 301 tariff (25.0%)
- $2,075
- Customs fees (MPF/HMF)
- $43
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $8,300
- Ocean freight + handling (0.30 CBM)
- $820
- US duty (2.7%)
- $224
- Section 301 tariff (25.0%)
- $2,075
- Customs fees (MPF/HMF)
- $43
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
MAXGE SGM6S-630 series molded case circuit breaker
MAXGE ELECTRIC TECHNOLOGY CO.,LTDSee what’s includedHide breakdown
- FOB goods (100)
- $8,300
- Ocean freight + handling (0.30 CBM)
- $820
- US duty (2.7%)
- $224
- Section 301 tariff (25.0%)
- $2,075
- Customs fees (MPF/HMF)
- $43
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $8,300
- Ocean freight + handling (0.30 CBM)
- $820
- US duty (2.7%)
- $224
- Section 301 tariff (25.0%)
- $2,075
- Customs fees (MPF/HMF)
- $43
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: Plastic Copper Iron
- Size: 150*257*148
- Color: White
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia, EU, Other European Countries, Others
- Made in: Zhejiang, China
About this product
- Materials: Plastic Copper Iron
- Size: 150*257*148
- Color: White
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia, EU, Other European Countries, Others
- Made in: Zhejiang, China
Product details
| Materials | Plastic Copper Iron |
|---|---|
| Size | 150*257*148 |
| Color | White |
Product details
| Materials | Plastic Copper Iron |
|---|---|
| Size | 150*257*148 |
| Color | White |
From the supplier
Adjustable-type MCCB is an industrial circuit breaker newly developed by MAXGE according to the international standard.
It is used in circuits with rated voltage below 690V,rated working current up to 400A for infrequent transformation and infrequent starting of motors.
Frame Size
630 Rated impluse withstand voltage Uimp (kV)
8 Model
SGM6S-630
Breaking capacity level
L / M
Number of poles
3,4
Rated ultimate short-circuit breaking capacity lcu(kA)
65 / 85
Rated current(A) In
400,500,630 Rated service short-circuit breaking capacity lcs(kA)
50 / 60
Thermo-adjustable setting(lr)ln
0.8/0.9/1.0ln Mechanical Endurance
Electrical Endurance
40001000
StandardIEC60947-2
Reference temperature
40℃/55℃
Fixed magnetic trip
. Rated insulation voltage Ui (V)
800
Dimensions 3P
mm(L*W* H) 4P
182*270*155
240*270*155
From the supplier
Adjustable-type MCCB is an industrial circuit breaker newly developed by MAXGE according to the international standard.
It is used in circuits with rated voltage below 690V,rated working current up to 400A for infrequent transformation and infrequent starting of motors.
Frame Size
630 Rated impluse withstand voltage Uimp (kV)
8 Model
SGM6S-630
Breaking capacity level
L / M
Number of poles
3,4
Rated ultimate short-circuit breaking capacity lcu(kA)
65 / 85
Rated current(A) In
400,500,630 Rated service short-circuit breaking capacity lcs(kA)
50 / 60
Thermo-adjustable setting(lr)ln
0.8/0.9/1.0ln Mechanical Endurance
Electrical Endurance
40001000
StandardIEC60947-2
Reference temperature
40℃/55℃
Fixed magnetic trip
. Rated insulation voltage Ui (V)
800
Dimensions 3P
mm(L*W* H) 4P
182*270*155
240*270*155
