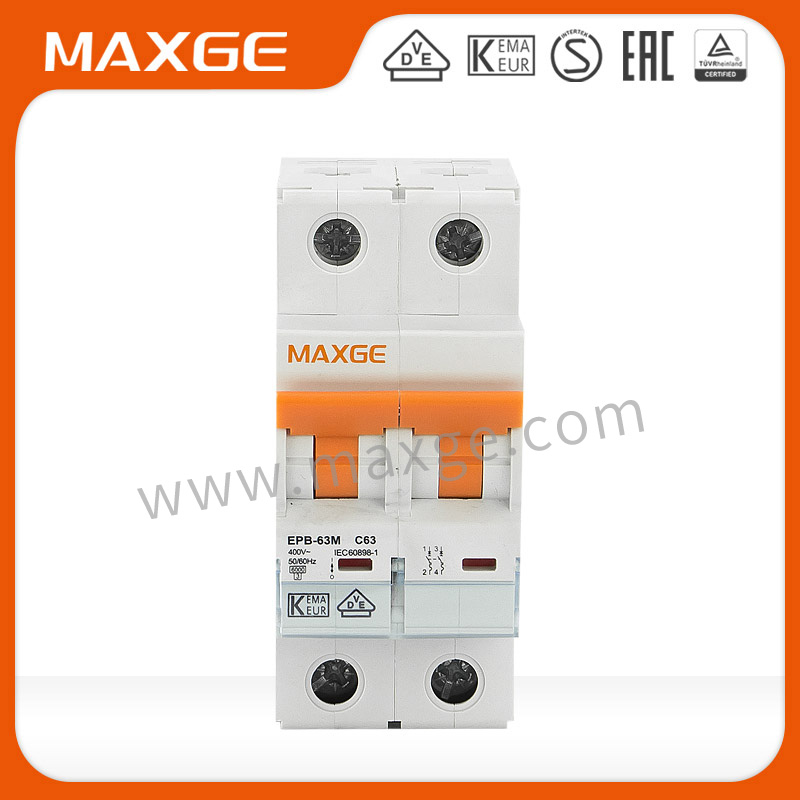

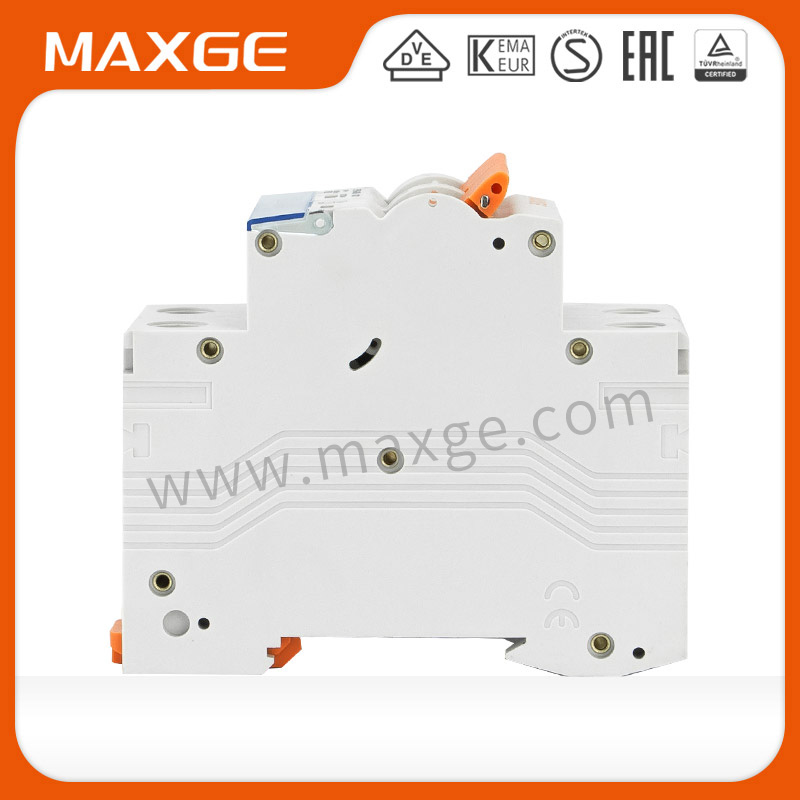

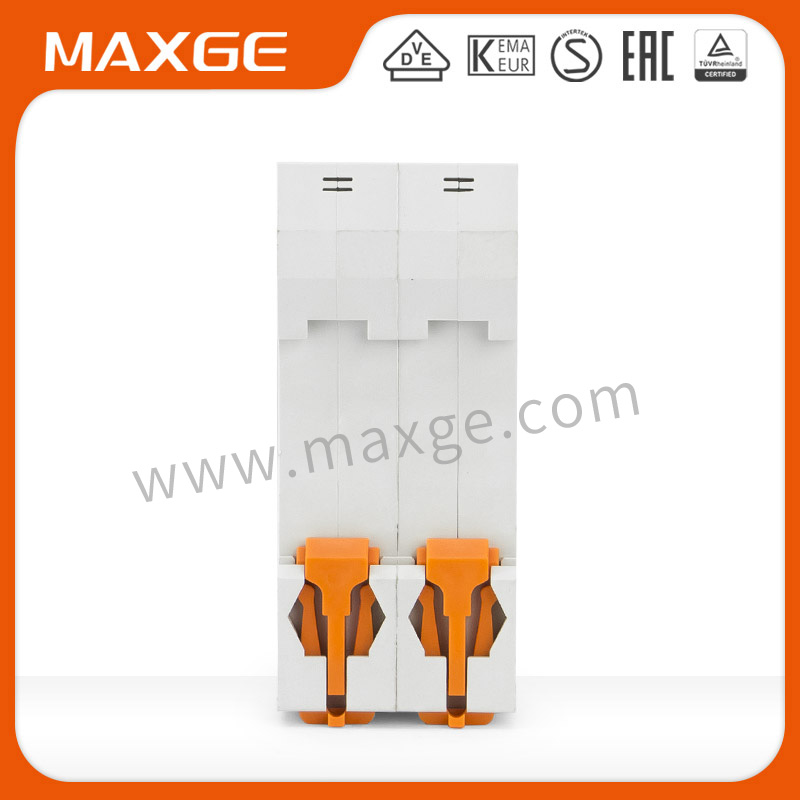

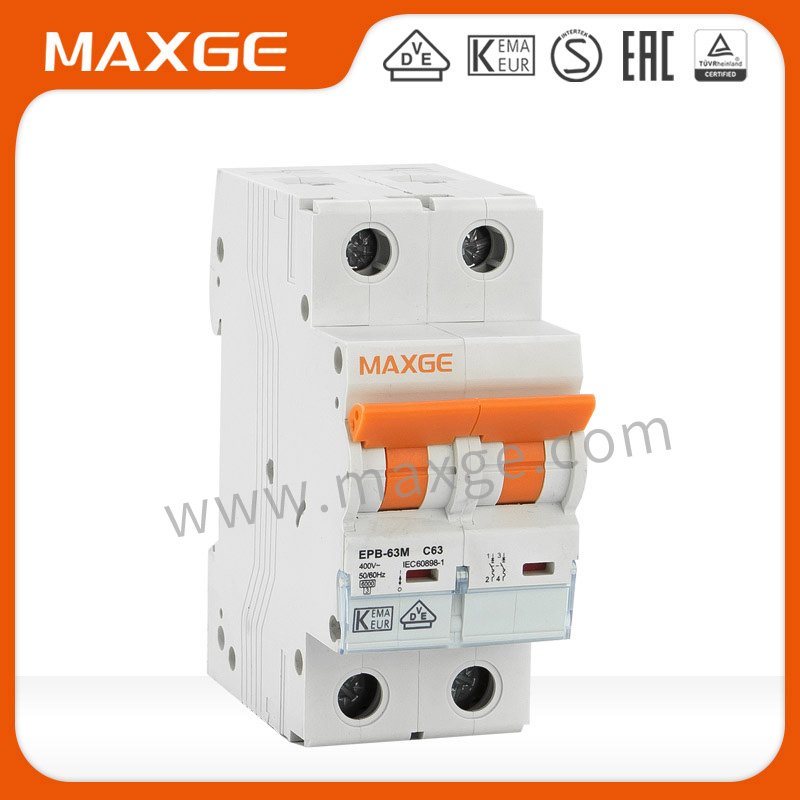

Circuit Breaker
MAXGE ELECTRIC TECHNOLOGY CO.,LTD
See what’s includedHide breakdown
- FOB goods (500)
- $720
- Ocean freight + handling (1.5 CBM)
- $880
- US duty (2.7%)
- $19
- Section 301 tariff (25.0%)
- $180
- Customs fees (MPF/HMF)
- $34
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
- FOB goods (500)
- $720
- Ocean freight + handling (1.5 CBM)
- $880
- US duty (2.7%)
- $19
- Section 301 tariff (25.0%)
- $180
- Customs fees (MPF/HMF)
- $34
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
Circuit Breaker
MAXGE ELECTRIC TECHNOLOGY CO.,LTDSee what’s includedHide breakdown
- FOB goods (500)
- $720
- Ocean freight + handling (1.5 CBM)
- $880
- US duty (2.7%)
- $19
- Section 301 tariff (25.0%)
- $180
- Customs fees (MPF/HMF)
- $34
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
- FOB goods (500)
- $720
- Ocean freight + handling (1.5 CBM)
- $880
- US duty (2.7%)
- $19
- Section 301 tariff (25.0%)
- $180
- Customs fees (MPF/HMF)
- $34
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: Plastic Copper Iron
- Size: 35.6*66.6*81.5*45
- Color: White
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia, EU, Other European Countries, Others
- Made in: Zhejiang, China
About this product
- Materials: Plastic Copper Iron
- Size: 35.6*66.6*81.5*45
- Color: White
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia, EU, Other European Countries, Others
- Made in: Zhejiang, China
Product details
| Materials | Plastic Copper Iron |
|---|---|
| Size | 35.6*66.6*81.5*45 |
| Color | White |
Product details
| Materials | Plastic Copper Iron |
|---|---|
| Size | 35.6*66.6*81.5*45 |
| Color | White |
From the supplier
MCB has the characteristics of advanced structure, reliable performance, high breaking capacity and beautiful appearance. It is mainly used for AC 50HZ or 60HZ, rated voltage 400V or below and rated working current 63A or below. It is used for overload and short-circuit protection of lighting, distribution lines, equipment in office buildings, residential buildings and etc. It can also be used for infrequent on-off operations and conversion of lines.
EN/IEC60898-1
Nuber of poles
1P,1P+N,2P,3P,3P+N and 4P
Breaking capacity
6kA
Type of trip
Thermal/magnetic release
Protection
Against overload and short circuit
Type of terminal
Lug type and Pin type
Rated current In
0.5,1,2,3,4,6,10,13,16,20,25,32,40,50,63A
Terminal capacity
16mm² flexible or 25mm² rigid up to 25A ratings
25mm² flexible or 25mm² rigid from 32A to 63A ratings
Rated voltage
AC:1,2,3,4 POLE 230/400V
Rated insulation voltage Ui:500V
Rated impulse withstand voltage Uimp:4000V
Energy limiting:class 3
Protection degree
IP 20
Ambient temperature(C°)
-5~+40
Installation
Mounting on 35mm DIN rail
Characteristic
Thermal operating limit：(1.13-1.45)×In
Magnetic operating：B:(3-5)×In / C:(5-10)×In / D:(10-20)×In
Width
17.8mm per pole
From the supplier
MCB has the characteristics of advanced structure, reliable performance, high breaking capacity and beautiful appearance. It is mainly used for AC 50HZ or 60HZ, rated voltage 400V or below and rated working current 63A or below. It is used for overload and short-circuit protection of lighting, distribution lines, equipment in office buildings, residential buildings and etc. It can also be used for infrequent on-off operations and conversion of lines.
EN/IEC60898-1
Nuber of poles
1P,1P+N,2P,3P,3P+N and 4P
Breaking capacity
6kA
Type of trip
Thermal/magnetic release
Protection
Against overload and short circuit
Type of terminal
Lug type and Pin type
Rated current In
0.5,1,2,3,4,6,10,13,16,20,25,32,40,50,63A
Terminal capacity
16mm² flexible or 25mm² rigid up to 25A ratings
25mm² flexible or 25mm² rigid from 32A to 63A ratings
Rated voltage
AC:1,2,3,4 POLE 230/400V
Rated insulation voltage Ui:500V
Rated impulse withstand voltage Uimp:4000V
Energy limiting:class 3
Protection degree
IP 20
Ambient temperature(C°)
-5~+40
Installation
Mounting on 35mm DIN rail
Characteristic
Thermal operating limit：(1.13-1.45)×In
Magnetic operating：B:(3-5)×In / C:(5-10)×In / D:(10-20)×In
Width
17.8mm per pole
