Circuit breakers
EN/IEC61008-1
Ambient temperature（℃）
-25℃~+45℃，Max.95%humidity
Rated conditional short-circuit current,Inc
6KA,10KA
Residual current off-time at I△n
≤0.1s
Protection
Ground fault
Rated residual current making & breaking capacity,I△m
500A for In=16,25,32,40,50A
630A for In=63A
800A for In=80A
Rated current In
16,25,32,40,50,63,80A
Type of trip
Electro-magnetic release
Number of poles
2(1+N),4(3+N) pole
Type of terminal
Lug type and Pin type
Rated sensitvity currents,I△n
10,30,100,300mA
Terminal capacity
Cables up to 25mm²
Rated residual non-operrating current
0.5xI△n
Protection degree
IP20
Rated voltages 2pole
4pole
240VAC
415VAC
Installation
35mm DIN rail
EN/IEC61008-1
Ambient temperature（℃）
-25℃~+45℃，Max.95%humidity
Rated conditional short-circuit current,Inc
6KA,10KA
Residual current off-time at I△n
≤0.1s
Protection
Ground fault
Rated residual current making & breaking capacity,I△m
500A for In=16,25,32,40,50A
630A for In=63A
800A for In=80A
Rated current In
16,25,32,40,50,63,80A
Type of trip
Electro-magnetic release
Number of poles
2(1+N),4(3+N) pole
Type of terminal
Lug type and Pin type
Rated sensitvity currents,I△n
10,30,100,300mA
Terminal capacity
Cables up to 25mm²
Rated residual non-operrating current
0.5xI△n
Protection degree
IP20
Rated voltages 2pole
4pole
240VAC
415VAC
Installation
35mm DIN rail

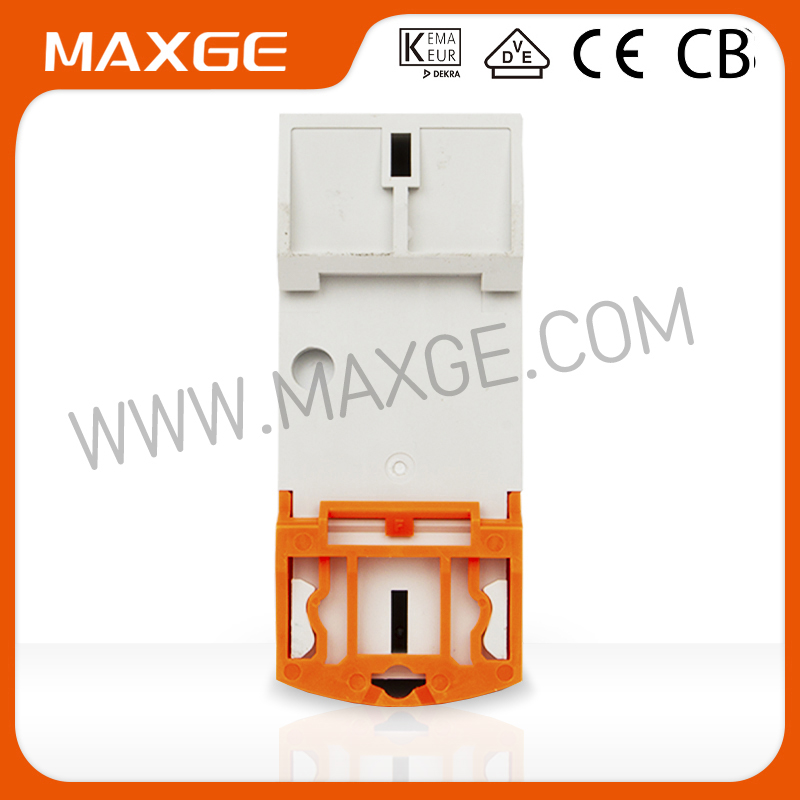

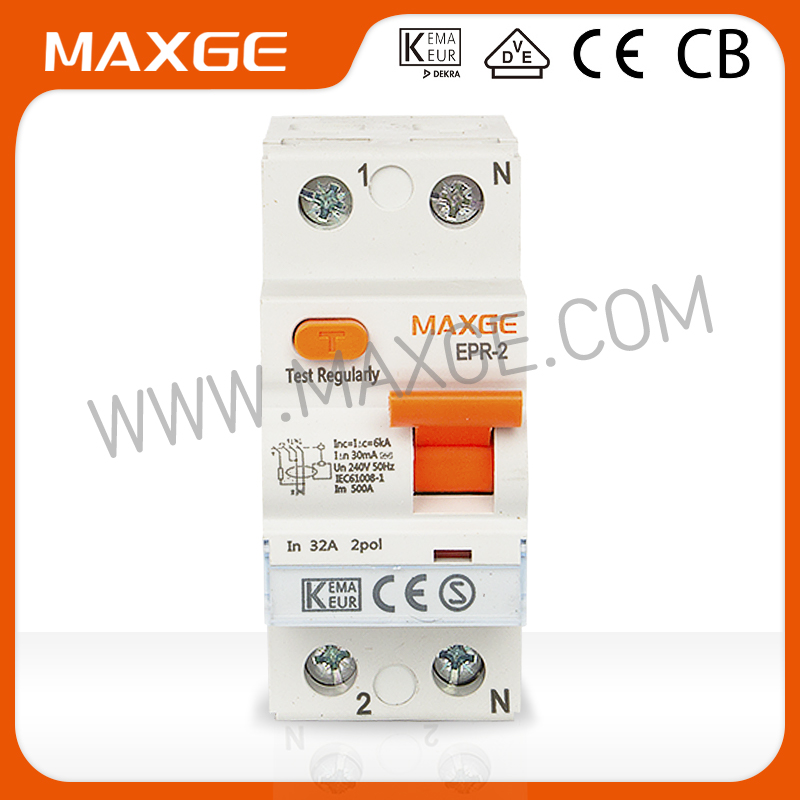

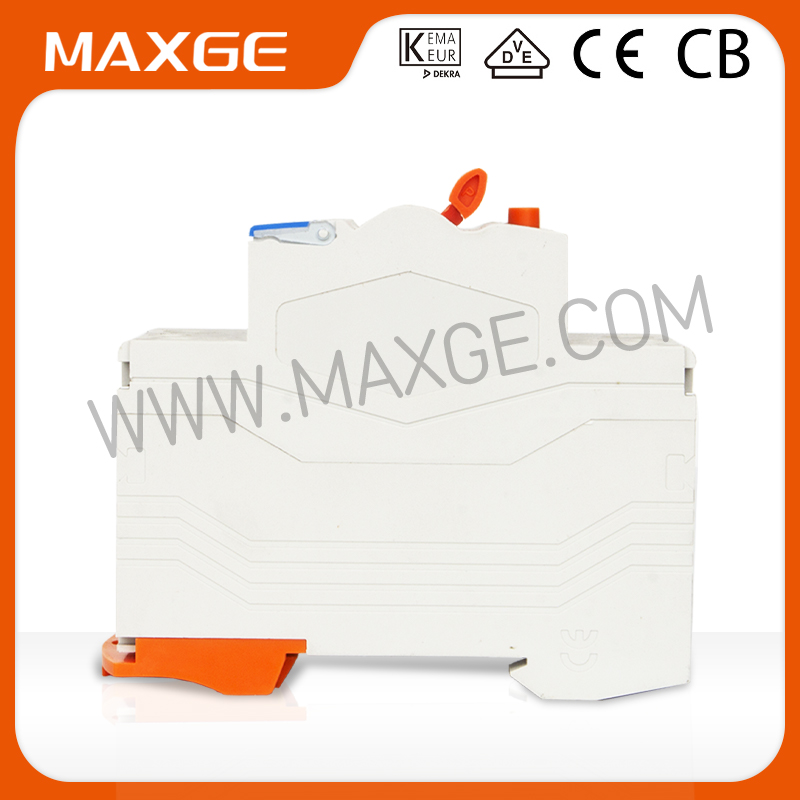

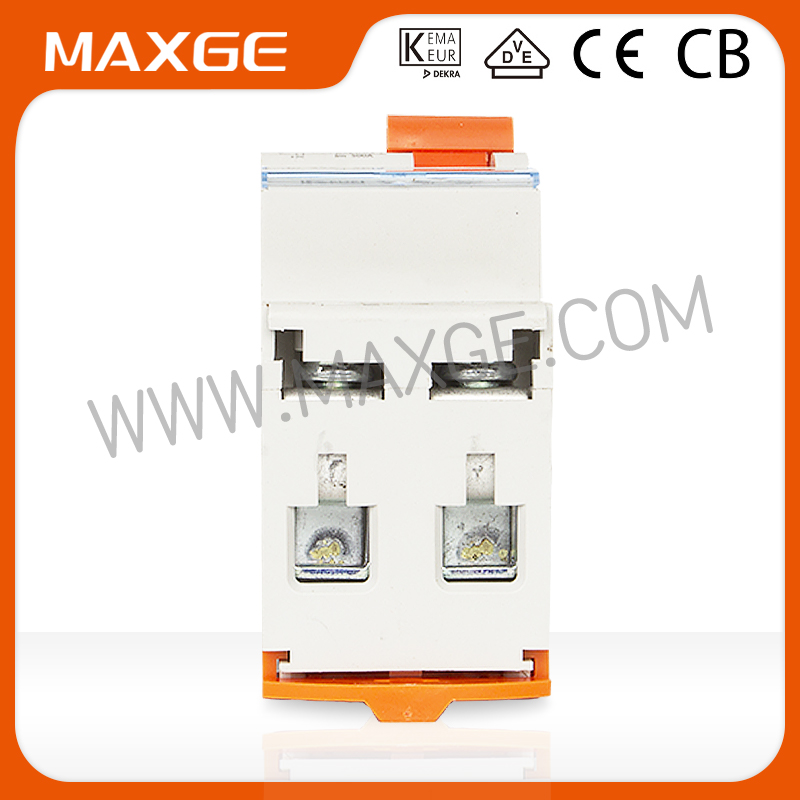

RCCB Circuit Breaker
MAXGE ELECTRIC TECHNOLOGY CO.,LTD10/10 fairsManufacturerModel EPR-2-2P
New for the 140th FairGreen / low-carbon
$390–$900/ unit FOB
Unit not stated by the supplier (piece, set, box); we confirm it when we get the quote.
MOQ 600 unit
Estimated landed cost
$9.83 / unit
range $6.57–$13 · total ≈ $5,896
See what’s includedHide breakdown
- FOB goods (600)
- $3,870
- Ocean freight + handling (1.8 CBM)
- $916
- US duty (2.7%)
- $104
- Section 301 tariff (25.0%)
- $968
- Customs fees (MPF/HMF)
- $38
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (600)
- $3,870
- Ocean freight + handling (1.8 CBM)
- $916
- US duty (2.7%)
- $104
- Section 301 tariff (25.0%)
- $968
- Customs fees (MPF/HMF)
- $38
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
RCCB Circuit Breaker
MAXGE ELECTRIC TECHNOLOGY CO.,LTD10/10 fairsManufacturerModel EPR-2-2P
New for the 140th FairGreen / low-carbon
$390–$900/ unit FOB
Unit not stated by the supplier (piece, set, box); we confirm it when we get the quote.
MOQ 600 unit
Estimated landed cost
$9.83 / unit
range $6.57–$13 · total ≈ $5,896
See what’s includedHide breakdown
- FOB goods (600)
- $3,870
- Ocean freight + handling (1.8 CBM)
- $916
- US duty (2.7%)
- $104
- Section 301 tariff (25.0%)
- $968
- Customs fees (MPF/HMF)
- $38
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (600)
- $3,870
- Ocean freight + handling (1.8 CBM)
- $916
- US duty (2.7%)
- $104
- Section 301 tariff (25.0%)
- $968
- Customs fees (MPF/HMF)
- $38
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: Plastic Copper Iron
- Size: 35.5*50.3*72.3*45
- Color: White
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia, EU, Other European Countries, Others
- Made in: Zhejiang, China
About this product
- Materials: Plastic Copper Iron
- Size: 35.5*50.3*72.3*45
- Color: White
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia, EU, Other European Countries, Others
- Made in: Zhejiang, China
Product details
| Materials | Plastic Copper Iron |
|---|---|
| Size | 35.5*50.3*72.3*45 |
| Color | White |
Product details
| Materials | Plastic Copper Iron |
|---|---|
| Size | 35.5*50.3*72.3*45 |
| Color | White |
From the supplier
- The electric leakage protector produced by the company is completely independent.
- Upgraded structure, reasonable and compact, convenient operation, good reliability and lower assembly difficulty.
- High safety performance, over 30 mA current, and power failure in 3 milliseconds.
- Independently developed and produced all parts and components independently.
EN/IEC61008-1
Ambient temperature（℃）
-25℃~+45℃，Max.95%humidity
Rated conditional short-circuit current,Inc
6KA,10KA
Residual current off-time at I△n
≤0.1s
Protection
Ground fault
Rated residual current making & breaking capacity,I△m
500A for In=16,25,32,40,50A
630A for In=63A
800A for In=80A
Rated current In
16,25,32,40,50,63,80A
Type of trip
Electro-magnetic release
Number of poles
2(1+N),4(3+N) pole
Type of terminal
Lug type and Pin type
Rated sensitvity currents,I△n
10,30,100,300mA
Terminal capacity
Cables up to 25mm²
Rated residual non-operrating current
0.5xI△n
Protection degree
IP20
Rated voltages 2pole
4pole
240VAC
415VAC
Installation
35mm DIN rail
From the supplier
- The electric leakage protector produced by the company is completely independent.
- Upgraded structure, reasonable and compact, convenient operation, good reliability and lower assembly difficulty.
- High safety performance, over 30 mA current, and power failure in 3 milliseconds.
- Independently developed and produced all parts and components independently.
EN/IEC61008-1
Ambient temperature（℃）
-25℃~+45℃，Max.95%humidity
Rated conditional short-circuit current,Inc
6KA,10KA
Residual current off-time at I△n
≤0.1s
Protection
Ground fault
Rated residual current making & breaking capacity,I△m
500A for In=16,25,32,40,50A
630A for In=63A
800A for In=80A
Rated current In
16,25,32,40,50,63,80A
Type of trip
Electro-magnetic release
Number of poles
2(1+N),4(3+N) pole
Type of terminal
Lug type and Pin type
Rated sensitvity currents,I△n
10,30,100,300mA
Terminal capacity
Cables up to 25mm²
Rated residual non-operrating current
0.5xI△n
Protection degree
IP20
Rated voltages 2pole
4pole
240VAC
415VAC
Installation
35mm DIN rail
About the supplier
MAXGE ELECTRIC TECHNOLOGY CO.,LTD
- ✓Exhibited at 10 of the last 10 Canton Fairs
- ✓Manufacturer
- ✓Founded 2010
- ✓Canton Fair Premium Supplier
- ✓Brand exhibitor
- ✓National high-tech enterprise
Light & Electrical exhibitors show in Phase 1 of the Canton Fair, 15 to 19 October 2026.
90
trust
- Exhibited at 10 of the last 10 Canton Fairs
- Manufacturer
- Founded 2010
- Canton Fair Premium Supplier
Canton Fair booth: 15.3D10-11，15.3C29-30 · Electronic and Electrical Products (140th session)
More from MAXGE ELECTRIC TECHNOLOGY CO.,LTD
New
AFDD Arc fault detection device
Price on request
New

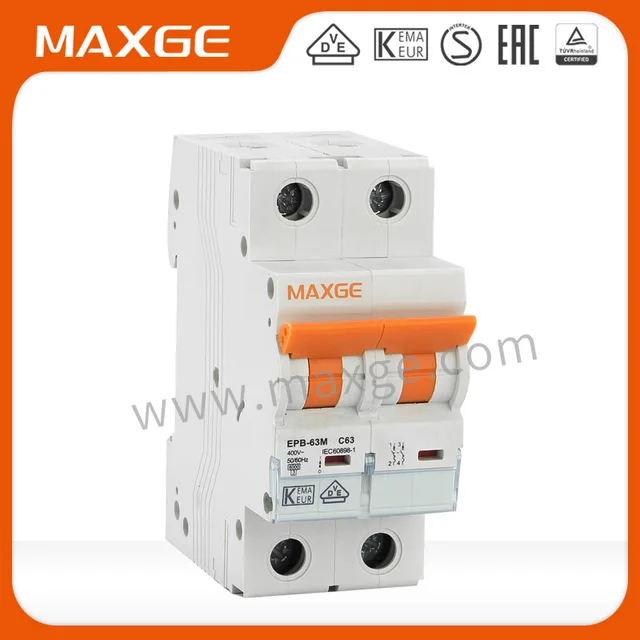

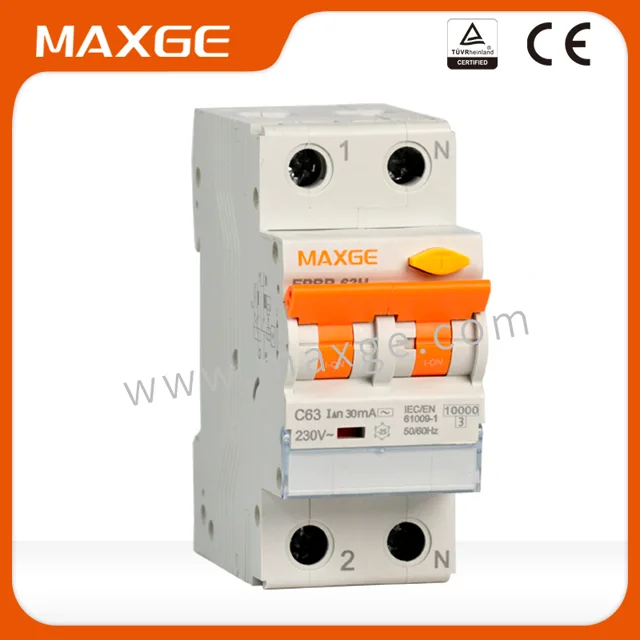

Circuit Breaker
Price on request
New
Maxge EPBA OF Series MCB Accessory
Price on request
New

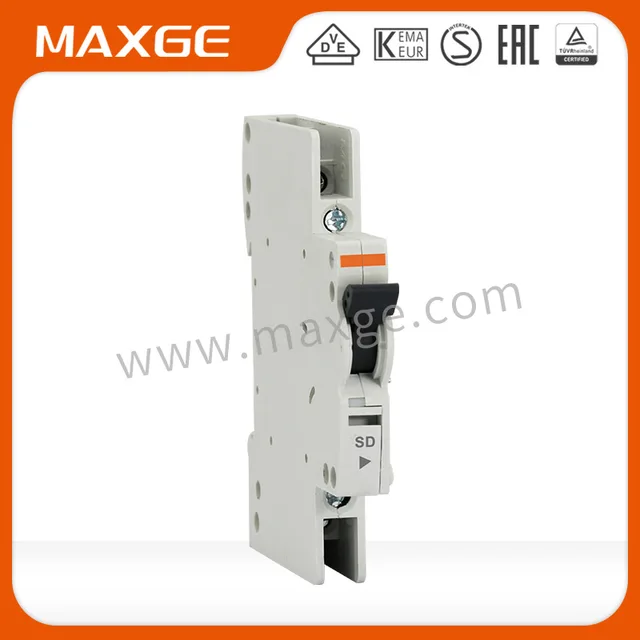

Maxge EPBA SD Series MCB Accessory
Price on request
New

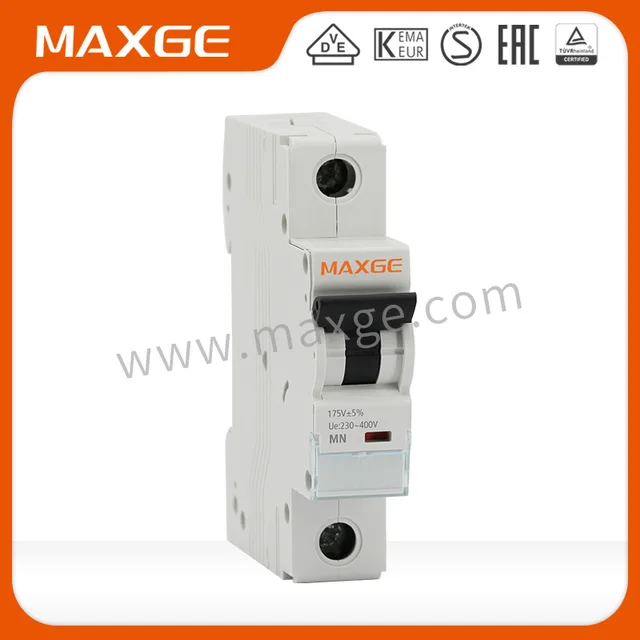

Maxge EPBA MN Series MCB Accessory
