Structure and characteristics:

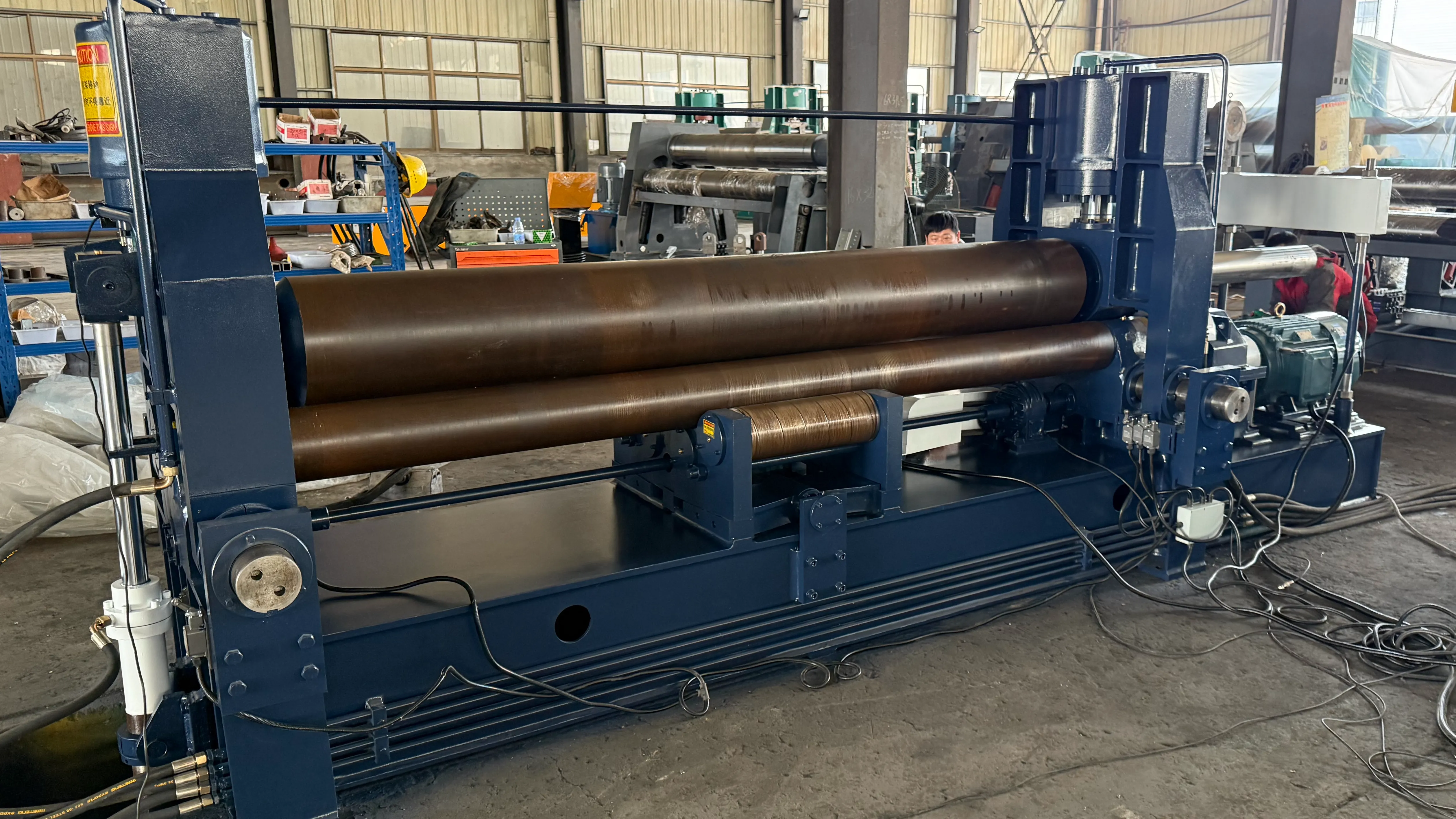

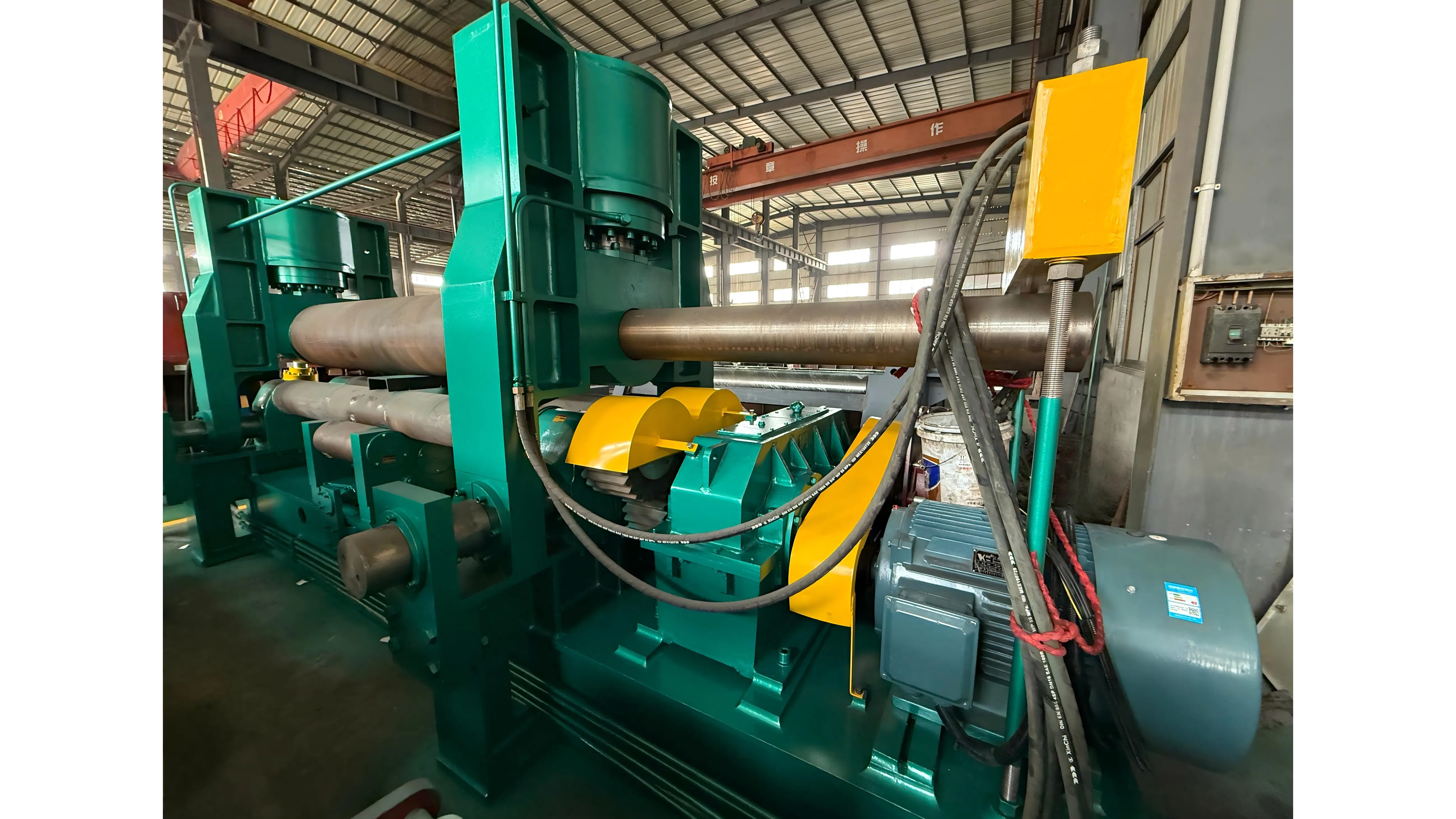

This machine belongs to a hydraulic three-roll plate bending machine. It is used to complete the processes of pre-bending, rounding and straightening of plate ends without turning around after loading carbon steel and low alloy steel for various containers at room temperature. The upper roller can move vertically and horizontally. Pre-bending is achieved by moving the upper roller horizontally so that the upper roller is in an asymmetrical position relative to the lower roller.

This machine belongs to a hydraulic three-roll plate bending machine. It is used to complete the processes of pre-bending, rounding and straightening of plate ends without turning around after loading carbon steel and low alloy steel for various containers at room temperature. The upper roller can move vertically and horizontally. Pre-bending is achieved by moving the upper roller horizontally so that the upper roller is in an asymmetrical position relative to the lower roller. During rounding, the two lower rollers are driven by a motor and a reducer. Since the elevation of the lower roller remains unchanged, it is convenient to feed and operate. Provide detailed electrical schematic diagrams. The electrical wiring is carried out strictly in accordance with the drawings. The numbers at both ends of each connection are clear and complete. The line terminal strip is marked with the same line number as the connection number, and the electrical wiring diagram and schematic diagram are marked accordingly. All the electrical equipment used in the equipment adopts high-quality products from famous brands. Electrical protection devices (such as current relays, air switches, etc.) are strictly tested before installation to ensure reliable operation. The equipment runs smoothly, has flexible control, and is free from jamming, oil leakage and abnormal noise. The paint surface is smooth and bright, the paint mold thickness is uniform, and there are no defects such as flow marks and leaks. The tipping frame uses hydraulic pressure to tip over, which is fast. The vertical displacement of the upper roller adopts hydraulic transmission, and the horizontal movement adopts mechanical transmission. The speed is faster. The equipment has high reliability and low failure rate.

Technical parameters:
