I Description:

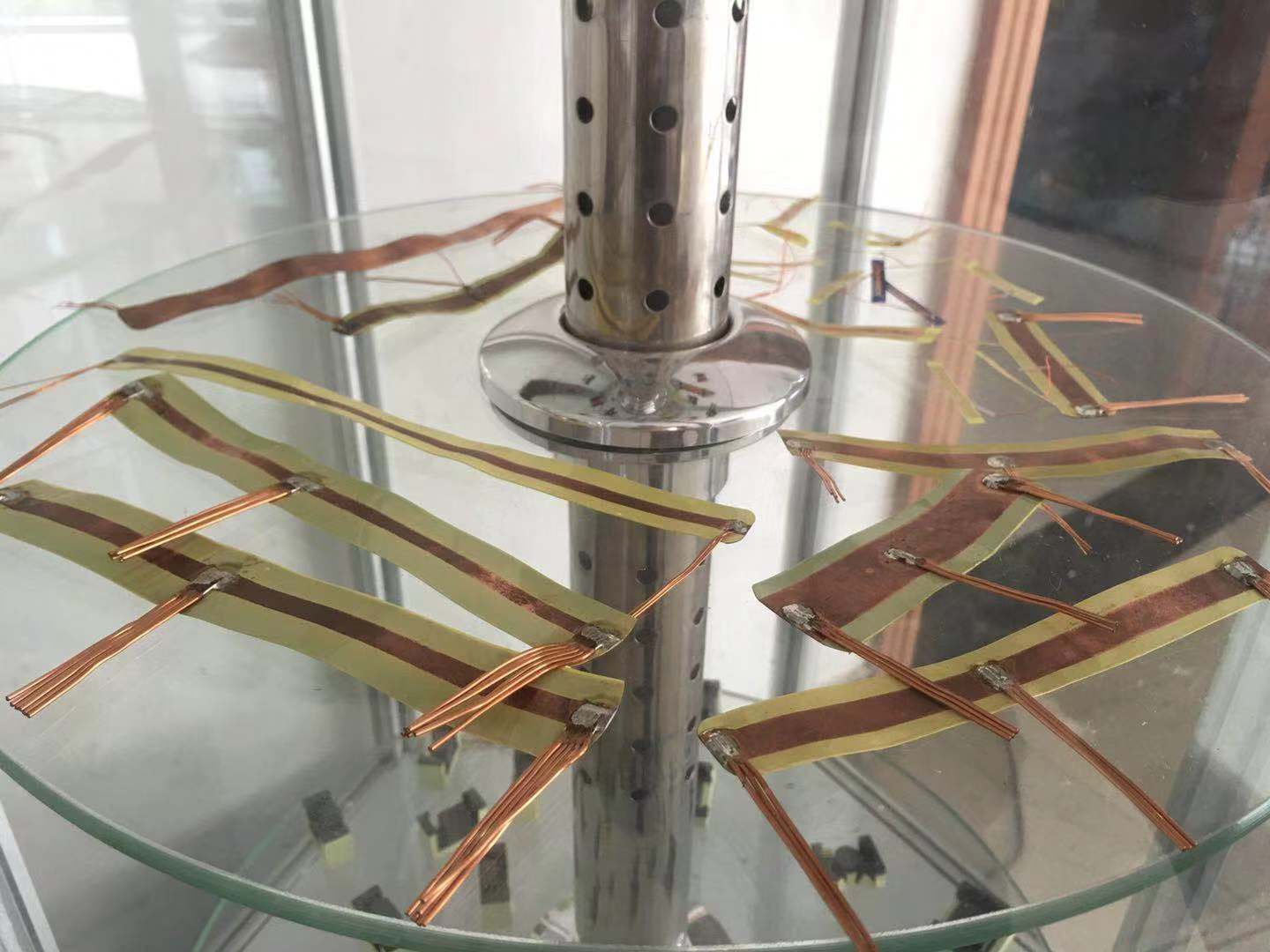

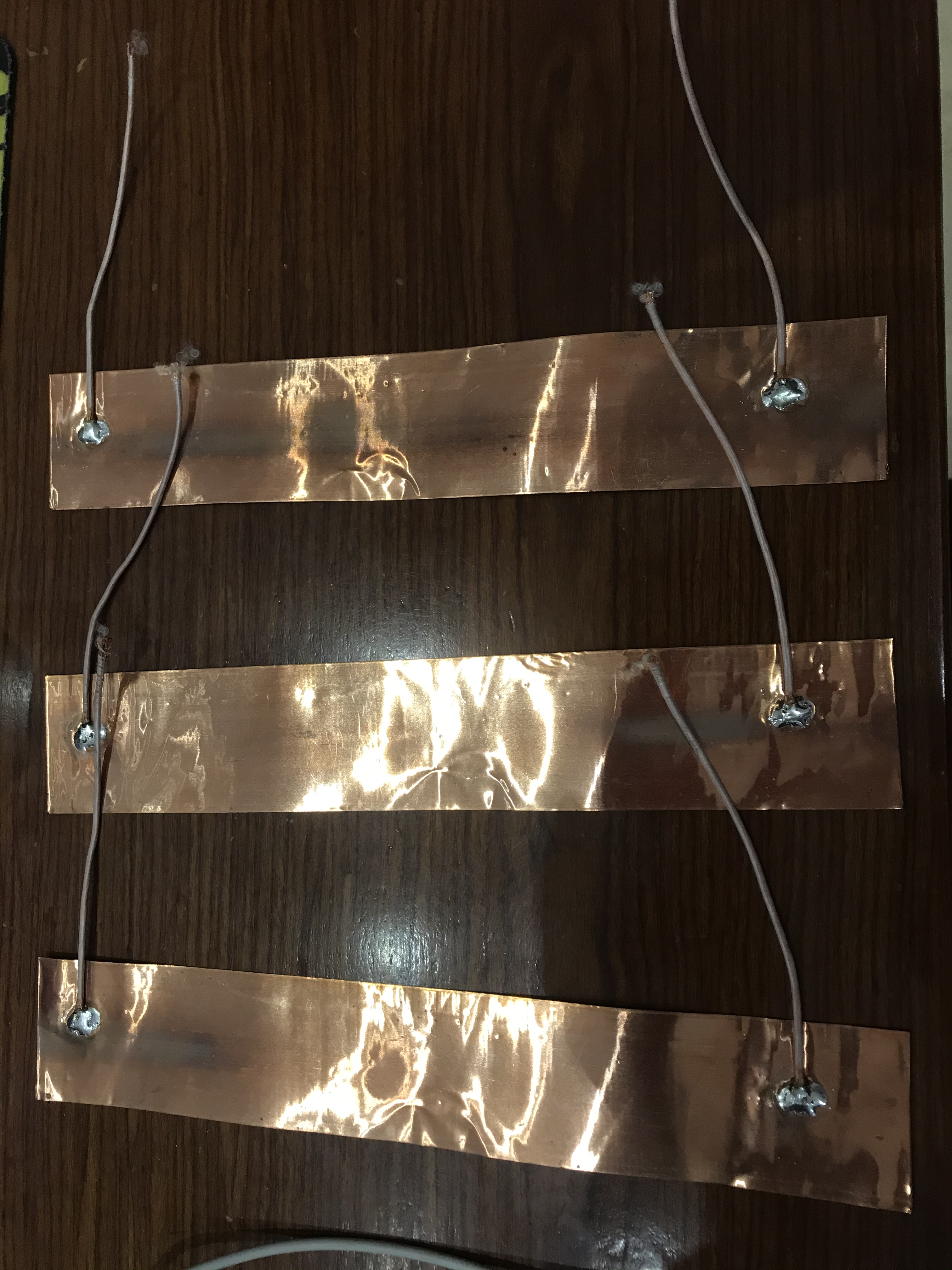

Copper foil & wind wire welding machine is widely used in high-frequency and low-frequency transformer industry, a full-automatic machine for producing shielding copper-foil of the electronic transformer, which has so many advantages: casing adhesive tape, pre-welding copper wire, welding lead-wire, automatic cutting to length and R angle cutting.

By using this machine, labor cost can be greatly reduced and raw material cost can also be controlled.

The flow: Casing adhesive tape- wire end pre-welding-wire end beating-wire welding.

II Main features:

2.1 PLC control, HMI (touch screen) operation, simple in adjustment.

2.2 It can be used for all kinds copper wires welding, such as thick wire, thin wire, stranded wire, 3-layers insulated wire.

2.3 There are 8pcs welding spots to be freely set. Each welding spot, you can choose A pcs copper wire and A+B pcs copper wire.

2.4 Pre-welding function: No need strip the copper wire, just pre-weld tin in the solder machine, and then beat the wire end. It can make sure the solidity of any wire solder joint and smooth solder joint.

2.5 R angle cutting blade is customized. Both ends can be directly cut out of rounded corners finished products, rounded chamfer is standard, and omit manual cutting round corners process.

III Main technical data

No.

Item

Data

1

Productivity

About 4 second per welding spot/300pcs per hour

2

Lead-wire diameter

0.4mm~1.2mm

3

Lead-wire length

50-80mm

4

The thickness of copper foil

0.1-0.5mm

5

The Max. OD of the copper wire

8mm

6

Copper foil width

Normally 10-35mm(customized, and it can be widen)

7

Copper foil length

Customized

8

The quantity of welding spot

8pcs

9

Machine dimension

1700 x 1200 x 1200mm

10

Weight

270kg

11

Pneumatic pressure

5kgf/cm2

Note: this machine can be customized according to customers special requirements.
