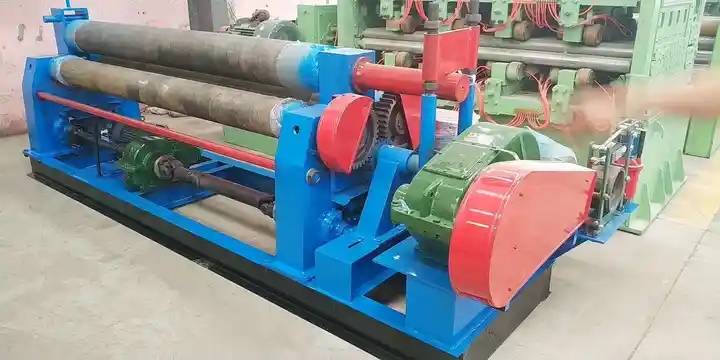

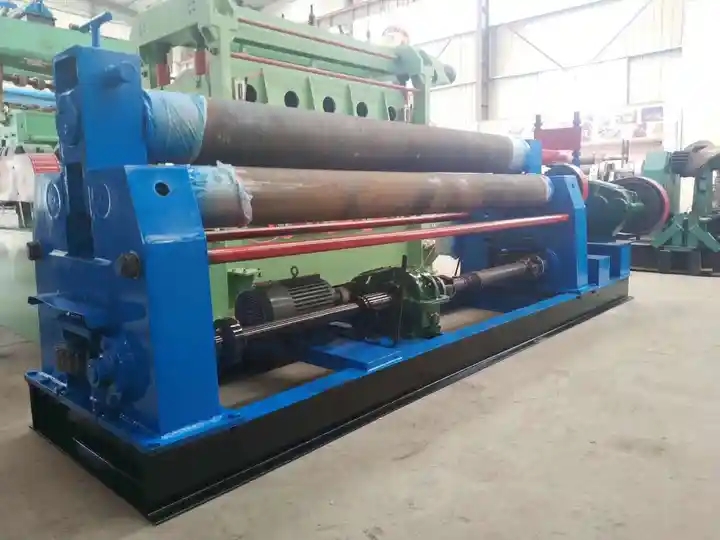

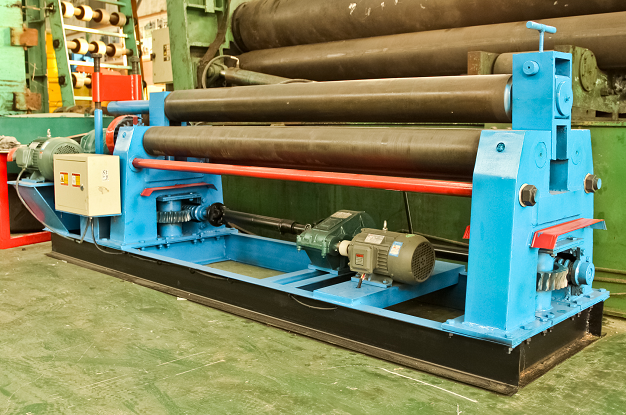

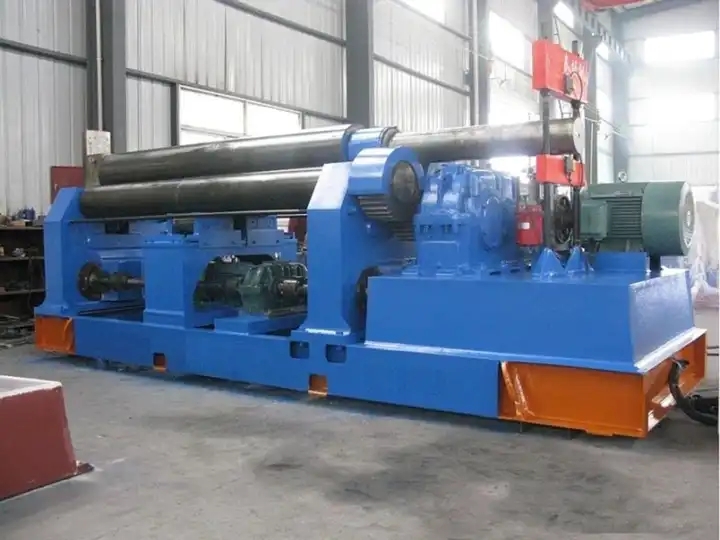

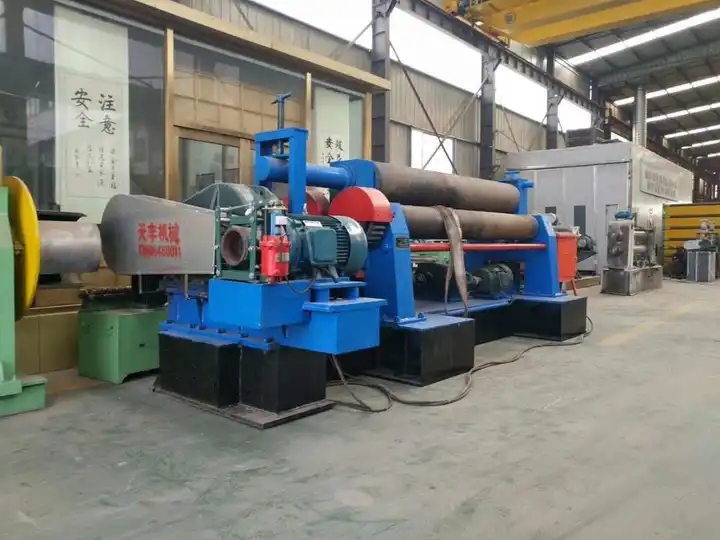

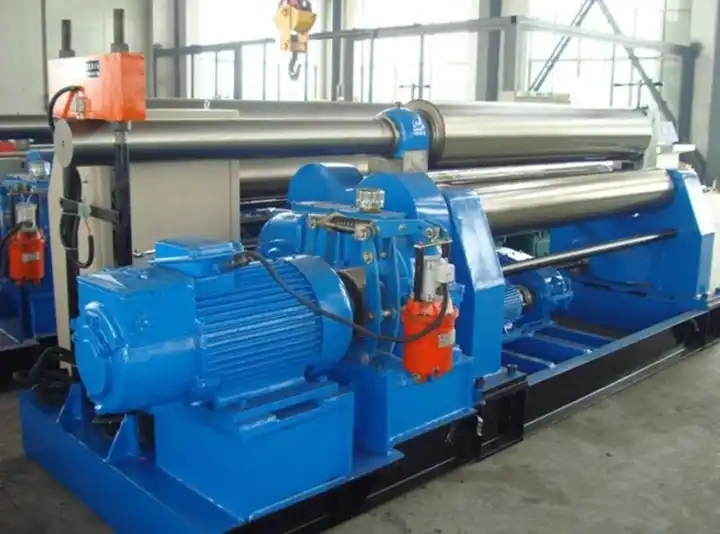

The main structure of the equipment consists of upper roller device and pressing device, lower roller device, main transmission device, tilting device, left and right frames and base. 1. Upper roller device and pressing device The upper roller device consists of an upper roller, an upper roller bearing seat, etc. The upper roller is made of 45# steel, heat-treated HRC48-52, and the bearing seats at both ends of the upper roller are equipped with sliding bearings. The pressing device is powered by an auxiliary motor, and the torque is mechanically transmitted through the reducer, worm gear and screw nut to drive the upper roller to move up and down. The worm material is ductile iron. 2. Lower roller device The lower roller device consists of a lower roller, a lower roller bearing seat, a lower roller open gear, a lower roller sliding bearing, etc. The lower roller is a driving roller, and the torque is transmitted to the lower roller through the main drive output gear and the lower roller open gear. The material of the lower roller is 45# steel, heat treated HRC48-52; the material of the lower roller gear is 45# steel. 3. Main transmission The main transmission device consists of the main motor, gear reducer, brake, etc.
Plate rolling machines have a wide range of applications and can be used in shipbuilding, chemical industry, boilers, hydropower, pressure vessels, pharmaceuticals, metallurgy, papermaking, electric power, food processing and other machinery manufacturing fields. The plate rolling machine is an important equipment in sheet metal processing. It can roll metal plates into cylindrical, arc-shaped, sector-shaped, conical and other workpieces. It is a general equipment specially used for bending, forming and straightening of metal plates.
