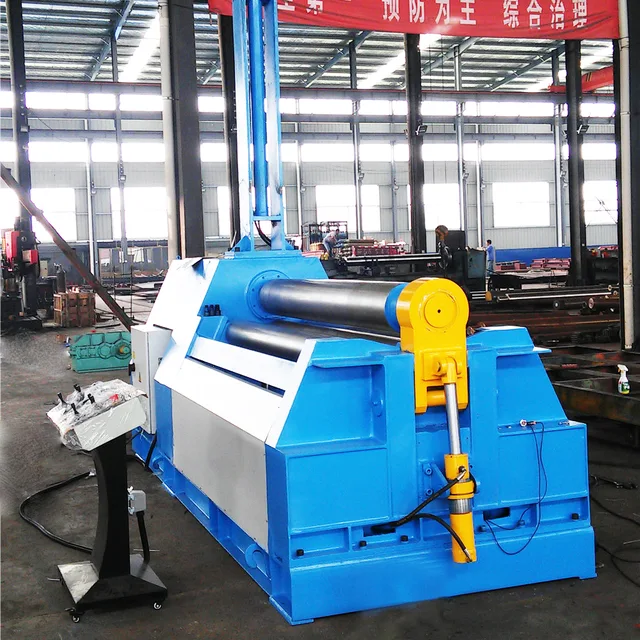

Plate rolling machine
Jiangsu Weiyang Heavy Industry Technology Co.,ltd
See what’s includedHide breakdown
- FOB goods (100)
- $4,400,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $154,000
- Section 301 tariff (25.0%)
- $1,100,000
- Customs fees (MPF/HMF)
- $6,135
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $4,400,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $154,000
- Section 301 tariff (25.0%)
- $1,100,000
- Customs fees (MPF/HMF)
- $6,135
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
Plate rolling machine
Jiangsu Weiyang Heavy Industry Technology Co.,ltdSee what’s includedHide breakdown
- FOB goods (100)
- $4,400,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $154,000
- Section 301 tariff (25.0%)
- $1,100,000
- Customs fees (MPF/HMF)
- $6,135
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $4,400,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $154,000
- Section 301 tariff (25.0%)
- $1,100,000
- Customs fees (MPF/HMF)
- $6,135
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: mild steel
- Size: 3200*1000*1500
- Color: blue
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Jiangsu, China
About this product
- Materials: mild steel
- Size: 3200*1000*1500
- Color: blue
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Jiangsu, China
Product details
| Materials | mild steel |
|---|---|
| Size | 3200*1000*1500 |
| Color | blue |
Product details
| Materials | mild steel |
|---|---|
| Size | 3200*1000*1500 |
| Color | blue |
From the supplier

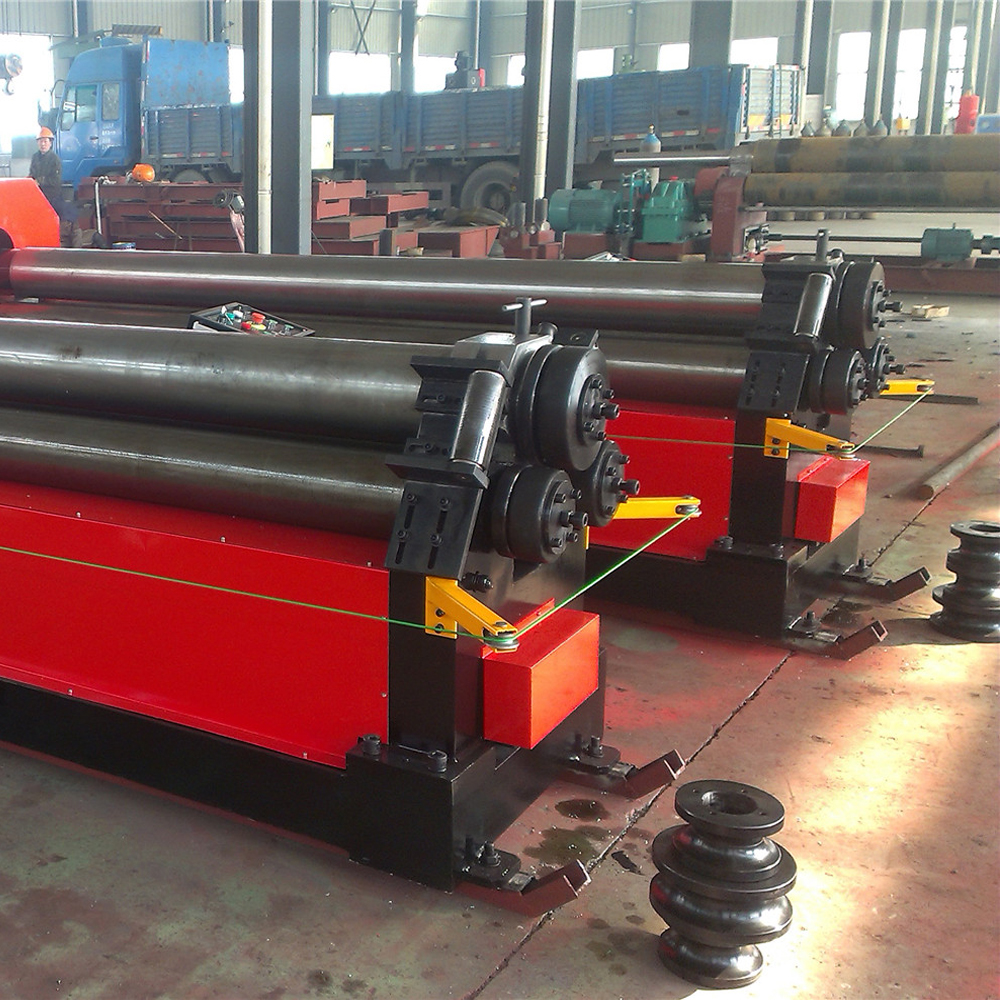

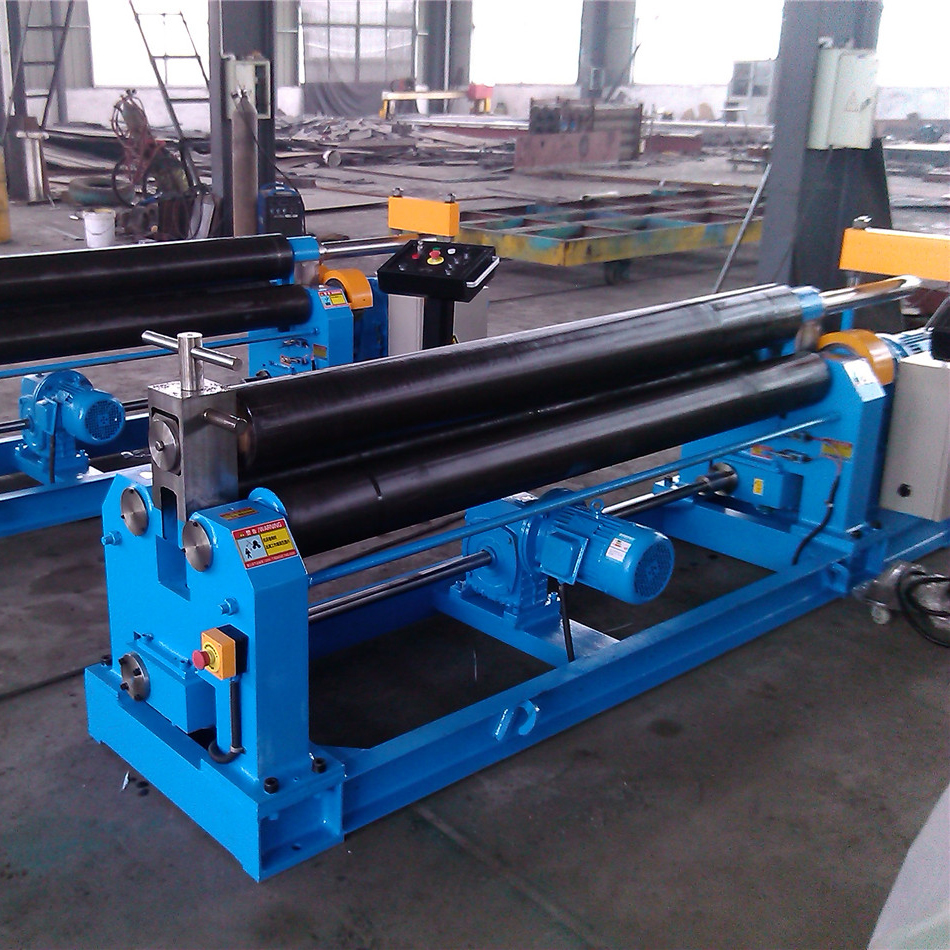

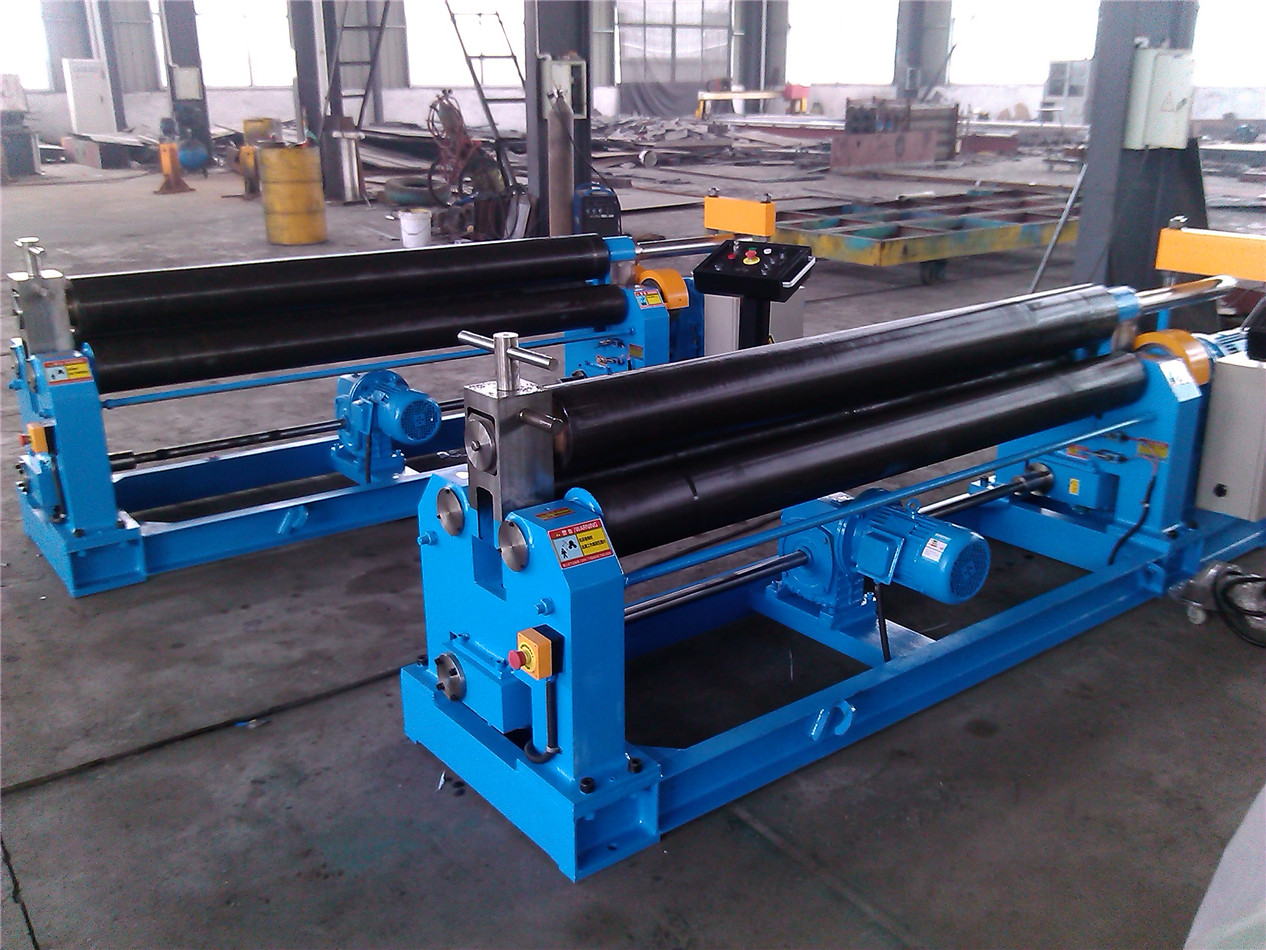

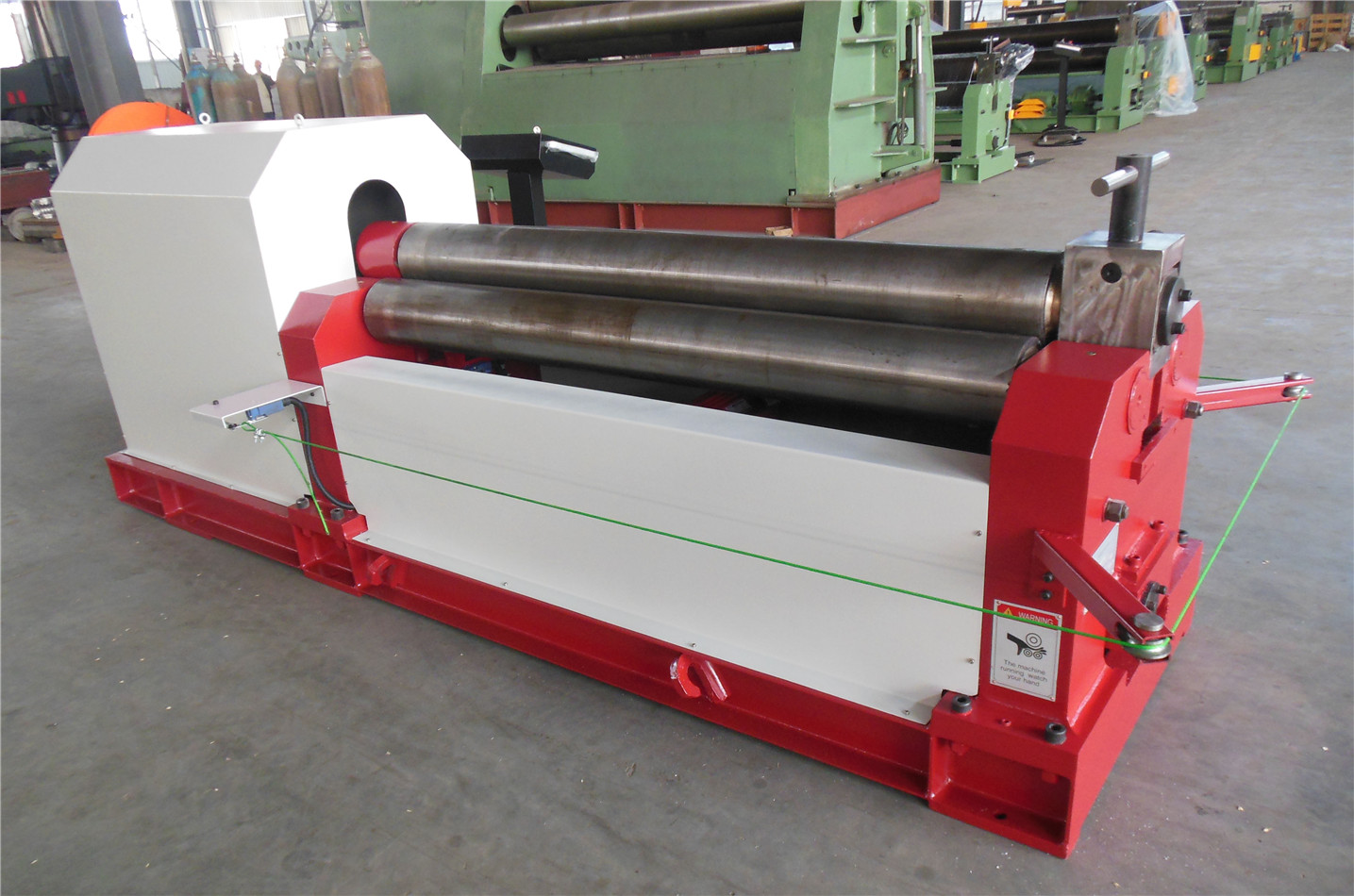

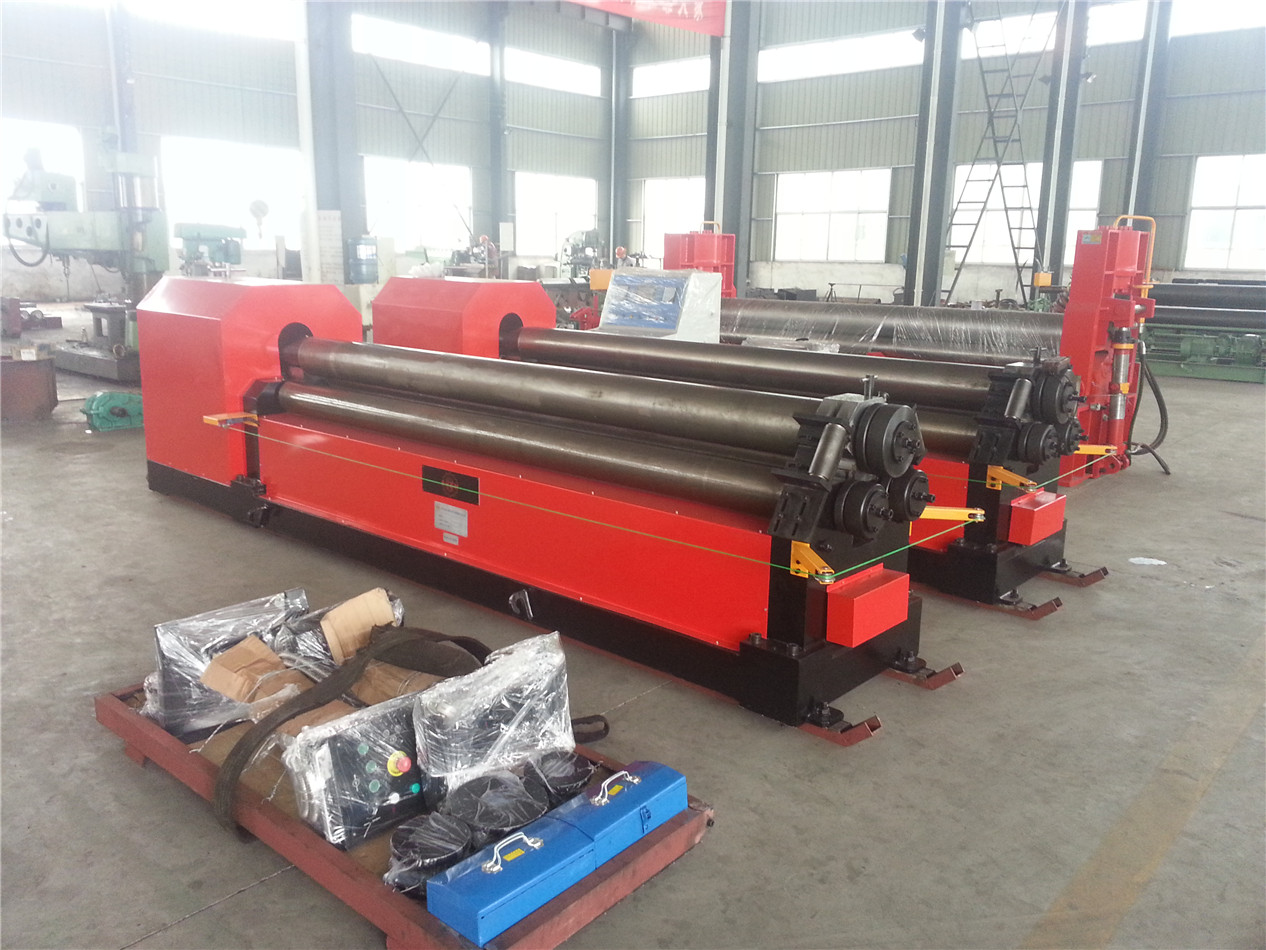

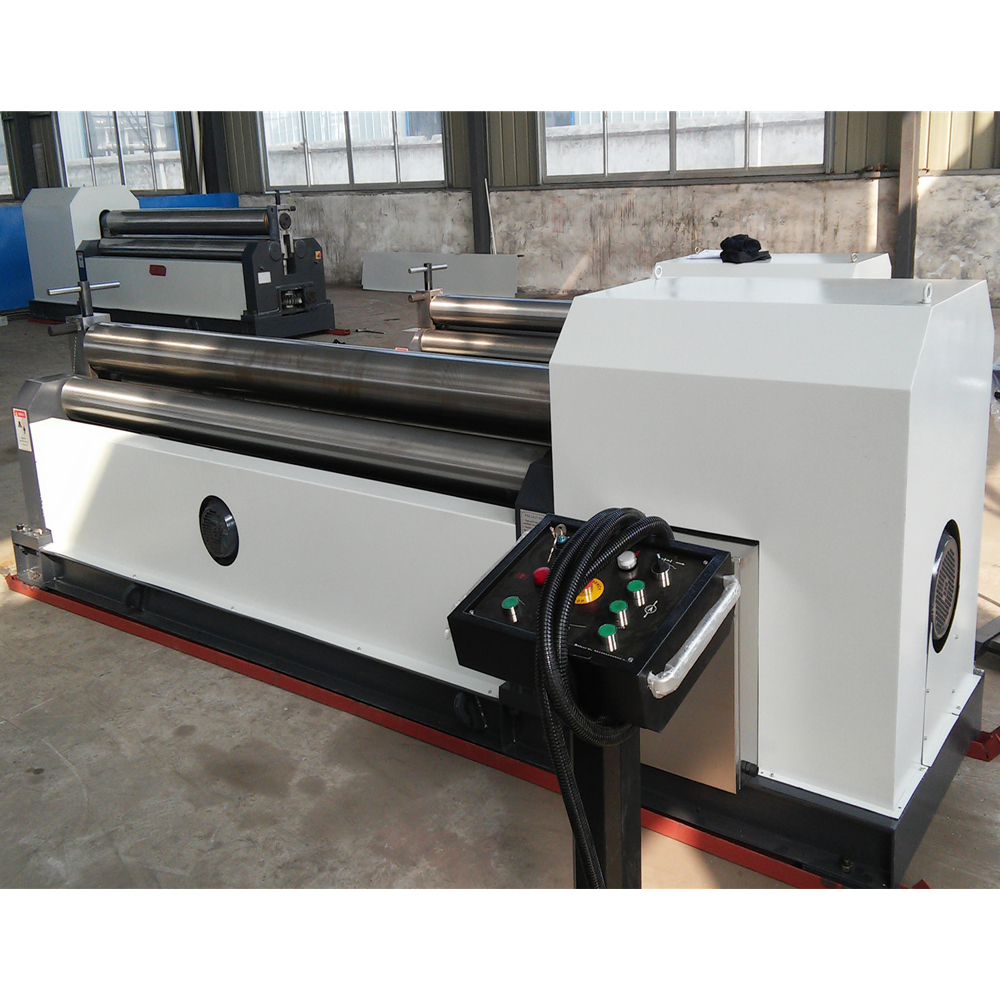

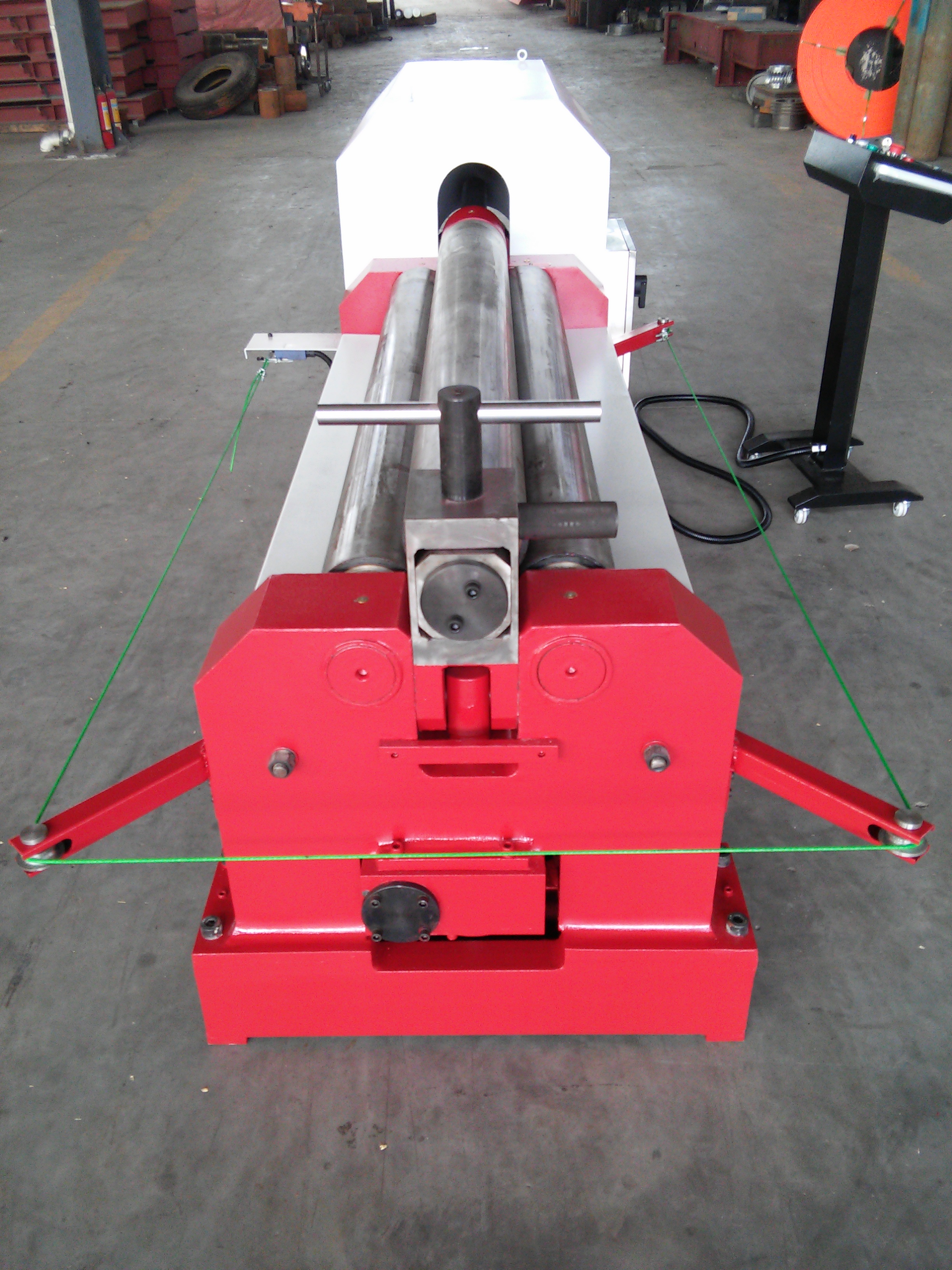

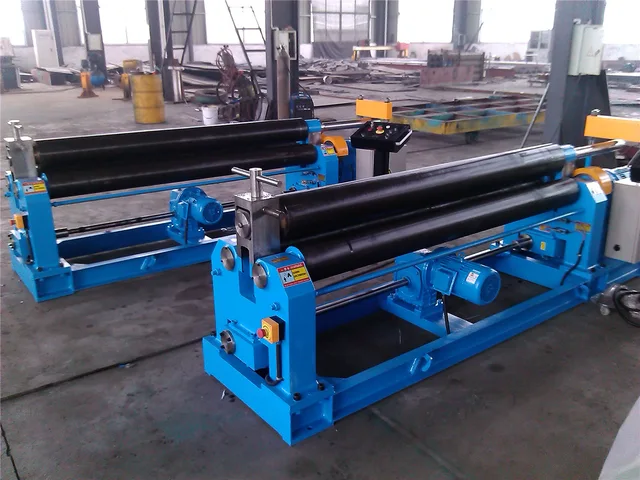

This device is three rollers symmetrical mechanical rolling machine. It is used to bend steel into drums
shape with different diameters. And it is widely used in boiler industry, chemical industry, mine industry, building industry, shipbuilding industry.
Model
Unit
W11-25×2000
The yielding limit of bended sheet
Mpa
σs≤245（mild steel）
σs≤350（stainless steel）
σs≤245（mild steel）
Max thickness of plate
mm
25（mild steel）
20（stainless steel）
Max width of plate
mm
2000
Max length of roller
mm
2050
The diameter of up-roller
mm
Φ340
The diameter of bottom-rollers
mm
Φ260
The distance of bottom rollers
mm
430
The min diameter when full load tank
mm
Φmin600
The power of main motor
kW
15
The power of vice motor
kW
7.5
Rolling speed
m/min
About 4
Up roller lifting speed
mm/min
About 120
Electrical system
V/HZ
3 Phases 380/50 （option）
From the supplier
This device is three rollers symmetrical mechanical rolling machine. It is used to bend steel into drums
shape with different diameters. And it is widely used in boiler industry, chemical industry, mine industry, building industry, shipbuilding industry.
Model
Unit
W11-25×2000
The yielding limit of bended sheet
Mpa
σs≤245（mild steel）
σs≤350（stainless steel）
σs≤245（mild steel）
Max thickness of plate
mm
25（mild steel）
20（stainless steel）
Max width of plate
mm
2000
Max length of roller
mm
2050
The diameter of up-roller
mm
Φ340
The diameter of bottom-rollers
mm
Φ260
The distance of bottom rollers
mm
430
The min diameter when full load tank
mm
Φmin600
The power of main motor
kW
15
The power of vice motor
kW
7.5
Rolling speed
m/min
About 4
Up roller lifting speed
mm/min
About 120
Electrical system
V/HZ
3 Phases 380/50 （option）
