Shuanghua Welding 1.4-meter 6-axis welding robot Automobile welding Steel structure welding Ship welding Pipe welding Pressure vessel welding Rail transit welding Metal processing manufacturing Sheet
SUMEC INTERNATIONAL TECHNOLOGY CO.,LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
Shuanghua Welding 1.4-meter 6-axis welding robot Automobile welding Steel structure welding Ship welding Pipe welding Pressure vessel welding Rail transit welding Metal processing manufacturing Sheet
SUMEC INTERNATIONAL TECHNOLOGY CO.,LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Pipe material: Other
- Application: Other
- Customized: Other
- Theory: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Oceania, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Shenyang, Liaoning, China
About this product
- Pipe material: Other
- Application: Other
- Customized: Other
- Theory: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Oceania, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Shenyang, Liaoning, China
Product details
| Pipe material | Other |
|---|---|
| Application | Other |
| Customized | Other |
| Theory | Other |
Product details
| Pipe material | Other |
|---|---|
| Application | Other |
| Customized | Other |
| Theory | Other |
From the supplier
This model is mainly used for arc welding, with high reliability and excellent price ratio. Its characteristics are as follows: It adopts hollow structural arms and wrists, and built-in welding cables, allowing welding operations in narrow spaces. It is light in weight and compact in structure: By installing the body cover, it can be used with confidence in various harsh environments (dust and anti-drip). Large working space, fast running speed, and high repetitive positioning accuracy, suitable for welding applications with high requirements for weld quality.

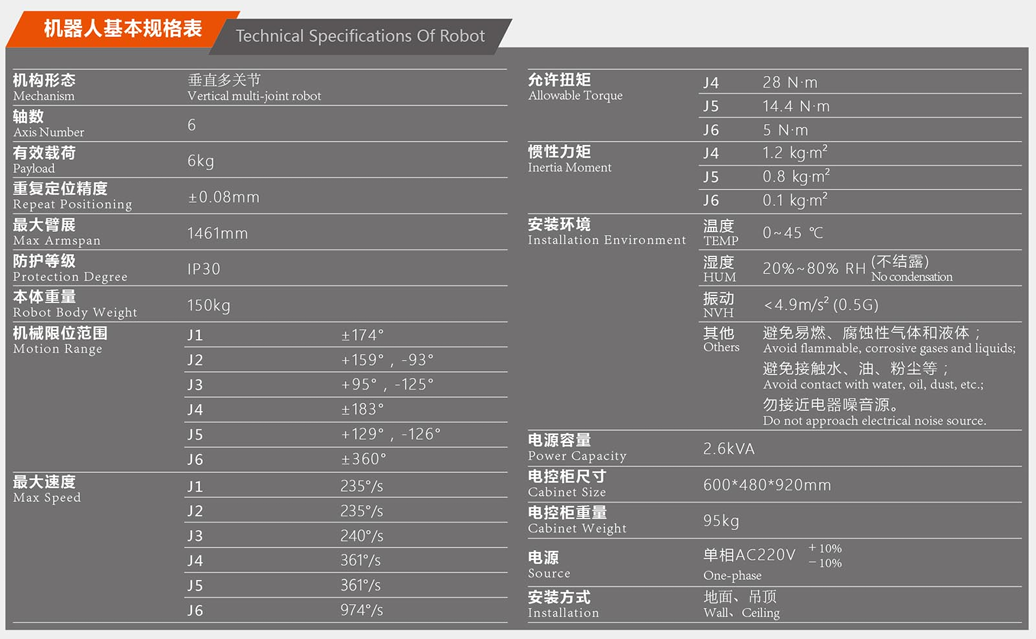

Core parameters of mechanical body
parameter items
Number of axes (Axis)
6-axis
Rated load (Payload)
6kg
* Reach/Radius
1461mm
Repeat Positioning Accuracy
±0.08mm
* Max Speed
Joint Range of Motion (Axis Range)
Body weight (Weight)
150kg
Overall size (Dimensions)
？
Protection Class
Ip30
Installation method (Installation)
Ground, suspended ceiling
Arc Current (Arc Current)
500A
Arcing current (sustaining current)
Place of origin (Origin)
China
New and New Level (Condition)
new
Plug-in (Power Connection)
？
Power (Power)
2.6KVA
Equipment Classification (Equipment Type)
Voltage (Voltage)
AC220V
Province (Province)
Liaoning
Pulse frequency (Pulse Frequency)
Brand
Motor Type
Phase (Phase)
Rated load duration (Duty Cycle)
Purpose (Application)
welding
Warranty period (Warranty)
Weight (KG)(Weight)
From the supplier
This model is mainly used for arc welding, with high reliability and excellent price ratio. Its characteristics are as follows: It adopts hollow structural arms and wrists, and built-in welding cables, allowing welding operations in narrow spaces. It is light in weight and compact in structure: By installing the body cover, it can be used with confidence in various harsh environments (dust and anti-drip). Large working space, fast running speed, and high repetitive positioning accuracy, suitable for welding applications with high requirements for weld quality.
Core parameters of mechanical body
parameter items
Number of axes (Axis)
6-axis
Rated load (Payload)
6kg
* Reach/Radius
1461mm
Repeat Positioning Accuracy
±0.08mm
* Max Speed
Joint Range of Motion (Axis Range)
Body weight (Weight)
150kg
Overall size (Dimensions)
？
Protection Class
Ip30
Installation method (Installation)
Ground, suspended ceiling
Arc Current (Arc Current)
500A
Arcing current (sustaining current)
Place of origin (Origin)
China
New and New Level (Condition)
new
Plug-in (Power Connection)
？
Power (Power)
2.6KVA
Equipment Classification (Equipment Type)
Voltage (Voltage)
AC220V
Province (Province)
Liaoning
Pulse frequency (Pulse Frequency)
Brand
Motor Type
Phase (Phase)
Rated load duration (Duty Cycle)
Purpose (Application)
welding
Warranty period (Warranty)
Weight (KG)(Weight)
