About this product
- Materials: steel, aluminum and iron
- Size: 8000*2100*7000mm
- Color: Zhouxiang standard blue
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Jiangsu, China
About this product
- Materials: steel, aluminum and iron
- Size: 8000*2100*7000mm
- Color: Zhouxiang standard blue
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Jiangsu, China
Product details
| Materials | steel, aluminum and iron |
|---|---|
| Size | 8000*2100*7000mm |
| Color | Zhouxiang standard blue |
Product details
| Materials | steel, aluminum and iron |
|---|---|
| Size | 8000*2100*7000mm |
| Color | Zhouxiang standard blue |
From the supplier

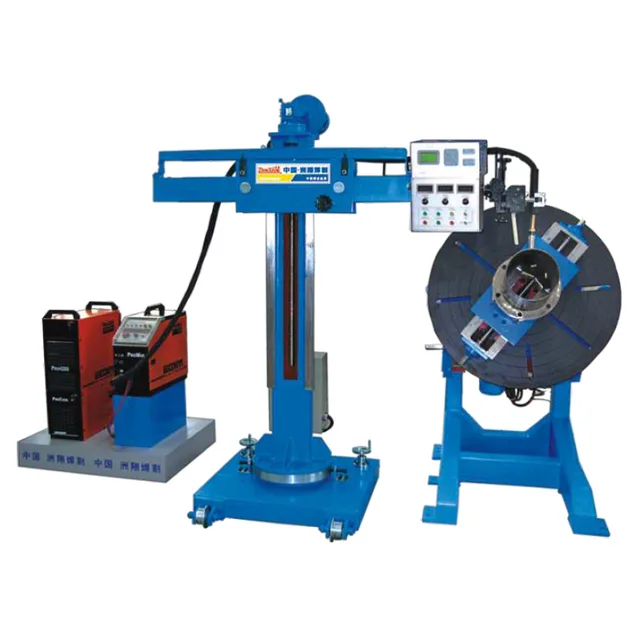

LCH series welding manipulator is composed of column, welding arm, rotating mechanism, elevating mechanism, boom expansion mechanism, cross trimming, welding head, and electrical box，and chassis. It can satisfy multi-direction welding requirements. The elevating of welding arm adopted the way of worm gear transmission and chain drive elevating, its speed changed by converter which has stable transmission and slow and stable speed change. Cross trimming mechanism is used to adjust the deviation between wire and work-piece. The electric control box is used to control the power on, stop, trolley advance and retreat, cross arm lifting, cross arm telescoping, and column rotation. For the convenience of the operator, a remote control operation box is connected from the control box. The operation box is equipped with a cross arm speed potentiometer, a cross arm lift switch, a cross arm telescopic switch, a trolley advance and retreat switch, a column rotary switch, and a welding machine The control box can be installed on the electrical control box. The welding machine control box panel is equipped with a welding ammeter, welding voltmeter, welding voltage potentiometer, welding current potentiometer, wire feed, wire withdrawal, button, welding start, welding stop.
This operation frame can adopt trinity control mode. It can be linked with submerged arc welding, welding rotator and manipulator frame. The manual control box can realize remote operation.
Technical parameter
Suitable diameter of cylinder: ф1000-ф6000mm (optional)
Vertical elevating stroke: 6000mm (optional)
Horizontal expansion stroke: 6000m (optional)
Boom elevating speed: 1m/min
Boom expansion speed: 0.12-1.2M/min
Base rotating angle: ±1800
Forward and backward speed of the trolley: 1.5m/min
The center distance of the trolley track: 1780mm
Welding power: MZ-1250×1 or ZKR-500×1
"}From the supplier
LCH series welding manipulator is composed of column, welding arm, rotating mechanism, elevating mechanism, boom expansion mechanism, cross trimming, welding head, and electrical box，and chassis. It can satisfy multi-direction welding requirements. The elevating of welding arm adopted the way of worm gear transmission and chain drive elevating, its speed changed by converter which has stable transmission and slow and stable speed change. Cross trimming mechanism is used to adjust the deviation between wire and work-piece. The electric control box is used to control the power on, stop, trolley advance and retreat, cross arm lifting, cross arm telescoping, and column rotation. For the convenience of the operator, a remote control operation box is connected from the control box. The operation box is equipped with a cross arm speed potentiometer, a cross arm lift switch, a cross arm telescopic switch, a trolley advance and retreat switch, a column rotary switch, and a welding machine The control box can be installed on the electrical control box. The welding machine control box panel is equipped with a welding ammeter, welding voltmeter, welding voltage potentiometer, welding current potentiometer, wire feed, wire withdrawal, button, welding start, welding stop.
This operation frame can adopt trinity control mode. It can be linked with submerged arc welding, welding rotator and manipulator frame. The manual control box can realize remote operation.
Technical parameter
Suitable diameter of cylinder: ф1000-ф6000mm (optional)
Vertical elevating stroke: 6000mm (optional)
Horizontal expansion stroke: 6000m (optional)
Boom elevating speed: 1m/min
Boom expansion speed: 0.12-1.2M/min
Base rotating angle: ±1800
Forward and backward speed of the trolley: 1.5m/min
The center distance of the trolley track: 1780mm
Welding power: MZ-1250×1 or ZKR-500×1
"}About the supplier

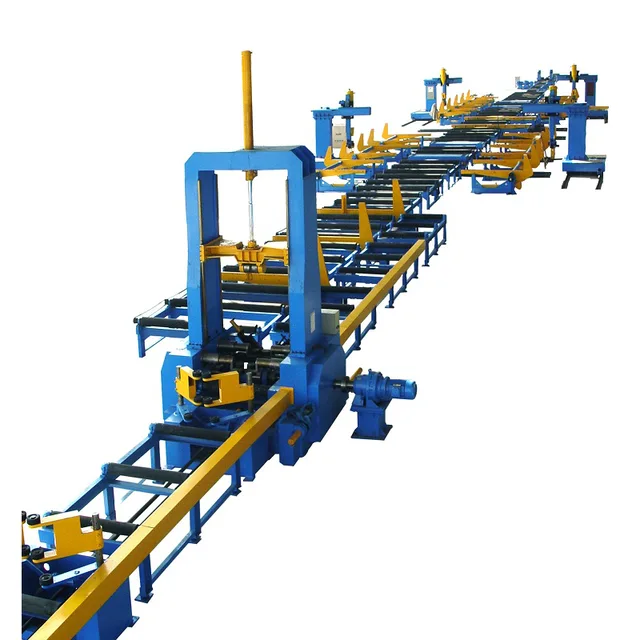

Main products: Other Welding Equipment,Rolling machine,Turning rolls,Edge milling machine,Other Metal Cutting Machinery,Other Large Machinery u0026 Equipment,H Beam production line,Pipe Cutting Tool,CNC Plasma Cutting Machines
