About this product
- Materials: steel,aluminum and iron
- Size: 4500*23900*4000mm
- Color: Zhouxiang standard blue
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Jiangsu, China
About this product
- Materials: steel,aluminum and iron
- Size: 4500*23900*4000mm
- Color: Zhouxiang standard blue
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Jiangsu, China
Product details
| Materials | steel,aluminum and iron |
|---|---|
| Size | 4500*23900*4000mm |
| Color | Zhouxiang standard blue |
Product details
| Materials | steel,aluminum and iron |
|---|---|
| Size | 4500*23900*4000mm |
| Color | Zhouxiang standard blue |
From the supplier
H-beam is made of two flanges and a web, and the position of them has direct impact on the qualified rate of finished products. H-beam assembling Machine can quickly and accurately spot weld the flanges and web together, which significantly improves the production efficiency.

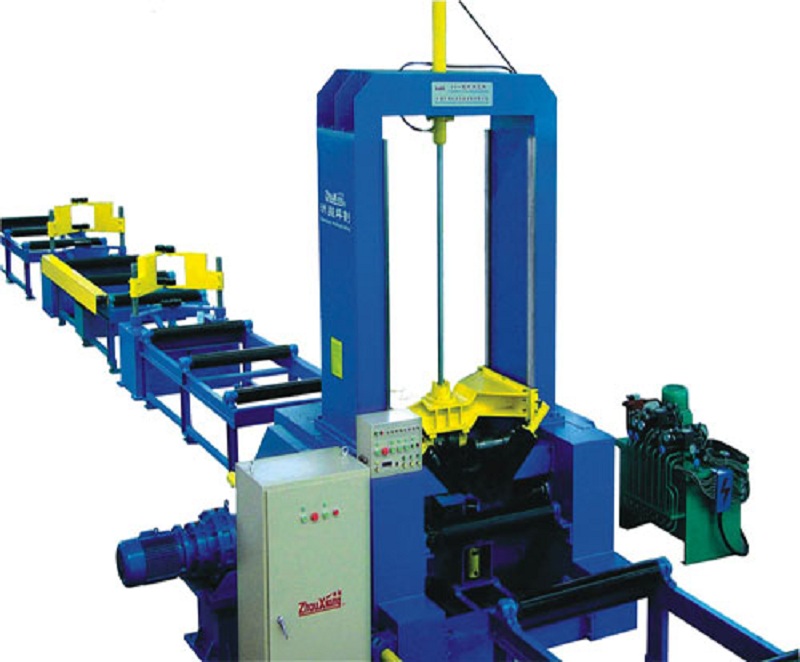

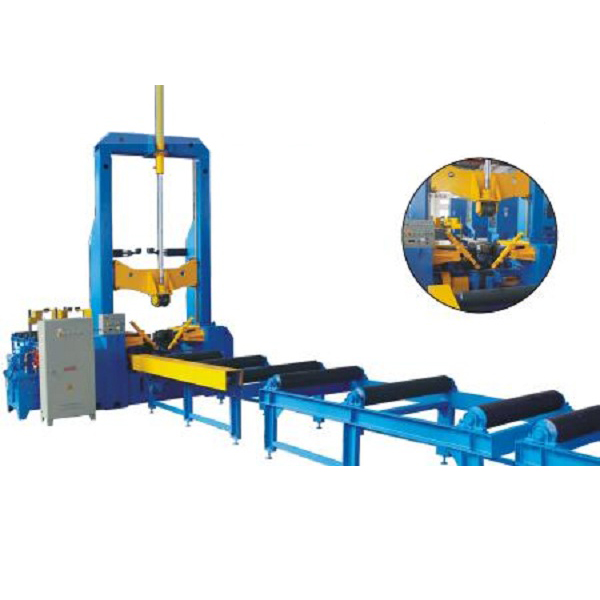

H-beam assembling Machine is composed of main machine, a draw bar centering system, input and output roller conveyor, hydraulic system, electric control system and CO2 Gas Shielded Welding machines.
The assembling machine has automatic welding and manual welding in order to satisfy the users’ requirements. The manual welding has no welding torch fixing device and CO2 Gas shielded welders. And the electric control box also does not have PLC programmable controller. So the users are asked to choose their own CO2Gas Shielded welders, and the spot welding process should be operated by two workers, thus the user's purchase cost can be reduced.
Technical parameter
H beam height200-1800 ㎜
Web thickness 6-32 ㎜ Flange width 200-800 ㎜ Flange thickness 6-40mm Workpiece length 4000-15000 ㎜ Assembling speed 0.5-6 m/min Main machine power 5.5 kW Hydraulic station power 4 kWFrom the supplier
H-beam is made of two flanges and a web, and the position of them has direct impact on the qualified rate of finished products. H-beam assembling Machine can quickly and accurately spot weld the flanges and web together, which significantly improves the production efficiency.
H-beam assembling Machine is composed of main machine, a draw bar centering system, input and output roller conveyor, hydraulic system, electric control system and CO2 Gas Shielded Welding machines.
The assembling machine has automatic welding and manual welding in order to satisfy the users’ requirements. The manual welding has no welding torch fixing device and CO2 Gas shielded welders. And the electric control box also does not have PLC programmable controller. So the users are asked to choose their own CO2Gas Shielded welders, and the spot welding process should be operated by two workers, thus the user's purchase cost can be reduced.
Technical parameter
H beam height200-1800 ㎜
Web thickness 6-32 ㎜ Flange width 200-800 ㎜ Flange thickness 6-40mm Workpiece length 4000-15000 ㎜ Assembling speed 0.5-6 m/min Main machine power 5.5 kW Hydraulic station power 4 kWAbout the supplier
