About this product
- Size: Touch screen:10 inch
- Color: Grey
- Mathematical model: Other
- Signal: Continuous
- Structure: Other
- Material: Other
- Exports to: Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, EU, Other European Countries
About this product
- Size: Touch screen:10 inch
- Color: Grey
- Mathematical model: Other
- Signal: Continuous
- Structure: Other
- Material: Other
- Exports to: Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, EU, Other European Countries
Product details
| Size | Touch screen:10 inch |
|---|---|
| Color | Grey |
| Mathematical model | Other |
| Signal | Continuous |
| Structure | Other |
| Material | Other |
| Task | Program |
| Customized | Non-Customized |
| Function | Monitoring |
From the supplier

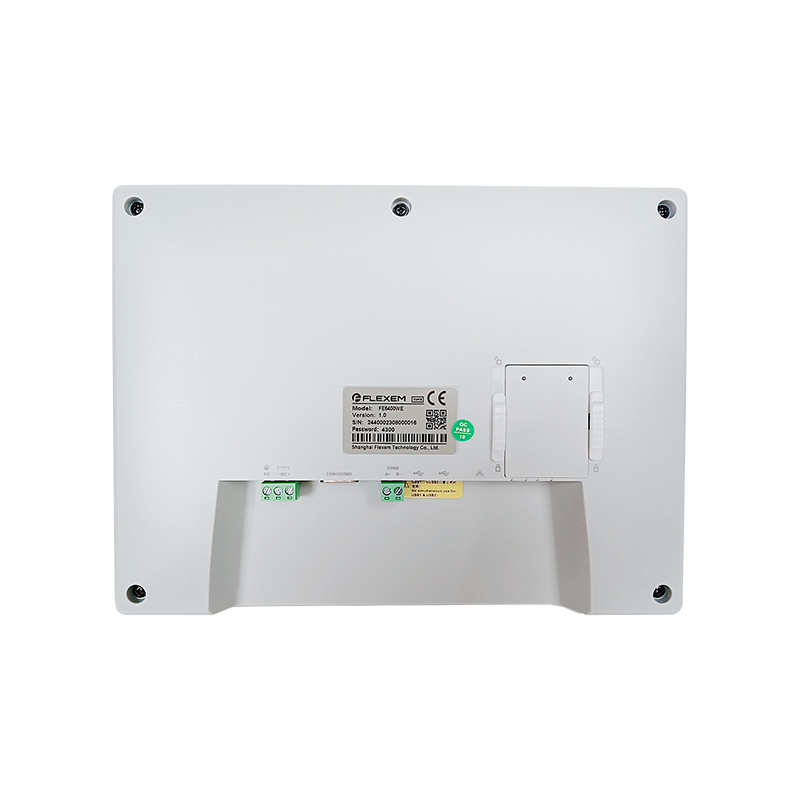

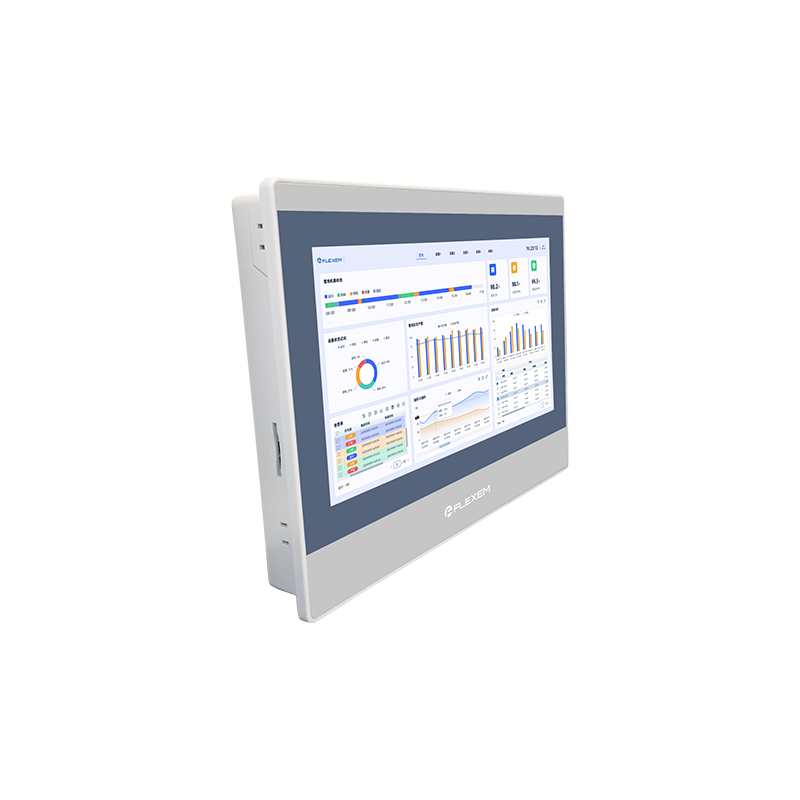

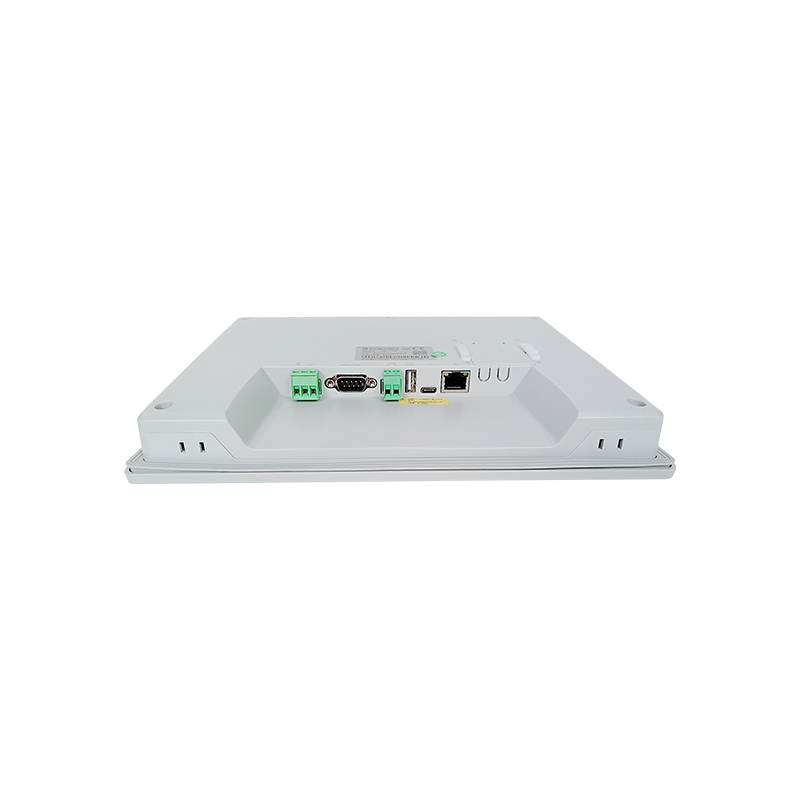

FE6400WE is a 10.1" resistive HMI with gray frame. The touchscreen 16:9 TFT LCD, featuring 1024×600 resolution, 24-bit colors. FE6400WE adopts high-performance 1GHz dual core Cortex-A7 CPU, with 4GB storage and 1 x Eth port. As a member in FE6300 series, it also supports 3000 tags. Pluggable Flink2 IoT module provides more flexile internet connectivity solutions.
FEATURES FE6400WE Display 10.1" 16:9 TFT LCD LCD Viewing Angles(T/B/L/R) 85'/85'/85'/85' Resolution 1024×600 Colors 24-bit Brightness 400 cd/m² Backlight LED LCD Lifetime 50000 hours Touch Panel 4-wire resistive touchscreen CPU 1GHz, Dual core Cortex-A7 Storage 4GB eMMC + 256MB DDR3 RTC Built-in SD Card NA Ethernet port 1*RJ45, based on 10/100Mbps USB Port 1*USB Type-C OTG, 1*USB Type-A Download Method USB slave / Flash drive Serial port
COM1: RS232/RS485/RS422,
COM2: RS485,
COM3: RS232
Rated power <10W Input Voltage DC24V, Working range DC9V-28V Power supply protection With lightning surge protection Power Interruption Tolerance <5mS Certification CE, RoHS Operating Temperature 0-50℃ StorageTemperature -20-60℃ UV Resistance Operating in high UV environment is prohibited Environmental Humidity 10-90%RH (Non condensing) Vibration Endurance 10-25Hz (X,Y,Z direction 2G/30 minutes) Cooling Mode Natural Cooling Protection Level Front:IP65, Rear:IP20 Enclosure Material Engineering plastic, gray Cutout Size 260mm×202mm Dimensions 273mm×213mm×36mm Weight About 890gAbout the supplier
Main products: PLC Programmable Controller Systems and Software, Human-Machine Interfaces, Servo Motors and Drives
