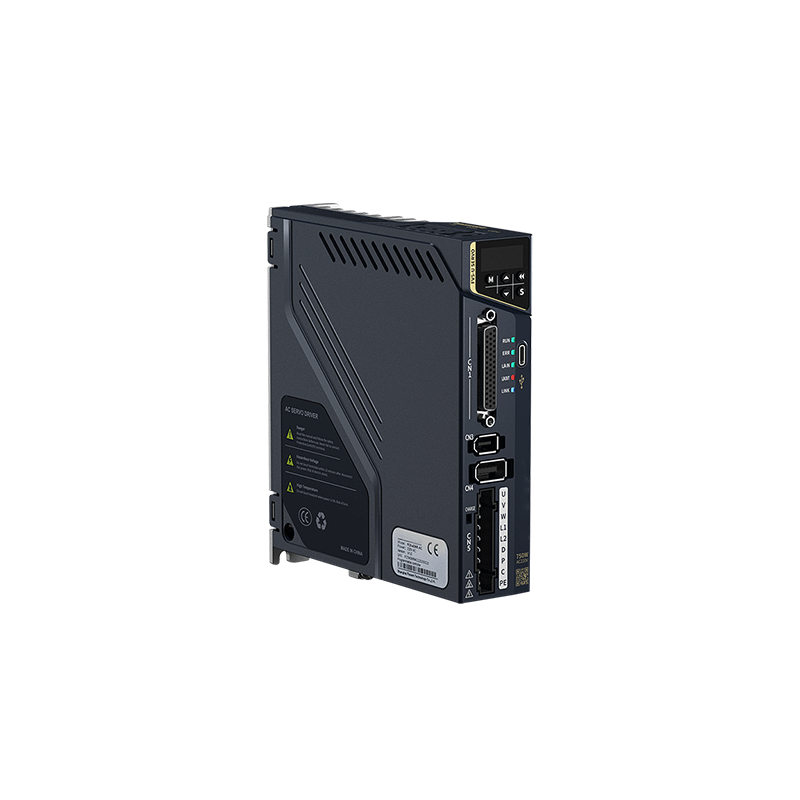

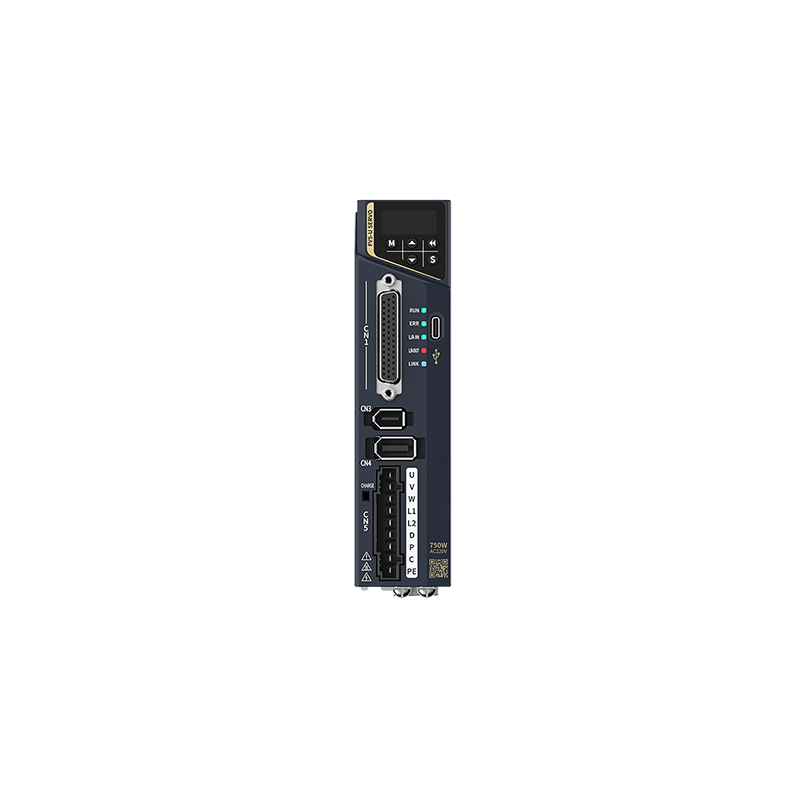

FV5-U3-PA1R1 Servo drive
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
FV5-U3-PA1R1 Servo drive
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Size: 40mmx151mmx161mm
- Color: Black
- Certification: CE
- Installation: External
- Exports to: Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, EU, Other European Countries
About this product
- Size: 40mmx151mmx161mm
- Color: Black
- Certification: CE
- Installation: External
- Exports to: Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, EU, Other European Countries
Product details
| Size | 40mmx151mmx161mm |
|---|---|
| Color | Black |
| Certification | CE |
| Installation | External |
From the supplier
Aiming at the field of precision manufacturing, it provides customers with high-performance motion control solutions with high dynamic response and precise positioning.3.5kHz speed loop bandwidth, general rotary servo, DDR, DDL, voice coil motor. Supports EtherCAT and Modbus communication protocols, standard dynamic braking function, standard encoder output, bus model standard STO function, pulse model supports two-way analog quantity, and high-speed DI/DO terminals support probes and flying shots.
FEATURES FV5-U3-PA1R1 Rated Current(Arms) 1.1 Maximum Output Current
(Arms) 3.9 Input Power Supply (V) Single phase AC200V-240V,-10%～10%,50/60Hz Rated Power(W) 100 Background
Communication Type-C USB EtherCAT
Communication / RS485
Communication Support CN3 Biss-C Encoder /Tamagawa,Nikon Protocol Communication Encoder CN4 ABZ Encoder Al Supports 2 channels(16-bit per channel plus 12-bit per channel) Normal Digital
Input Supports 6 points High-Speed
DigitalInput Supports 2 points Normal Digital
Output Supports 5 points High-Speed
Digital Output / Low-Speed
Pulse Input Collector input mode:200kpps High-Speed
Pulse Input Differential input mode:4Mpps STO / Encoder Differential
Output Full range support Encoder Z-phase Pulse
OC Output Full range support Dynamic Braking Full range support Motor Temperature
Protection Full range support Brake Function External braking resistor Built-in Braking
Resistor Resistance (Ω) / Built-in braking
Resistor Capacity(W) / Minimum Extemal Braking
Resistor Resistance(Ω) 40 Installation Size SIZE-A
