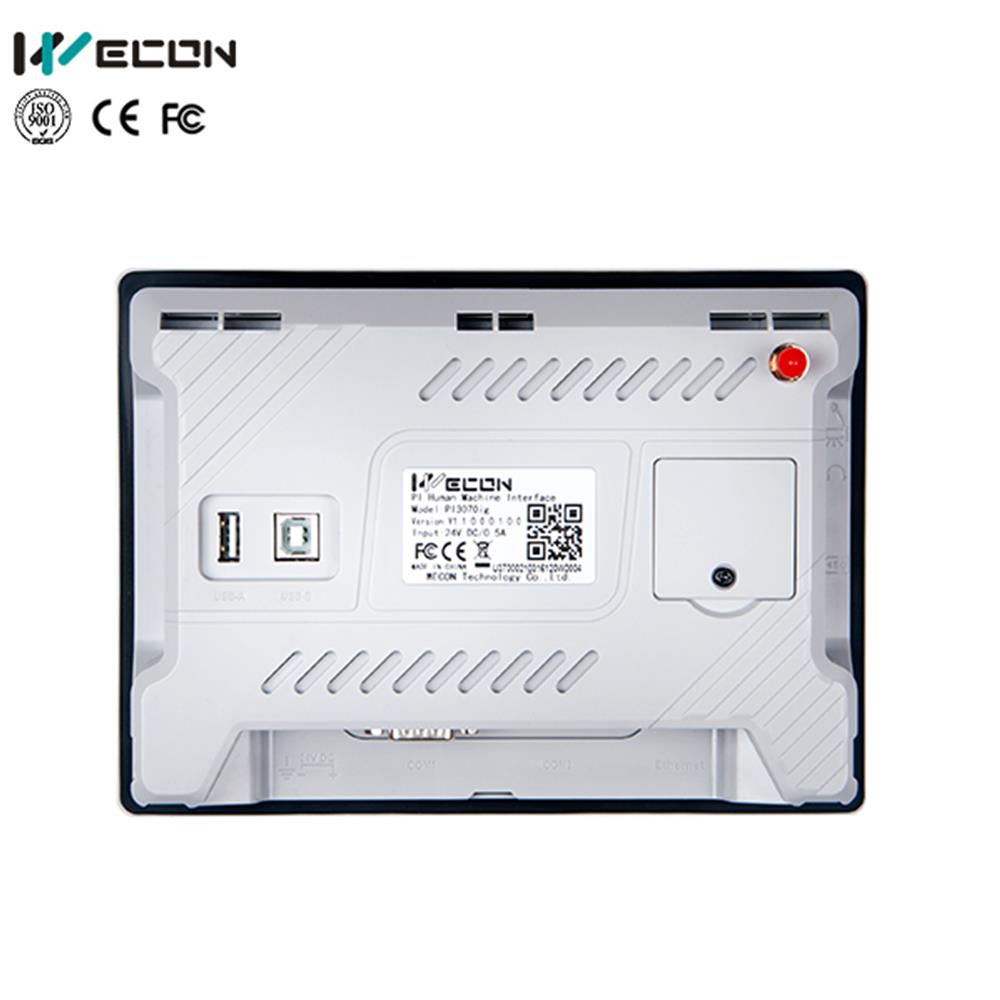

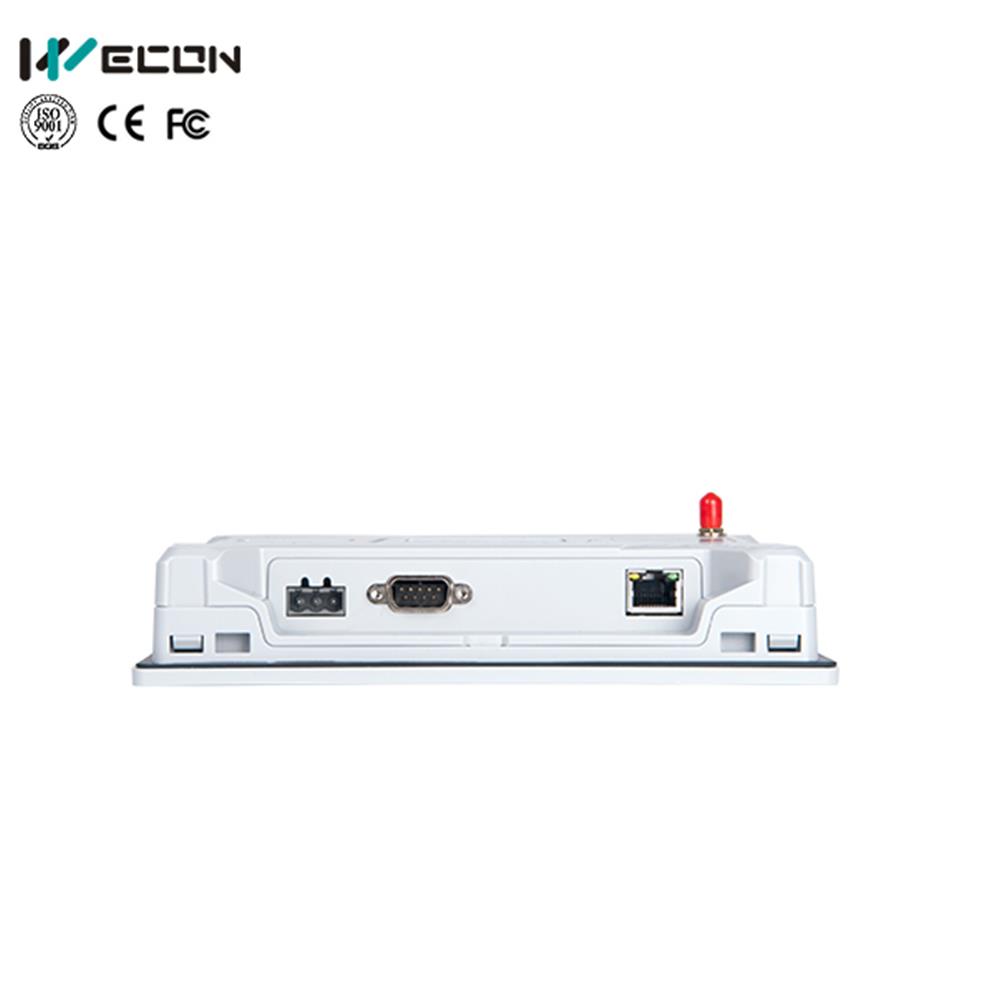

Wecon Hmi Touch Panel
FUJIAN FUCAN WECON CO LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
Wecon Hmi Touch Panel
FUJIAN FUCAN WECON CO LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Size: 201.2 x 147.2 x 39.0mm
- Color: Grey
- Signal: Continuous
- Function: AutomaticControlMonitoringOther
- Structure: Combination
- Customized: Non-Customized
- Exports to: Mainland China, Middle East, Southeast Asia, South Asia, Latin America, Russia, EU, Other European Countries
- Made in: Fujian, China
About this product
- Size: 201.2 x 147.2 x 39.0mm
- Color: Grey
- Signal: Continuous
- Function: AutomaticControlMonitoringOther
- Structure: Combination
- Customized: Non-Customized
- Exports to: Mainland China, Middle East, Southeast Asia, South Asia, Latin America, Russia, EU, Other European Countries
- Made in: Fujian, China
Product details
| Size | 201.2 x 147.2 x 39.0mm |
|---|---|
| Color | Grey |
| Signal | Continuous |
| Function | AutomaticControlMonitoringOther |
| Structure | Combination |
| Customized | Non-Customized |
| Mathematical model | Linear |
| Task | Program |
| Material | AluminumAlloy |
Product details
| Size | 201.2 x 147.2 x 39.0mm |
|---|---|
| Color | Grey |
| Signal | Continuous |
| Function | AutomaticControlMonitoringOther |
| Structure | Combination |
| Customized | Non-Customized |
| Mathematical model | Linear |
| Task | Program |
| Material | AluminumAlloy |
From the supplier
Display
Size
7"
Screen
TFT
Resolution
800*480
Brightness (cd/m2)
250
Backlight
LED
Backlight Lifetime
50,000 hours
Touch Panel
High precision four-wire resistive
Storage
Memory
128 MB
Flash
128 MB
SD Card Slot
YES
USB Port
USB2.0 Host + USB2.0 Client
RTC
Real-time clock
Yes
Calendar
Yes
I/O Port
COM1
CN1:RS422/RS485
CN2:RS232
CN3:RS485
Ethernet
x1
Power
Rated Power
< 15W
Power Voltage
DC 24V
Input range
DC 12 ~ 28V
Shell Color
Grey
Enclosure
Shell Material
PC+ABS
Overall Size (mm)
201.2W*147.2H*39.0D
Mounting Size (mm)
192.0W*138.0H
Mounting Method
Panel Mount
Weight (Kg)
0.52
Environment
Working Temperature
-10 ~ 55°C
Storage Temperature
-30 ~ 70°C
Humidity
10 ~ 90％RH (Non-condensing)
Vibration Resistance
10 ~ 25 Hz (X, Y, Z direction 2G/30 minutes)
Cooling
Air Cooling
Software
Programming
PIStudio
Remote Access
YES
Email Alarm
YES
Data Tool
YES
Certificates
IP Code
IP65 (Front panel)
CE
CE Marked
FCCFCC Class A
From the supplier
Display
Size
7"
Screen
TFT
Resolution
800*480
Brightness (cd/m2)
250
Backlight
LED
Backlight Lifetime
50,000 hours
Touch Panel
High precision four-wire resistive
Storage
Memory
128 MB
Flash
128 MB
SD Card Slot
YES
USB Port
USB2.0 Host + USB2.0 Client
RTC
Real-time clock
Yes
Calendar
Yes
I/O Port
COM1
CN1:RS422/RS485
CN2:RS232
CN3:RS485
Ethernet
x1
Power
Rated Power
< 15W
Power Voltage
DC 24V
Input range
DC 12 ~ 28V
Shell Color
Grey
Enclosure
Shell Material
PC+ABS
Overall Size (mm)
201.2W*147.2H*39.0D
Mounting Size (mm)
192.0W*138.0H
Mounting Method
Panel Mount
Weight (Kg)
0.52
Environment
Working Temperature
-10 ~ 55°C
Storage Temperature
-30 ~ 70°C
Humidity
10 ~ 90％RH (Non-condensing)
Vibration Resistance
10 ~ 25 Hz (X, Y, Z direction 2G/30 minutes)
Cooling
Air Cooling
Software
Programming
PIStudio
Remote Access
YES
Email Alarm
YES
Data Tool
YES
Certificates
IP Code
IP65 (Front panel)
CE
CE Marked
FCCFCC Class A
