About this product
- Size: 36mmx110mmx75.5mm
- Color: Black
- Exports to: Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, EU, Other European Countries
About this product
- Size: 36mmx110mmx75.5mm
- Color: Black
- Exports to: Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, EU, Other European Countries
Product details
| Size | 36mmx110mmx75.5mm |
|---|---|
| Color | Black |
Product details
| Size | 36mmx110mmx75.5mm |
|---|---|
| Color | Black |
From the supplier

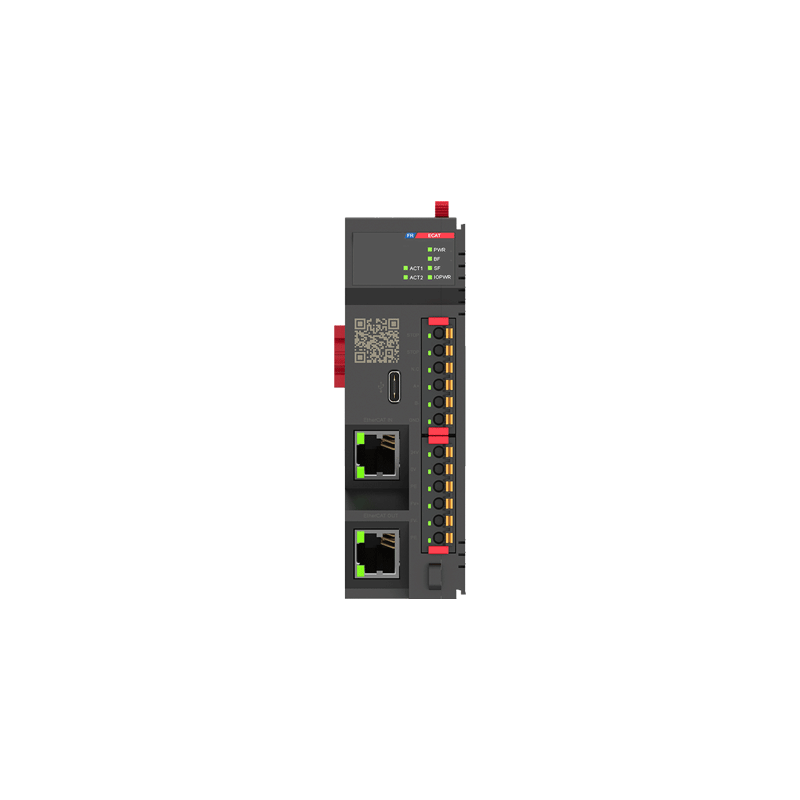

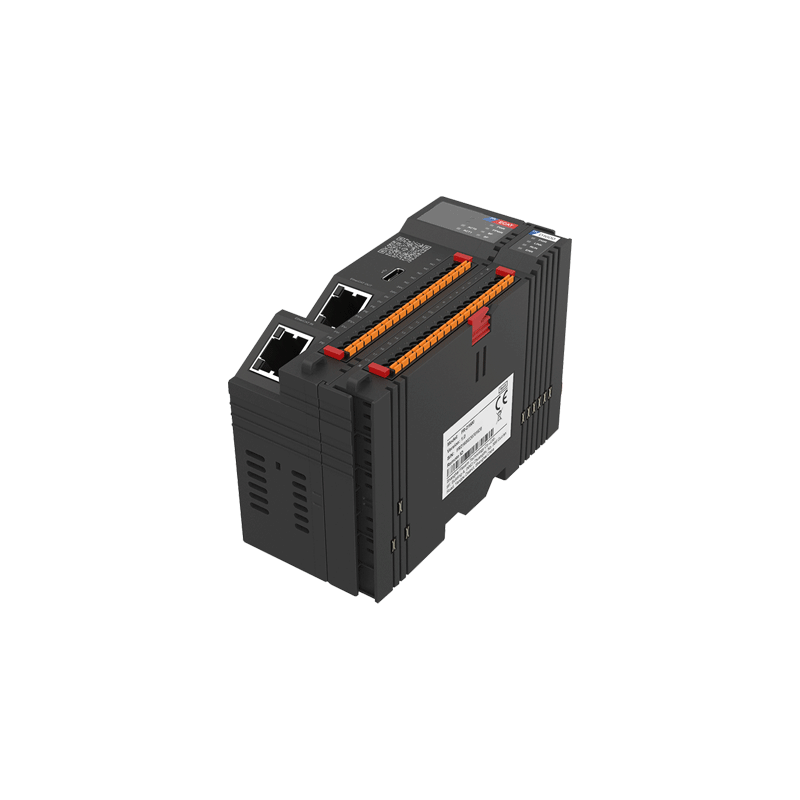

FL8 intelligent controller is a medium-sized PLC developed based on the Codesys platform, with IEC61131-3 architecture, built-in high-speed EtherCAT motion control bus, built-in Ethernet and serial port, support for OPC UA and Modbus protocols, seamless connection to the upper control system, and optimization of the overall system.
FEATURES FR-ECATPower
9~36VDC(nomal 24VDC)Protection:overcurrent protection,anti-reverse connection protection
Power Consumption
110mA@24Vdc
Isolation
Yes
Field Power
22~28V(Normal 24VDC)
Field Power Current
Max DC 8A
Max Extension Module
31
Wire
Max.1.5mm²(AWG 16)
Installation
35mm DIN ruler
Dimension (H*W*D)
111mm×36mm×76mm
Weight
200g
operation temperature
-20~70℃
Ambient humidity
5%-95%non-condensing
Protection grade
IP20
Protocol
EtherCAT
Process Data Area
nput:Max.1024 bytes,Output:Max.1024 bytes□
Connector
2*RJ45
Speed
10/100Mbps
Max Length
100m
From the supplier
FL8 intelligent controller is a medium-sized PLC developed based on the Codesys platform, with IEC61131-3 architecture, built-in high-speed EtherCAT motion control bus, built-in Ethernet and serial port, support for OPC UA and Modbus protocols, seamless connection to the upper control system, and optimization of the overall system.
FEATURES FR-ECATPower
9~36VDC(nomal 24VDC)Protection:overcurrent protection,anti-reverse connection protection
Power Consumption
110mA@24Vdc
Isolation
Yes
Field Power
22~28V(Normal 24VDC)
Field Power Current
Max DC 8A
Max Extension Module
31
Wire
Max.1.5mm²(AWG 16)
Installation
35mm DIN ruler
Dimension (H*W*D)
111mm×36mm×76mm
Weight
200g
operation temperature
-20~70℃
Ambient humidity
5%-95%non-condensing
Protection grade
IP20
Protocol
EtherCAT
Process Data Area
nput:Max.1024 bytes,Output:Max.1024 bytes□
Connector
2*RJ45
Speed
10/100Mbps
Max Length
100m
