Lft6800 digital display pressure transmitter
ZHEJIANG LEFOO CONTROLS CO., LTD.
See what’s includedHide breakdown
- FOB goods (100)
- $4,861
- Ocean freight + handling (1.2 CBM, volume guessed from price)
- $846
- US duty (3.5%)
- $170
- Section 301 tariff (25.0%)
- $1,215
- Customs fees (MPF/HMF)
- $39
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $4,861
- Ocean freight + handling (1.2 CBM, volume guessed from price)
- $846
- US duty (3.5%)
- $170
- Section 301 tariff (25.0%)
- $1,215
- Customs fees (MPF/HMF)
- $39
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
Lft6800 digital display pressure transmitter
ZHEJIANG LEFOO CONTROLS CO., LTD.See what’s includedHide breakdown
- FOB goods (100)
- $4,861
- Ocean freight + handling (1.2 CBM, volume guessed from price)
- $846
- US duty (3.5%)
- $170
- Section 301 tariff (25.0%)
- $1,215
- Customs fees (MPF/HMF)
- $39
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $4,861
- Ocean freight + handling (1.2 CBM, volume guessed from price)
- $846
- US duty (3.5%)
- $170
- Section 301 tariff (25.0%)
- $1,215
- Customs fees (MPF/HMF)
- $39
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: plastic,alloy,Electronic components,core
- Size: 163*42
- Color: black
- Production process: Other
- Theory: Other
- Output: DigitalSensorOther
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
About this product
- Materials: plastic,alloy,Electronic components,core
- Size: 163*42
- Color: black
- Production process: Other
- Theory: Other
- Output: DigitalSensorOther
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
Product details
| Materials | plastic,alloy,Electronic components,core |
|---|---|
| Size | 163*42 |
| Color | black |
| Production process | Other |
| Theory | Other |
| Output | DigitalSensorOther |
| Operation form | PassiveMode |
| Brand | Other |
| Measured substance | Other |
| Usage | PressureSensitiveSensor |
| Composition | Other |
| Material | Other |
Product details
| Materials | plastic,alloy,Electronic components,core |
|---|---|
| Size | 163*42 |
| Color | black |
| Production process | Other |
| Theory | Other |
| Output | DigitalSensorOther |
| Operation form | PassiveMode |
| Brand | Other |
| Measured substance | Other |
| Usage | PressureSensitiveSensor |
| Composition | Other |
| Material | Other |
From the supplier

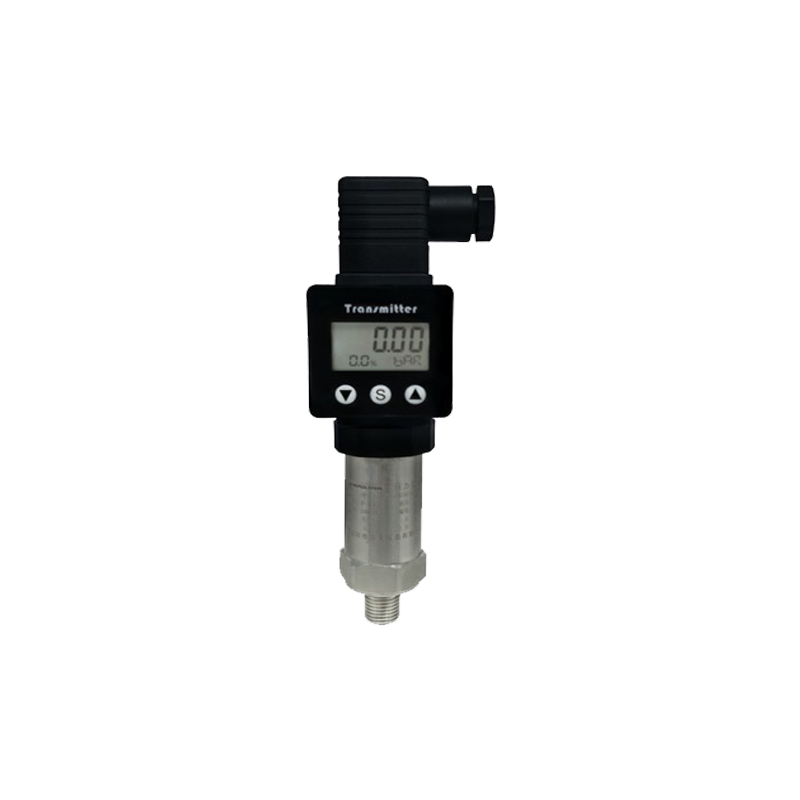

LFT6800 pressure transmitter adopts a high-performance pressure sensing chip, with advanced circuit processing and temperature compensation technology, converting pressure changes into linear current, voltage, or RS485 signals. The size is small, as well as the installation is simple, and it integrate clear LCD display head and anticorrosion stainless steel shell. This LCD digital display pressure transducer can be widely using for measuring the pressure of a gas, water, oil, fuels and other corrosive medium to monitor and display the pressure value in real-time.
-
0.5%F.S / 1.0%F.S Accuracy
-
Vibration and shock resistance
-
Reverse polarity protection
-
Strong overload and anti environmental interference, good stability
-
Optional two-wired 4-20mA current output, three-wired voltage 0-10V output, or RS485 output.
Environmental control equipment
Air flotation equipment
Industrial control, solution fluid treatment
Smart agriculture management and research
Water treatment
Measured Medium Gas or liquid compatible with S304 316L, 1Cr18Ni9Ti, fluoro rubber or nitrile rubber Measurement Range -100kPa...0~10kPa...60MPa(Ceramic Core Transmitter range span ≥0.3Mpa) Overload Pressure 1.5 times of full scales Accuracy ±0.5%F.S / ±1.0%F.S Display mode 4 digit LCD Power supply 24V, working voltage range 12-30V Output 4-20ma 0-10V RS485 Output Storage Temperature -30~80°C Working Temperature -20~75°C Temperature drift 0.03%F.S/°C , 0.05%F.S/°C Pressure connection G1/4, NPT1/4?R1/4?M12*1, M10*1, M20*1.5, G1/2 Electrical connector Hirschmann Protection Grade IP54
Connection
Pin-out Output mode
1
Red
2
Black
3
Green
White
Terminals
4-20mA
Power supply“+”
Power supply“-”
0-10V
Power supply“+”
Power supply“-”
Vout
RS485
Power supply“+”
Power supply“-”
A
B
Function description
Interface
Description
Bps
Baud rate: 2400 4800 9600 19200
Addr
Slave address: 001~254
Unt
Unit display: bar psi kPa MPa
dP
Decimal point position
File
Filter coefficient:0~9
END
Save Settings
How to Select
T6800
Pressure Transmitter with LCDModel
Range
-100~0~100Kpa/0~2...600bar/0-60MPa
Measurement Range
A4
A4 = 4~20mA Two-wire
Output Mode
V10
V10 = 0~10V Three-wire
RS
RS = RS485 Four-wire
K
K = kPa
P
P = psi
Unit
M
M = MPa
B
B = bar
0.1
0.1 = 0.1%F.S, 0.25 = 0.25%F.S
Accuracy class
0.5
1.0 = 1.0%F.S, 0.5 = 0.5%F.S
D1
D1 = DIN43650A Hirschmann
Electrical connection
G
G = G1/4
G2
G2 = G1/2
Pressure connection
N
N = NPT1/4
R
R = R1/4
M
M1= M10*1 M2=M20*1.5 M3= M12*1
1.0
1.0 = 1m
Cable length
T6800
0-60
A4
B
0.5
D1
M2
1.0
Example
From the supplier
LFT6800 pressure transmitter adopts a high-performance pressure sensing chip, with advanced circuit processing and temperature compensation technology, converting pressure changes into linear current, voltage, or RS485 signals. The size is small, as well as the installation is simple, and it integrate clear LCD display head and anticorrosion stainless steel shell. This LCD digital display pressure transducer can be widely using for measuring the pressure of a gas, water, oil, fuels and other corrosive medium to monitor and display the pressure value in real-time.
-
0.5%F.S / 1.0%F.S Accuracy
-
Vibration and shock resistance
-
Reverse polarity protection
-
Strong overload and anti environmental interference, good stability
-
Optional two-wired 4-20mA current output, three-wired voltage 0-10V output, or RS485 output.
Environmental control equipment
Air flotation equipment
Industrial control, solution fluid treatment
Smart agriculture management and research
Water treatment
Measured Medium Gas or liquid compatible with S304 316L, 1Cr18Ni9Ti, fluoro rubber or nitrile rubber Measurement Range -100kPa...0~10kPa...60MPa(Ceramic Core Transmitter range span ≥0.3Mpa) Overload Pressure 1.5 times of full scales Accuracy ±0.5%F.S / ±1.0%F.S Display mode 4 digit LCD Power supply 24V, working voltage range 12-30V Output 4-20ma 0-10V RS485 Output Storage Temperature -30~80°C Working Temperature -20~75°C Temperature drift 0.03%F.S/°C , 0.05%F.S/°C Pressure connection G1/4, NPT1/4?R1/4?M12*1, M10*1, M20*1.5, G1/2 Electrical connector Hirschmann Protection Grade IP54
Connection
Pin-out Output mode
1
Red
2
Black
3
Green
White
Terminals
4-20mA
Power supply“+”
Power supply“-”
0-10V
Power supply“+”
Power supply“-”
Vout
RS485
Power supply“+”
Power supply“-”
A
B
Function description
Interface
Description
Bps
Baud rate: 2400 4800 9600 19200
Addr
Slave address: 001~254
Unt
Unit display: bar psi kPa MPa
dP
Decimal point position
File
Filter coefficient:0~9
END
Save Settings
How to Select
T6800
Pressure Transmitter with LCDModel
Range
-100~0~100Kpa/0~2...600bar/0-60MPa
Measurement Range
A4
A4 = 4~20mA Two-wire
Output Mode
V10
V10 = 0~10V Three-wire
RS
RS = RS485 Four-wire
K
K = kPa
P
P = psi
Unit
M
M = MPa
B
B = bar
0.1
0.1 = 0.1%F.S, 0.25 = 0.25%F.S
Accuracy class
0.5
1.0 = 1.0%F.S, 0.5 = 0.5%F.S
D1
D1 = DIN43650A Hirschmann
Electrical connection
G
G = G1/4
G2
G2 = G1/2
Pressure connection
N
N = NPT1/4
R
R = R1/4
M
M1= M10*1 M2=M20*1.5 M3= M12*1
1.0
1.0 = 1m
Cable length
T6800
0-60
A4
B
0.5
D1
M2
1.0
Example
