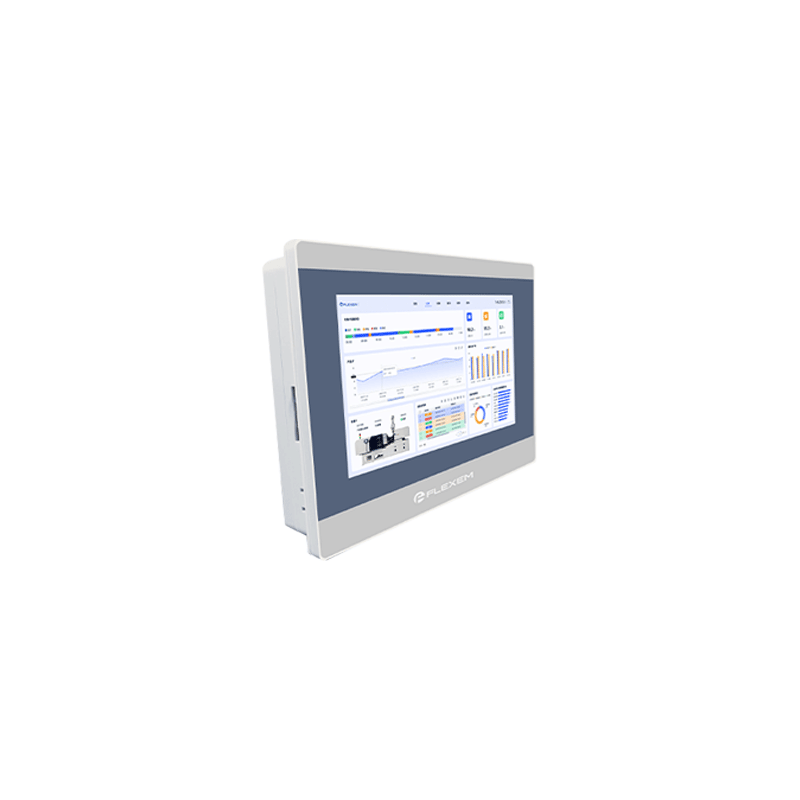

FE6370WE is a 7" iot resistive HMI with gray frame. The touchscreen is 16:9 TFT LCD, featuring 1024×600 resolution, 24-bit colors. FE6370WE adopts high-performance 1GHz dual core Cortex-A7 CPU, with 4GB storage and 1x Eth port. As a member in FE6300 series, it also supports 3000 PLC tags. Pluggable Flink2 IoT module provides more flexile internet connectivity solutions. FE6370WE is CE, RoHS and UL listed.

FEATURES FE6370WE Display 7" 16:9 TFT LCD LCD Viewing Angles(T/B/L/R) 85'/85'/85'/85' Resolution 1024×600 Colors 24-bit Brightness 350 cd/m² Backlight LED LCD Lifetime 50000 hours Touch Panel 4-wire resistive touchscreen CPU 1GHz, Dual core Cortex-A7 Storage 4GB eMMC + 256MB DDR3 RTC Built-in SD Card NA Ethernet port 1*RJ45, based on10/100Mbps USB Port 1*USB Type-C 2.0 port, 1*USB Type-A 2.0 port Download Method USB slave / Flash drive Serial port

COM1: RS232/RS485/RS422,

COM3: RS232

Rated power <10W Input Voltage DC24V, Working range DC9V-28V Power supply protection With lightning surge protection Power Interruption Tolerance <5mS Certification CE,RoHS, UL Operating Temperature 0-50℃ StorageTemperature -20-60℃ UV Resistance Operating in high UV environment is prohibited Environmental Humidity 10-90%RH (Non condensing) Vibration Endurance 10-25Hz (X,Y,Z direction 2G/30 minutes) Cooling Mode Natural Cooling Protection Level Front:IP65,Rear:IP20 Enclosure Material Engineering plastic, gray Cutout Size 190mm×136mm Dimensions 204mm×145mm×36.6mm Weight About 476g
