About this product
- Size: Touch screen :7 inch
- Color: None
- Mathematical model: Other
- Function: Other
- Structure: Other
- Signal: Other
- Exports to: Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, EU, Other European Countries
About this product
- Size: Touch screen :7 inch
- Color: None
- Mathematical model: Other
- Function: Other
- Structure: Other
- Signal: Other
- Exports to: Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, EU, Other European Countries
Product details
| Size | Touch screen :7 inch |
|---|---|
| Color | None |
| Mathematical model | Other |
| Function | Other |
| Structure | Other |
| Signal | Other |
| Customized | Non-Customized |
| Material | Other |
| Task | Program |
From the supplier

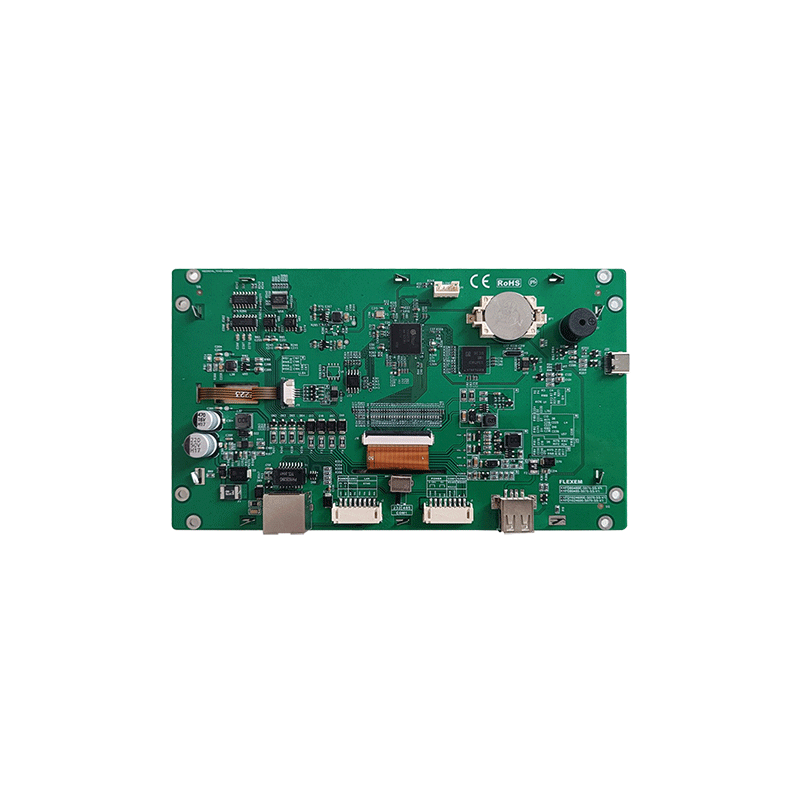

Industrial high quality components are used. Built-in installation structure without enclosure, compatible with serial port HMI. Various communication connections, supporting USB, SD card expanding connection. Compatible with powerful HMI configuration software. Reliable industrial design and high quality.
FEATURES FD Series FD1024600E-S070-SS Display 7" TFT LCD Resolution(WxH) 1024×600 Colors 24-bit Brightness 350 cd/m² Backlight LED LCD Life 50000 hours Touch Panel 4 wires resistive touch screen CPU 1GHz,dual-Cortex-A7 Memory 4GB eMMC+128MB DDR RTC Built in Ethernet 1 10M/100M USB Port USB Device 2.0Port*1,USB Host 2.0Port*1
Description:2 USB ports need timesharing Download Project USB Host/USB Slave/Ethernet COM Port COM1:RS232/RS485
COM2:RS485
COM3:RS23 LCD viewing angle
(T/B/L/R) 85'/85'/85'/85' Produce Model FE7070W/FE7070WE Power Consumption <10W Input Power DC24V,working range:DC9V～28V Power Protection Industrial power module,Protected from thunderstrike and
surging Power Down Allowed <5mS CE &RoHS Complied with EN61000-6-2:2005,EN61000-6-4:2007,ROHS,Surge Immunity:±1KV,EFT:±2KV,ESD:4KV,Air:8KV Operating Temperature 0~50℃ Storage Temperature -20~60℃ Anti-UV Not suitable to work in strong ultraviolet light (such as direct sunlight) Operating Humidity 10~90%RH(no condensate) Vibration Endurance 10~25Hz(X,Y,Z direction 2G/30min) Cooling Natural air cooling Panel Cutout 166mm×101mm Dimension 190.4mm×110mm×27mm Weight About 300g
About the supplier
Main products: PLC Programmable Controller Systems and Software, Human-Machine Interfaces, Servo Motors and Drives
