Industrial Automation Systems and Equipment
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Free quotes from independent agents · supplier checks approx. $5–$100 · 100% refund if not satisfied
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Free quotes from independent agents · supplier checks approx. $5–$100 · 100% refund if not satisfied
About this product
- Size: Touch screen:10.1 inch
- Color: Black
- Signal: Other
- Mathematical model: Other
- Structure: Other
- Function: Monitoring
- Exports to: Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, EU, Other European Countries
About this product
- Size: Touch screen:10.1 inch
- Color: Black
- Signal: Other
- Mathematical model: Other
- Structure: Other
- Function: Monitoring
- Exports to: Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, EU, Other European Countries
Product details
| Size | Touch screen:10.1 inch |
|---|---|
| Color | Black |
| Signal | Other |
| Mathematical model | Other |
| Structure | Other |
| Function | Monitoring |
| Task | Program |
| Material | Other |
| Customized | Non-Customized |
Product details
| Size | Touch screen:10.1 inch |
|---|---|
| Color | Black |
| Signal | Other |
| Mathematical model | Other |
| Structure | Other |
| Function | Monitoring |
| Task | Program |
| Material | Other |
| Customized | Non-Customized |
From the supplier

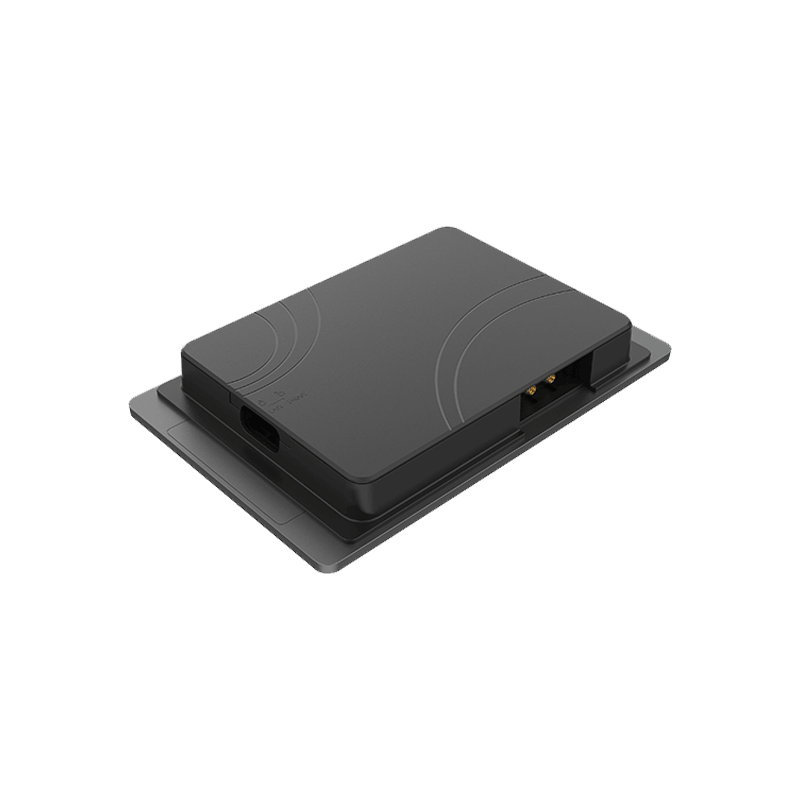

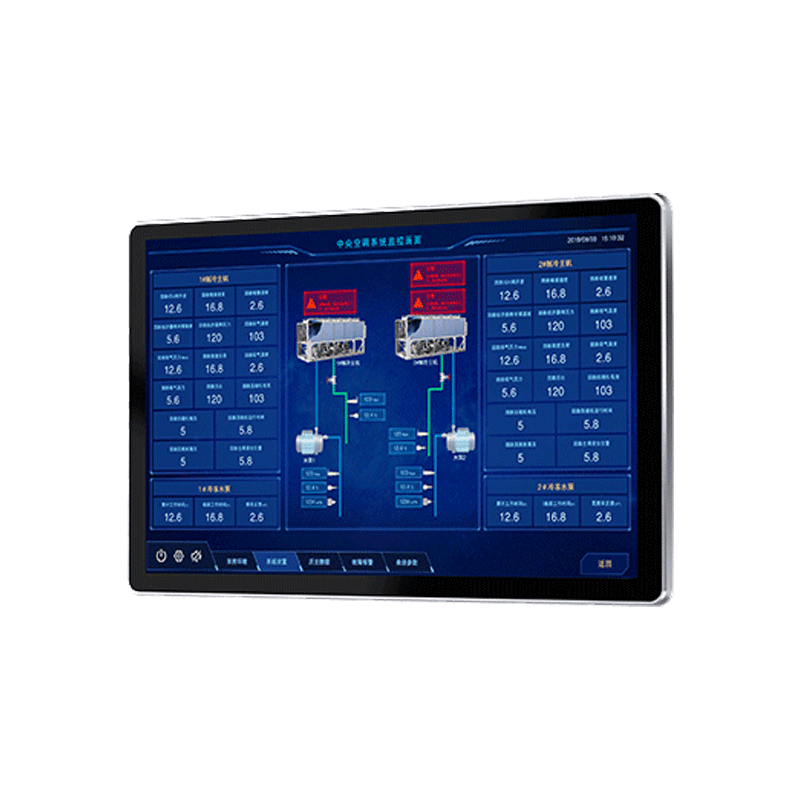

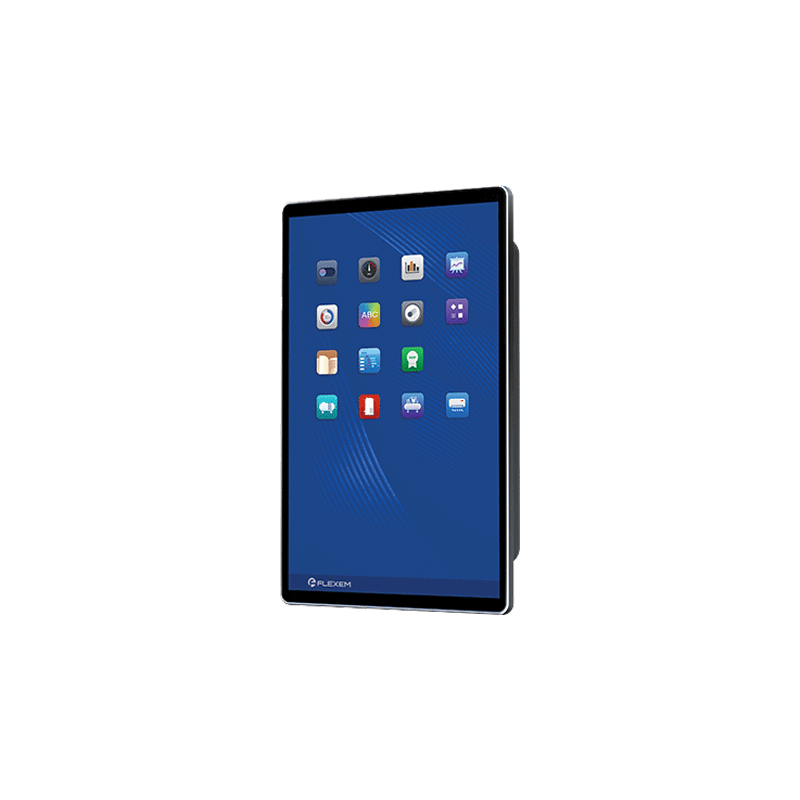

F110C is a high-performance capacitive HMI, featuring a 10.1" multi-touch capacitive touchscreen. It supports high-definition, high-brightness, full-view display, 800x1280 resolution, 24-bit colors, high-performance CPU, high-capacity storage, and 1 x Ethernet port.
FEATURES F110C Display 10.1" 16:10 TFT LCD LCD Viewing Angles (T/B/L/R) 85'/85'/85'/85' Resolution 800×1280 Colors 24-bit Brightness 400 cd/m² Touch Panel Glass+Glass projective multi-touch capacitive touchscreen CPU 1GHz, Dual core Cortex -A7 Storage 4GB eMMC+256MB DDR3 Ethernet Port 1*RJ45, based on 10/100Mbps USB Port 1*USB Type-C 2.0 port, 1*USB Type-A 2.0 port Download Method USB slave/Flash drive/Ethernet Serial Port
COM1: RS232/RS485/RS422,
COM2: RS485,
COM3: RS232
SD Card NA Bluetooth NA loT Network Access Ethernet Network Frequency Band NA VPN Passthrough Available Data Monitoring 300 points Alarm Notification 100 points Historical Data 100 points Edge Computing 30 points Network Protocol Supports over 100 industrial devices protocols Management and Maintenance Support import,export,and remote update of configuration files Rated Power <10W Rated Voltage DC 24V,Working range:DC9V-28V Power Protection Lightning surge protection Power Interruption Tolerance <5mS Certification CE, RoHS Operating Temperature -10-60℃ StorageTemperature -20-70℃ UV Resistance Not for use in high UV environments Environmental Humidity 10-90%RH (Non-condensing) Vibration Endurance 10-25 Hz (X,Y,Z direction,2G/30 min) Protection Level Front:IP65(NEMA panel), Rear:IP20 Enclosure Material Zinc alloy + Engineering plastic Cutout Size 138mm×192mm Dimensions 158mm×249mm×30mm Weight About 900gFrom the supplier
F110C is a high-performance capacitive HMI, featuring a 10.1" multi-touch capacitive touchscreen. It supports high-definition, high-brightness, full-view display, 800x1280 resolution, 24-bit colors, high-performance CPU, high-capacity storage, and 1 x Ethernet port.
FEATURES F110C Display 10.1" 16:10 TFT LCD LCD Viewing Angles (T/B/L/R) 85'/85'/85'/85' Resolution 800×1280 Colors 24-bit Brightness 400 cd/m² Touch Panel Glass+Glass projective multi-touch capacitive touchscreen CPU 1GHz, Dual core Cortex -A7 Storage 4GB eMMC+256MB DDR3 Ethernet Port 1*RJ45, based on 10/100Mbps USB Port 1*USB Type-C 2.0 port, 1*USB Type-A 2.0 port Download Method USB slave/Flash drive/Ethernet Serial Port
COM1: RS232/RS485/RS422,
COM2: RS485,
COM3: RS232
SD Card NA Bluetooth NA loT Network Access Ethernet Network Frequency Band NA VPN Passthrough Available Data Monitoring 300 points Alarm Notification 100 points Historical Data 100 points Edge Computing 30 points Network Protocol Supports over 100 industrial devices protocols Management and Maintenance Support import,export,and remote update of configuration files Rated Power <10W Rated Voltage DC 24V,Working range:DC9V-28V Power Protection Lightning surge protection Power Interruption Tolerance <5mS Certification CE, RoHS Operating Temperature -10-60℃ StorageTemperature -20-70℃ UV Resistance Not for use in high UV environments Environmental Humidity 10-90%RH (Non-condensing) Vibration Endurance 10-25 Hz (X,Y,Z direction,2G/30 min) Protection Level Front:IP65(NEMA panel), Rear:IP20 Enclosure Material Zinc alloy + Engineering plastic Cutout Size 138mm×192mm Dimensions 158mm×249mm×30mm Weight About 900gAbout the supplier
Shanghai Flexem Technology Co. Ltd.
Main products: PLC Programmable Controller Systems and Software, Human-Machine Interfaces, Servo Motors and Drives
- ✓Exhibited at 5 recent Canton Fairs
- ✓Manufacturer
- ✓Founded 2010
- ✓Canton Fair Premium Supplier
- ✓National high-tech enterprise
- ✓1 certificate on file
Manufacturing exhibitors show in Phase 1 of the Canton Fair, 15 to 19 October 2026.
70
trust
- Exhibited at 5 recent Canton Fairs
- Manufacturer
- Founded 2010
- Canton Fair Premium Supplier
