About this product
- Materials: Steel
- Size: 38000mm × 3600mm × 3300mm
- Color: Customized
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Liaoning, China
About this product
- Materials: Steel
- Size: 38000mm × 3600mm × 3300mm
- Color: Customized
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Liaoning, China
Product details
| Materials | Steel |
|---|---|
| Size | 38000mm × 3600mm × 3300mm |
| Color | Customized |
Product details
| Materials | Steel |
|---|---|
| Size | 38000mm × 3600mm × 3300mm |
| Color | Customized |
From the supplier

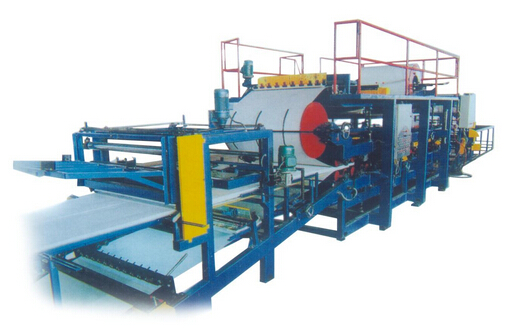

EPS Sandwich Panel Production Line
Applied profile：
1.Roof board, EPS lapping type 980 corrugated sandwich panel（980 three peaks）
2.Wall board ,EPS”H”board（1000-1200mm）
3.Concealed wall board, EPS match-board （950-1150mm）
Main technics
Equipments outside dimension:38000mm × 3600mm × 3300mm
Computer control system:whole machine adopts industrial computer,PLC frequency control
Total power(include heat power):about 30kw
Working speed:1000~4000mm/min (frequency control)
EPS board density:>18KG/mmm
Applied material:1000~1200mm × (0.5~0.6mm ）EPS
Power source:380V/50-60Hz
Finished board thickness:50-250mm
Annual production: 600，000㎡
Production line weight:15T
Shipment: 40”HQ x2
Components of the equipment:
The whole set of production line is consist of decoiling system,main forming machine,cutting device.Sandwich panel machine set is consist of decoiling system ,sheet feeding set,rib formed set,glue spraying set,heater set,compound formed set,edge-curing set,edge flanging set(match-board ),slotting set,sheet edge treating,pneumatic device,automatic cutting device,industry PLC control system.
a .Decoiler and core shaft
Decoiling locations:3 pieces;core shaft:4 pieces
Applied inside diameter:500mm,
Width:≤1200mm
Outside diameter:≤1300mm
Load bearing:≤5T
b. Roll forming machine dimension:9500mmx1400mm(LxW),motor:2.2kw
c. Main machine:12000mmx2400mm(LxW),motor:2.2kw
d. Polyurethane 2 components , glue mixing besmear brushing device
e. Cutting device:cutting device is moved lengthways,band saw blade is moved
Laterally.Cutting device adopts blade saw of single face,it has band saw
expanding device,cutting device is equipped with sheet compaction
device(pneumatic).Lengthways & Lateral movement of the cutting device has limit
device.This machine adopts φ255 alloy saw blade,cutting speed is about
1230r/min.
f. Transmission rack:Rack without power:2 groups,dimension:3000mmx1210mm
g. Electrical control system:PLC computer control
Our comapny certification:
We are willing to supply goods with high quality but competive price and superior service to friends all over the world. Hope to establish business relationship with you!
From the supplier
EPS Sandwich Panel Production Line
Applied profile：
1.Roof board, EPS lapping type 980 corrugated sandwich panel（980 three peaks）
2.Wall board ,EPS”H”board（1000-1200mm）
3.Concealed wall board, EPS match-board （950-1150mm）
Main technics
Equipments outside dimension:38000mm × 3600mm × 3300mm
Computer control system:whole machine adopts industrial computer,PLC frequency control
Total power(include heat power):about 30kw
Working speed:1000~4000mm/min (frequency control)
EPS board density:>18KG/mmm
Applied material:1000~1200mm × (0.5~0.6mm ）EPS
Power source:380V/50-60Hz
Finished board thickness:50-250mm
Annual production: 600，000㎡
Production line weight:15T
Shipment: 40”HQ x2
Components of the equipment:
The whole set of production line is consist of decoiling system,main forming machine,cutting device.Sandwich panel machine set is consist of decoiling system ,sheet feeding set,rib formed set,glue spraying set,heater set,compound formed set,edge-curing set,edge flanging set(match-board ),slotting set,sheet edge treating,pneumatic device,automatic cutting device,industry PLC control system.
a .Decoiler and core shaft
Decoiling locations:3 pieces;core shaft:4 pieces
Applied inside diameter:500mm,
Width:≤1200mm
Outside diameter:≤1300mm
Load bearing:≤5T
b. Roll forming machine dimension:9500mmx1400mm(LxW),motor:2.2kw
c. Main machine:12000mmx2400mm(LxW),motor:2.2kw
d. Polyurethane 2 components , glue mixing besmear brushing device
e. Cutting device:cutting device is moved lengthways,band saw blade is moved
Laterally.Cutting device adopts blade saw of single face,it has band saw
expanding device,cutting device is equipped with sheet compaction
device(pneumatic).Lengthways & Lateral movement of the cutting device has limit
device.This machine adopts φ255 alloy saw blade,cutting speed is about
1230r/min.
f. Transmission rack:Rack without power:2 groups,dimension:3000mmx1210mm
g. Electrical control system:PLC computer control
Our comapny certification:
We are willing to supply goods with high quality but competive price and superior service to friends all over the world. Hope to establish business relationship with you!
