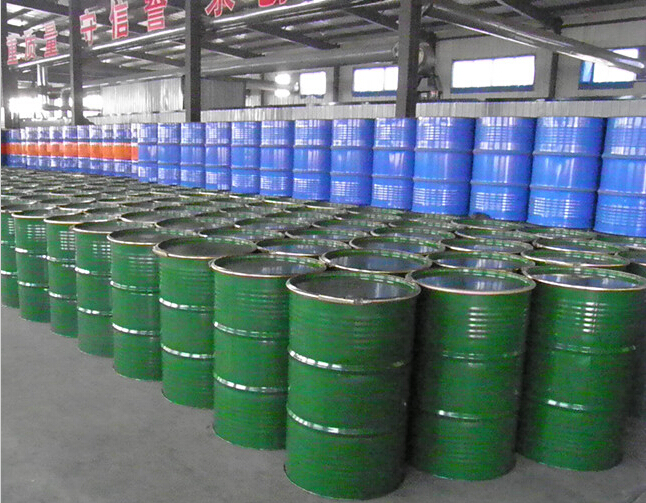

Steel drum production line

• 1.Applied sheet :SPCC steel plate or cold-rolled sheet

2.Drum Inner diameter:571.5mm

3.Drum Outside diameter:585mm
4.Drum height: 897mm
5.Outside painting: Nitro bake paint
6.Paint thickness:Minimum 18 micron
7.Body color :One color or multicolor

8.Drum capacity:216.5 L(55Gallon,US)

9.Weight:16-18kg
10.Closures:2 closures
11.Top holes:One 3/4 Inch+one 2 Inch

• 12. Numbers of corrugations:6-10

• 13. Material thickness: 0.8-1.2mm

•

• Note: The drum specification could be changed as customer’s requirement.



  Raw Materials Consumption or production capacity



  Plate thickness(mm)

  Finished drums (pcs/T)

  Production capacity(kg/pc)

  1.2

  41

  21.5

  1.0B

  Up and bottom covers 1.2

  47

  19

  Drum body 1.0

  1.0

  50

  18

  0.9B

  Up and bottom covers 1.0

  54

  16.8

  Drum body 0.9

  0.9

  56

  16.2

  0.8

  63

  15.9

    Type 1





   Type 2



  Type 3



• 1. Front Section Equipments

NO.

Description

Unit

Qty.

Remark

1

Decoiler

Unit

1



2

Flattening Machine

Unit

1



3

Sizing Device

Unit

1

4

Rectifying Deviation Device

Unit

2



5

Cutting Machine

Unit

1



6

Stacking Car

Unit

1



7

Hydraulic station

Set

1



8

Electric Control System

Set

1

Sub-Total
9

Equipment for Covers

NO.

Description

Unit

Qty.

Remark

1

Double Punching Mould

Set

1

2

Double Locking Mould

Set

1



3

Top&Bottom cover Mould

Set

1

 Designable

4

Bottom Cover Stacking Table

Unit

1



5

63T Pressing Machine

Unit

2

DoublePunching&Locking

6160T Pressing Machine
Unit
1
7Pre-curling&Gluing Machine
Unit
1
 Sub-Total
8

• 2. Middle section Equipment

NO.

Description

Unit

Qty.

Remark

1

Circle-rolling Machine

Unit

1



2

Spot Welding Machine

Unit

1



3

Seaming Machine

Unit

1

4

Edging Machine

Unit

1



5

 Beading Machine

Unit

1



6

Corrugation  (W rib) Machine

Unit

1



7

Edge-curling Machine

Unit

1

8

Hydraulic station

Unit

3



9

Electric Control System

Set

1



10Leakage Checking Machine
Unit1
11Convey chains
Unit1
12Stacking table
Unit1
Sub-Total
14

• 3.Rear Section Equipment

NO.

Description

Unit

Qty.

Remark

1

Washing& Phosphorization Box

Set

1

 Automatic

2

Water Drying  Room

Set

1

 Electrical  heating

3

Overturn machine

Unit

1



4

Painting Room

Set

1



5

Curing Room

Set

1

Electric heating

6

Convey chains

Set

1

7

Electric control system

Set

1

Sub-Total

7

The plant size:1500 square meters around.

Our service:

Offer customers drum-production equipments with high quality but competitive price.

In recent years, we developed drum-production equipments to meet different output and investment scale,which can be optimized and combined into multiple processing plans for customers' reference.

1.Low speed steel drum production line (1~2 pcs/min), Hot sales.

A.Features:This series of drum-production equipment has advantages of simple structure,convenient operation,low cost,less maintenance fees and strong applicability. It can produce various steel drums of 200 Liter.

B. Applicable manufacturer: This series of equipment is suitable for small-scaled drum-production enterprise or chemical, food and drinks plants with annual consumption less than 100,000 pieces of barrels.

2.Medium speed steel drum production line(5~6 pcs/min),Hot sales.

A.Features:This series of drum-production equipment is designed and developed on the basis of domestic mature models. It is easy to operate and maintenance cost is low.

B.Applicable manufacturer:This series of equipment is suitable for medium and small-scaled drum-production enterprise or chemical, food and drinks plants with annual consumption 100,000~600,000 pieces of drums.

3. High speed drum production line(8~9 pcs/min)

A:Feature:This serious of drum-production equipment is designed and manufactured on the basis of absorbing advanced foreign technology. Performance is the same as foreign equipment,production speed is higher but price is just 1/4 of foreign equipment.

B:Applicable manufacturer:This series of equipments is suitable for exclusively foreign-owned enterprise, sino-joint venture,big-scaled drum-production plant or company with annual sales quantity 300,000 pieces of drums.
