Steel drum production line

• 1.Applied sheet :SPCC steel plate or cold-rolled sheet

2.Drum Inner diameter:571.5mm

3.Drum Outside diameter:585mm
4.Drum height: 897mm
5.Outside painting: Nitro bake paint
6.Paint thickness:Minimum 18 micron
7.Body color :One color or multicolor

8.Drum capacity:216.5 L(55Gallon,US)

9.Weight:16-18kg
10.Closures:2 closures
11.Top holes:One 3/4 Inch+one 2 Inch

• 12. Numbers of corrugations:6-10

• 13. Material thickness: 0.8-1.2mm

•

• Note: The drum specification could be changed as customer’s requirement.



  Raw Materials Consumption or production capacity



  Plate thickness(mm)

  Finished drums (pcs/T)

  Production capacity(kg/pc)

  1.2

  41

  21.5

  1.0B

  Up and bottom covers 1.2

  47

  19

  Drum body 1.0

  1.0

  50

  18

  0.9B

  Up and bottom covers 1.0

  54

  16.8

  Drum body 0.9

  0.9

  56

  16.2

  0.8

  63

  15.9

    Type 1







  Type 3

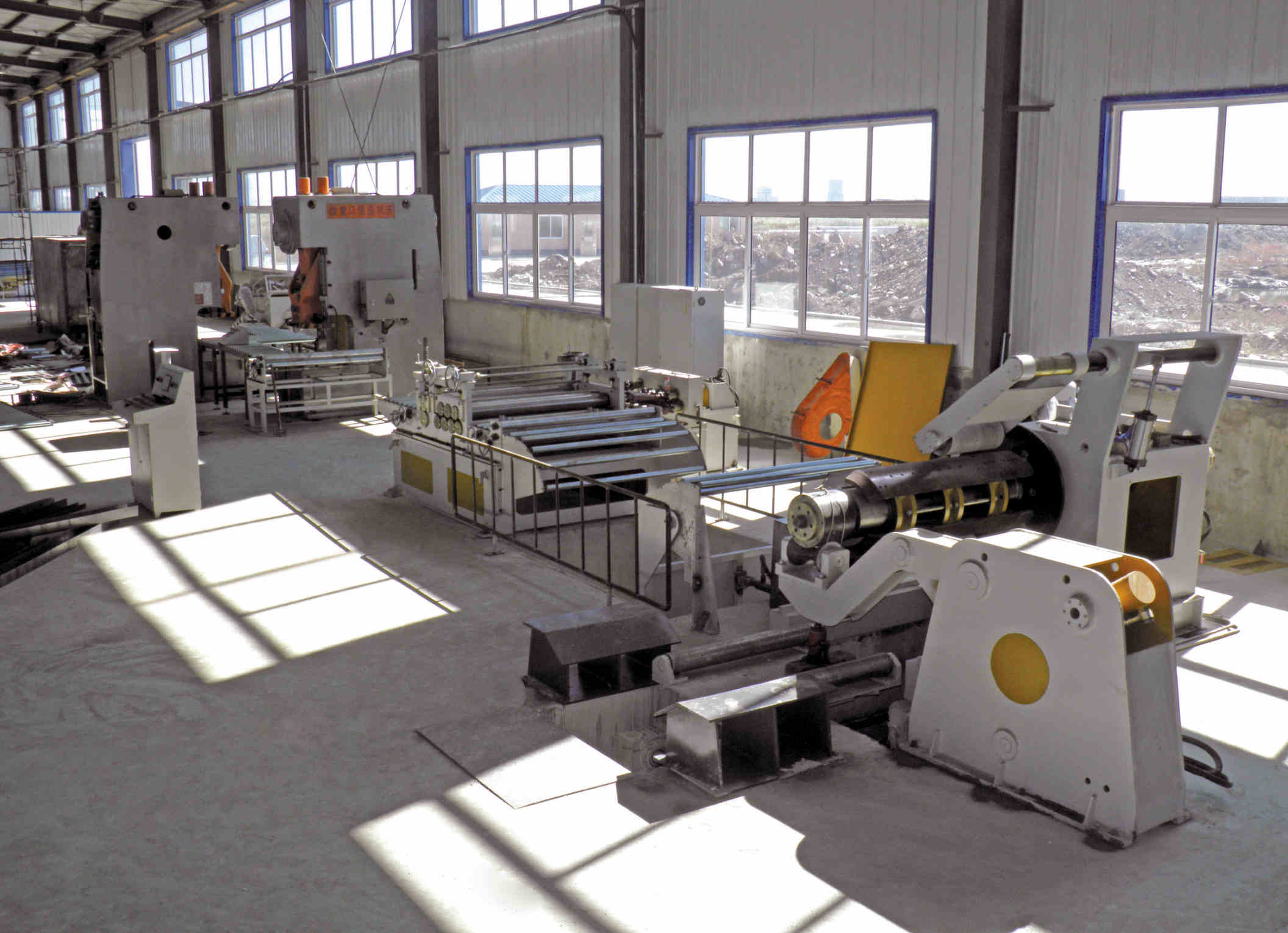

• 1. Front Section Equipments

NO.

Description

Unit

Qty.

Remark

1

Hydraulic

Up-coiling Device

Unit

unit

1



2

Hydraulic Supporter

Unit

1



3

Decoiler

Unit

1

cantilevered,8T Load-bearing

4

Feeding Device

Unit

1



5

Arch Shape Guiding Device

Unit

2



6

Side Deviation Rectifying Device

Set

3



7

Sizing&Flattening Machine

Unit

1

7rollers working,servo controlling

8

Cutting Machine

Unit

1

for drum body

9

Stowing Car

Unit

1



10

Cutting Machine

Unit

1

for Waste sheet

11

Lid Conveyor

Unit

2



12

Hydraulic system

Unit

1



13

Electric Control  System

Set

1



Sub-Total
17

Equipment for Covers

NO.

Description

Unit

Qty.

Remark

1

Top&Bottom Cover

Mould

Set

2

including double punching mould

2

Double Locking Mould

Set

1



3

63T Pressing Machine

Unit

1



4

160T Pressing Machine

Unit

2



5

Pre-coiling &Gluing Machine

Unit

2



 Sub-Total
8

• 2. Middle section Equipment

NO.

Description

Unit

Qty.

Remark

1

Platform for Sheet

Unit

1



2

Circle-rolling Machine

Unit

1



3

Semi-Seam Welding Machine

Unit

1

Semi-Automatic welding,no need spot welding

4

Edging&Beading Machine

Unit

1



5

 Corrugation

(W Rib) Machine

Unit

1



6

Edge-curling Machine

Unit

1



Hydraulic control

7

Convey Device

Set

1

Multi-section

8

Electric Control System

Set

1



9

Leakage Checking Machine

Unit

1



Sub-Total
9

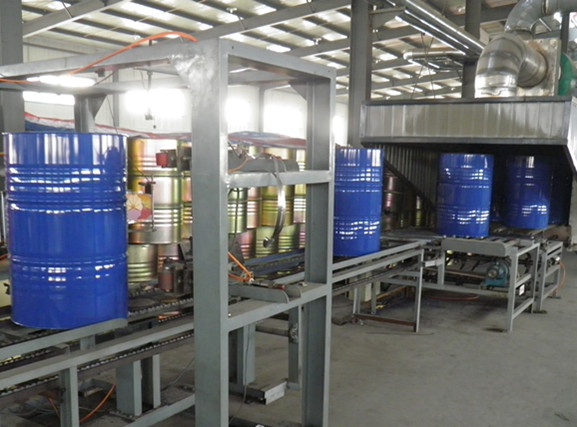

• 3.Rear Section Equipment

NO.

Description

Unit

Qty.

Remark

1

Lifting Machin

Unit

1



2

Degreasing & Phosphorization Line

Set

1



3

Water Drying Line

Set

1



4

Overturn Equipment

Set

1



5

Painting Room

Set

1

double colors

3 stations

6

Front Drum- separation Machine

Set

1

Single row of rollers change to double row

7

Drying Room after Painting

Set

1

Including convey device

8

Back Drum- separation Machine

Set

1

Double rows of rollers change to single

9

Air cooling system

Set

1



10

Drum-down Roller Trans-line

Set

1



11

Electric Control System

Set

1



12

Conveyor

Set

1



Sub-Total

12

The plant size:2500 square meters around.

Our service:

Offer customers drum-production equipments with high quality but competitive price.

In recent years, we developed drum-production equipments to meet different output and investment scale,which can be optimized and combined into multiple processing plans for customers' reference.

1.Low speed steel drum production line (1~2 pcs/min), Hot sales.

A.Features:This series of drum-production equipment has advantages of simple structure,convenient operation,low cost,less maintenance fees and strong applicability. It can produce various steel drums of 200 Liter.

B. Applicable manufacturer: This series of equipment is suitable for small-scaled drum-production enterprise or chemical, food and drinks plants with annual consumption less than 100,000 pieces of barrels.

2.Medium speed steel drum production line(5~6 pcs/min),Hot sales.

A.Features:This series of drum-production equipment is designed and developed on the basis of domestic mature models. It is easy to operate and maintenance cost is low.

B.Applicable manufacturer:This series of equipment is suitable for medium and small-scaled drum-production enterprise or chemical, food and drinks plants with annual consumption 100,000~600,0000 pieces of drums.

3. High speed drum production line(8~9 pcs/min)

A:Feature:This serious of drum-production equipment is designed and manufactured on the basis of absorbing advanced foreign technology. Performance is the same as foreign equipment,production speed is higher but price is just 1/4 of foreign equipment.

B:Applicable manufacturer:This series of equipments is suitable for exclusively foreign-owned enterprise, sino-joint venture,big-scaled drum-production plant or company with annual sales quantity 300,000 pieces of drums.

Our comapny certification:



We are willing to supply goods with high quality but competive price and superior service to friends all over the world. Hope to establish business relationship with you!
