About this product
- Materials: Steel
- Size: 800x 700x1250mm
- Color: Customized
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Liaoning, China
About this product
- Materials: Steel
- Size: 800x 700x1250mm
- Color: Customized
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Liaoning, China
Product details
| Materials | Steel |
|---|---|
| Size | 800x 700x1250mm |
| Color | Customized |
Product details
| Materials | Steel |
|---|---|
| Size | 800x 700x1250mm |
| Color | Customized |
From the supplier

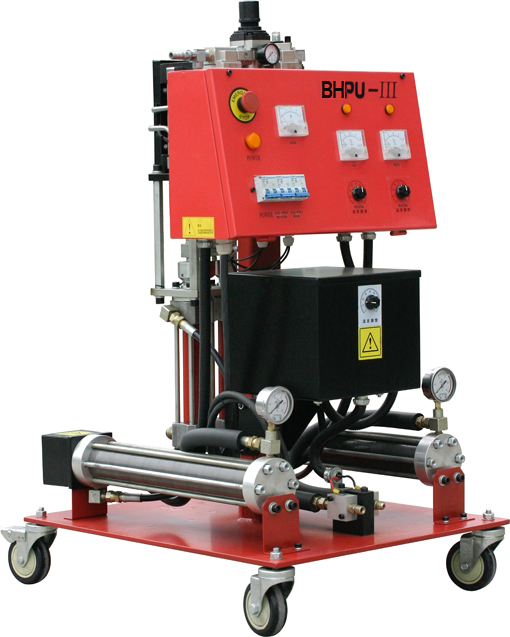

High-pressure Polyurethane Spray and Perfusion Machine
Standard Configuration:
Mainframe: 1 set
Spray gun: 1set
Heating and preserved pipe: 15m
Connecting pipe for spray gun: 1.5m
Max. Pipe length: 90m (optional)
Transfer pump: 2 sets
Technical Parameter:
Material ratio: 1:1 (fixed)
Power Source: 380V 50/60Hz 3 Phases electric（or according to your requirement）
Air Source: 0.5~0.8Mpa (70~120psi) ≥0.9m3 /min
Purging: Automatic pneumatic, solvent-free
Output: 4~8kg/min
Heating device power for material:
3000W X 2(or optional: 4500W X 2)
Heating power for pipe heating: 3500w
Single component output pressure: 5~10Mpa (700~1500psi)
Heat temperature: 80℃
Shipping Parameter:
Weight: 120kg
Volume: 800x 700x1250(mm)
Spray gun:
System Technical Data:
Blending: Inner vacuum blending
Functionality: Spray or Perfusion
Cleaning: Continuously air cleaning can eliminate the jam issue. There is no need for concern of solidifying due to on-off the spray gun
Feeding material pumps
System Technical Data:
Max. Fluid temperature: 88℃
Pressure ratio: 11.5:1
Dia.of air motor: 152.4mm
Size of air inlet: ZG1/2
Size of fluid outlet: ZG3/4
Pressure range of air motor: 0.2-0.8Mpa
Max. fluid pressure: 9.2Mpa
Max. Output (wide open):26KG
Max. Ambient temperature: 50℃
Length: 1456mm
Weight: 19.5KG
Type 2: BHPU-III
Type 3: BHPU-IIIB235
