About this product
- Materials: 45#Steel with Chrome Treatment
- Size: 7600*1700*1700
- Color: Blue & Yellow
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, Other European Countries, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
About this product
- Materials: 45#Steel with Chrome Treatment
- Size: 7600*1700*1700
- Color: Blue & Yellow
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, Other European Countries, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
Product details
| Materials | 45#Steel with Chrome Treatment |
|---|---|
| Size | 7600*1700*1700 |
| Color | Blue & Yellow |
Product details
| Materials | 45#Steel with Chrome Treatment |
|---|---|
| Size | 7600*1700*1700 |
| Color | Blue & Yellow |
From the supplier
Product Name:
Double layer roll forming machine
Introduction:

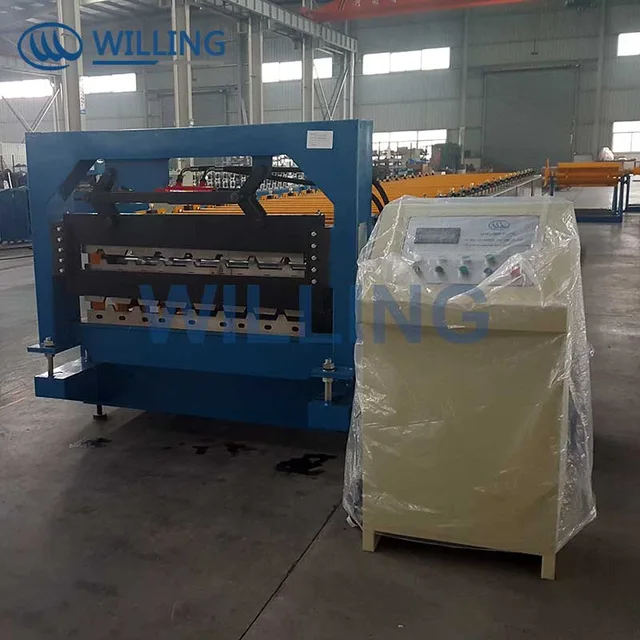

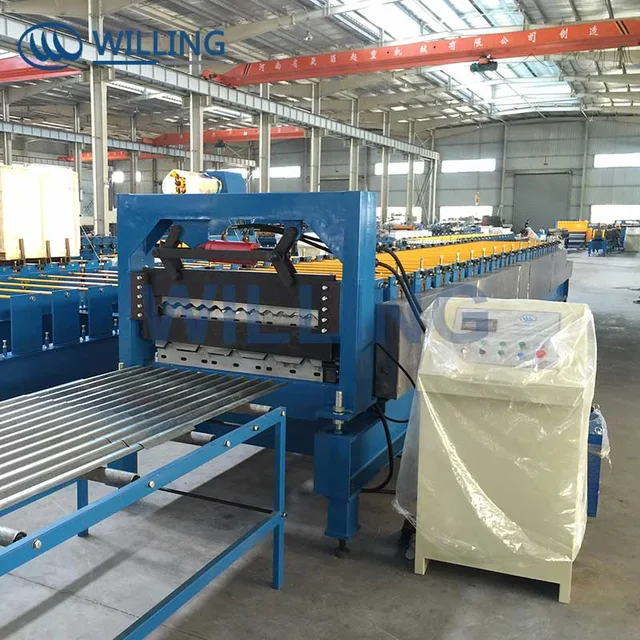

Double layer roll forming machine is made by 2 different shape machines on one body frame, suitable for customer which working space is limited. The 2 different shapes share one body frame, one PLC controller, and one motor. 2 layers work separate. We can design different kinds of profile and fittings for machine, as per customers’ requirements.
Working Flow:
Uncoiling→Sheet Guiding→Roll Forming→Measuring Length &Shearing→Sheet to Support Table.
Main Technical Parameters:
Material
Type
Color steel sheet
Thickness(mm
0.3-0.7
Yield stress(Mpa
230-350
Max. Forming speed(m/min)
0-15
Roller material
45# steel with chrome
Roller driven type
Chain transmission
Controller
PLC
Operation
Touch screen and button
Hydraulic system pressure(Mpa
12
Hydraulic station motor power(Kw)
4
Main motor power(Kw)
3
Total power(Kw)
7
Total weight(Kg)
About 8000
From the supplier
Product Name:
Double layer roll forming machine
Introduction:
Double layer roll forming machine is made by 2 different shape machines on one body frame, suitable for customer which working space is limited. The 2 different shapes share one body frame, one PLC controller, and one motor. 2 layers work separate. We can design different kinds of profile and fittings for machine, as per customers’ requirements.
Working Flow:
Uncoiling→Sheet Guiding→Roll Forming→Measuring Length &Shearing→Sheet to Support Table.
Main Technical Parameters:
Material
Type
Color steel sheet
Thickness(mm
0.3-0.7
Yield stress(Mpa
230-350
Max. Forming speed(m/min)
0-15
Roller material
45# steel with chrome
Roller driven type
Chain transmission
Controller
PLC
Operation
Touch screen and button
Hydraulic system pressure(Mpa
12
Hydraulic station motor power(Kw)
4
Main motor power(Kw)
3
Total power(Kw)
7
Total weight(Kg)
About 8000
