About this product
- Materials: steel
- Size: 2000*1200*1600mm
- Color: Blue & Yellow
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
About this product
- Materials: steel
- Size: 2000*1200*1600mm
- Color: Blue & Yellow
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
Product details
| Materials | steel |
|---|---|
| Size | 2000*1200*1600mm |
| Color | Blue & Yellow |
Product details
| Materials | steel |
|---|---|
| Size | 2000*1200*1600mm |
| Color | Blue & Yellow |
From the supplier

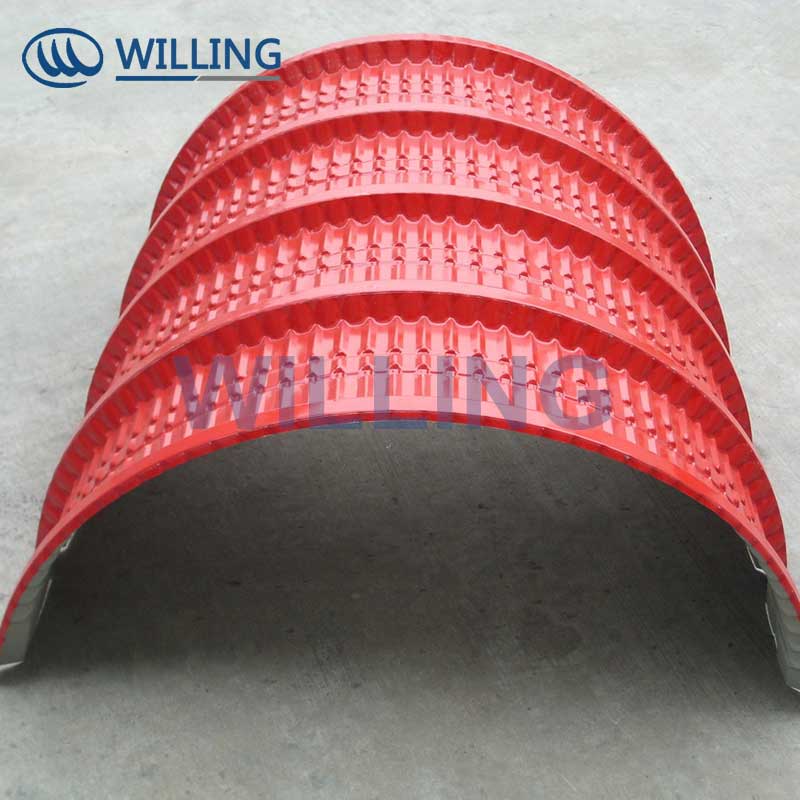

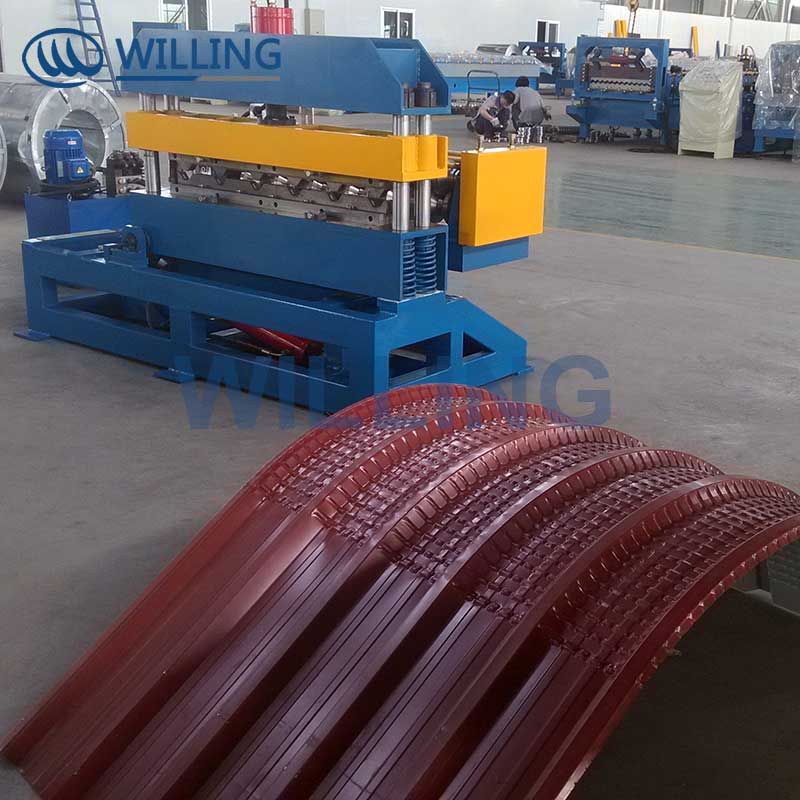

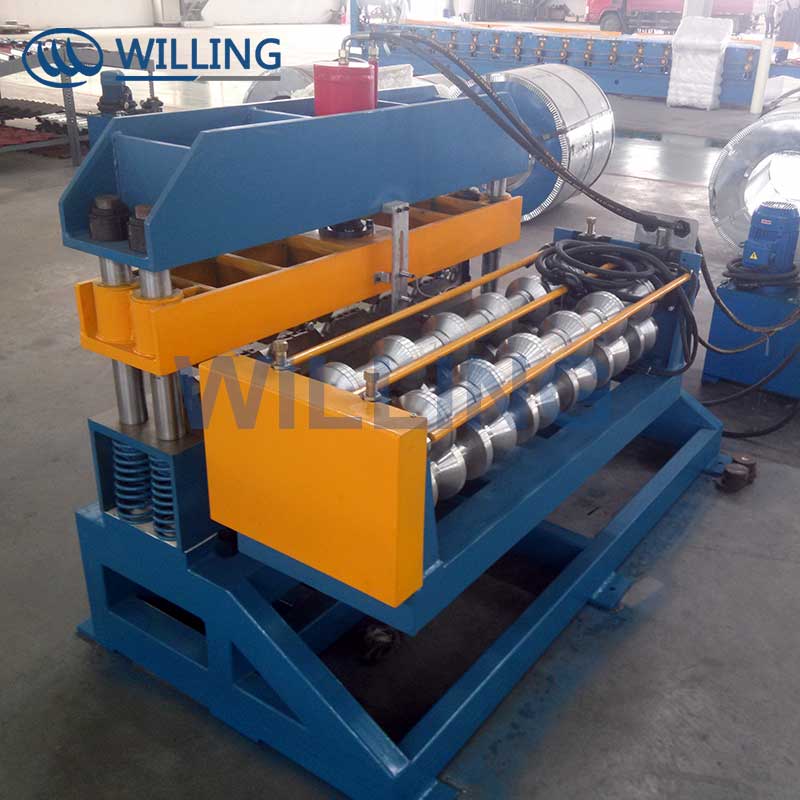

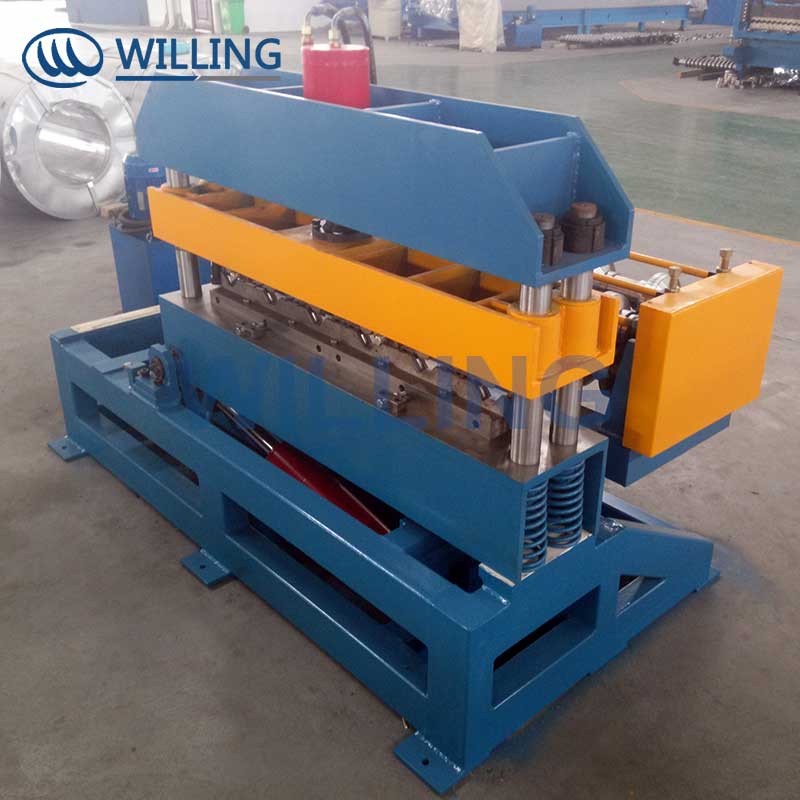

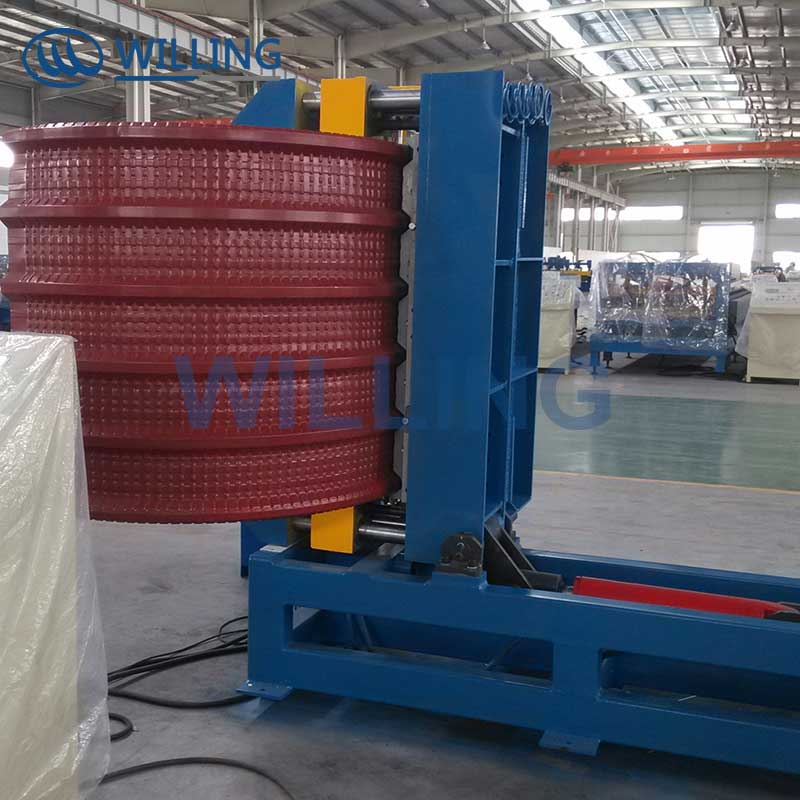

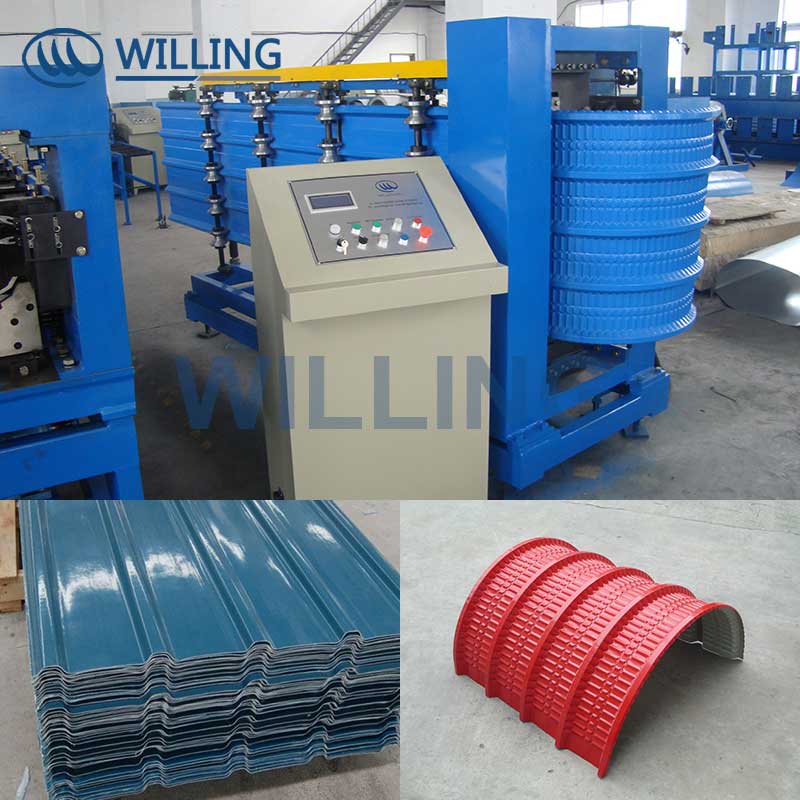

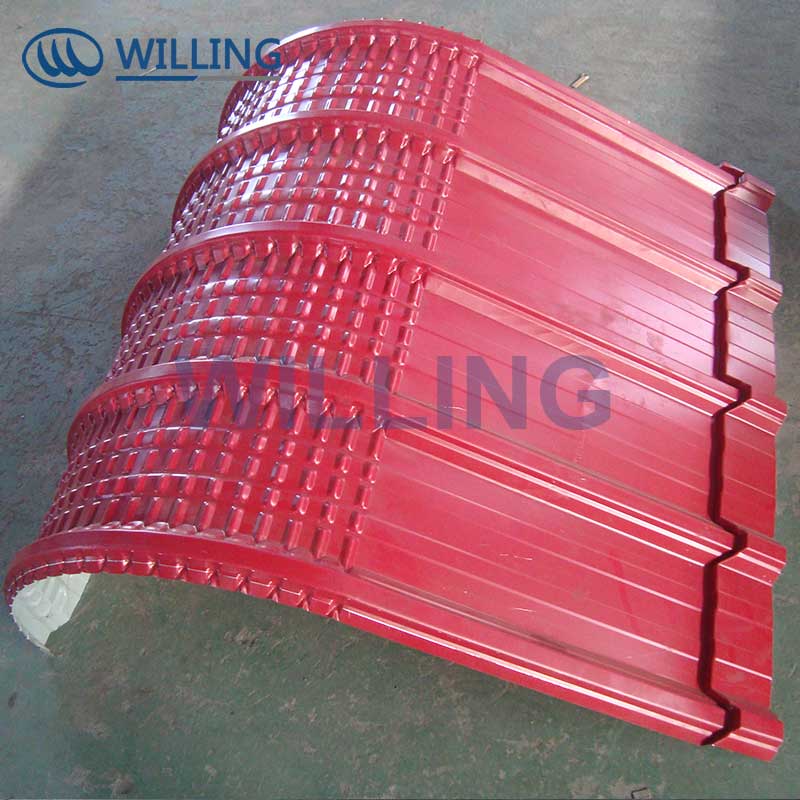

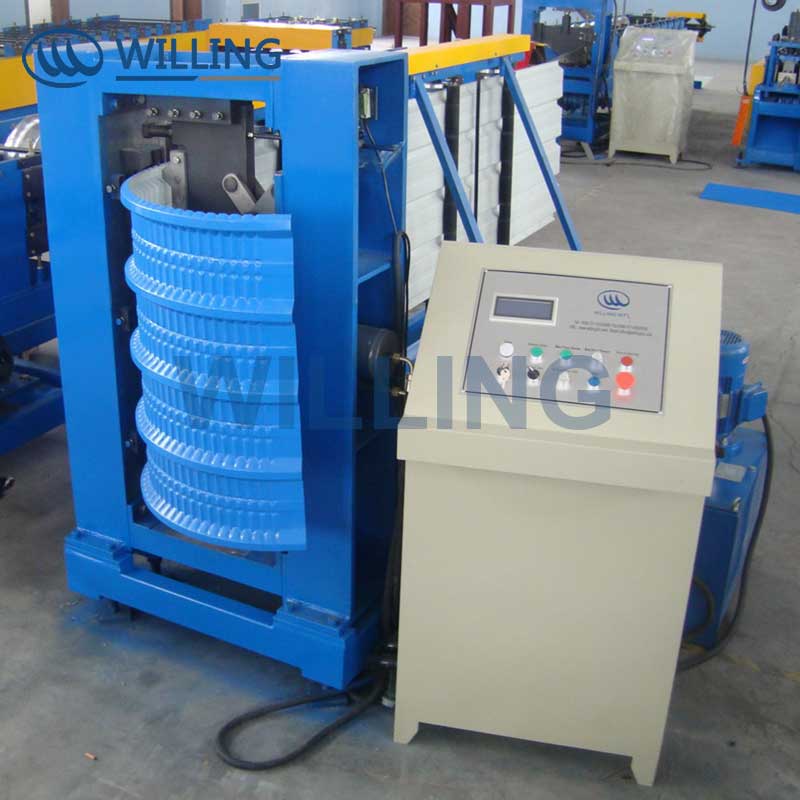

Metal roofing sheet crimping and curving machine consists of feeding device, curving & pressing device and electric control system. It adopts the formed pressing die to press the “pit” on the formed panels and make the panel curved. By changing the distance of the wave mark and adjusting the depth of “pit” can form into the panels with different radian. This machine adopts the PLC control to realize the automatic controlling of wave mark space and the free-set of wave mark space data.
Technical Parameters:
No
Item
Parameter
Remark
1
Suitable
Material
Type
Color coating steel
Thickness(mm)
0.3-0.6
According to customer's requirement
Yield Strength(Mpa)
230-300
2
Forming Speed(m/min)
2.0
Not including cutting time
3
Material of Punching Die
45chromeplate
with hard chromized
4
Min. Curving Radius
500mm
5
Power source
Type
380V/3PH/50HZ
According to customer's requirement
Components of the machine:
No
Name
Quantity
Remarks
1
Main Machine
Feeding System
1set
Curving and Pressing System
1set
Hydraulic System
1set
2
Electric Control System
1set
From the supplier
Metal roofing sheet crimping and curving machine consists of feeding device, curving & pressing device and electric control system. It adopts the formed pressing die to press the “pit” on the formed panels and make the panel curved. By changing the distance of the wave mark and adjusting the depth of “pit” can form into the panels with different radian. This machine adopts the PLC control to realize the automatic controlling of wave mark space and the free-set of wave mark space data.
Technical Parameters:
No
Item
Parameter
Remark
1
Suitable
Material
Type
Color coating steel
Thickness(mm)
0.3-0.6
According to customer's requirement
Yield Strength(Mpa)
230-300
2
Forming Speed(m/min)
2.0
Not including cutting time
3
Material of Punching Die
45chromeplate
with hard chromized
4
Min. Curving Radius
500mm
5
Power source
Type
380V/3PH/50HZ
According to customer's requirement
Components of the machine:
No
Name
Quantity
Remarks
1
Main Machine
Feeding System
1set
Curving and Pressing System
1set
Hydraulic System
1set
2
Electric Control System
1set
