About this product
- Materials: Steel with chrome treatment
- Size: 7500mm*1000mm*1200mm
- Color: Blue&Yellow
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, Other European Countries, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
About this product
- Materials: Steel with chrome treatment
- Size: 7500mm*1000mm*1200mm
- Color: Blue&Yellow
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, Other European Countries, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
Product details
| Materials | Steel with chrome treatment |
|---|---|
| Size | 7500mm*1000mm*1200mm |
| Color | Blue&Yellow |
From the supplier
Introduction:

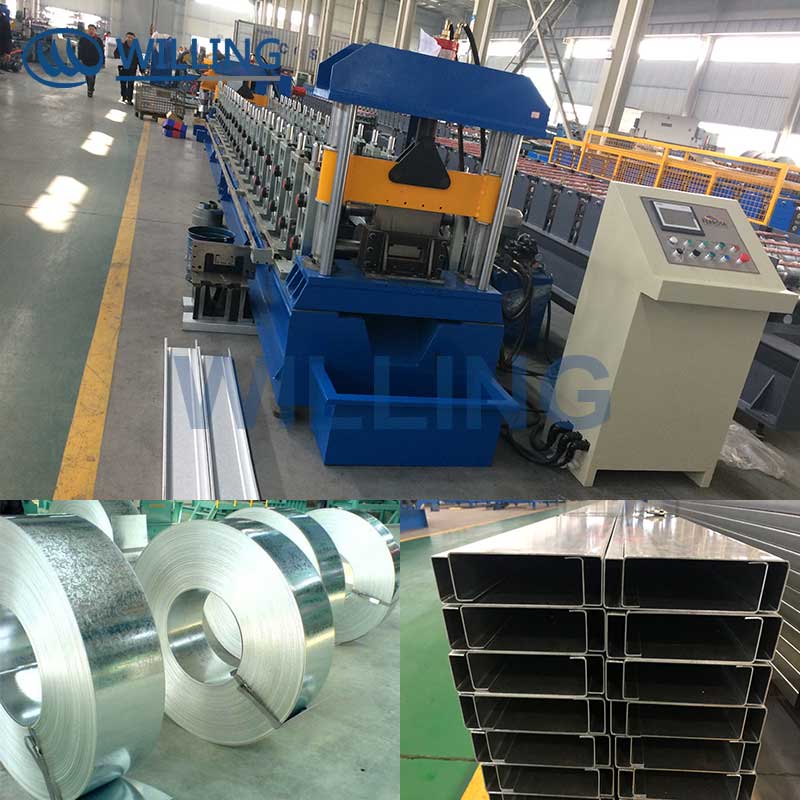

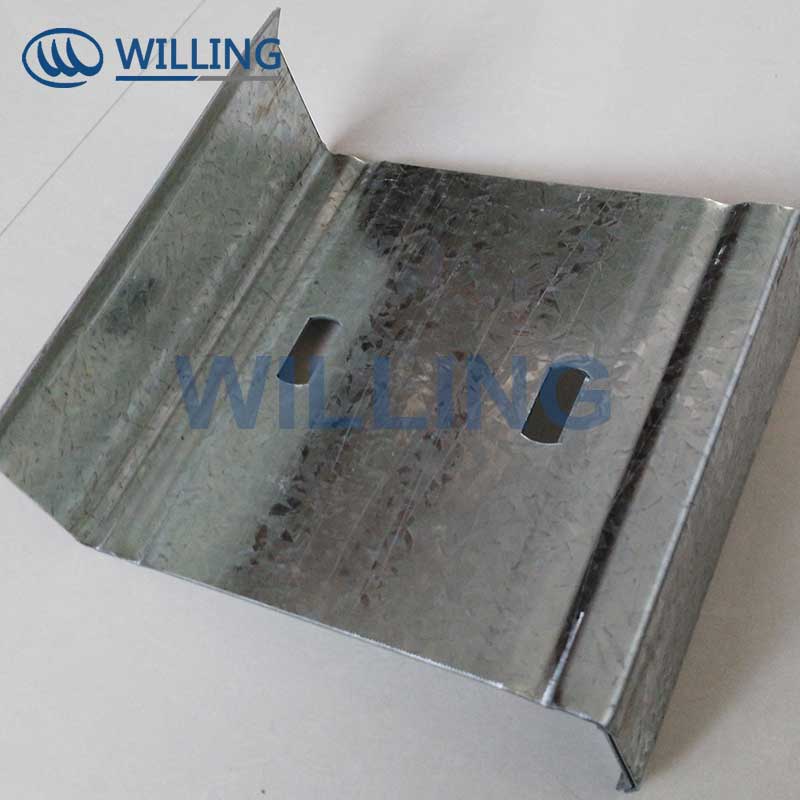

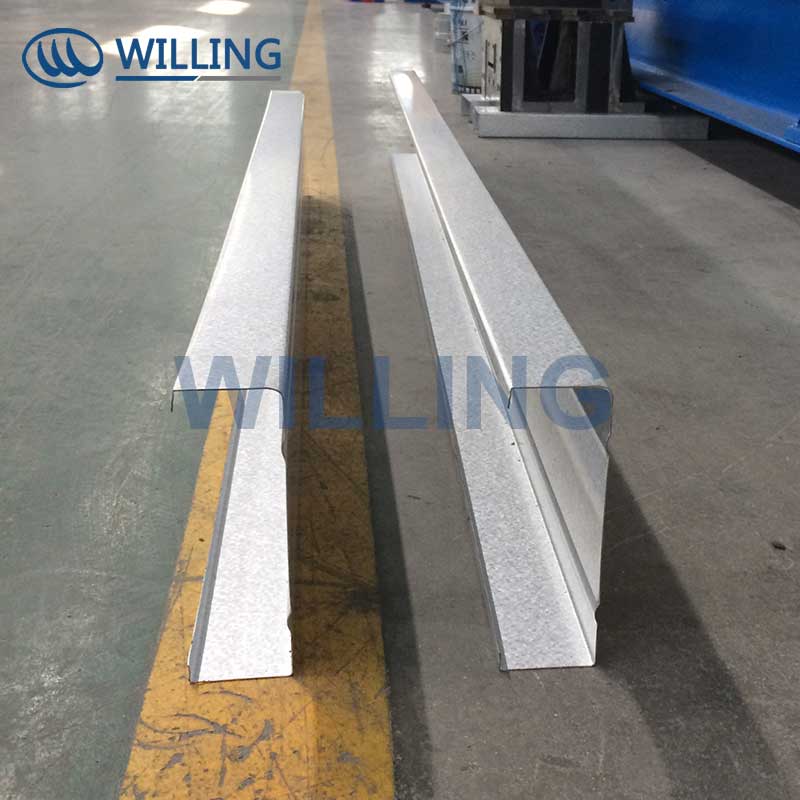

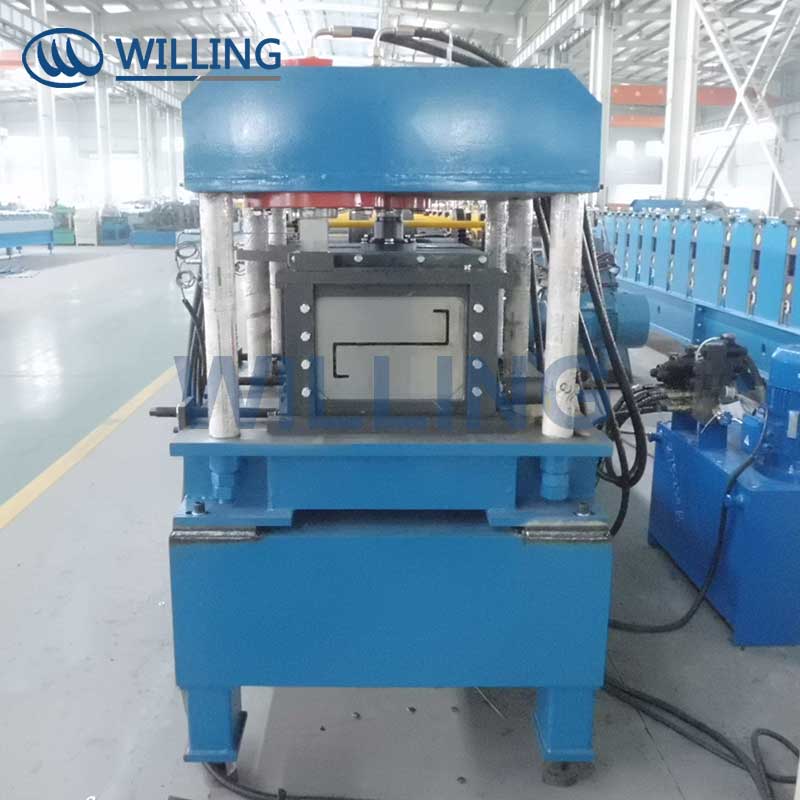

C,Z&M shape purlins are made from Hot/cold rolled steel strips,and starightened, hole punched, cut to length, and roll formed By WLSP series steel purlin roll formimg machine. Through changing spacing sleeves, the machine can change different Types/Sizes of purlin.

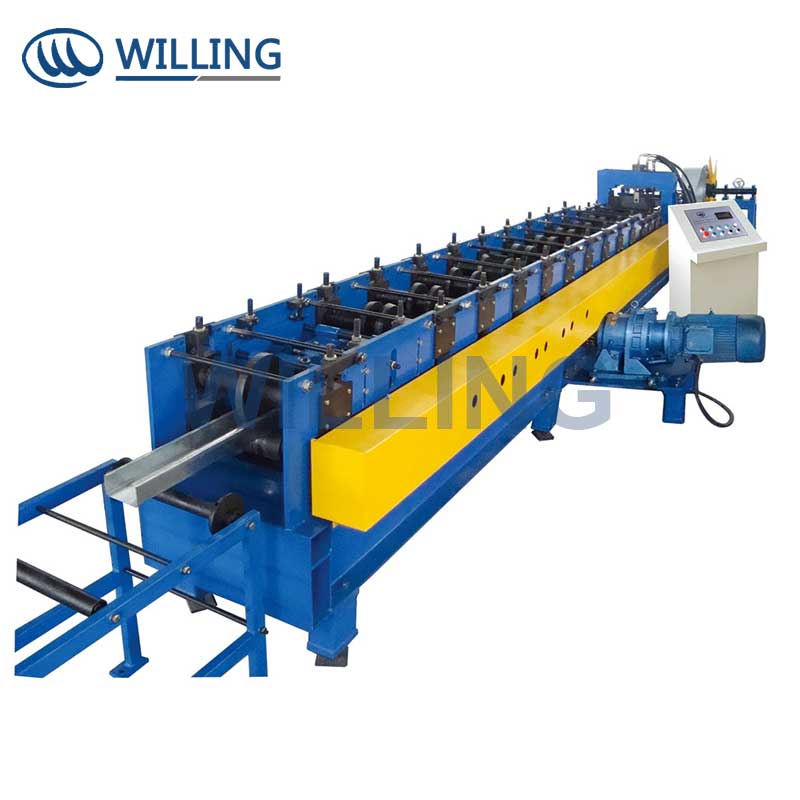

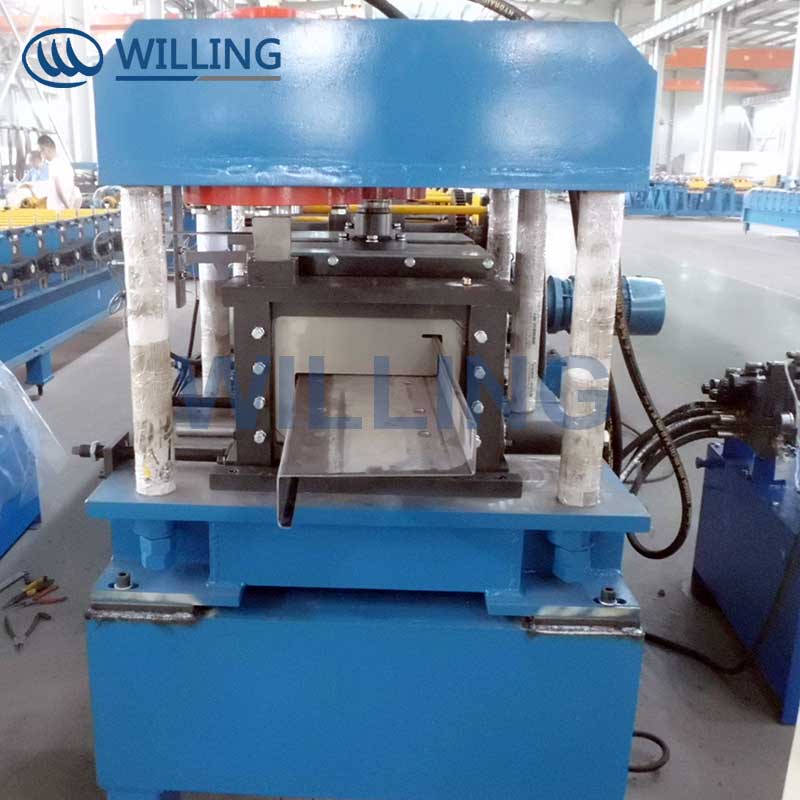

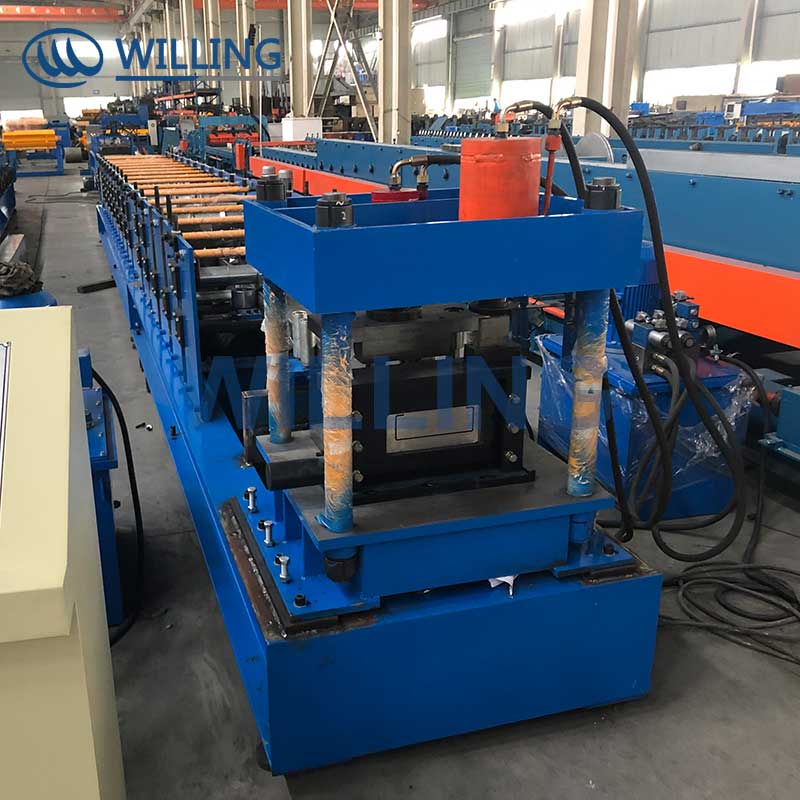

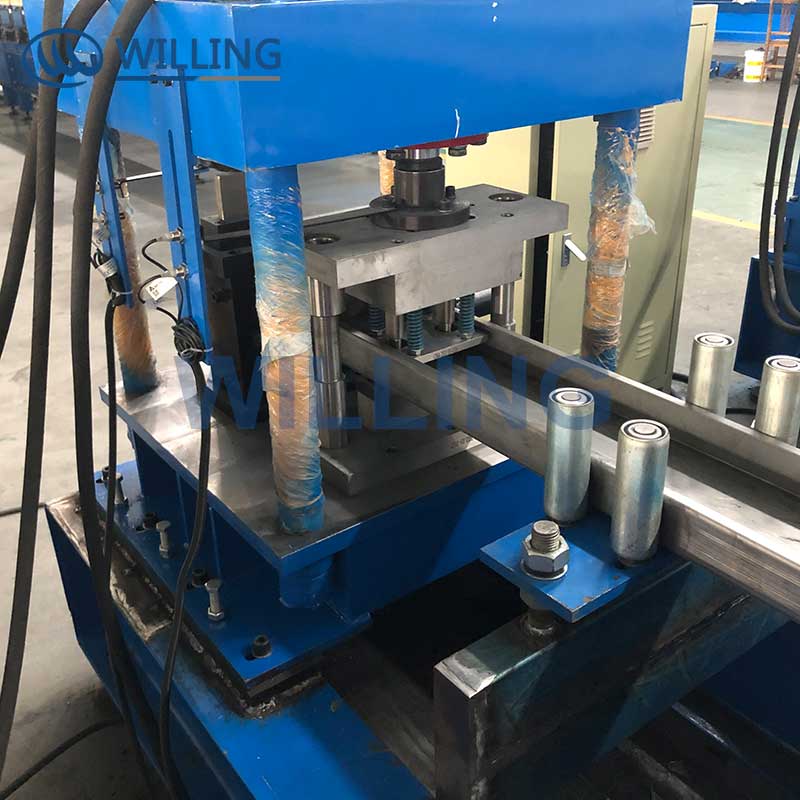

WLSP series steel purlin roll forming machine consists of uncoiling system, straightening system, hole punching system, shearing system, roll forming system, products support table, hydraulic system, automatic controlling system, and so on. It’s a high efficiency equipment of making purlin, which is suitable for current enterprises.
Our company has dozens of profile models for this series roll forming machine. We can design different kinds of profile and fittings for purlin machine, as per customers' requirements.
Working Flow:

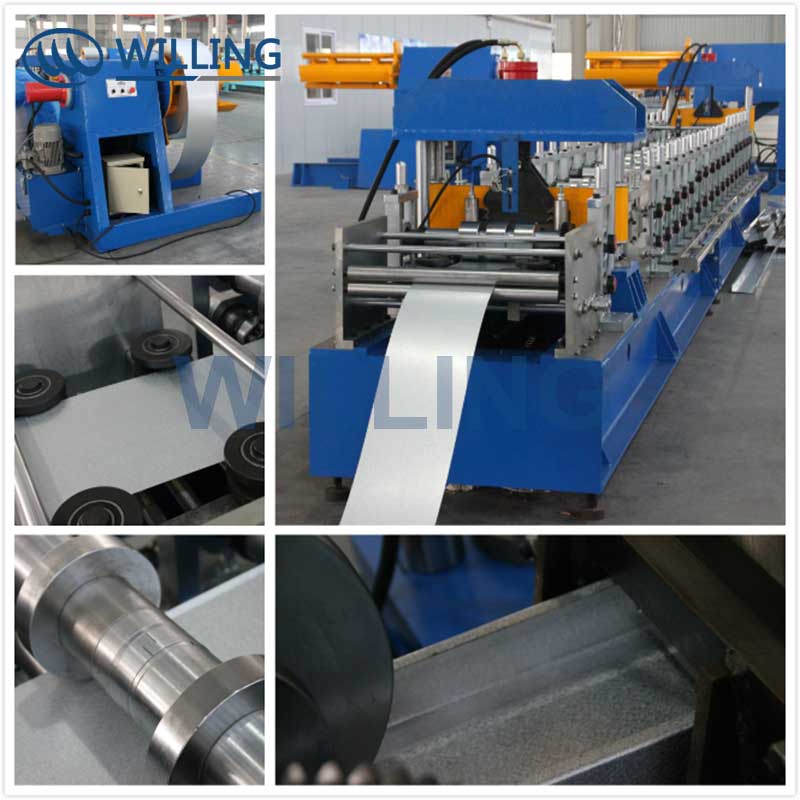

Uncoiling→Sheet Guiding→Straightening &Levelling→Hole Punching→Measuring Length &Shearing→Roll Forming→Sheet to support table.
Main Technical Parameters:
Item
Parameters
Profile
Cpurlin ; Z purlin
Material
Type
Steel strip
（mm）Thickness
1.5-3.2
1.5-3.0
（Mpa）Yield stress
230-300
300-300
Max. Forming speed（m/min）
12-16Roller material
GCR15; D2
Roller driven type
Hydraulic motor driven
Controller
PLC
Operation
Touch screen and button
Hydraulic system pressure（Mpa）
20
Hydraulic station motor power（KW）
5.5; 7.5Total power（KW）
24-27.5Total weight（Kg）
About 10000
