Product details
| Materials | Steel |
|---|---|
| Size | 7600*1500*1400mm |
| Color | Customized |
From the supplier

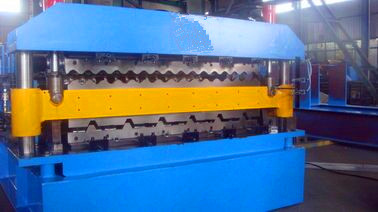

Double layer roofing sheet roll forming machine

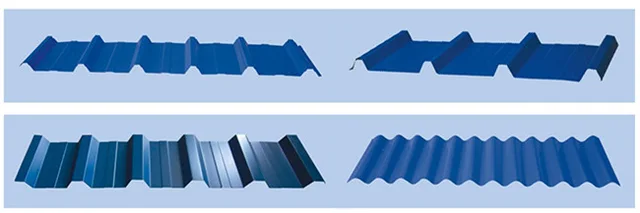

Profile type: 1098
Profile type:1000
- Main parameter :
- 1. De-coiler: manual operation, passively de-coiling
- 2. Loading of de-coiler: 5T
- 3. Frame of machine: welded with 300H beam steel
- 4. Thickness of wallboard: 14 mm
- 5. Guide feeding way of forming: side direction roller type
- 6. Forming machine type: wallboard and chain drive
- 7. Diameter of shaft: ￠70mm
- 8. Chain: 1 inch drive
- 9. Motor power of forming machine: 3.0KW
- 10. Line speed of forming machine: 10-15 m/min
- 11. Steps of forming machine: 1098-11/1000-13
- 12. Roller material: superior 45# steel forging
- 13. Thickness of Chrome plated on roller: 0.05mm
- 14. Hydraulic station motor: 3.0KW
- 15. Hydraulic station oil pump: gear pump
- 16. Cutting type:hydraulic guide pillar cutting
- 17. Cutting blade material: Cr12
- 18. Cutting blade heat treatment: HRC58º-60
- 19. Rolling thickness: 0.3-1.0 mm
- 20. Feeding width: 1220mm
- 21. Effective width:1098/1000mm
- 22. Precision of cut-to-length: ±2mm
- 23. Computer adopts PLC control
- 24. Computer operation panel adopts touch screen
- 25. Voltage: 380V/50Hz, 3 phase
- 26. Dimension of machine: 7500mm x 1500mm x 1400mm
- Technological process
Passively de-coiling → Guiding & Feeding material → Roll Forming → Cutting-to-length → Output panel
- Equipment configuration
No.
Item
Qty.
1
Passive de-coiler
1 piece
2
Roll forming machine
1 piece
3
Hydraulic cutting blade
1 set
4
Hydraulic station
1 piece
5
Computer control counter
1 piece
6
Run out table
1 set

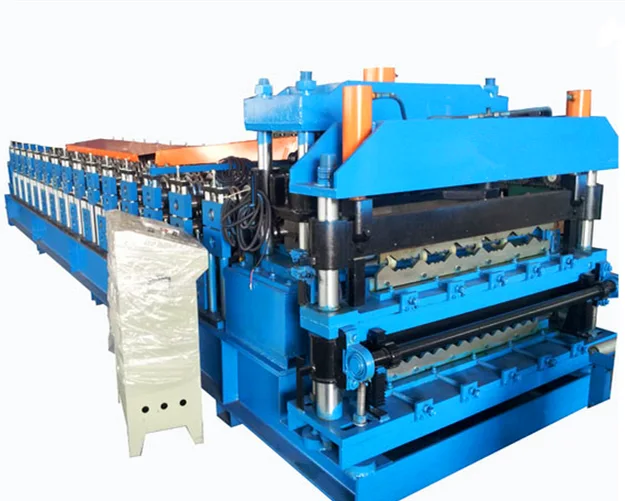

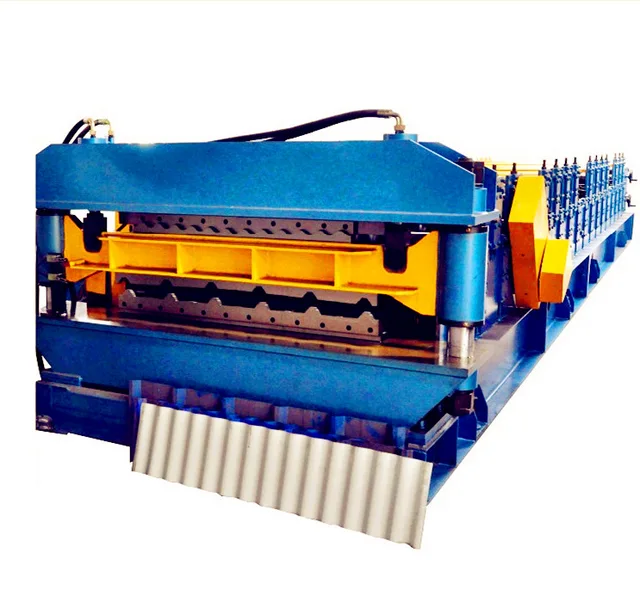

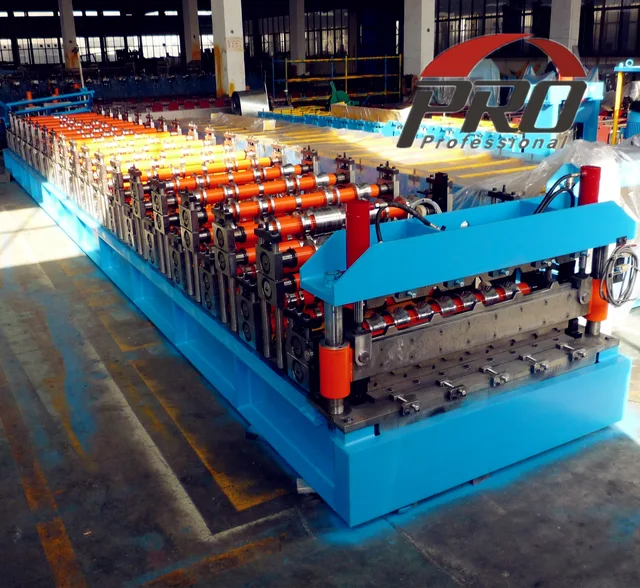

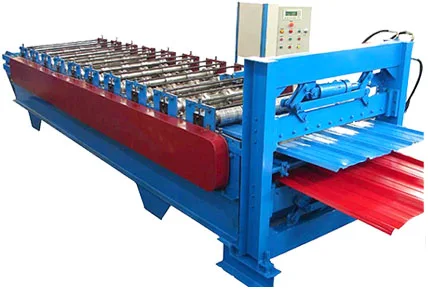

Hot sale type
Raw material
Loading pictures
Our comapny certification:
We are willing to supply goods with high quality but competive price and superior service to friends all over the world. Hope to establish business relationship with you!
