ADDF3-40 6A~40A AFDD+RCBO 1P+N High Performance Product AC230/240v 50Hz
Adidi Electric(Suzhou)Co.,LTD.
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
ADDF3-40 6A~40A AFDD+RCBO 1P+N High Performance Product AC230/240v 50Hz
Adidi Electric(Suzhou)Co.,LTD.The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: plastic
- Size: mm
- Color: grey
- Arc-extinguishing medium: Other
- Installation: Other
- Certification: CCCCE
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Oceania, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Suzhou, Jiangsu, China
About this product
- Materials: plastic
- Size: mm
- Color: grey
- Arc-extinguishing medium: Other
- Installation: Other
- Certification: CCCCE
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Oceania, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Suzhou, Jiangsu, China
Product details
| Materials | plastic |
|---|---|
| Size | mm |
| Color | grey |
| Arc-extinguishing medium | Other |
| Installation | Other |
| Certification | CCCCE |
| Poles number | Other |
Product details
| Materials | plastic |
|---|---|
| Size | mm |
| Color | grey |
| Arc-extinguishing medium | Other |
| Installation | Other |
| Certification | CCCCE |
| Poles number | Other |
From the supplier

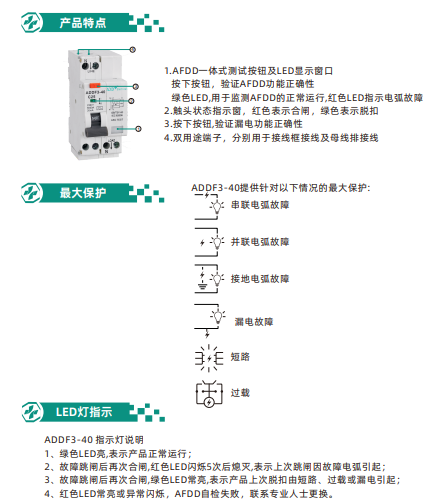

The ADDF3-40 series Arc Fault Detection Device are assembled by residual current circuit breakers (RCBO) and arc detection modules. The ADDF3-40 Arc Fault Detection Device possess the functions of short-circuit protection, overload protection, residual current protection and arc-fault protection. They are suitable for being installed in branch circuits and can quickly cut off the circuits to play a protective role when overcurrent, short-circuit, leakage or arc-fault occurs in the branch circuits.

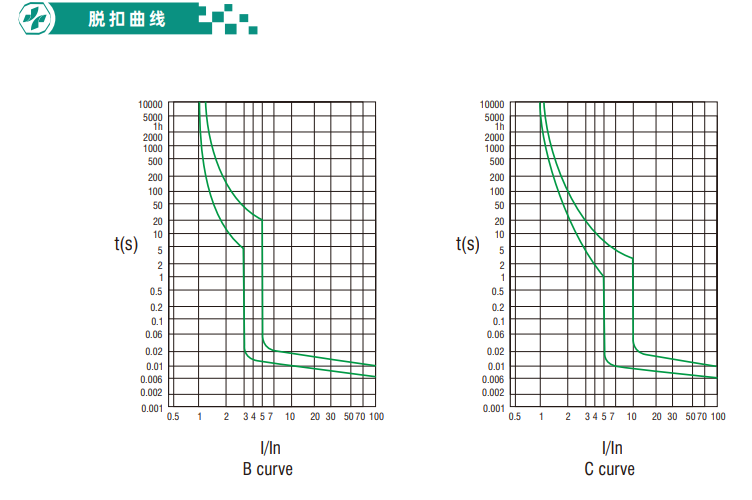

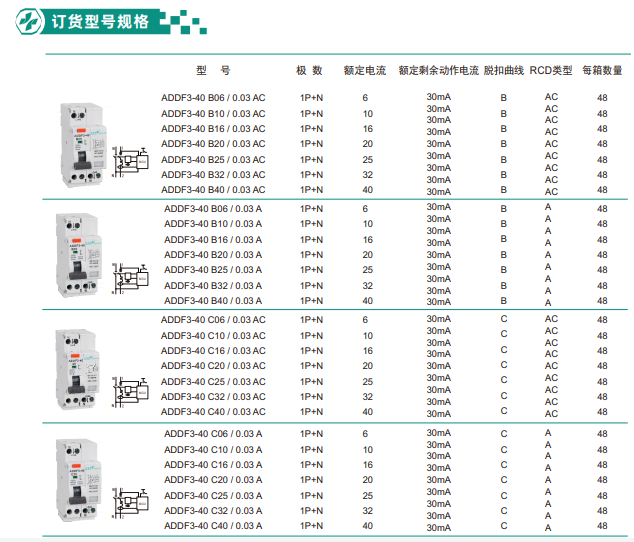

ContentTechnical ParametersRated voltage Ue, VAC230/240ApprovalsCQC, CERated frequency, Hz50Rated insulation voltage Ui, V500Rated impulse withstand voltage Uimp, V4000Rated current In, A6, 10, 16, 20, 25, 32, 40Number of poles1+N (N-pole disconnectable)Instantaneous tripping typeB, CSensitivity IΔn, mA30RCD typeAC, ARated short circuit breaking capacity Icn, A6000Mechanical and electrical endurance, cycles4000Protection degreeIP20Ambient temperature, °C-25~+40StandardsIEC 62206, IEC61009-1
From the supplier
The ADDF3-40 series Arc Fault Detection Device are assembled by residual current circuit breakers (RCBO) and arc detection modules. The ADDF3-40 Arc Fault Detection Device possess the functions of short-circuit protection, overload protection, residual current protection and arc-fault protection. They are suitable for being installed in branch circuits and can quickly cut off the circuits to play a protective role when overcurrent, short-circuit, leakage or arc-fault occurs in the branch circuits.
ContentTechnical ParametersRated voltage Ue, VAC230/240ApprovalsCQC, CERated frequency, Hz50Rated insulation voltage Ui, V500Rated impulse withstand voltage Uimp, V4000Rated current In, A6, 10, 16, 20, 25, 32, 40Number of poles1+N (N-pole disconnectable)Instantaneous tripping typeB, CSensitivity IΔn, mA30RCD typeAC, ARated short circuit breaking capacity Icn, A6000Mechanical and electrical endurance, cycles4000Protection degreeIP20Ambient temperature, °C-25~+40StandardsIEC 62206, IEC61009-1
About the supplier
Main products: AC breaker, Circuit breaker, Small breaker ( low-voltage apparatus), Switch disconnector/Circuit breaker, Surge protector, Earth Leakage Circuit Breaker, GFCI (Ground Fault Circuit Interrupter), Signal Lamp Circuit Breaker
- ✓Manufacturer
- ✓Founded 2015
- ✓7 certificates on file
