22kV ACSR-CX, 35kV ACSR-CX 22kV AL-CX, 35kV AL-CX 22kV ACSR-X, 35kV ACSR-X 22kV AL-X, 35kV AL-X
Henan Qingzhou Cable Co.,Ltd
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
22kV ACSR-CX, 35kV ACSR-CX 22kV AL-CX, 35kV AL-CX 22kV ACSR-X, 35kV ACSR-X 22kV AL-X, 35kV AL-X
Henan Qingzhou Cable Co.,LtdThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
From the supplier
22kV ACSR-CX, 35kV ACSR-CX
22kV AL-CX, 35kV AL-CX
22kV ACSR-X, 35kV ACSR-X
22kV AL-X, 35kV AL-X

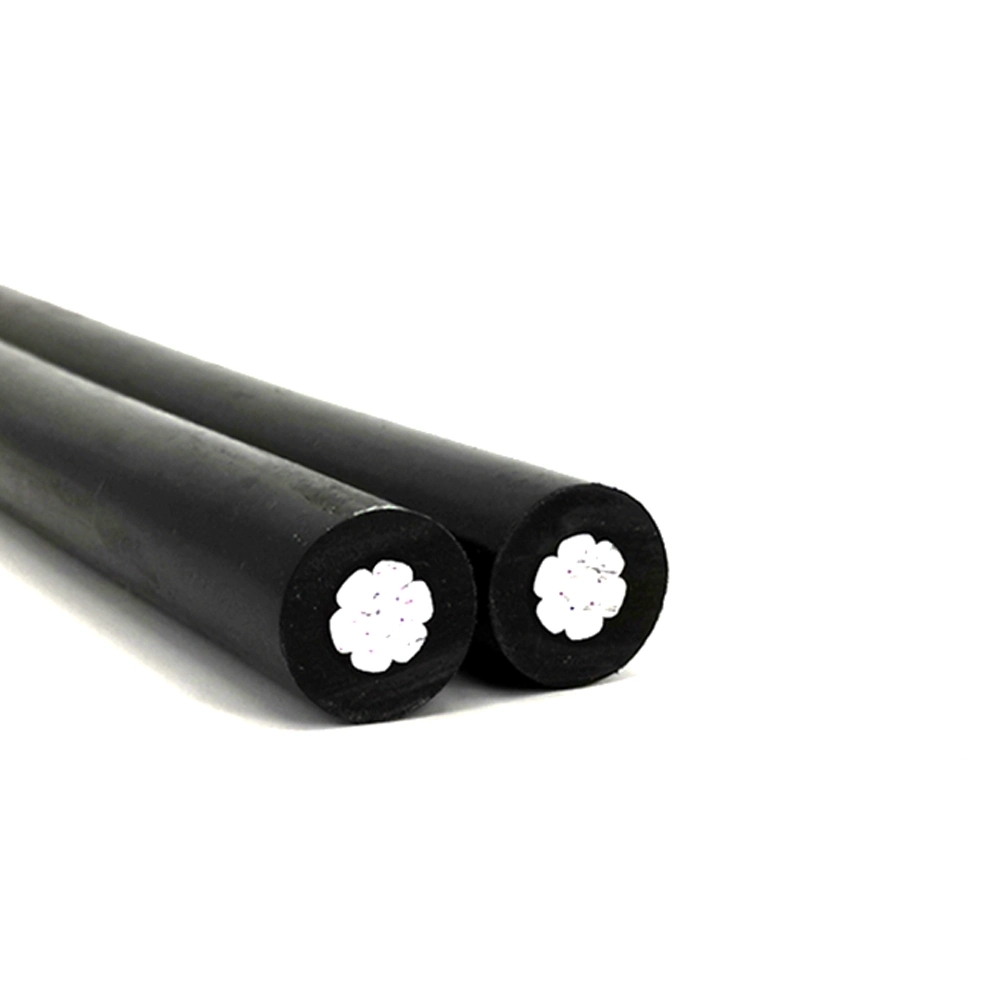

22kV and 35kV Conductor Screened, XLPE Insulated Power Cable (22kV ACSR-CX, 35kV ACSR-CX)Construction: Stranded aluminum conductor, galvanized steel reinforce(ACSR) and Semi-conducting screened, XLPE insulation power cable
Option: Water blocking material shall be filled the layer stranded of conductor
Application: Used for overhead power transmission line and power distribution line
22kV and 35kV Conductor Screened, XLPE Insulated Power Cable (22kV AL-CX, 35kV AL-CX)
Construction: Stranded aluminum conductor and Semi-conducting screened, XLPE insulation power cable
Option: Water blocking material shall be filled the layer stranded of conductor
Application: Used for overhead power transmission line and power distribution line
22kV and 35kV XLPE Insulated Power Cable (22kV ACSR-X, 35kV ACSR-X)
Construction: Stranded aluminum conductor, galvanized steel reinforce(ACSR) and XLPE insulation power cable
Option: Water blocking material shall be filled the layer stranded of conductor
Application: Used for overhead power transmission line and power distribution line
22kV and 35kV XLPE Insulated Power Cable (22kV AL-X, 35kV AL-X)
Construction: Stranded aluminum conductor and XLPE insulation power cable
Option: Water blocking material shall be filled the layer stranded of conductor
Application: Used for overhead power transmission line and power distribution line
22kV ACSR-CX (BS EN 50397-1)
Conductor Thickness of Insulation Approx. overall Diameter Approx. Overall Weight Min. Breaking Load Max.D.C. Conductor Resistance(20℃） Gross Sectional Area Na.and Diameter of wires(Al) Na. and Diameter of wires(Steel) Outside Diameter mm2 mm mm mm mm mm kg/km kN Ω/ km 50/8 6/3.20 1/3.20 9.6 2.5 17 330 17.112 0.5951 70/11 6/3.80 1/3.80 11.4 2.5 18 430 24.13 0.4218 95/16 6/4.50 1/4.50 13.5 2.5 20 560 33.369 0.3007 120/19 26/2.40 7/1.85 15.15 2.5 22 660 41.521 0.244 150/19 24/2.80 7/1.85 16.75 2.5 24 760 46.307 0.2046 150/24 26/2.70 7/2.10 17.1 2.5 24 810 52.279 0.2039 185/24 24/3.15 7/2.10 18.9 2.5 26 930 58.075 0.154 185/29 26/2.98 7/2.30 18.82 2.5 26 960 62.055 0.1519 240/32 24/3.60 7/2.40 21.6 2.5 29 1180 75.05 0.1182 300/39 24/4.00 7/2.65 23.95 2.5 31 1410 90.574 0.0958 330/43 54/2.80 7/2.80 25.2 2.5 32 1550 103.784 0.0869 400/51 54/3.05 7/3.05 27.5 2.5 35 1810 120.481 0.0733From the supplier
22kV ACSR-CX, 35kV ACSR-CX
22kV AL-CX, 35kV AL-CX
22kV ACSR-X, 35kV ACSR-X
22kV AL-X, 35kV AL-X
22kV and 35kV Conductor Screened, XLPE Insulated Power Cable (22kV ACSR-CX, 35kV ACSR-CX)Construction: Stranded aluminum conductor, galvanized steel reinforce(ACSR) and Semi-conducting screened, XLPE insulation power cable
Option: Water blocking material shall be filled the layer stranded of conductor
Application: Used for overhead power transmission line and power distribution line
22kV and 35kV Conductor Screened, XLPE Insulated Power Cable (22kV AL-CX, 35kV AL-CX)
Construction: Stranded aluminum conductor and Semi-conducting screened, XLPE insulation power cable
Option: Water blocking material shall be filled the layer stranded of conductor
Application: Used for overhead power transmission line and power distribution line
22kV and 35kV XLPE Insulated Power Cable (22kV ACSR-X, 35kV ACSR-X)
Construction: Stranded aluminum conductor, galvanized steel reinforce(ACSR) and XLPE insulation power cable
Option: Water blocking material shall be filled the layer stranded of conductor
Application: Used for overhead power transmission line and power distribution line
22kV and 35kV XLPE Insulated Power Cable (22kV AL-X, 35kV AL-X)
Construction: Stranded aluminum conductor and XLPE insulation power cable
Option: Water blocking material shall be filled the layer stranded of conductor
Application: Used for overhead power transmission line and power distribution line
22kV ACSR-CX (BS EN 50397-1)
Conductor Thickness of Insulation Approx. overall Diameter Approx. Overall Weight Min. Breaking Load Max.D.C. Conductor Resistance(20℃） Gross Sectional Area Na.and Diameter of wires(Al) Na. and Diameter of wires(Steel) Outside Diameter mm2 mm mm mm mm mm kg/km kN Ω/ km 50/8 6/3.20 1/3.20 9.6 2.5 17 330 17.112 0.5951 70/11 6/3.80 1/3.80 11.4 2.5 18 430 24.13 0.4218 95/16 6/4.50 1/4.50 13.5 2.5 20 560 33.369 0.3007 120/19 26/2.40 7/1.85 15.15 2.5 22 660 41.521 0.244 150/19 24/2.80 7/1.85 16.75 2.5 24 760 46.307 0.2046 150/24 26/2.70 7/2.10 17.1 2.5 24 810 52.279 0.2039 185/24 24/3.15 7/2.10 18.9 2.5 26 930 58.075 0.154 185/29 26/2.98 7/2.30 18.82 2.5 26 960 62.055 0.1519 240/32 24/3.60 7/2.40 21.6 2.5 29 1180 75.05 0.1182 300/39 24/4.00 7/2.65 23.95 2.5 31 1410 90.574 0.0958 330/43 54/2.80 7/2.80 25.2 2.5 32 1550 103.784 0.0869 400/51 54/3.05 7/3.05 27.5 2.5 35 1810 120.481 0.0733About the supplier
