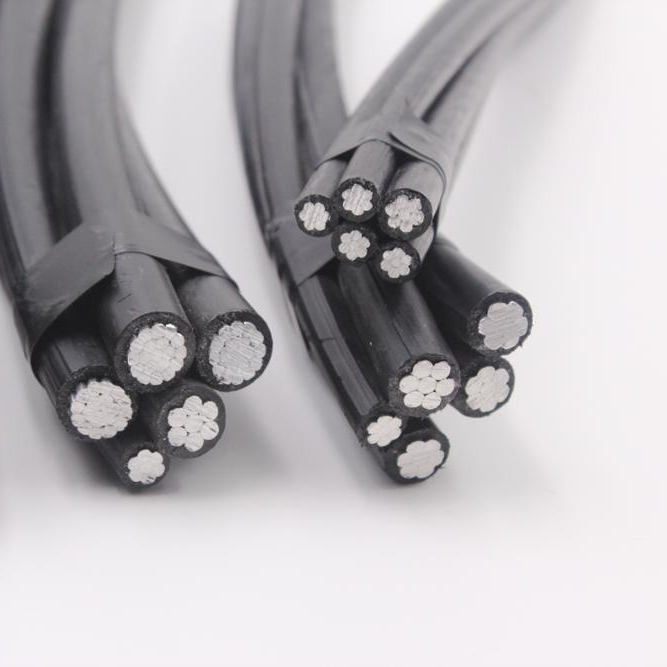

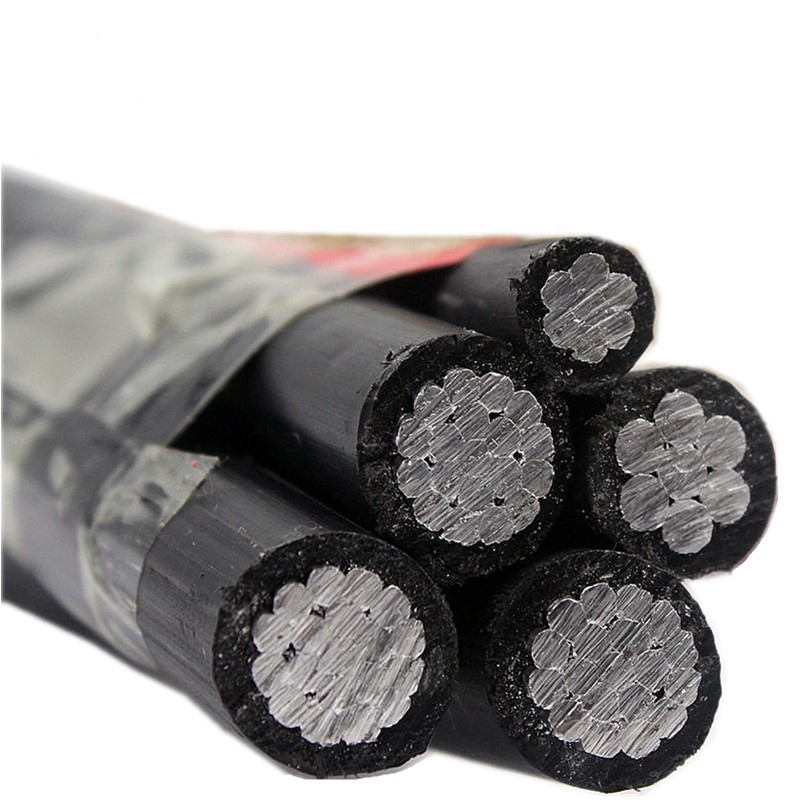

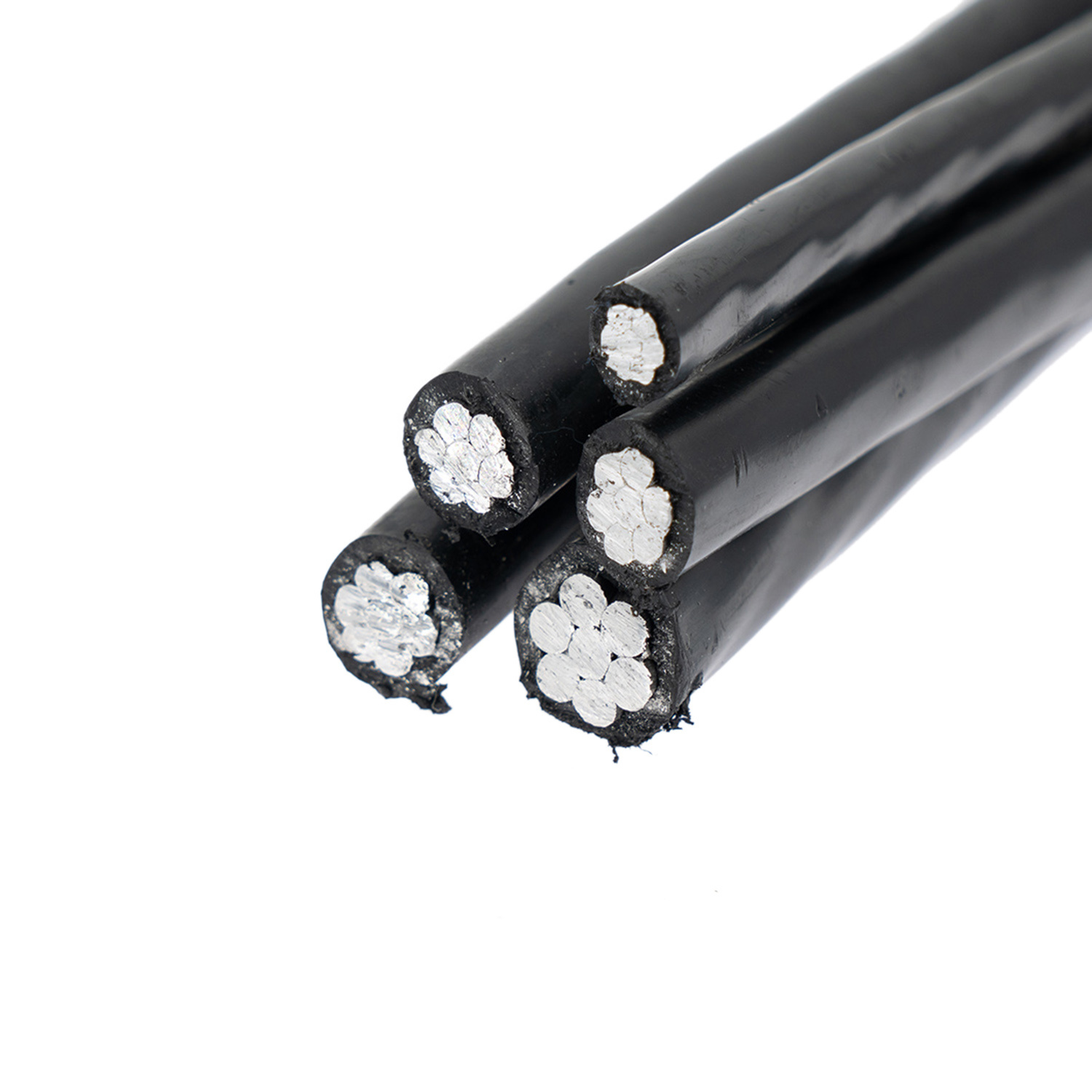

AL/XLPE INSULATED AERIAL BUNDLED CABLES AS/NZS 3560.1 0.6/1 (1.2) kV
DESCRIPTION
The aerial bundled cables designed for overhead distribution lines have all conductors made of aluminium 1350 and are insulated with XLPE. Phase and neutral cores are laid up in a bundle with a left hand lay. Cables are rated at 0.6/1(1.2) kV and conform to AS/ NZS 3560.1.
The main advantage of aerial bundled cables include :
1.Ease of erection and stringing
2.Practically no tree – trimming required
3.Less maintenance

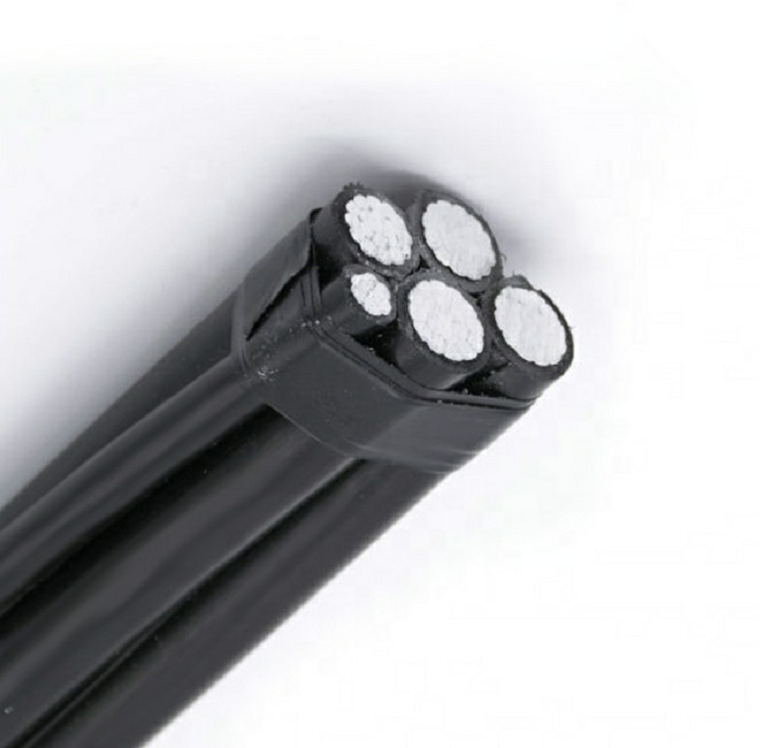

AL/PE INSULATED AERIAL BUNDLED CABLES IEC 60502&TNB Specification 0.6/1 (1.2) kV
DESCRIPTION
The aerial bundled cables designed for overhead distribution lines have an insulated neutral messenger made of AAAC, which the insulated aluminium phase conductors are helically wound over it. Cables are rated at 0.6/1(1.2) kV and conform to IEC 60502 & TNB Specification.
AL/XLPE INSULATED AERIAL BUNDLED CABLES BS 7870-5 0.6/1 (1.2) kV
DESCRIPTION
The aerial bundled cables designed for overhead distribution lines have all conductors made of aluminium 1350 and are insulated with XLPE . Phase and neutral cores are laid up in a bundle with a left hand lay. Cables are rated at 0.6/1(1.2) kV and conform to BS 7870-5.
The main advantage of aerial bundled cables include :
1.Ease of erection and stringing
2.Practically no tree – trimming required
3.Less maintenance
AL/XLPE INSULATED AERIAL BUNDLED CABLES IEC 60502 & DES/LV/ABC 0.6/1 (1.2) kV
DESCRIPTION
The aerial bundled cables designed for overhead distribution lines have all conductors made of aluminium 1350 and are insulated with XLPE. Phase and neutral cores are laid up in a bundle with a left hand lay. Cables are rated at 0.6/1(1.2) kV and conform to IEC 60502 & DES/LV/ABC.
The main advantage of aerial bundled cables include :
1.Ease of erection and stringing
2.Practically no tree – trimming required
3.Less maintenance

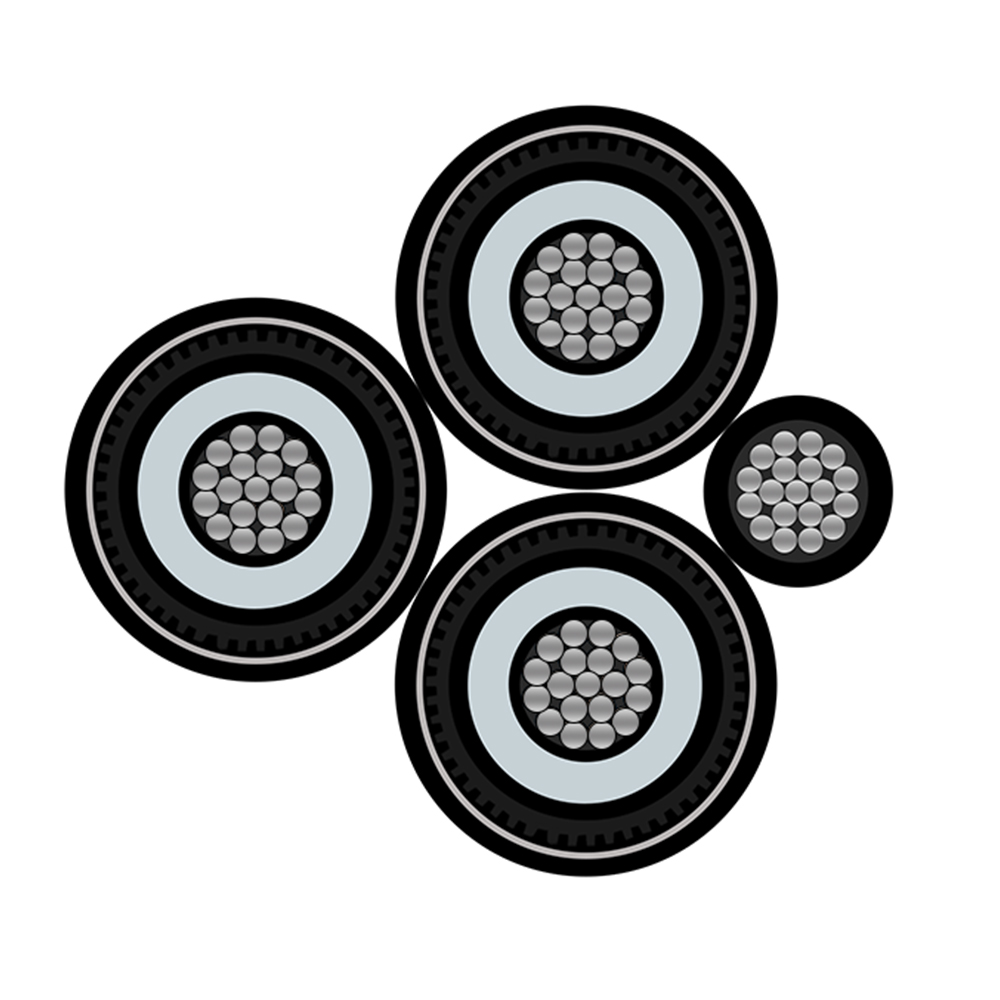

AL/XLPE INSULATED, PVC OUTER SHEATHED AERIAL BUNDLED CABLES AL/XLPE/SCT/PVC CABLES , MEDIUM VOLTAGE IEC 60502 & TNB Specifcation
DESCRIPTION
Circular compacted stranded aluminium conductor; XLPE insulated, copper tape screened and PVC outer sheathed cable.The three XLPE insulated and copper tape screened single core cables are bundled around the galvanized steel wires in a right hand lay.

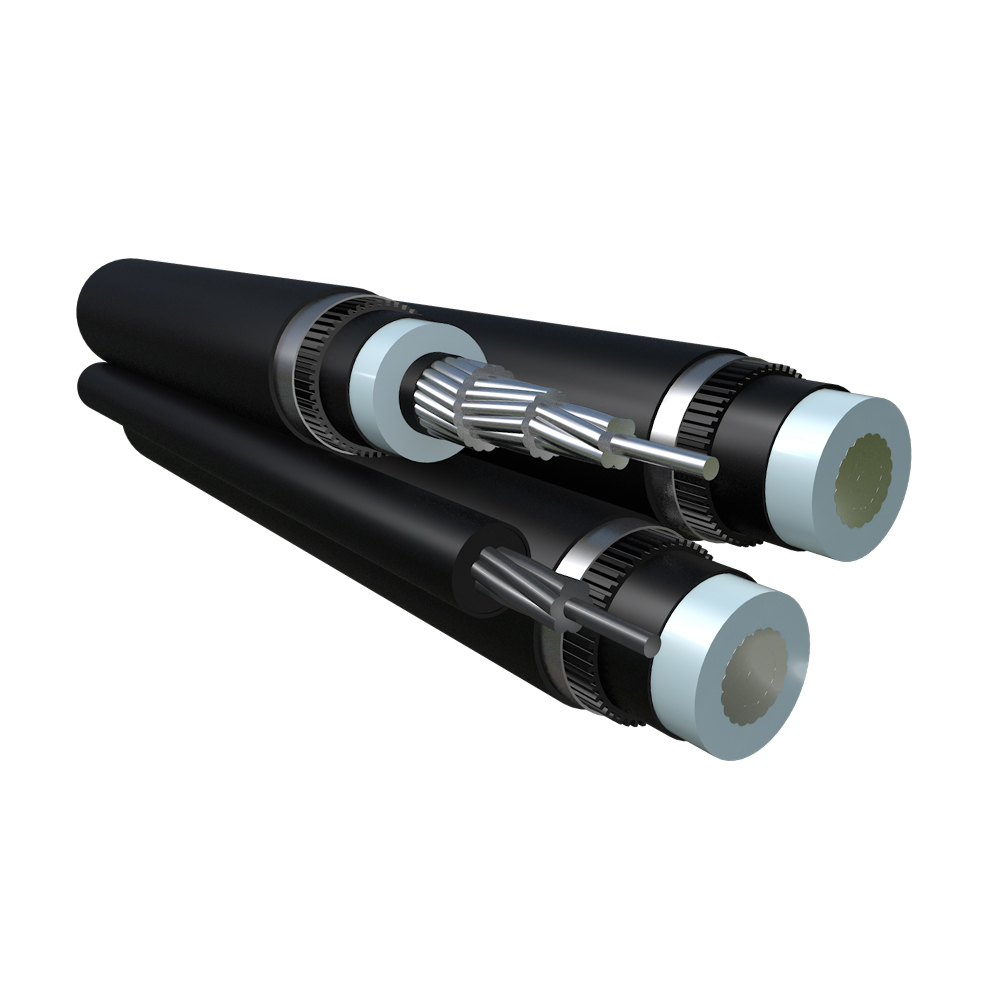

AL/XLPE INSULATED, PE OUTER SHEATHED AERIAL BUNDLED CABLES AL/XLPE/SCW/HDPE AERIAL CABLES , MEDIUM VOLTAGE 19/33 (36) kV AS/NZS 3599.1
DESCRIPTION
Circular compacted stranded aluminium conductor; XLPE insulated, copper wire screened and HDPE outer sheathed cable.The three XLPE insulated and copper wire screened single core cables are bundled around the galvanized steel wires in a right hand lay.
AL/XLPE INSULATED, PE OUTER SHEATHED AERIAL BUNDLED CABLES AL/XLPE/HDPE AERIAL CABLES, MEDIUM VOLTAGE AS/NZS 3599.2
DESCRIPTION
Circular compacted stranded aluminium conductor; XLPE insulated, copper wire screened and HDPE outer sheathed cable.The three XLPE insulated and copper wire screened single core cables are bundled around the AAAC/1120 support conductor in a right hand lay.
