Product Applications

AAC and ACSR have been widely used in power transmission lines with various voltage levels, because they have such good characteristics as simple structure, convenient installation and maintenance, low cost large transmission capacity. And they are also suitable for laying across rivers valleys and the places where special geographical features exist.

Service Performance

(1) The permissible long-time operating temperature for aerial conductor is 70oC.

(2) Under the circumstance that rare climate is occuring and ice coverage rate low in heavy ice area,the biggest stress of cable at the lowest point of the sag should not exceed 60% of the short-time destructive power.

(3) When connecting conductors, the conductor beside the connecting tube can’t be prominent.Otherwise, the force on the operating conductors will be unbalanced. After connectors are install, the connecting tube should be painted by moisture-proof varnish in order to protect it from corrosion.

(4) Under installation, the arc downing stress of all the conductors should be the same. With in the permissible distance of crossing buildings or dropping to the ground, the stress can be 10-15% higher than regular stress.

Product Performance

(1) The electrical performance of AAC and ACSR is indicated in DCΩ/km(20oC). The resistivity of the hard aluminum wire for stranded wires is not greater than 28.264 nΩ.m of international standard value.

(2) The rated tensile strength of AAC is denoted with the result of total cross-section of all aluminum conductors multiplied by min.tensile of corresponding size specified in the standard for aluminum wire.

(3) The rated tensile strength of ACSR is denoted with sum of all aluminum conductors’ tensile strength and steel’s tensile strength.

a.The tensile strength of all aluminum conductors is denoted with the result of all cross-sections of aluminum conductors multiplied by min.tensile strength of corresponding size specified in the standard for aluminum wire.

b.The tensile strength of all steel wire is denoted with the result of all cross-sections of steel wires multiplied by the stress at 1% elongation of corresponding size specified in the standard for steel wire.

Material Standard

(1)The hard aluminum conductor used for AAC and ACSR conforms to the standard GB/T 17048-1997(equivalent to IEC 60889:1987).

(2)The zinc coated steel wire used for ACSR conforms to IEC 60888:1987.

(3)Production can be arranged according to customer’s requirements for material standard,e tc.

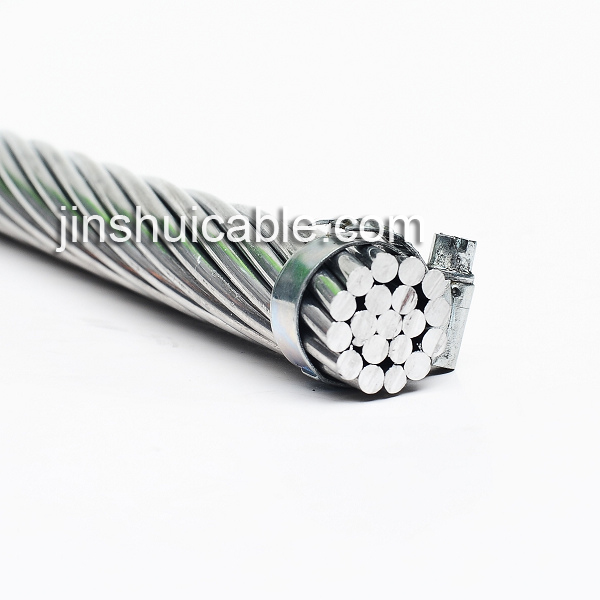

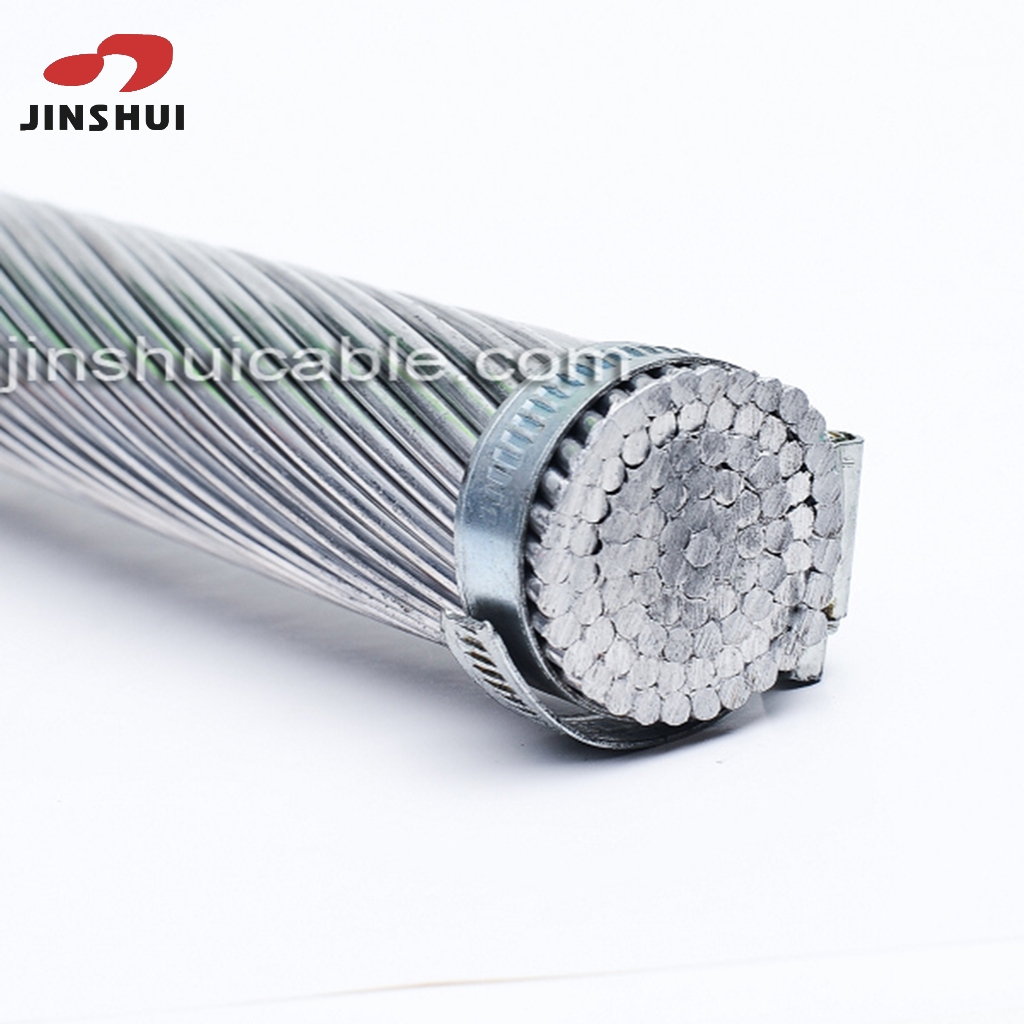

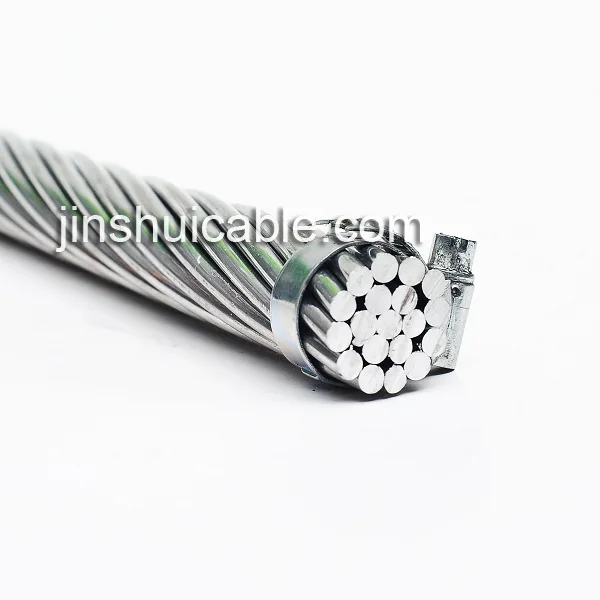

All Aluminum Conductor is in Accordance with BS215-1-70

Nominal Area (mm2) Stranding Wire No. and Dia. (No./mm) Calculated Area(mm2) Approx Overall Dia. (mm) Approx Weight (kg/km) Calcualted Min. Breaking Load(KN) Calculated D C Resistance at20oC(Ω/km) Code Name 22 7/2.06 23.33 6.18 63.88 3.99 1.2270 Midge 25 7/2.21 26.85 6.63 73.53 4.59 1.0660 Gnat 35 7/2.59 36.88 7.77 101.00 6.02 0.7762 Mosquito 50 7/3.10 52.83 9.30 144.70 8.28 0.5419 Ant 60 7/3.40 63.55 10.20 174.00 9.90 0.4505 Fly 70 7/3.78 78.54 11.34 215.10 11.97 0.3645 Earwing 100 7/4.39 106.00 13.17 290.20 16.00 0.2702 Wasp 150 19/3.25 157.60 16.25 433.60 25.70 0.1825 Hornet 200 19/3.78 213.20 18.90 586.60 32.40 0.1349 Chafer 250 19/4.22 265.70 21.10 731.20 40.40 0.1083 Cockroach 300 19/4.65 322.70 23.25 887.70 48.75 0.08916 Butterfly 350 37/3.78 327.60 25.06 1021.00 57.29 0.07739 Drone 400 37/4.09 415.20 26.46 1145.00 63.10 0.06944 Centipede 450 37/4.09 486.20 28.63 1341.00 73.82 0.05930 Maybug 500 37/4.27 529.80 27.89 1461.00 80.14 0.05442 Scorpion 600 37/4.65 628.30 32.55 1732.00 94.91 0.04590 Cicada

Company Description
Zhengzhou Jinshui Industry & Commerce Co.Ltd is located in the national class Zhengzhou high and new technology industries zone in Zhengzhou, Henan province. We have owned a number of exclusive essential manufacture technologies and has pass ISO 9001 Quality Management Systerm, ISO 14001 Environmental Management Systerm, OHSAS18001 occupational Heath Management Systerm, ISO 10012 Measurement Management Systerm and others from China and abroad.

We have been engaged in producing electric cable and wire for nearly 20 years, and we are also 12 year gold supplier. And we are confident that we can offer the best service and quality for you.

Our product range is as following:
*Bare conductors(AAC, AAAC, ACSR, Galvanized steel wire)
*Aerial Bounded Cable (Duplex, Triplex, Quadruplex)
* PVC insulated wire (Rated voltage to 450/750V)
*THHN/THWN wire
*PVC insulated Power Cable
*XLPE insulated Power Cable
*Rubber sheathed Cable
*Control Cable
*Welding Cable
*Cable Accessories

We take part in many fairs and exhibitions in China and abroad. Our aim is to be our customer's factory in Zhengzhou, China. We are here to help you placing orders of cost-effective electric cable and keep tracking your products and shipment.

Our Factory
1. Professional production lines, experienced worker, ensure the production of every thing is fine and accurate.

2. We choose excellent raw materials carefully to ensure the quality and meet the need of customers.

3. Mechanical testing of Cables is done to determine the quality and mechanical characteristics before delivery.

FAQ
(1) Are you the factory or trading company?
We are the manufacturer and 12 years gold supplier on alibaba.We are engaged in exporting cables for nearly 15 years.
(2) When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.
(3) How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
(4) What is the payment terms?
30% deposit by T/T,70% T/T after checking the copy of B/L. Or irrevocable L/C at sight .
(5) What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.



Welcome your kind enquiry!
