From the supplier
Application
KTACSR & KTACSR/AW- The full name: HIGH STRENGTH - THERMAL RESISTANT ALUMINIUM ALLOY CONDUCTOR STEEL REINFORCED.
High Temperature Thermal Resistant Alloy Conductor : These are high ampacity conductors with inner core composed of Galvanized steel or Aluminum clad Steel & outer layer composed of high Strength - thermal resistant aluminium alloy with round or trapezoidal shaped.

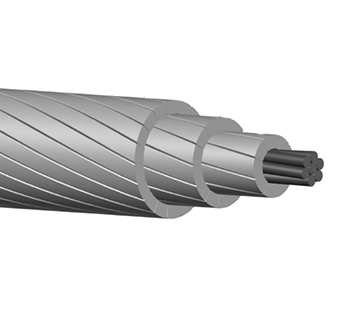

Construction
Aluminium-Zirconium wires (Type-AT2), concentrically stranded over a steel core.
HIGH STRENGTH-THERMAL RESISTANT ALUMINIUM ALLOY CONDUCTOR STEEL REINFORCED - (KTACSR)
Conductor Size
Stranding
Cross-Sectional Area
Diameter of Complete Conductor
Weight
Rated Strength
DC
Resistance @ 20°C
Current Capacity
No. of Wires
Wire diameter
KTAL
Steel
Total
KTAL
Steel
Total
Regular
Strength
HS
EHS
UHS
KTAL
Steel
KTAL
Steel
@ 85°C
@ 150°C
(mm²)
(No.)
(No.)
(mm)
(mm)
(mm²)
(mm²)
(mm²)
(mm)
(Kg/Km)
(Kg/Km)
(Kg/Km)
(KN)
(KN)
(KN)
(KN)
(Ω/Km)
(Ampere)
(Ampere)
58
6
1
3.50
3.50
57.73
9.62
67.35
10.50
158.42
74.84
233.26
25.84
27.19
28.15
28.49
0.5512
190
316
80
6
1
4.20
4.20
83.13
13.85
96.98
12.60
228.12
107.75
335.87
34.91
37.26
38.79
39.20
0.3828
238
399
80
15
4
2.60
2.60
79.64
21.24
100.88
13.00
219.14
168.22
387.36
46.94
49.70
51.93
52.67
0.4007
234
394
95
6
1
4.50
4.50
95.43
15.90
111.33
13.50
261.87
123.70
385.57
40.07
42.78
44.53
45.00
0.3335
258
436
100
15
4
2.90
2.90
99.08
26.42
125.50
14.50
272.63
209.25
481.88
58.09
61.53
64.30
65.23
0.3221
267
453
120
15
4
3.20
3.20
120.64
32.17
152.81
16.00
331.96
254.79
586.75
68.97
73.47
76.69
77.81
0.2645
301
514
120
30
7
2.30
2.30
124.64
29.08
153.72
16.10
343.77
227.22
570.99
67.26
71.04
74.09
75.11
0.2566
327
559
160
30
7
2.60
2.60
159.28
37.17
196.45
18.20
439.32
290.43
729.75
87.08
91.91
95.81
97.11
0.2008
380
655
200
30
7
2.90
2.90
198.16
46.24
244.40
20.30
546.55
361.29
907.84
107.74
113.75
118.60
120.22
0.1614
433
753
240
30
7
3.20
3.20
241.27
56.30
297.57
22.40
665.46
439.90
1105.36
127.96
135.84
141.47
143.44
0.1326
488
855
330
26
7
4.00
3.10
326.73
52.83
379.56
25.30
902.23
412.78
1315.01
143.27
150.67
155.95
157.80
0.0980
581
1029
410
26
7
4.50
3.50
413.51
67.35
480.86
28.50
1141.86
526.24
1668.10
176.55
185.98
192.72
195.08
0.0774
669
1199
480
45
7
3.70
2.47
483.85
33.54
517.39
29.61
1337.01
262.06
1599.07
162.93
167.29
170.81
171.98
0.0662
718
1292
520
54
7
3.50
3.50
519.54
67.35
586.89
31.50
1437.04
526.24
1963.28
208.72
218.15
224.89
227.24
0.0617
753
1363
560
54
19
3.63
2.18
558.85
70.92
629.77
32.68
1545.77
556.01
2101.78
227.59
237.52
244.61
246.74
0.0574
786
1428
610
54
7
3.80
3.80
612.42
79.39
691.81
34.20
1693.94
620.31
2314.25
240.48
253.98
262.71
265.09
0.0524
829
1513
630
54
19
3.85
2.31
628.65
79.63
708.28
34.65
1738.83
624.29
2363.12
251.55
261.90
270.26
273.05
0.0510
842
1540
680
45
7
4.40
2.90
684.24
46.24
730.48
35.10
1890.74
361.29
2252.03
213.14
219.15
224.01
225.63
0.0468
879
1610
680
54
7
4.00
4.00
678.59
87.96
766.55
36.00
1876.97
687.27
2564.24
264.42
279.37
289.05
291.69
0.0473
880
1616
710
54
19
4.09
2.45
709.47
89.57
799.04
36.79
1962.38
702.22
2664.60
274.28
285.92
295.33
298.46
0.0452
904
1663
800
54
19
4.34
2.61
798.85
101.65
900.50
39.09
2209.60
796.93
3006.53
309.85
323.07
333.74
337.30
0.0402
968
1793
810
45
7
4.80
3.20
814.30
56.30
870.60
38.40
2250.14
439.90
2690.04
244.89
252.77
258.40
260.37
0.0394
972
1798
1120
72
19
4.45
1.78
1119.81
47.28
1167.09
44.50
3097.07
370.67
3467.74
313.89
320.51
325.24
326.66
0.0286
1172
2214
1160
84
7
4.20
4.20
1163.77
96.98
1260.75
46.20
3221.17
757.75
3978.92
375.31
391.80
402.47
405.38
0.0276
1203
2283
1250
84
19
4.35
2.61
1248.39
101.65
1350.04
47.85
3455.38
796.93
4252.31
411.00
424.21
434.89
438.45
0.0257
1251
2385
1520
84
7
4.80
4.80
1520.03
126.67
1646.70
52.80
4207.25
989.73
5196.98
475.01
487.68
510.48
514.28
0.0211
1387
2687
