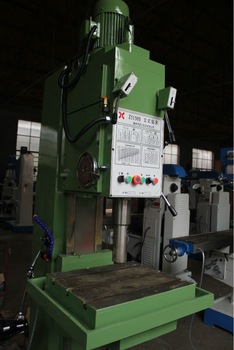

Z5140B Z5150B Drilling Machine
TENGZHOU XILI MACHINE TOOL CO.,LTD.
See what’s includedHide breakdown
- FOB goods (100)
- $475,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $16,625
- Section 301 tariff (25.0%)
- $118,750
- Customs fees (MPF/HMF)
- $1,228
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $475,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $16,625
- Section 301 tariff (25.0%)
- $118,750
- Customs fees (MPF/HMF)
- $1,228
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
Free quotes from independent agents · supplier checks approx. $5–$100 · 100% refund if not satisfied
Z5140B Z5150B Drilling Machine
TENGZHOU XILI MACHINE TOOL CO.,LTD.See what’s includedHide breakdown
- FOB goods (100)
- $475,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $16,625
- Section 301 tariff (25.0%)
- $118,750
- Customs fees (MPF/HMF)
- $1,228
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $475,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $16,625
- Section 301 tariff (25.0%)
- $118,750
- Customs fees (MPF/HMF)
- $1,228
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
Free quotes from independent agents · supplier checks approx. $5–$100 · 100% refund if not satisfied
About this product
- Materials: Cast iron, steel, electrical components, etc.
- Size: 1090*905*2465mm
- Color: Custom color
- Exports to: Mainland China, Middle East, Southeast Asia, South Asia, Russia, EU
- Made in: Shandong, China
About this product
- Materials: Cast iron, steel, electrical components, etc.
- Size: 1090*905*2465mm
- Color: Custom color
- Exports to: Mainland China, Middle East, Southeast Asia, South Asia, Russia, EU
- Made in: Shandong, China
Product details
| Materials | Cast iron, steel, electrical components, etc. |
|---|---|
| Size | 1090*905*2465mm |
| Color | Custom color |
Product details
| Materials | Cast iron, steel, electrical components, etc. |
|---|---|
| Size | 1090*905*2465mm |
| Color | Custom color |
From the supplier
Main Feature
A.Suitable for batch drilling on small and medium size plate, disc or shell type and other complex work pieces.
B.High accuracy, high efficiency, high automation and high flexibility
Specification
Specification
Unit
Z5140B
Z5140B-1
Z5150B
Z5150B-1
Max drilling diameter
mm
40
50
Spindle taper
MT4
MT5
Stroke of spindle quill
mm
250
Spindle speed steps
12
Spindle speed range
r.p.m
31.5-1400
Spindle feed steps
9
spindle feed range
mm/r
0.056-1.80
Table size
mm
560 x 480
800 x 320
560 x 480
800 x 320
Longitudinal/cross travel
mm
-
450/300
-
450/300
Vertical travel
mm
300
Max distance between
spindle and table surface
mm
750
550
750
550
Main motor power
kw
3
Overall size
mm
1090x905x2465
1300x1200x2465
1090x905x2465
1300x1200x2465
Net weight
kg
1250
1350
1250
1350
Company information:
Tengzhou Xili Machine Tool Co., Ltd. and Shandong Yourong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We have more than 20 years manufacturer experience. Our main products include CNC Machining Center, CNC Gantry Milling Machine,vertical milling machines, horizontal milling machines, universal milling machines, planer type milling machines, ram type milling machines and vertical drilling machines with all 30 categories.
We are manufacturer.All our products passed CE, ISO9001. You can trust our quality and service.
Hope we can built long-term business relationship with you.
