VMC1160 CNC Vertical Machining Center
TENGZHOU XILI MACHINE TOOL CO.,LTD.
See what’s includedHide breakdown
- FOB goods (100)
- $3,500,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $122,500
- Section 301 tariff (25.0%)
- $875,000
- Customs fees (MPF/HMF)
- $5,010
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $3,500,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $122,500
- Section 301 tariff (25.0%)
- $875,000
- Customs fees (MPF/HMF)
- $5,010
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
Free quotes from independent agents · supplier checks approx. $5–$100 · 100% refund if not satisfied
VMC1160 CNC Vertical Machining Center
TENGZHOU XILI MACHINE TOOL CO.,LTD.See what’s includedHide breakdown
- FOB goods (100)
- $3,500,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $122,500
- Section 301 tariff (25.0%)
- $875,000
- Customs fees (MPF/HMF)
- $5,010
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $3,500,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $122,500
- Section 301 tariff (25.0%)
- $875,000
- Customs fees (MPF/HMF)
- $5,010
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
Free quotes from independent agents · supplier checks approx. $5–$100 · 100% refund if not satisfied
About this product
- Materials: Cast iron, steel, electrical components, etc.
- Size: 5200*3440*2800
- Color: Custom color
- Exports to: Mainland China, Middle East, Southeast Asia, South Asia, Russia, EU
- Made in: Shandong, China
About this product
- Materials: Cast iron, steel, electrical components, etc.
- Size: 5200*3440*2800
- Color: Custom color
- Exports to: Mainland China, Middle East, Southeast Asia, South Asia, Russia, EU
- Made in: Shandong, China
Product details
| Materials | Cast iron, steel, electrical components, etc. |
|---|---|
| Size | 5200*3440*2800 |
| Color | Custom color |
Product details
| Materials | Cast iron, steel, electrical components, etc. |
|---|---|
| Size | 5200*3440*2800 |
| Color | Custom color |
From the supplier

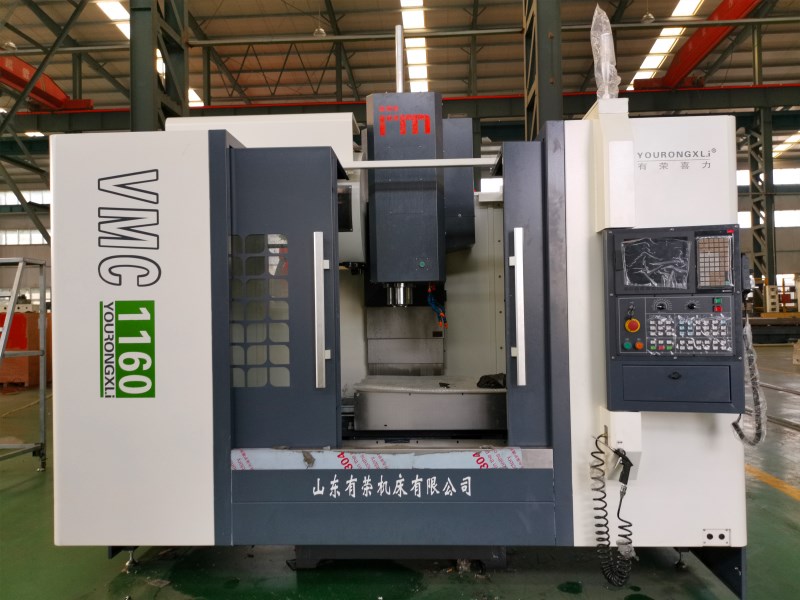

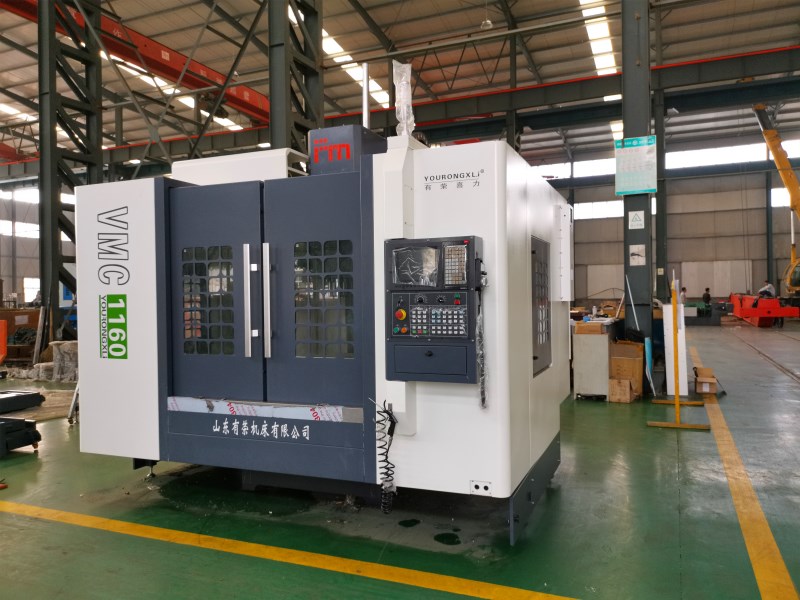

VMC1160 CNC Vertical Machining Center
- Brand of Main Component:
1.Ball screw: Taiwan HIWIN
2.Linear guideway: Taiwan HIWIN/PMI
3.Bearing: NSK
4.Spindle: Taiwan POSA/ROYAL
5.eletronic component: Schneider
6.Central lubrication : Japan HERG
7.Tool magazine: Taiwan Deta
Specification
Specification
Unit
VMC1160
Table size
mm
1200*600
Max table load
Kg
800
Table travel X
mm
1100
Table travel Y
mm
600
Table travel Z
mm
600
Spindle center to column surface
mm
650
Spindle speed range and driving method
rpm
8000 belt driving
Spindle taper
/
BT40
Spindle diameter
mm
150
Rapid feed speed X
m/min
36
Rapid feed speed Y
m/min
36
Rapid feed speed Z
m/min
36
Cutting feed rate
mm/min
1-8000
Minimum input unit
mm
0.001
Max tool diameter(No adjacent tool)
mm
φ80/130
Max tool length
mm
350
Max tool weight
kg
8
Tool selection
random
Shank
Type
BT-40
Magazine capacity
T
24
Tool exchange mode
Arm type
Tool change time
Sec
1.8
Rivet
type
P40-1(45°)
Spindle motor power（straight/15 minutes）
Kw
7.5/11
Servo motor power
Kw
3.0/3.0/3.0
Spindle oil cooling
W
750
Automatic lubrication
W
25
Cutting fluid pump
W
840
Power capacity
KVA
25
Controller
Siemens/FANUC 0i-MF
Air source pressure
Kg/cm
6
Water tank capacity
L
400
Positioning accuracy(VDI 3441)
mm
0.015/whole travel
Repeatability Positioning accuracy(VDI 3441)
mm
0.006/whole travel
Net weight
kg
5200
Gross weight
kg
6200
Overall size
mm
5200*3440*2800
Company information:
Tengzhou Xili Machine Tool Co., Ltd. and Shandong Yourong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We have more than 20 years manufacturer experience. Our main products include CNC Machining Center, CNC Gantry Milling Machine,vertical milling machines, horizontal milling machines, universal milling machines, planer type milling machines, ram type milling machines and vertical drilling machines with all 30 categories.
We are manufacturer.All our products passed CE, ISO9001. You can trust our quality and service.
Hope we can built long-term business relationship with you.
From the supplier
VMC1160 CNC Vertical Machining Center
- Brand of Main Component:
1.Ball screw: Taiwan HIWIN
2.Linear guideway: Taiwan HIWIN/PMI
3.Bearing: NSK
4.Spindle: Taiwan POSA/ROYAL
5.eletronic component: Schneider
6.Central lubrication : Japan HERG
7.Tool magazine: Taiwan Deta
Specification
Specification
Unit
VMC1160
Table size
mm
1200*600
Max table load
Kg
800
Table travel X
mm
1100
Table travel Y
mm
600
Table travel Z
mm
600
Spindle center to column surface
mm
650
Spindle speed range and driving method
rpm
8000 belt driving
Spindle taper
/
BT40
Spindle diameter
mm
150
Rapid feed speed X
m/min
36
Rapid feed speed Y
m/min
36
Rapid feed speed Z
m/min
36
Cutting feed rate
mm/min
1-8000
Minimum input unit
mm
0.001
Max tool diameter(No adjacent tool)
mm
φ80/130
Max tool length
mm
350
Max tool weight
kg
8
Tool selection
random
Shank
Type
BT-40
Magazine capacity
T
24
Tool exchange mode
Arm type
Tool change time
Sec
1.8
Rivet
type
P40-1(45°)
Spindle motor power（straight/15 minutes）
Kw
7.5/11
Servo motor power
Kw
3.0/3.0/3.0
Spindle oil cooling
W
750
Automatic lubrication
W
25
Cutting fluid pump
W
840
Power capacity
KVA
25
Controller
Siemens/FANUC 0i-MF
Air source pressure
Kg/cm
6
Water tank capacity
L
400
Positioning accuracy(VDI 3441)
mm
0.015/whole travel
Repeatability Positioning accuracy(VDI 3441)
mm
0.006/whole travel
Net weight
kg
5200
Gross weight
kg
6200
Overall size
mm
5200*3440*2800
Company information:
Tengzhou Xili Machine Tool Co., Ltd. and Shandong Yourong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We have more than 20 years manufacturer experience. Our main products include CNC Machining Center, CNC Gantry Milling Machine,vertical milling machines, horizontal milling machines, universal milling machines, planer type milling machines, ram type milling machines and vertical drilling machines with all 30 categories.
We are manufacturer.All our products passed CE, ISO9001. You can trust our quality and service.
Hope we can built long-term business relationship with you.
