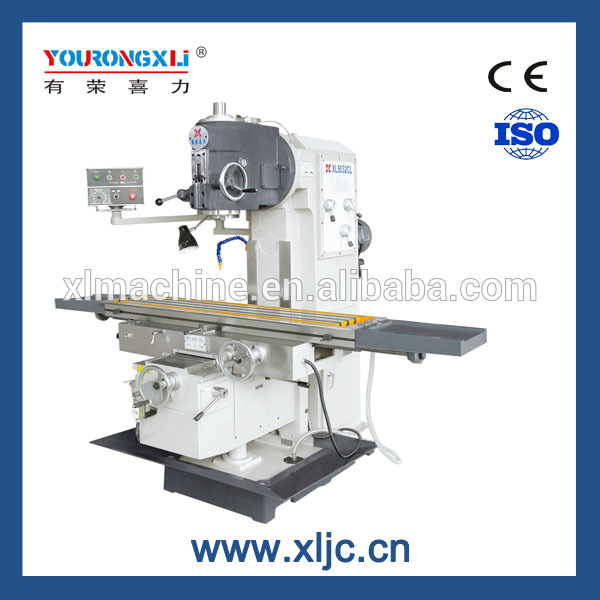

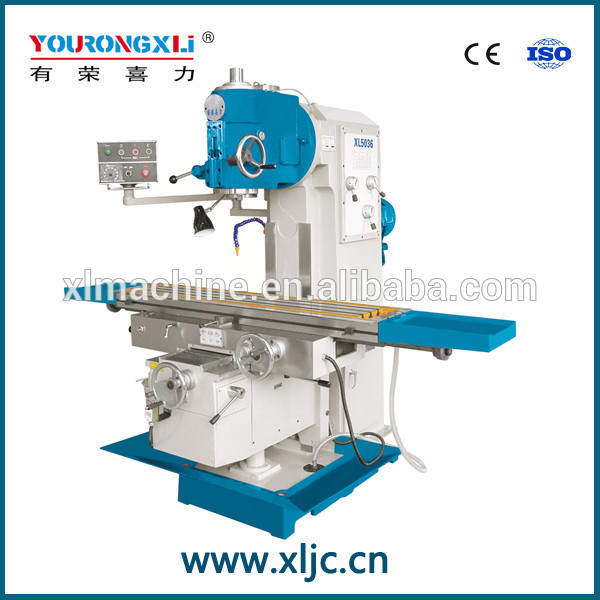

Xl5036 Vertical Milling Machine
TENGZHOU XILI MACHINE TOOL CO.,LTD.
See what’s includedHide breakdown
- FOB goods (100)
- $950,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $33,250
- Section 301 tariff (25.0%)
- $237,500
- Customs fees (MPF/HMF)
- $1,822
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $950,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $33,250
- Section 301 tariff (25.0%)
- $237,500
- Customs fees (MPF/HMF)
- $1,822
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
Free quotes from independent agents · supplier checks approx. $5–$100 · 100% refund if not satisfied
Xl5036 Vertical Milling Machine
TENGZHOU XILI MACHINE TOOL CO.,LTD.See what’s includedHide breakdown
- FOB goods (100)
- $950,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $33,250
- Section 301 tariff (25.0%)
- $237,500
- Customs fees (MPF/HMF)
- $1,822
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $950,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $33,250
- Section 301 tariff (25.0%)
- $237,500
- Customs fees (MPF/HMF)
- $1,822
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
Free quotes from independent agents · supplier checks approx. $5–$100 · 100% refund if not satisfied
About this product
- Materials: Cast iron, steel, electrical components, etc.
- Size: 2245*2100*2150mm
- Color: Custom color
- Exports to: Mainland China, Middle East, Southeast Asia, South Asia, Russia, EU
- Made in: Shandong, China
About this product
- Materials: Cast iron, steel, electrical components, etc.
- Size: 2245*2100*2150mm
- Color: Custom color
- Exports to: Mainland China, Middle East, Southeast Asia, South Asia, Russia, EU
- Made in: Shandong, China
Product details
| Materials | Cast iron, steel, electrical components, etc. |
|---|---|
| Size | 2245*2100*2150mm |
| Color | Custom color |
Product details
| Materials | Cast iron, steel, electrical components, etc. |
|---|---|
| Size | 2245*2100*2150mm |
| Color | Custom color |
From the supplier
Main Feature:
A. The head stock swivels ± 30 °.
B. spindle is driven by gears ,12-steps speed , the machine is applied to heavy cut.
C. Milling head adopts cyclic and forcible lubrication to extend working life.
D. Machine with automatic feed controlled one servo motor in XYZ axis.
E. Use one handle to control forward and reverse movement in XYZ axis.
Specification :
Specification
Unit
XL5036
XL5036C
XL5036CL
Table size
mm
1325X360
1600X360
T-slots(NO./Width/Pitch)
3/18/70
Longitudinal travel
mm
750
1100
1300
Cross travel
mm
320
Vertical travel
mm
460
450
Table feed (X/Y/Z)
mm/min
30-750/20-500/15-375 8 steps
Table rapid speed(X/Y/Z)
mm/min
1200/800/600
Spindle taper
7:24 ISO50
Spindle speed range
r.p.m
50-1475
Spindle speed step
steps
12 steps
Spindle travel
mm
70
Max. swivel angle of
vertical milling head
±30°
Distance between spindle
nose and table surface
mm
50-510
50-500
Distance between spindle
axis and column guideway
mm
378
Torque of X/Y/Z axis AC servo motor
N.m
10
Main motor Power
kw
5.5
Overall dimensions (L×W×H)
mm
1800×2100×2150
2245×2100×2150
2520×2100×2150
Company information:
Tengzhou Xili Machine Tool Co., Ltd. and Shandong Yourong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We have more than 20 years manufacturer experience. Our main products include CNC Machining Center, CNC Gantry Milling Machine,vertical milling machines, horizontal milling machines, universal milling machines, planer type milling machines, ram type milling machines and vertical drilling machines with all 30 categories.
We are manufacturer.All our products passed CE, ISO9001. You can trust our quality and service.
Hope we can built long-term business relationship with you.
