About this product
- Materials: Cast iron, steel, electrical components, etc.
- Size: 2450*2050-2250
- Color: Custom color
- Exports to: Mainland China, Middle East, Southeast Asia, South Asia, Russia, EU
- Made in: Shandong, China
About this product
- Materials: Cast iron, steel, electrical components, etc.
- Size: 2450*2050-2250
- Color: Custom color
- Exports to: Mainland China, Middle East, Southeast Asia, South Asia, Russia, EU
- Made in: Shandong, China
Product details
| Materials | Cast iron, steel, electrical components, etc. |
|---|---|
| Size | 2450*2050-2250 |
| Color | Custom color |
Product details
| Materials | Cast iron, steel, electrical components, etc. |
|---|---|
| Size | 2450*2050-2250 |
| Color | Custom color |
From the supplier

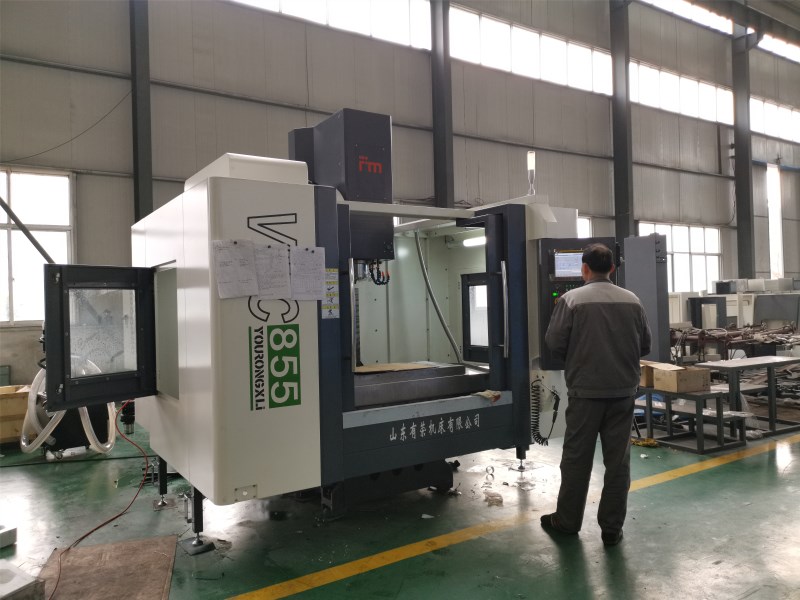

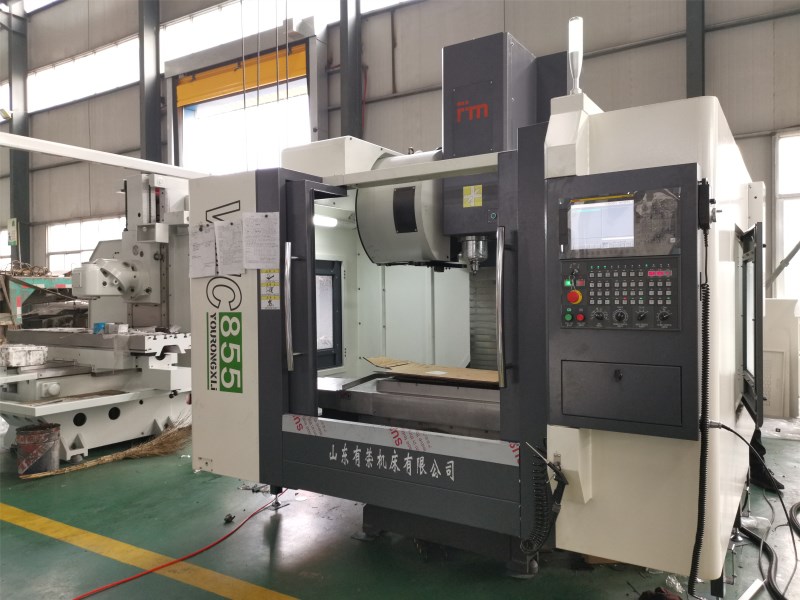

VMC855 CNC Vertical Machining Center
- Brand of Main Component:
1.Ball screw: Taiwan HIWIN
2.Linear guideway: Taiwan HIWIN/PMI
3.Bearing: NSK
4.Spindle: Taiwan POSA/ROYAL
5.eletronic component: Schneider
6.Central lubrication : Japan HERG
7.Tool magazine: Taiwan Deta
Specification
Parameter
Specification
Unit
VMC855
Work table size
Table size
mm
1000*500
Max Load Capacity
Max table load
Kg
500
X-Axis Stroke
Table travel X
mm
800
Y-Axis Stroke
Table travel Y
mm
550
Z-Axis Stroke
Table travel Z
mm
550
Spindle Nose to Worktable Distance
Spindle nose to table surface
mm
150-650
Spindle Center To Column Distance
Spindle center to column surface
mm
575
Spindle Speed And Transmission Method
Spindle speed range and driving method
rpm
8000 belt driving
Spindle Taper
Spindle taper
/
BT40
Spindle Head Sleeve Bore Diameter
Spindle diameter
mm
150
Maximum Tool Diameter (No Adjacent Tools)
Max tool diameter(No adjacent tool)
mm
φ80(φ130)
Maximum Tool Length
Max tool length
mm
300
Maximum Tool Weight
Max tool weight
kg
8
Tool Selection
Tool selection
random
Tool Holder
Shank
Type
BT-40
Tool Changer Capacity
Magazine capacity
T
24
Tool Change Method
Tool exchange mode
Arm type
Tool Change Time (Tool to Tool)
Tool change time
Sec
3
Pull Pin
Rivet
type
P40-1(45°)
Controller
Controller
FANUC/Siemens
Spindle Motor (Continuous/15 Minutes)
Spindle motor power（straight/15 minutes）
Kw
7.5
Servo Motor (X/Y/Z)
Servo motor power
Kw
1.8/1.8/3.0
Spindle Oil Cooler
Spindle oil cooling
W
750
Automatic Lubrication System
Automatic lubrication
W
30
Coolant Pump
Cutting fluid pump
W
840
Power Capacity
Power capacity
KVA
25
Air Source Pressure Requirements
Air source pressure
Kg/cm
6
Cutting Fluid Tank Capacity
Water tank capacity
L
200
Positioning Accuracy (JIS Standard)
Positioning accuracy(JIS standard)
mm
±0.005/300
Repeatability (JIS Standard)
Repeatability Positioning accuracy(JIS standard)
mm
±0.003
Net Weight
Net weight
kg
5200
Footprint and Height
Overall size
mm
2450*2050-2250
Company information:
Tengzhou Xili Machine Tool Co., Ltd. and Shandong Yourong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We have more than 20 years manufacturer experience. Our main products include CNC Machining Center, CNC Gantry Milling Machine,vertical milling machines, horizontal milling machines, universal milling machines, planer type milling machines, ram type milling machines and vertical drilling machines with all 30 categories.
We are manufacturer.All our products passed CE, ISO9001. You can trust our quality and service.
Hope we can built long-term business relationship with you.
