About this product
- Materials: Cast iron, steel, electrical components, etc.
- Size: 2520*2100*2000
- Color: Custom color
- Exports to: Mainland China, Middle East, Southeast Asia, South Asia, Russia, EU
- Made in: Shandong, China
About this product
- Materials: Cast iron, steel, electrical components, etc.
- Size: 2520*2100*2000
- Color: Custom color
- Exports to: Mainland China, Middle East, Southeast Asia, South Asia, Russia, EU
- Made in: Shandong, China
Product details
| Materials | Cast iron, steel, electrical components, etc. |
|---|---|
| Size | 2520*2100*2000 |
| Color | Custom color |
Product details
| Materials | Cast iron, steel, electrical components, etc. |
|---|---|
| Size | 2520*2100*2000 |
| Color | Custom color |
From the supplier

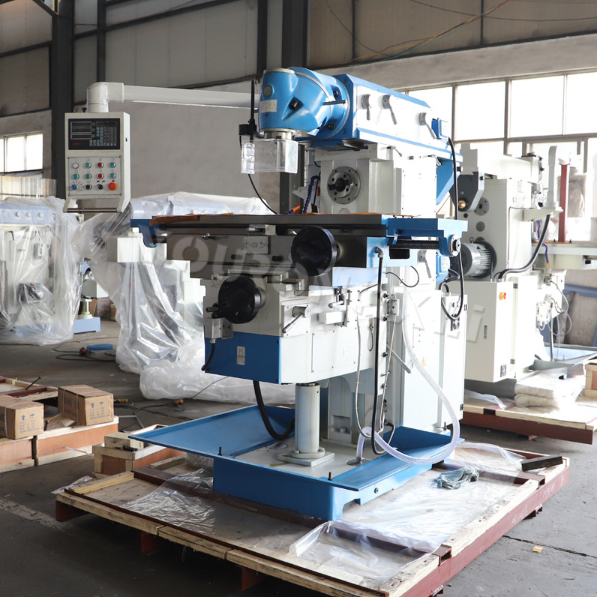

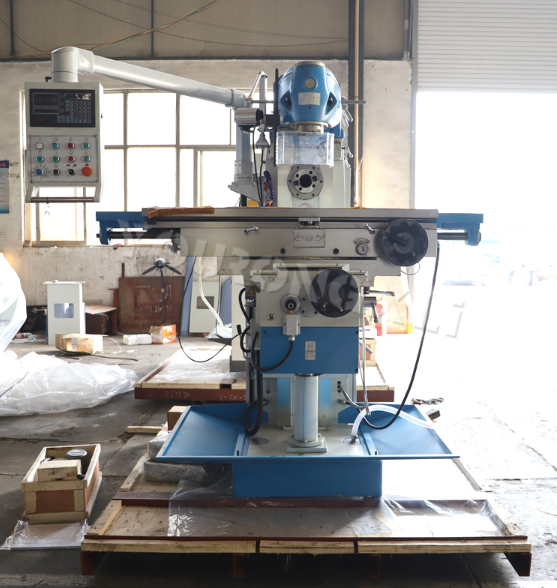

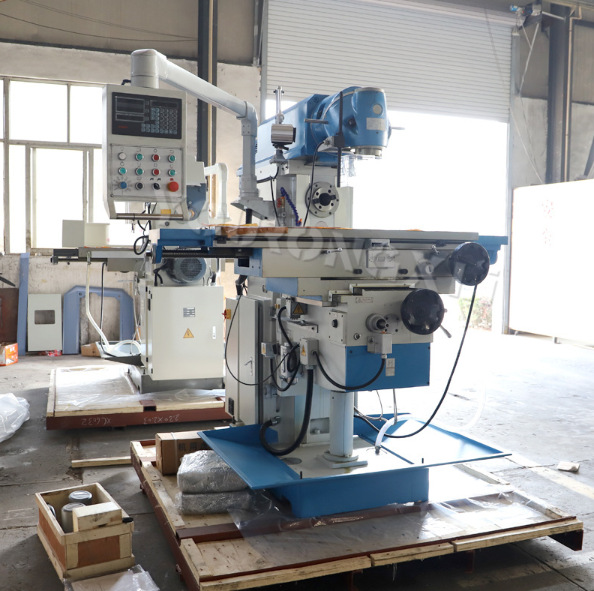

XL6436 XL6436C XL6436CL universal milling machine
It is a new series of conventional machines equipped with servo motors and drives for 3 working feeds,
which is a patented product of our factory:
Main Features :
1. X Y Z 3-axis auto feed and fast feed ,finely graduated feeds in all axis, driven by servomotor
2. Horizontal spindle with large speed range, suitable for low-speed heavy load process and high-speed precision process
3.Rotary table ±45° can be ordered
4.Easy operation, low trouble rate
5.ideal for workshop&training
Specification
Specifications
Unit
XL6436
XL6436C
XL6436CL
Table size
mm
1325×360
1325×360
1600×360
Table travel (X/Y/Z)
mm
750/320/460
1100/320/450
1300/320/450
Table feed(X/Y/Z)
mm/min
30~750/20~500/15~375
30~750/20~500/15~375
30~750/20~500/15~375
Spindle taper
7:24 IS050 (H)
7:24 IS050 (V)
7:24 IS050 (H)
7:24 IS050 (V)
7:24 IS050 (H)
7:24 IS050 (V)
Arm travel
mm
550
550
550
Distance between spindle nose and table surface
mm
196-656
196-646
196-646
Distance between horizontal nose and table surface
mm
20-480
20-470
20-470
Distance between spindle axis and arm surface
mm
200
200
200
Spindle speed range
r.p.m
12 steps 60-1750 (V)
12 steps 60-1800 (H)
12 steps 60-1750 (V)
12 steps 60-1800 (H)
12 steps 60-1750 (V)
12 steps 60-1800 (H)
T-slots(NO./width/pitch)
mm
3/18/80
3/18/80
3/18/80
Main motor power
Kw
5.5 (H) 4 (V)
5.5 (H) 4 (V)
5.5 (H) 4 (V)
3 to feed Ac servo motor torque
N.m
10
10
10
Overall size
mm
1800×2100×2000
2245×2100×2000
2245×2100×2000
Net weight
kg
2685
2750
2800
Company information:
Tengzhou Xili Machine Tool Co., Ltd. and Shandong Yourong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We have more than 20 years manufacturer experience. Our main products include CNC Machining Center, CNC Gantry Milling Machine,vertical milling machines, horizontal milling machines, universal milling machines, planer type milling machines, ram type milling machines and vertical drilling machines with all 30 categories.
We are manufacturer.All our products passed CE, ISO9001. You can trust our quality and service.
Hope we can built long-term business relationship with you.
