Xl6036 Horizontal Milling Machine
- FOB goods (100)
- $800,000
- Ocean freight + handling (1.0 CBM)
- $820
- US duty (3.5%)
- $28,000
- Section 301 tariff (25.0%)
- $200,000
- Customs fees (MPF/HMF)
- $1,635
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
Xl6036 Horizontal Milling Machine
- FOB goods (100)
- $800,000
- Ocean freight + handling (1.0 CBM)
- $820
- US duty (3.5%)
- $28,000
- Section 301 tariff (25.0%)
- $200,000
- Customs fees (MPF/HMF)
- $1,635
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Materials: Cast iron, steel, electrical components, etc.
- Size: 1800*2100*1870mm
- Color: Custom color
- Exports to: Mainland China, Middle East, Southeast Asia, South Asia, Russia, EU
- Made in: Shandong, China
About this product
- Materials: Cast iron, steel, electrical components, etc.
- Size: 1800*2100*1870mm
- Color: Custom color
- Exports to: Mainland China, Middle East, Southeast Asia, South Asia, Russia, EU
- Made in: Shandong, China
Product details
| Materials | Cast iron, steel, electrical components, etc. |
|---|---|
| Size | 1800*2100*1870mm |
| Color | Custom color |
From the supplier
Products Feature :

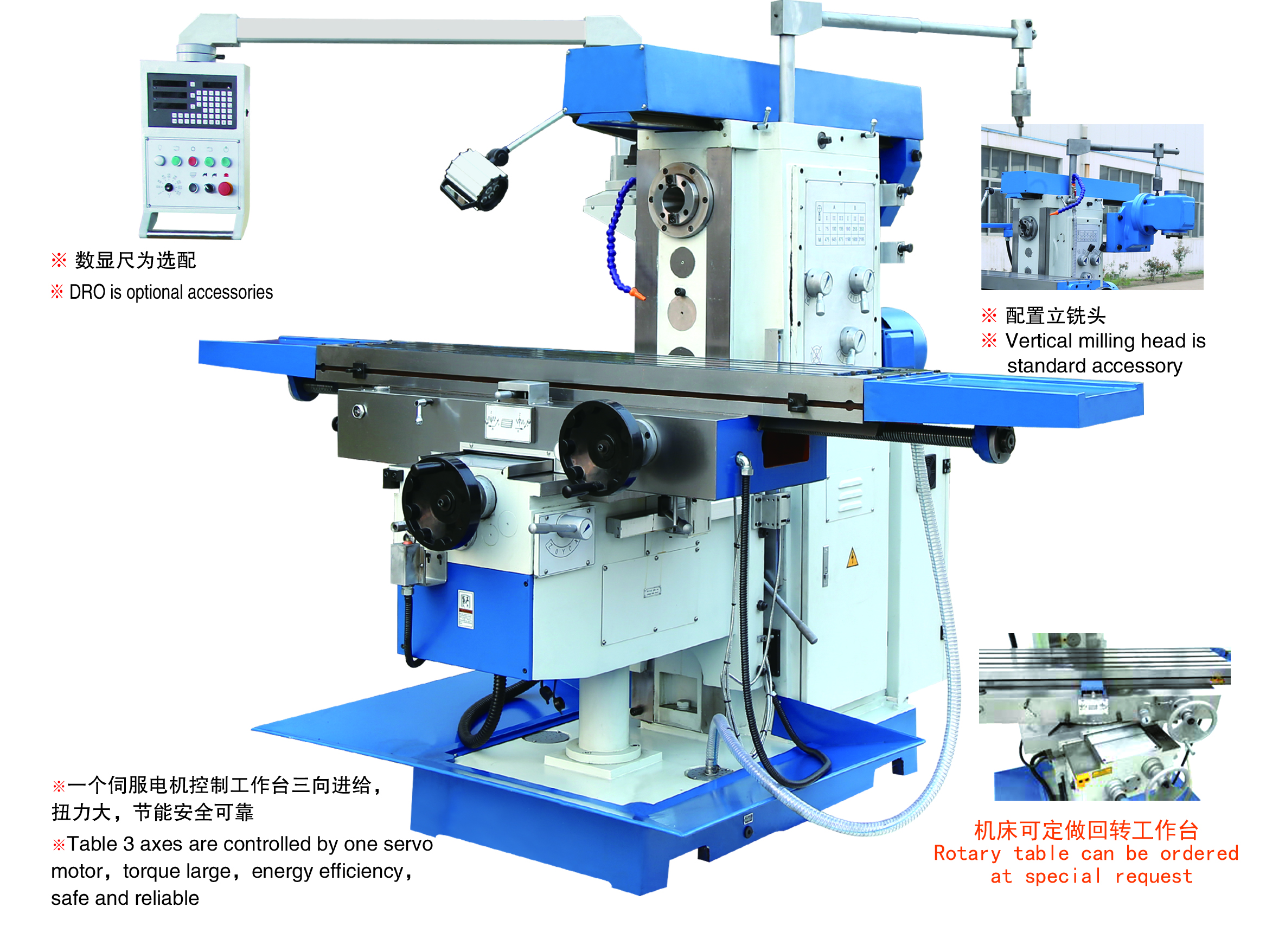

1.X.Y.Z 3-axis auto feed and fast feed,finely graduated feeds in all axis,driven by servo motor ;
2.Suitable for low-speed heavy load process and high-speed precision process;
3.Easy operation ,low trouble rate;
4.Ideal for workshop&training .
Products Specification:
Specification
Unit
XL6036
XL6036C
XL6036CL
Spindle taper
-
7:24 ISO50
Distance between spindle nose and table
mm
20-480
20-470
Distance from spindle axis to arm
mm
175
Spindle speed range
-
12steps 60~1800r.p.m
Table size
mm
1325X360
1600X360
Table travel(X/Y/Z)
mm
750/320/460
1100/320/450
1300/320/450
Table feed(X/Y/Z)
mm/min
30-750 / 20-500 / 15-375
Table rapid speed (X/Y/Z)
mm/min
1200/800/600
T-slots(NO:/width/pitch)
mm
3/18/80
Arm travel
mm
500
Main motor power
kw
5.5
Torque of X/Y/Z axis AC servo motor
N.m
10
Overall size
mm
1800X2100X1870
2245X2100X1870
2520X2100X1870
Net weight
kg
2450
2515
2560
Company information
Tengzhou Xili Machine Tool Co., Ltd. and Shandong Yourong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We have more than 20 years manufacturer experience. Our main products include CNC Machining Center, CNC Gantry Milling Machine,vertical milling machines, horizontal milling machines, universal milling machines, planer type milling machines, ram type milling machines and vertical drilling machines with all 30 categories.
We are manufacturer.All our products passed CE, ISO9001. You can trust our quality and service.
Hope we can built long-term business relationship with you.
About the supplier
Main products: Miller,CNC Machining center,Drilling machine
- ✓Exhibited at 10 of the last 10 Canton Fairs
- ✓Manufacturer
- ✓Founded 1999
- Exhibited at 10 of the last 10 Canton Fairs
- Manufacturer
- Founded 1999
