X6432 Milling machine
TENGZHOU XILI MACHINE TOOL CO.,LTD.
See what’s includedHide breakdown
- FOB goods (100)
- $1,400,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $49,000
- Section 301 tariff (25.0%)
- $350,000
- Customs fees (MPF/HMF)
- $2,385
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $1,400,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $49,000
- Section 301 tariff (25.0%)
- $350,000
- Customs fees (MPF/HMF)
- $2,385
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
X6432 Milling machine
TENGZHOU XILI MACHINE TOOL CO.,LTD.See what’s includedHide breakdown
- FOB goods (100)
- $1,400,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $49,000
- Section 301 tariff (25.0%)
- $350,000
- Customs fees (MPF/HMF)
- $2,385
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $1,400,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $49,000
- Section 301 tariff (25.0%)
- $350,000
- Customs fees (MPF/HMF)
- $2,385
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: Cast iron, steel, electrical components, etc.
- Size: 2294*1770*1780
- Color: Custom color
- Exports to: Mainland China, Middle East, Southeast Asia, South Asia, Russia, EU
- Made in: Shandong, China
About this product
- Materials: Cast iron, steel, electrical components, etc.
- Size: 2294*1770*1780
- Color: Custom color
- Exports to: Mainland China, Middle East, Southeast Asia, South Asia, Russia, EU
- Made in: Shandong, China
Product details
| Materials | Cast iron, steel, electrical components, etc. |
|---|---|
| Size | 2294*1770*1780 |
| Color | Custom color |
Product details
| Materials | Cast iron, steel, electrical components, etc. |
|---|---|
| Size | 2294*1770*1780 |
| Color | Custom color |
From the supplier

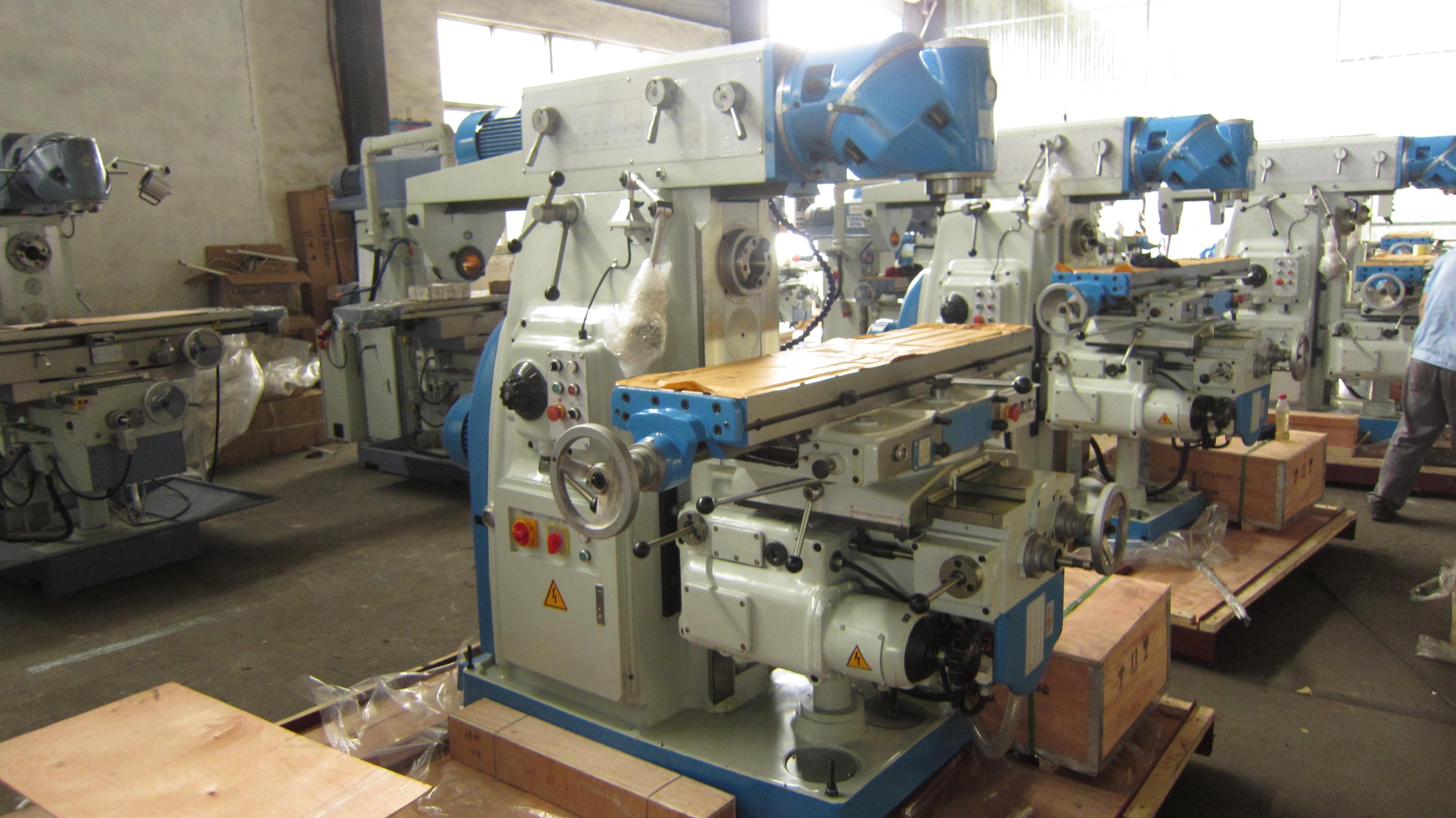

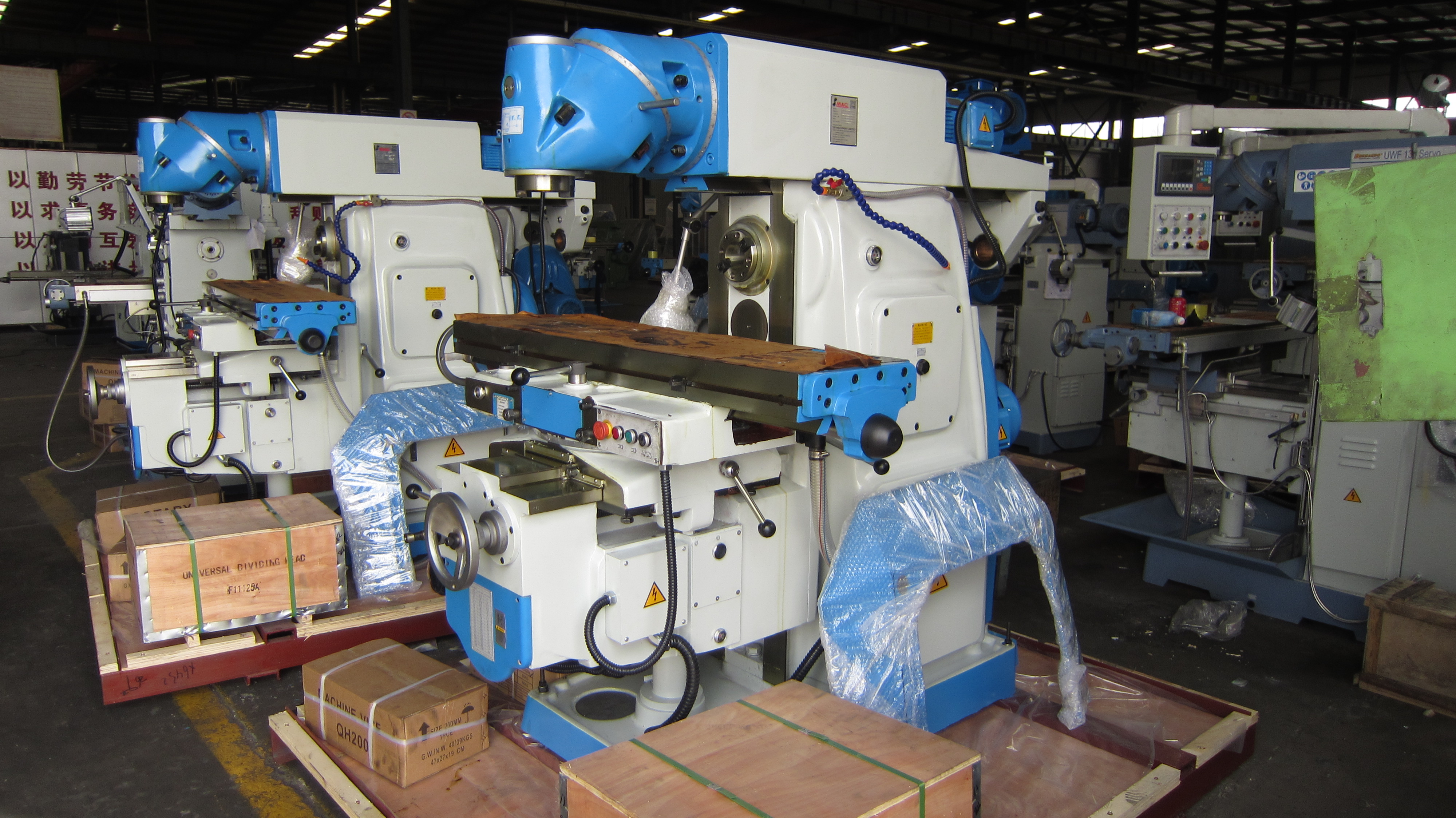

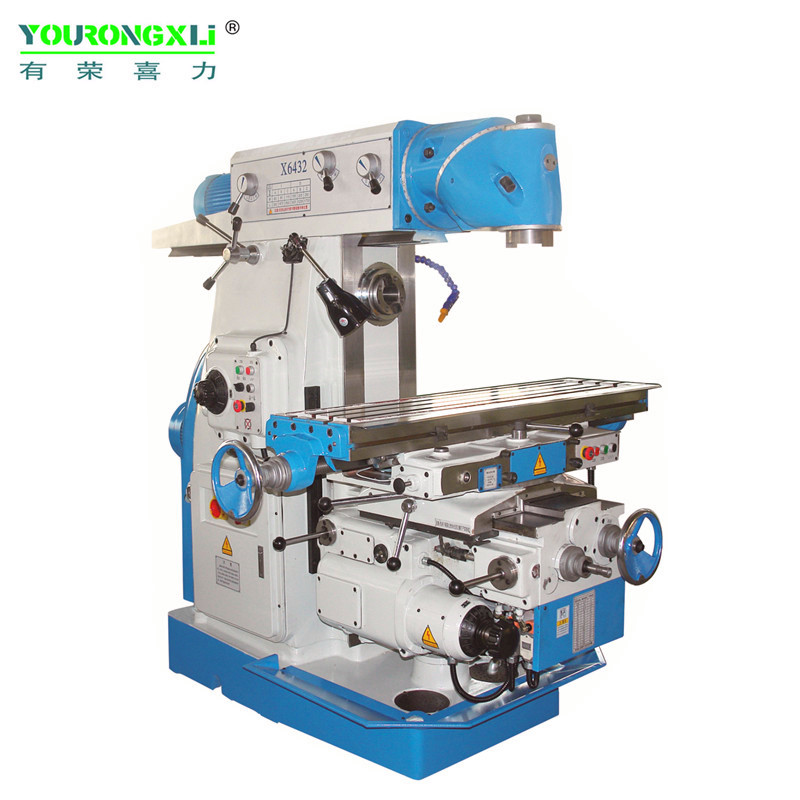

X6432 universal milling machine
Main Features :
1. Universal swivel head can mill any angle surface through front half-sphere
2. Horizontal spindle with large speed range, suitable for low-speed heavy load process and high-speed precision process
3. 3-axis Digital Readout, Rotary table, Protective cover are available
Specification
Specification
unit
X6432
X6432A
Table size
mm
320×1325
320×1600
Max Longitudinal travel(manual/auto)
mm
700～680
900～880
Max transverse travel(manual/auto)
mm
255～240
255～240
Max transverse vertical travel(manual/auto)
mm
320～300
320～300
Max rotary angle
±45°
±45°
T Slots(N*W*D)
3/18/70
Distance of Horizontal spindle axis to table surface：
mm
30～350
30～350
Distance of table center to vertical spindle
mm
190～510
190～510
Distance of table center to vertical ways of column
mm
470～215
470～215
Distance of table center ram
mm
155
155
Speed steps
(V)：12 (H)：18
(V)：12 (H)：18
Spindle speed range
r.p.m
(V:)60～1750(H:)30～1500
Table feed steps
18
18
Table feed range Longitudinal
mm/min
23.5～1180
23.5～1180
Table feed range cross
mm/min
23.5～1180
23.5～1180
Table feed range vertical
mm/min
8～394
8～394
Table rapid moving speed Longitudinal/cross
mm/min
2300
2300
Table rapid moving speed vertical
mm/min
770
770
Power of spindle
Kw
(V:)4(H:)7.5
Spindle of motor range
r.p.m
1440
1440
Feed motor
Kw
1.5
1.5
Feed of motor range
r.p.m
1440
1440
Net Weight
Kg
2900
3000
Overall sizes
mm
2294×1770×1780
2294×2050×1780
Company information:
Tengzhou Xili Machine Tool Co., Ltd. and Shandong Yourong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We have more than 20 years manufacturer experience. Our main products include CNC Machining Center, CNC Gantry Milling Machine,vertical milling machines, horizontal milling machines, universal milling machines, planer type milling machines, ram type milling machines and vertical drilling machines with all 30 categories.
We are manufacturer.All our products passed CE, ISO9001. You can trust our quality and service.
Hope we can built long-term business relationship with you.
From the supplier
X6432 universal milling machine
Main Features :
1. Universal swivel head can mill any angle surface through front half-sphere
2. Horizontal spindle with large speed range, suitable for low-speed heavy load process and high-speed precision process
3. 3-axis Digital Readout, Rotary table, Protective cover are available
Specification
Specification
unit
X6432
X6432A
Table size
mm
320×1325
320×1600
Max Longitudinal travel(manual/auto)
mm
700～680
900～880
Max transverse travel(manual/auto)
mm
255～240
255～240
Max transverse vertical travel(manual/auto)
mm
320～300
320～300
Max rotary angle
±45°
±45°
T Slots(N*W*D)
3/18/70
Distance of Horizontal spindle axis to table surface：
mm
30～350
30～350
Distance of table center to vertical spindle
mm
190～510
190～510
Distance of table center to vertical ways of column
mm
470～215
470～215
Distance of table center ram
mm
155
155
Speed steps
(V)：12 (H)：18
(V)：12 (H)：18
Spindle speed range
r.p.m
(V:)60～1750(H:)30～1500
Table feed steps
18
18
Table feed range Longitudinal
mm/min
23.5～1180
23.5～1180
Table feed range cross
mm/min
23.5～1180
23.5～1180
Table feed range vertical
mm/min
8～394
8～394
Table rapid moving speed Longitudinal/cross
mm/min
2300
2300
Table rapid moving speed vertical
mm/min
770
770
Power of spindle
Kw
(V:)4(H:)7.5
Spindle of motor range
r.p.m
1440
1440
Feed motor
Kw
1.5
1.5
Feed of motor range
r.p.m
1440
1440
Net Weight
Kg
2900
3000
Overall sizes
mm
2294×1770×1780
2294×2050×1780
Company information:
Tengzhou Xili Machine Tool Co., Ltd. and Shandong Yourong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We have more than 20 years manufacturer experience. Our main products include CNC Machining Center, CNC Gantry Milling Machine,vertical milling machines, horizontal milling machines, universal milling machines, planer type milling machines, ram type milling machines and vertical drilling machines with all 30 categories.
We are manufacturer.All our products passed CE, ISO9001. You can trust our quality and service.
Hope we can built long-term business relationship with you.
