Main Features

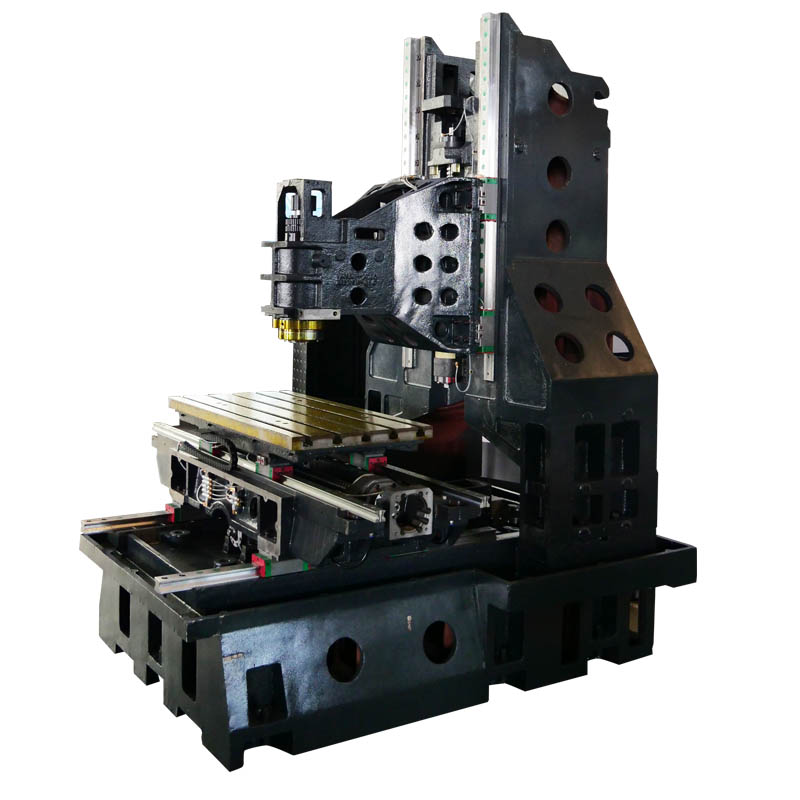

1. High-rigidity design of the bed, servo, spindle, etc., enhance the extreme heavy cutting ability.
2. Good heavy cutting ability in plane milling, boring, drilling and tapping.
3. Add machine tool accessories to increase monitoring and reduce the probability of failure.
4. Regional service mode of sales service personnel, quick response and quick repair.
5. According to statistics, the failure rate of 850P is 50% lower than that of 850L, and the failure rate of 850P per month is less than 1% (number of maintenance machines in the month/number of machines in warranty).
6. On the basis of ensuring the performance of the machine tool, adopt a cost-effective design concept to benefit customers.
7. Process development capability: Have its own process team, which can provide workpiece proofing and realize turnkey projects.

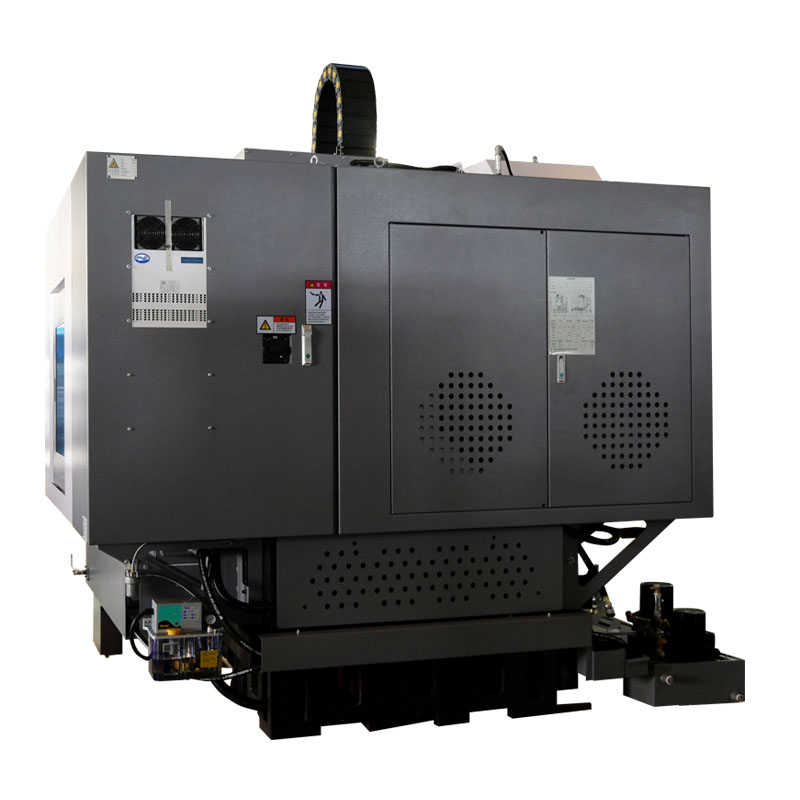

Specifications Specification Unit VMC850P Worktable size mm 1000*500 T-slot size mm 5-18*100 Max. loading of worktable kg 600 3 axis Travel X/Y/Z mm 850/500/550 Distance from column to spindle center mm 582 Distance from table surface to spindle nose mm 100-650 Spindle hole taper BT40 Spindle power kw November 15 Max. spindle speed rpm 8000 Max. feed speed mm/min 12000 Rapid feed speed m/min 48/48/32 Tool magazine capacity T 24 Tool change time S 2.5 Positioning accuracy mm 0.008 Re-positioning accuracy mm 0.004 Machine dimension mm 2460X2355X2860 Machine weight kg 5500 Machine Details
