Cylinder block grinding machine 3M9735B
WMT CNC INDUSTRIAL CO.,LTD
See what’s includedHide breakdown
- FOB goods (100)
- $1,050,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $36,750
- Section 301 tariff (25.0%)
- $262,500
- Customs fees (MPF/HMF)
- $1,947
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $1,050,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $36,750
- Section 301 tariff (25.0%)
- $262,500
- Customs fees (MPF/HMF)
- $1,947
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
Cylinder block grinding machine 3M9735B
WMT CNC INDUSTRIAL CO.,LTDSee what’s includedHide breakdown
- FOB goods (100)
- $1,050,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $36,750
- Section 301 tariff (25.0%)
- $262,500
- Customs fees (MPF/HMF)
- $1,947
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $1,050,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $36,750
- Section 301 tariff (25.0%)
- $262,500
- Customs fees (MPF/HMF)
- $1,947
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: Metal
- Size: 3100X1130X2230mm
- Color: Red and Black
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Anhui, China
About this product
- Materials: Metal
- Size: 3100X1130X2230mm
- Color: Red and Black
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Anhui, China
Product details
| Materials | Metal |
|---|---|
| Size | 3100X1130X2230mm |
| Color | Red and Black |
Product details
| Materials | Metal |
|---|---|
| Size | 3100X1130X2230mm |
| Color | Red and Black |
From the supplier

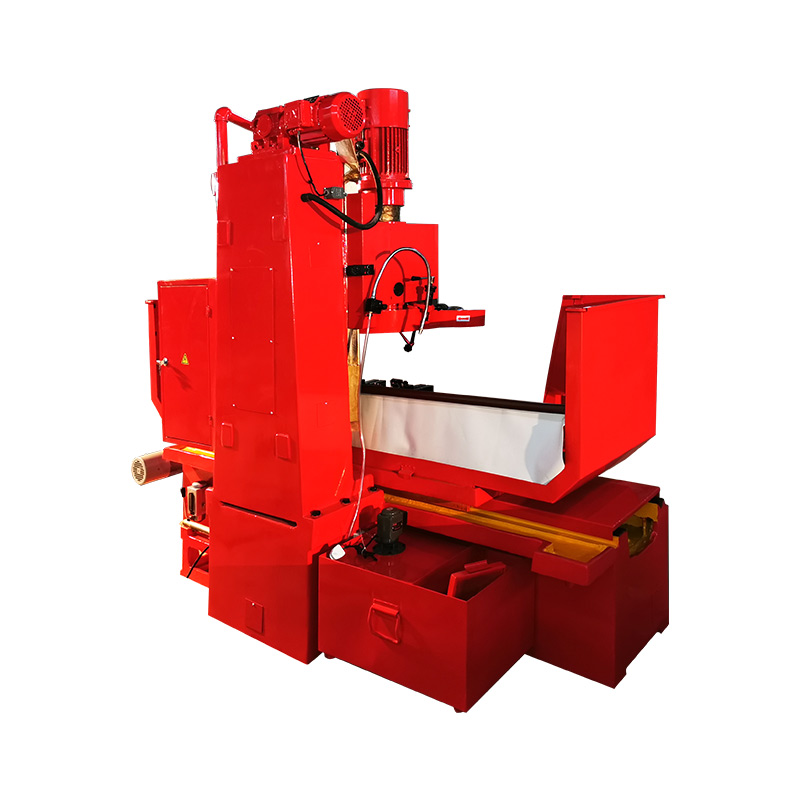

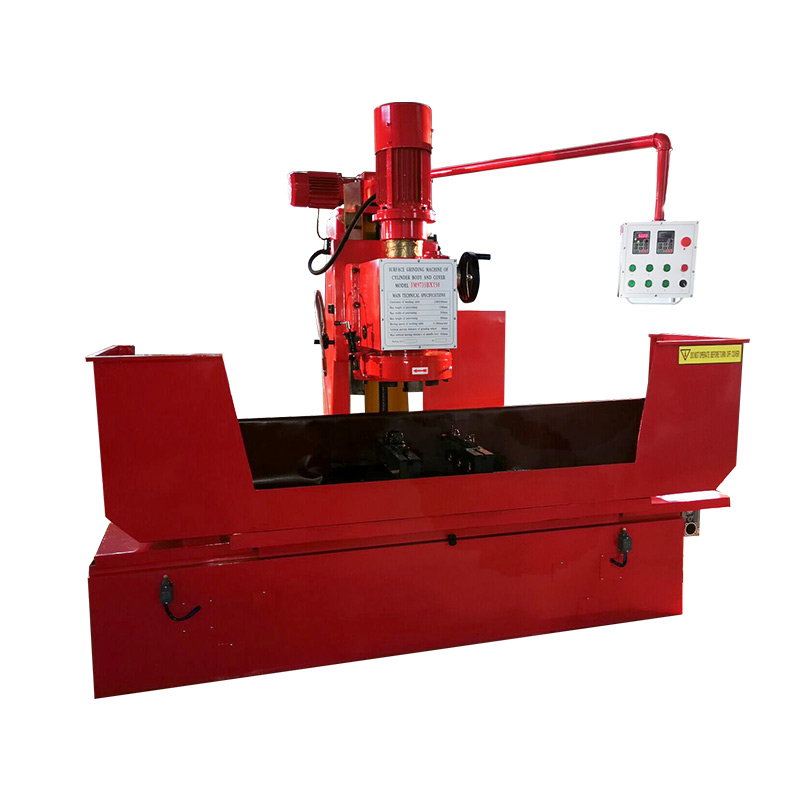

1. Cylinder body and cover surface grinding-milling machine 3M9735B.
2. This machine tool is suitable for grinding and selling the cylinder block and cylinder head plane of various engines.
3. The spindle adopts high-precision bearings to ensure the high-speed rotation accuracy of the spindle.
4. The machine tool guide rail is pasted with the guide rail soft tape to ensure smooth and flexible operation.
5. The worktable adopts stepless speed regulation feed, which is suitable for processing parts of different materials.
Main Specification: Specification 3M9735Bx130 3M9735Bx150 Worktable size 1300x500mm 1500x500mm Max. working length 1300 mm 1500 mm Max. working width 350 mm 350 mm Max. working height 800 mm 800 mm Emery wheel disk moving travel 60 mm 60 mm Worktable moving speed 40-900r/min 40-900r/min Emery wheel disk diameter 360mm 360mm Spindle speed 1400/700rpm 1400/700rpm Main motor power 1.5/2.4kw 1.5/2.4kw Feed motor power 0.75kw 0.75kw Cooling motor power 40w 40w N.W/G.W 2200/2500kg 2300/2600kg Packing dimensions(LxWxH) 3100X1130X2230mm 3100X1130X2230mm Machine Details:
From the supplier
1. Cylinder body and cover surface grinding-milling machine 3M9735B.
2. This machine tool is suitable for grinding and selling the cylinder block and cylinder head plane of various engines.
3. The spindle adopts high-precision bearings to ensure the high-speed rotation accuracy of the spindle.
4. The machine tool guide rail is pasted with the guide rail soft tape to ensure smooth and flexible operation.
5. The worktable adopts stepless speed regulation feed, which is suitable for processing parts of different materials.
Main Specification: Specification 3M9735Bx130 3M9735Bx150 Worktable size 1300x500mm 1500x500mm Max. working length 1300 mm 1500 mm Max. working width 350 mm 350 mm Max. working height 800 mm 800 mm Emery wheel disk moving travel 60 mm 60 mm Worktable moving speed 40-900r/min 40-900r/min Emery wheel disk diameter 360mm 360mm Spindle speed 1400/700rpm 1400/700rpm Main motor power 1.5/2.4kw 1.5/2.4kw Feed motor power 0.75kw 0.75kw Cooling motor power 40w 40w N.W/G.W 2200/2500kg 2300/2600kg Packing dimensions(LxWxH) 3100X1130X2230mm 3100X1130X2230mm Machine Details:
