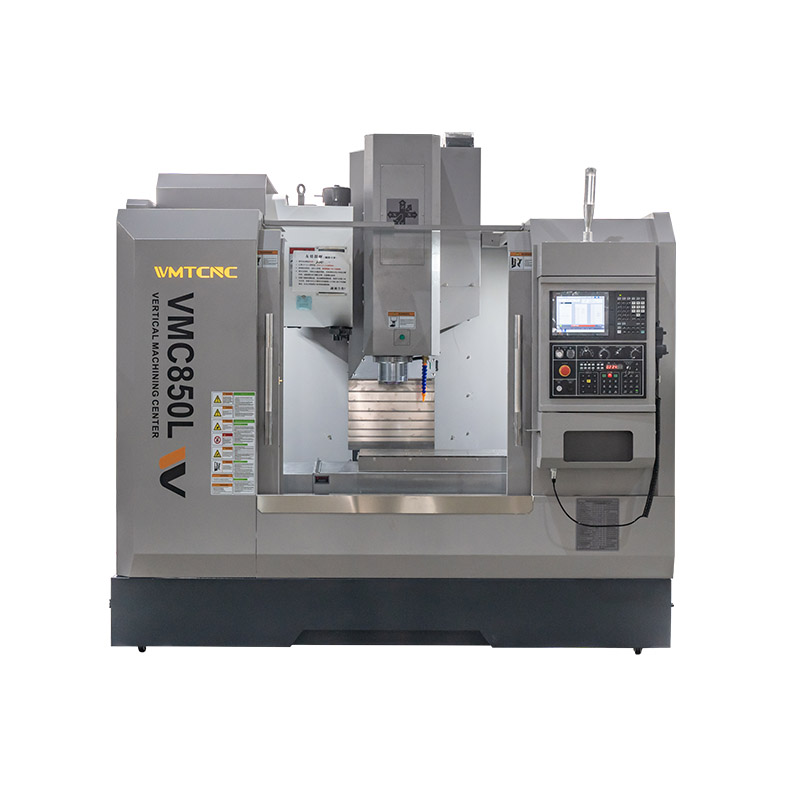

Vertical Machining Center VMC850L
WMT CNC INDUSTRIAL CO.,LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Free quotes from independent agents · supplier checks approx. $5–$100 · 100% refund if not satisfied
Vertical Machining Center VMC850L
WMT CNC INDUSTRIAL CO.,LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Free quotes from independent agents · supplier checks approx. $5–$100 · 100% refund if not satisfied
About this product
- Materials: grey
- Size: 2750×2300×2300mm
- Color: black and grey
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
About this product
- Materials: grey
- Size: 2750×2300×2300mm
- Color: black and grey
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
Product details
| Materials | grey |
|---|---|
| Size | 2750×2300×2300mm |
| Color | black and grey |
Product details
| Materials | grey |
|---|---|
| Size | 2750×2300×2300mm |
| Color | black and grey |
From the supplier
This VMC machine center VMC850L is suitable for mechanical processing and mold making. And it can adapt to the processing requirement from rough machining to finish machining. It can also finish many working procedures like milling, drilling, tapping, boring, etc.
Specification Specification VMC850L Worktable Worktable size (L×W) 1000×500mm T-slots size (N×W×D) 5-18x90mm Travel X/Y/Z axis travel 800/500/500mm Machining range Distance from spindle center to column 550mm Distance from spindle nose to worktable surface 150-650mm Spindle Spindle taper BT40 Spindle power 7.5kw Max. spindle speed 8000rpm Feed Max. feed speed 10m/min Rapid feed speed (X/Y/Z) 24/24/20m/min Ball screw (diameter+lead) X/Y/Z axis ball screw 4016 Tool magazine Tool magazine capacity 24T Max. length of tool 300mm Tool change time 1.5s Positioning accuracy (National standard) Positioning accuracy (X/Y/Z) ±0.005mm Re-positioning accuracy(X/Y/Z) ±0.003mm Machine dimension L×W×H 2750×2300×2300mm Machine weight Max. loading of worktable 500kgDetails
From the supplier
This VMC machine center VMC850L is suitable for mechanical processing and mold making. And it can adapt to the processing requirement from rough machining to finish machining. It can also finish many working procedures like milling, drilling, tapping, boring, etc.
Specification Specification VMC850L Worktable Worktable size (L×W) 1000×500mm T-slots size (N×W×D) 5-18x90mm Travel X/Y/Z axis travel 800/500/500mm Machining range Distance from spindle center to column 550mm Distance from spindle nose to worktable surface 150-650mm Spindle Spindle taper BT40 Spindle power 7.5kw Max. spindle speed 8000rpm Feed Max. feed speed 10m/min Rapid feed speed (X/Y/Z) 24/24/20m/min Ball screw (diameter+lead) X/Y/Z axis ball screw 4016 Tool magazine Tool magazine capacity 24T Max. length of tool 300mm Tool change time 1.5s Positioning accuracy (National standard) Positioning accuracy (X/Y/Z) ±0.005mm Re-positioning accuracy(X/Y/Z) ±0.003mm Machine dimension L×W×H 2750×2300×2300mm Machine weight Max. loading of worktable 500kgDetails
