Main Features

1. This machine is designed with vertical frame layout.
2. The column is mounted on the machine body, spindle box slides on the column forming Z axis motion, saddle slides on the machine body forming Y axis motion, worktable slides on the saddle forming X axis motion.
3. Three axes are all linear guideway with higher feed speed and higher precision.
4. We use high quality gray cast iron for machine body, column, saddle, worktable, spindle box with resin sand technology and 2 times aging treatment to eliminate the internal residual stress of material.
5. These parts are all optimized by SolidWorks software, which improves much the rigidity and stability not only for these parts but the machine.
6. Also it will restrain the deformation and vibration caused by cutting.
7. The important parts are all imported from world famous brand to make the machine with higher stability and durability.
8. This machine can achieve the process of milling, drilling, reaming, boring, reaming, tapping and usually be used for, mining, automotive, mold, instrumentation and other mechanical processing industries.
9. It can be used for all kinds of high precision and much process models.
10. It is good for small and medium-sized, multi-variety production, also it can put into automatic production line.

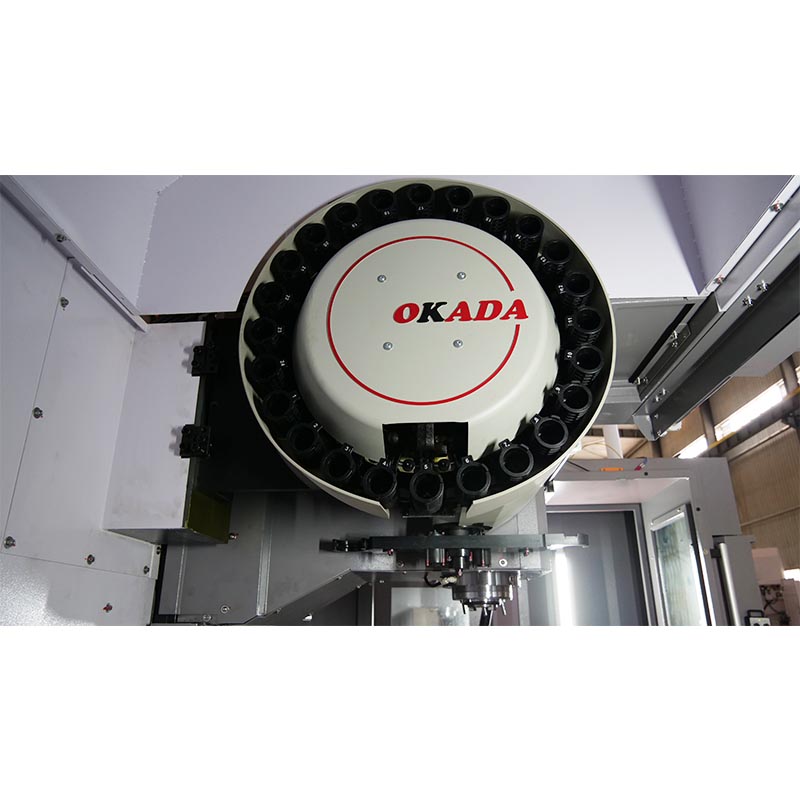

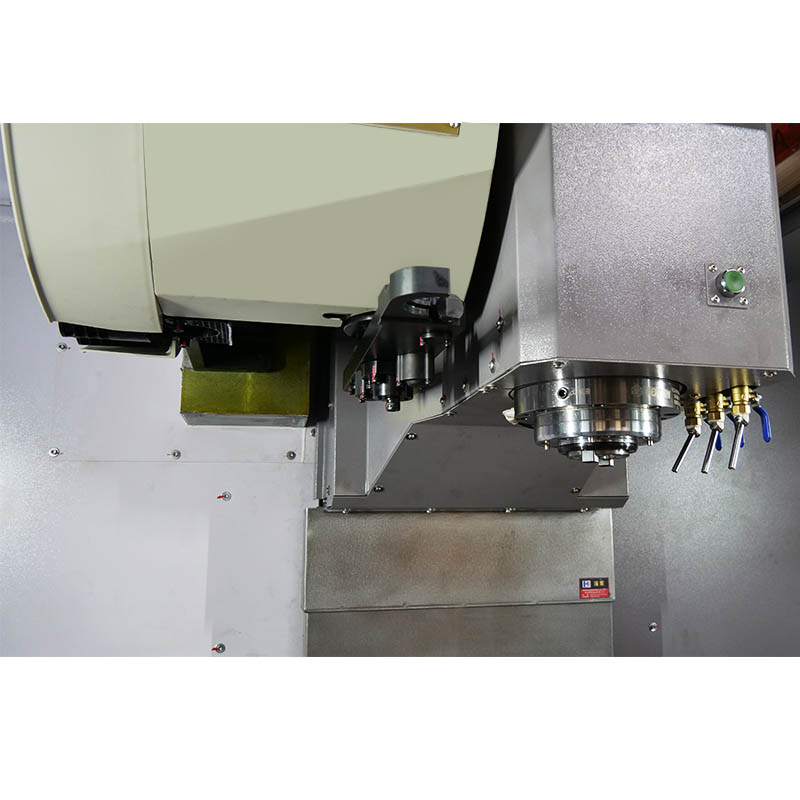

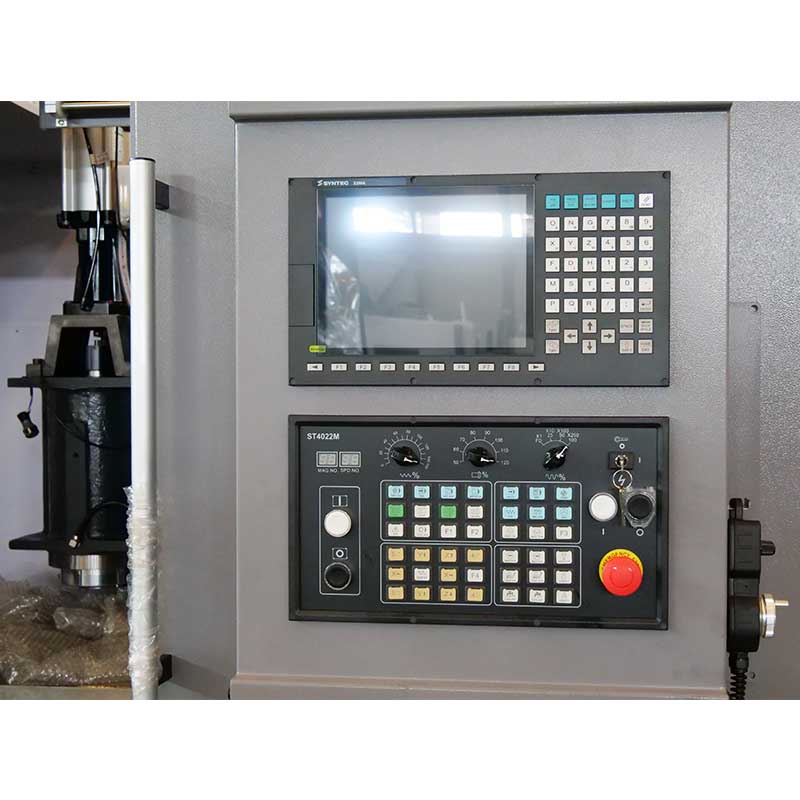

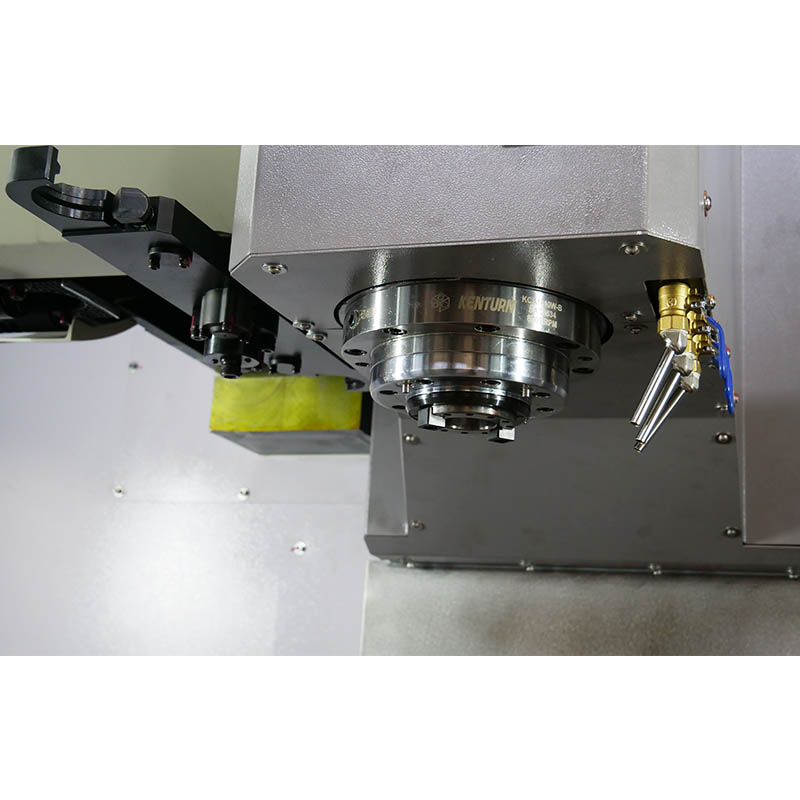

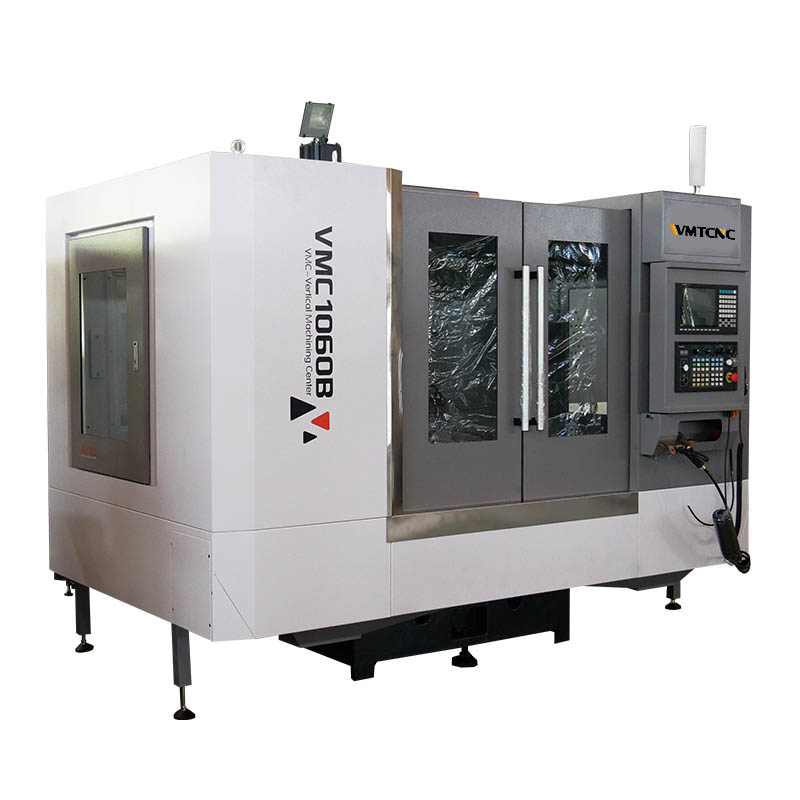

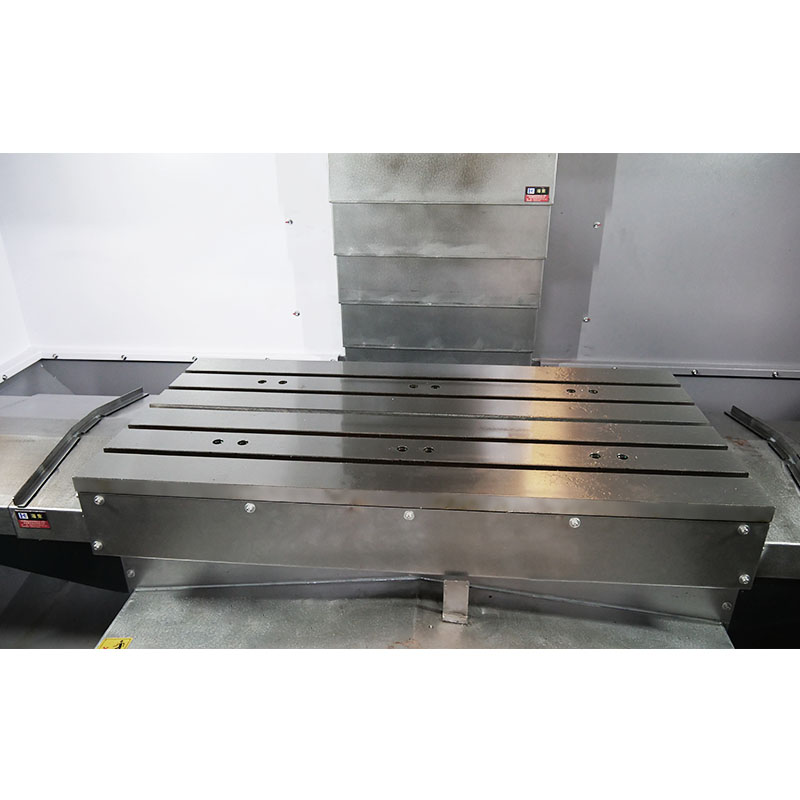

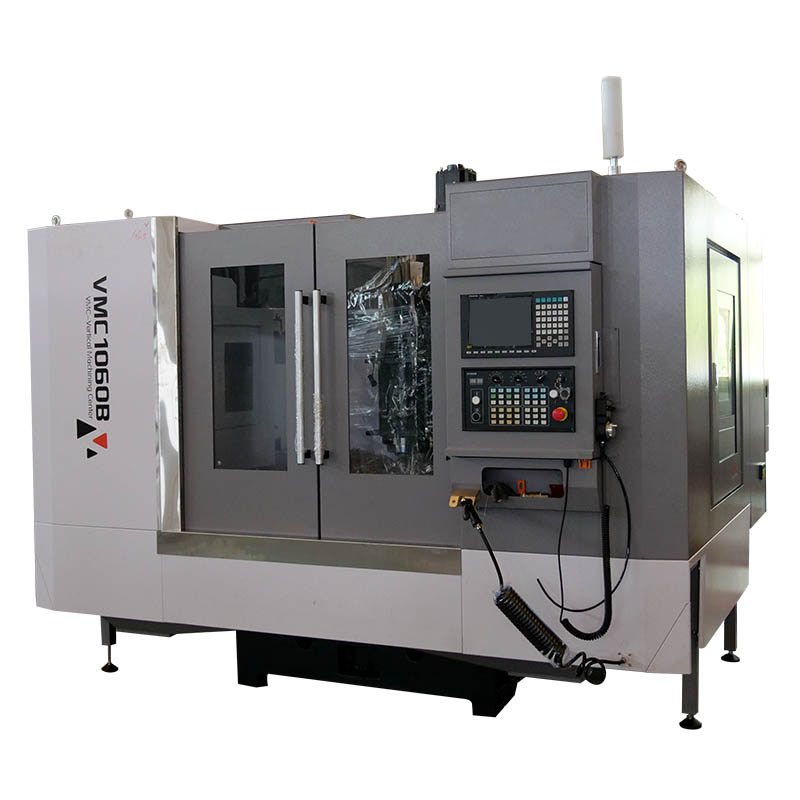

Specifications Specifications Unit VMC1060B Worktable size mm 1200x600 T-slot size mm 5-18x100 Max. load bearing of worktable kg 800 3 axis Travel X/Y/Z mm 1000/620/630 Distance from column to spindle center mm 667 Distance from table surface to spindle nose mm 110-740 Spindle hole taper BT40 Spindle power kw 11/15 Max. spindle speed rpm 8000 Max. feed speed mm/min 12000 Rapid feed speed m/min 36/36/32 Tool magazine capacity T 24 Tool change time S 2.5 Positioning accuracy mm 0.008 Re-positioning accuracy mm 0.004 Machine dimension mm 2856×2820×2820 Machine weight kg 6500 Machine Details
