Main Features

1. The major machine components apply finest gray cast iron which are of good shock resistance. All the casts have been done with aging treatment twice, in order to eliminate the internal residual stresses. So that, our machine can work with high rigidity and good shock resistance for heavy cutting and intermittent cutting.
2. Key components are designed with CAD software, in this way, the optimal structure can be analyzed out by computer, which ensure the good intensity, rigidity and thermal stability.
3. The joint face of components are manually polished well, which guarantees the effective contacting area.

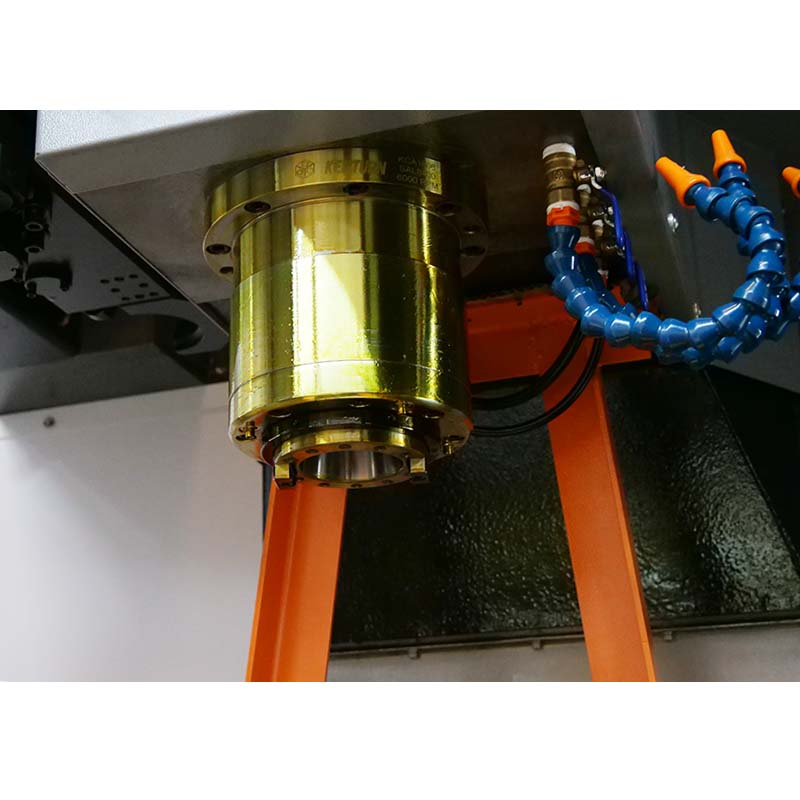

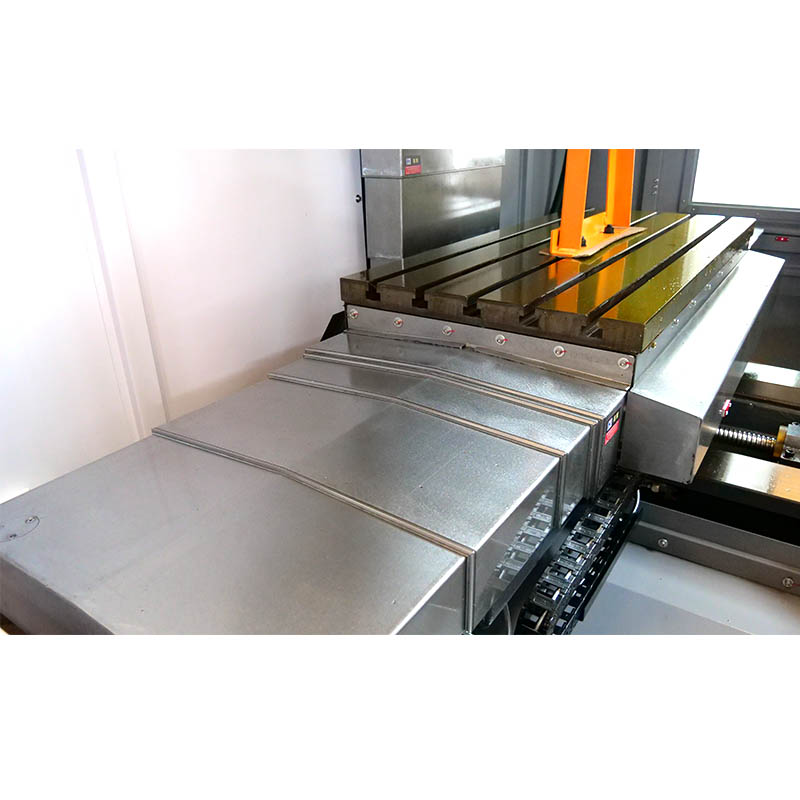

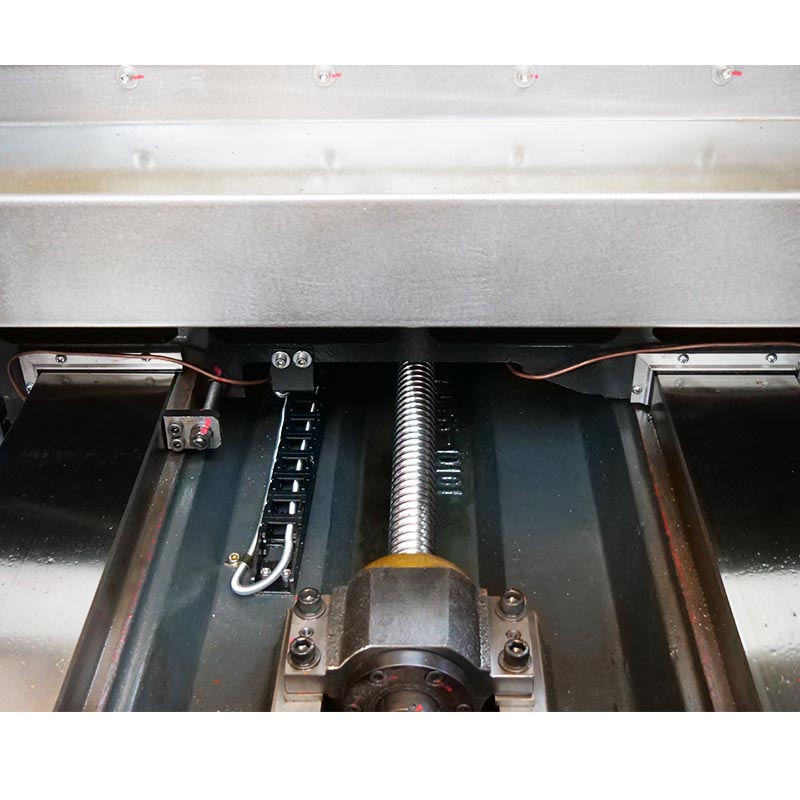

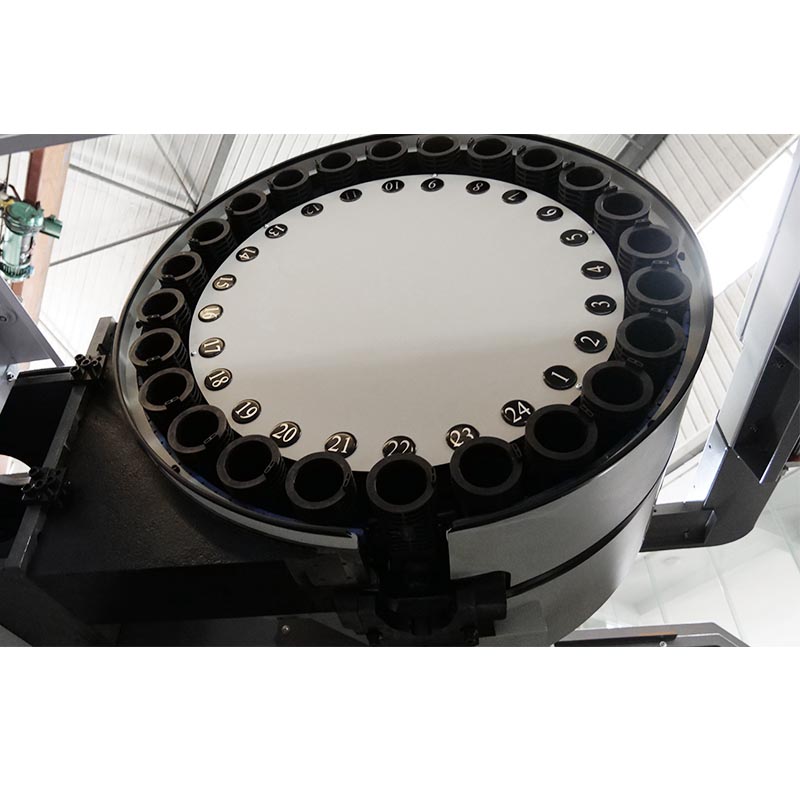

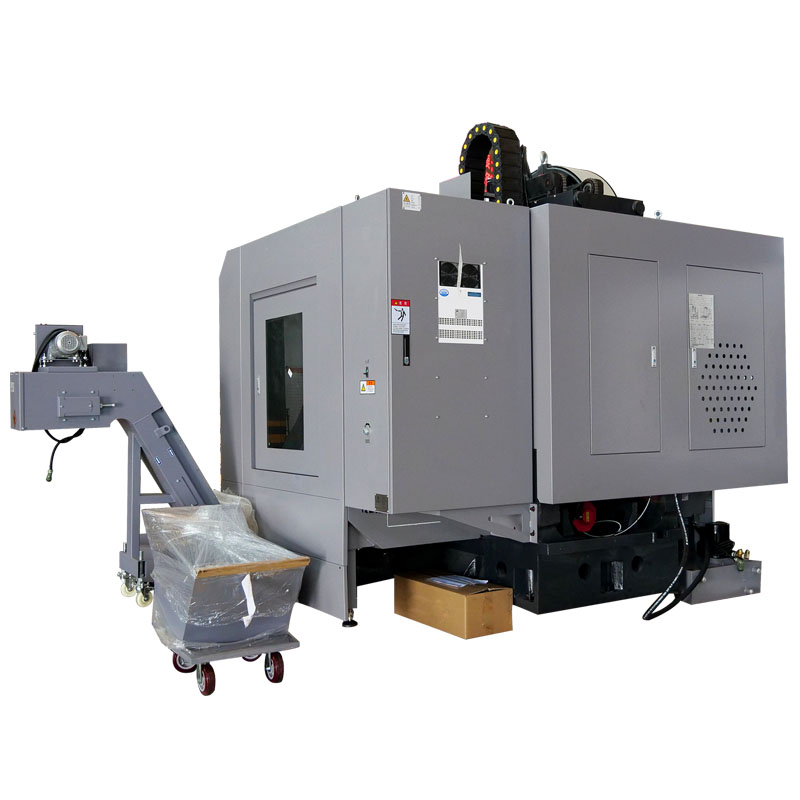

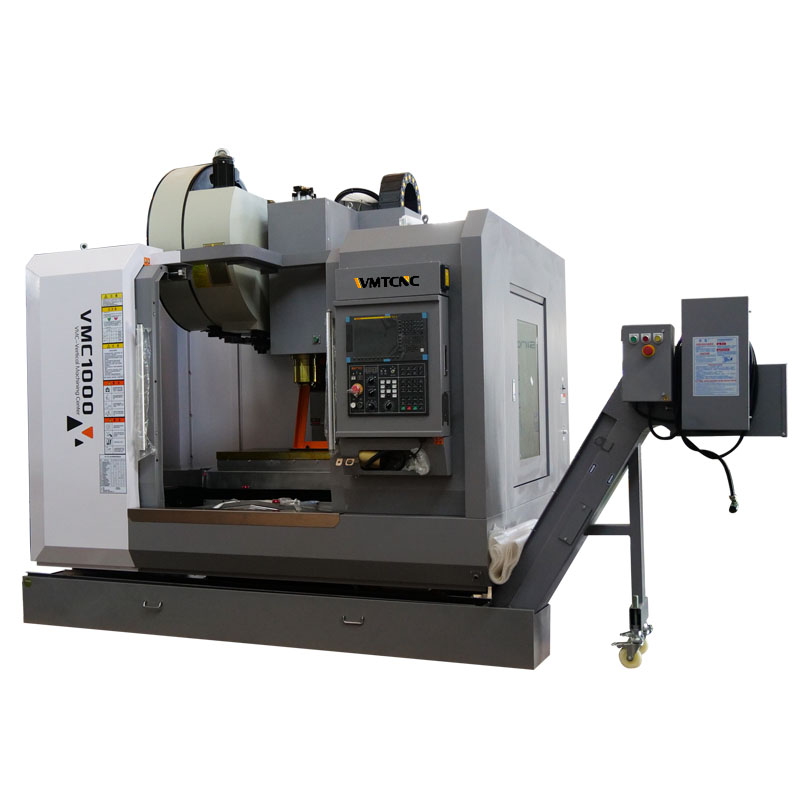

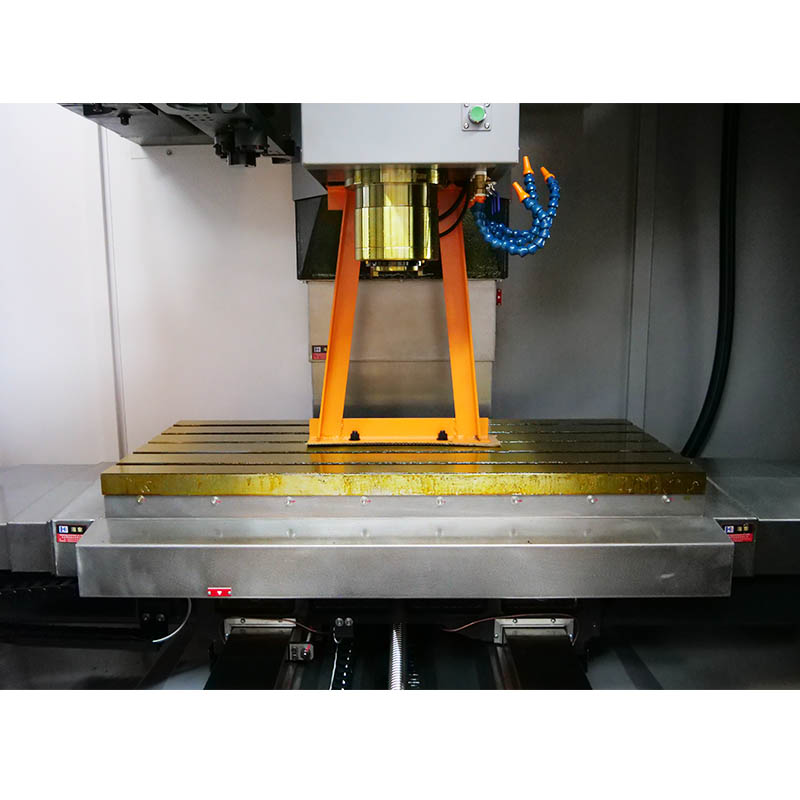

Specifications Specification Unit VMC1000 Worktable size mm 1200x550 T-slot size mm 5-18x100 Max. load bearing of worktable kg 800 3 axis Travel X/Y/Z mm 1000/570/650 Distance from column to spindle center mm 610 Distance from table surface to spindle nose mm 100-750 Spindle hole taper BT40 Spindle power kw 11/15 Max. spindle speed rpm 8000 Max. feed speed mm/min 10000 Rapid feed speed m/min 15/15/12 Tool magazine capacity T 24 Tool change time S 2.5 Positioning accuracy mm 0.01 Re-positioning accuracy mm 0.005 Machine dimension mm 2700×2510×3000 Machine weight kg 6500 Machine Details
