Vertical Machining Center HMC650L
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
Vertical Machining Center HMC650L
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Materials: metal
- Color: black and grey
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
About this product
- Materials: metal
- Color: black and grey
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
Product details
| Materials | metal |
|---|---|
| Color | black and grey |
From the supplier

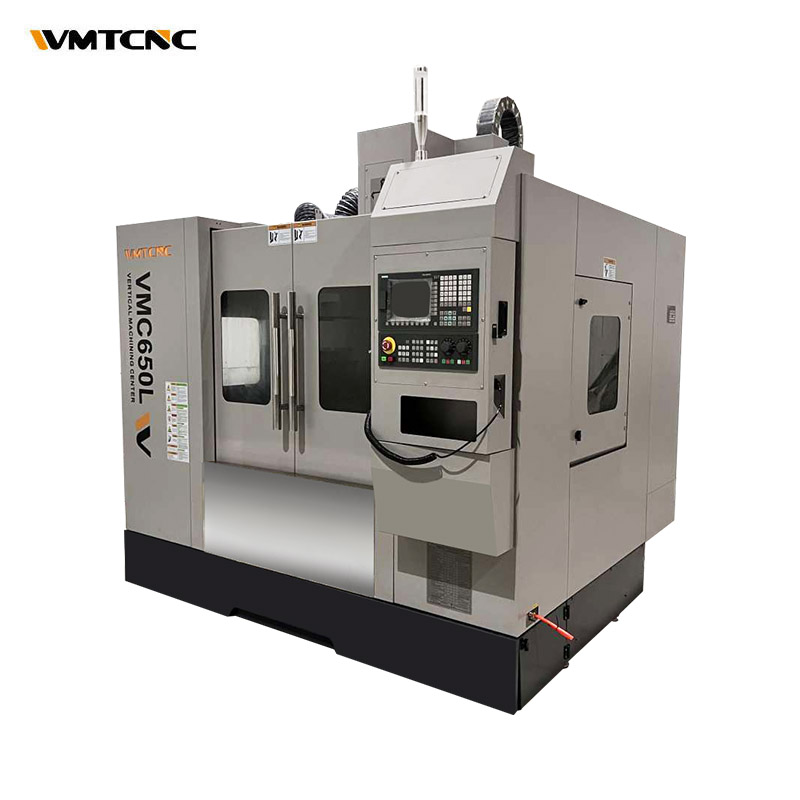

As one new product of independent design & development, inexpensive cnc milling VMC650L is a multi-purpose machine that could mill surfaces & drill holes. Spindle adopts imported frequency converters, which could fulfill variable speed control & constant linear speed cutting functions. Machining body adopts ultrasonic frequency hardening treatment. both X-axis & Z-axis adopts step/servo motor, which could process feeding motion by directly connecting shaft coupling & ball screws.
With high power, pleasant rigidity, high precision & storage, high price-quality ratio, and long cycle life, the machine is widely applied to instruments, meters, light industries, electronics, home appliances, medical instruments, aeronautics & astronautics and etc. industries, it is one small-medium precision & complex machine for processing various materials (especially non-ferrous metals & stainless steel) as well as ideal equipment for large automation production.

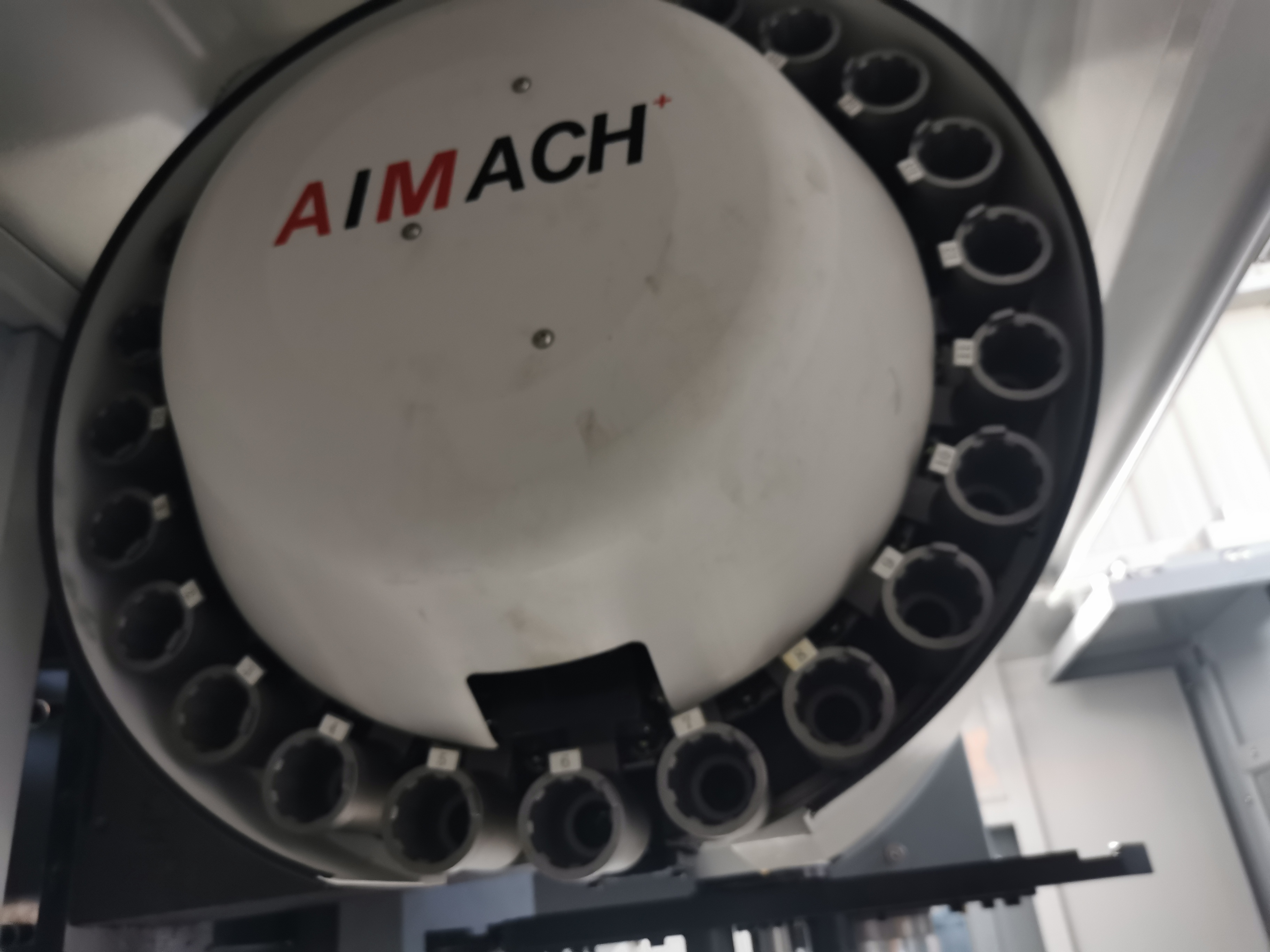

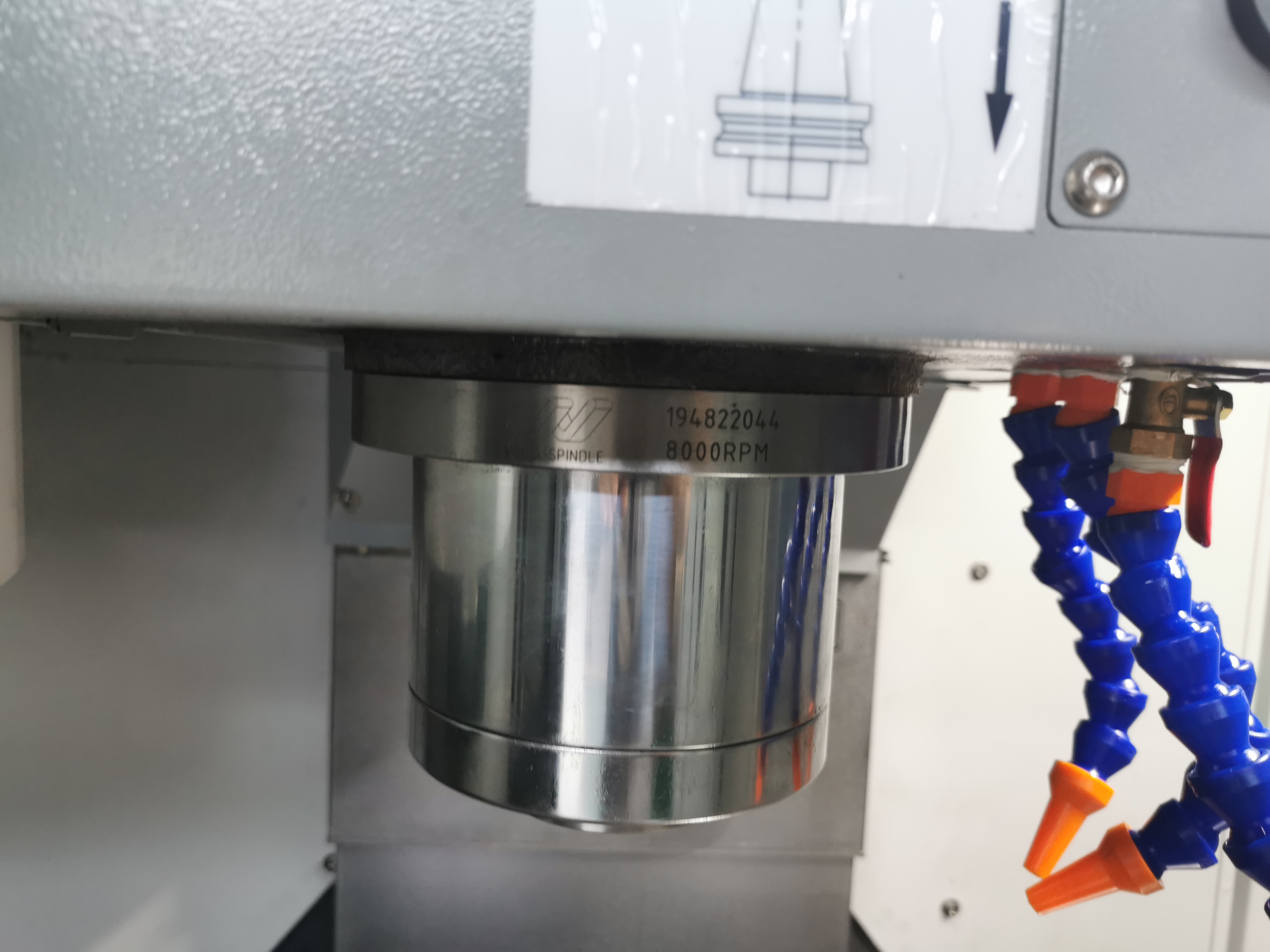

Specification Specification VMC650L Worktable Worktable size (L×W) 900×400mm T-slots size (N×W×D) 5-16x75mm Travel X/Y/Z axis travel 650/450/500mm Machining range Distance from spindle center to column 500mm Distance from spindle nose to worktable surface 120-620mm Spindle Spindle taper BT40 Spindle power 5.5/7.5kw Max. spindle speed 8000rpm Feed Max. feed speed 10m/min Rapid feed speed (X/Y/Z) 20/20/12m/min Ball screw (diameter+lead) X/Y/Z axis ball screw 4012 Tool magazine Tool magazine capacity 16T Max. length of tool 250mm Tool change time 7s Positioning accuracy (National standard) Positioning accuracy (X/Y/Z) ±0.007mm Re-positioning accuracy(X/Y/Z) ±0.005mm Machine dimension L×W×H 2300×2200×2400mm Machine weight Max. loading of worktable 400kg Machine weight 3800kgDetails
About the supplier
Main products: Lathe,Miller,Press brake,Grinding machine,CNC Machining center,Drilling machine,Planing Machine/Slotting Machine,Drilling and Milling Machine,Milling Lathe
- ✓Exhibited at 10 of the last 10 Canton Fairs
- ✓Foreign Trade Company
- ✓Founded 2014
- ✓1 certificate on file
- Exhibited at 10 of the last 10 Canton Fairs
- Foreign Trade Company
- Founded 2014
- 1 certificate on file
